Epiphone SG Special Electric Guitar Instruction Manual

1. Pendahuluan

This manual provides essential information for the setup, operation, and maintenance of your Epiphone SG Special Electric Guitar. Please read this manual thoroughly to ensure proper use and to maximize the lifespan of your instrument.

The Epiphone SG Special features a classic SG body shape, equipped with two open-coil humbucker pickups, a LockTone Tune-O-Matic bridge, and a stopbar tailpiece. These components are designed to deliver reliable performance and sustain.

2. Produk Lebihview

Fitur Utama:

• Tubuh: Laminated Alder/Maple construction, providing a balanced tonal foundation.
• Leher: Bolt-on Maple neck for stability and bright tone.
• Papan fret: Rosewood fretboard with dot inlays, offering a smooth playing surface.
• Penjemputan: Two open-coil humbuckers deliver a powerful and versatile sound.
• Menjembatani: LockTone Tune-O-Matic bridge and Stopbar tailpiece for enhanced sustain and simplified string changes.

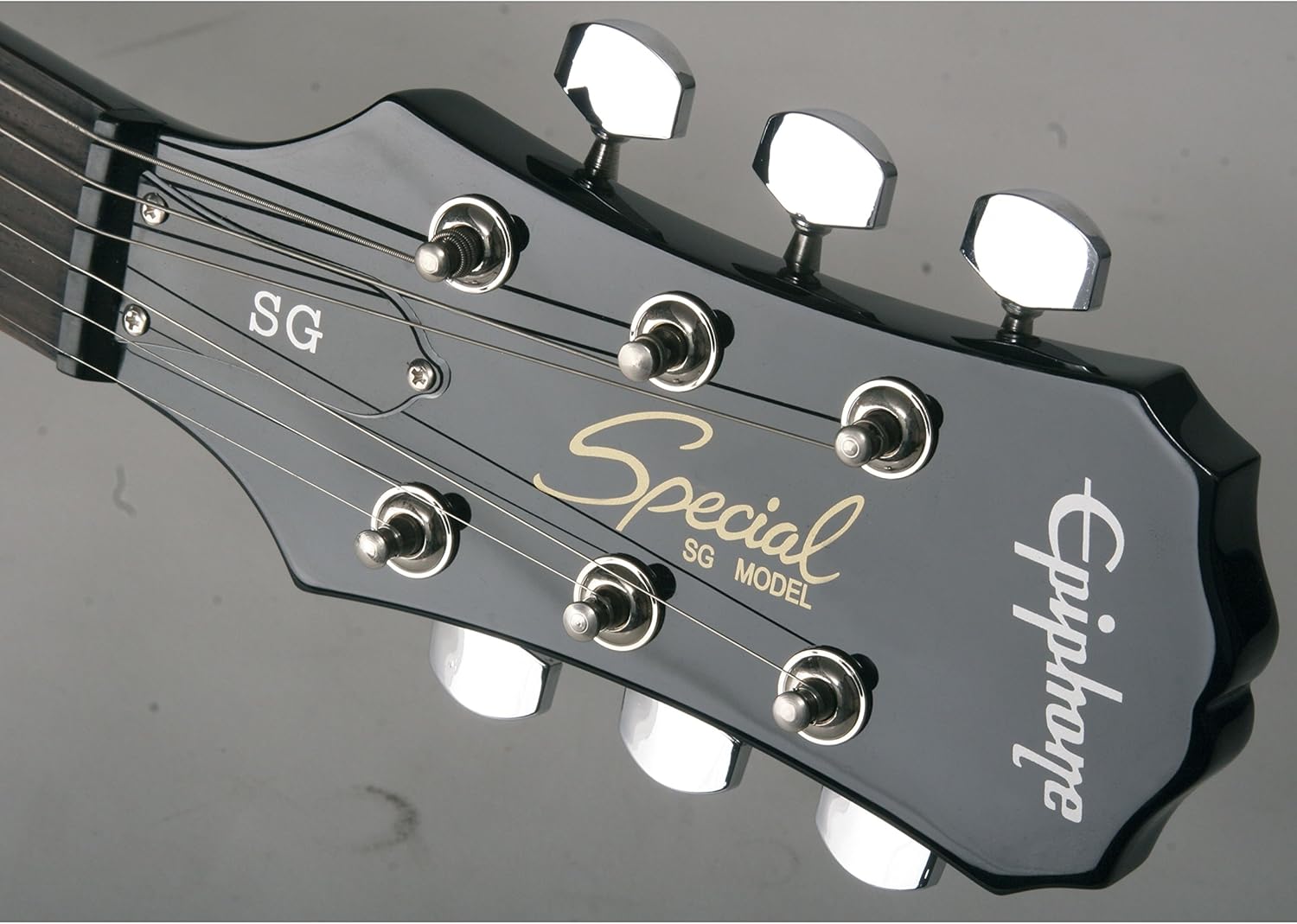

• Kepala stok: 14-degree angled headstock design to increase string pressure at the nut, improving sustain and tuning stability.
• Perangkat keras: Durable chrome hardware throughout.

Komponen Internal:

• Double-Waxed Pickups: Epiphone pickups undergo a double vacuum waxing process to ensure optimal performance and minimize microphonic feedback.
• Jack Keluaran: Features an improved contact shape and heavy-duty spring steel for increased reliability and consistent signal transmission.
• Sakelar sakelar: All-metal, USA-designed switches provide reliable contact and extended operational life.
• Potensiometer: One-inch diameter potentiometers are used for precise control, longer life, and reliable service.
• Quick-Connectors: Wiring harnesses utilize quick-connectors for enhanced reliability and ease of service.

3. Pengaturan

3.1 Membuka Kotak dan Inspeksi

1. Carefully remove the guitar from its packaging.
2. Inspect the guitar for any signs of damage that may have occurred during shipping.
3. Ensure all accessories (if included) are present.

3.2 Penyetelan Awal

1. Attach a guitar strap if desired.
2. Hubungkan gitar Anda ke sebuah amplifier menggunakan kabel instrumen standar.
3. Use an electronic tuner to tune the guitar to standard pitch (E-A-D-G-B-e, low to high). Gently stretch new strings to help them settle and hold tune.

3.3 Action and Intonation

The guitar is factory-set for optimal playability. However, environmental changes can affect the neck and string action. If adjustments are needed, it is recommended to consult a qualified guitar technician. The Tune-O-Matic bridge allows for individual string height and intonation adjustments.

4. Mengoperasikan Gitar

4.1 Kontrol

• Sakelar Pemilih Pickup: This three-position toggle switch allows you to select different pickup configurations:
  • Posisi Atas: Neck pickup only (rhythm).
  • Posisi Tengah: Both neck and bridge pickups.
  • Posisi Bawah: Bridge pickup only (lead).
• Tombol Volume: Two volume knobs control the output level of each pickup independently.
• Tombol Pengatur Nada: Two tone knobs adjust the treble response of each pickup independently. Turning clockwise increases treble, counter-clockwise decreases treble.

4.2 Menghubungkan ke Amppengangkat

Insert a standard 1/4-inch instrument cable into the output jack located on the lower bout of the guitar. Connect the other end of the cable to your amplifier's input. Ensure the ampVolume amplifier diatur ke level rendah sebelum dinyalakan untuk menghindari suara keras yang tiba-tiba.

5. Pemeliharaan

5.1 Pembersihan

• Wipe down the guitar body, neck, and strings with a soft, lint-free cloth after each use to remove sweat and grime.
• For a deeper clean, use guitar-specific cleaning and polishing products. Avoid abrasive cleaners.
• Clean the fretboard periodically with a lemon oil or fretboard conditioner to prevent drying and cracking.

5.2 Penggantian Senar

Strings should be replaced regularly, depending on playing frequency and string type. The LockTone Tune-O-Matic bridge and stopbar tailpiece facilitate easier string changes. Replace one string at a time to maintain neck tension.

5.3 Penyimpanan

Store your guitar in a stable environment, away from extreme temperature changes and humidity fluctuations. A guitar case or gig bag is recommended for protection.

6. Penyelesaian masalah

• Tidak ada suara: Check cable connections, amplifier power, and guitar volume/tone settings. Ensure the pickup selector is not in an 'off' position (though this model typically has no 'off' position).
• Senar Berdengung: This can be caused by low action, uneven frets, or a warped neck. Minor adjustments can be made to the bridge, but significant issues may require professional setup.
• Stabilitas Penyetelan yang Buruk: New strings require stretching. Ensure strings are properly wound around tuning posts. Worn tuning machines or nut slots can also contribute to instability and may require replacement or lubrication.
• Sinyal Lemah atau Terputus-putus: Inspect the instrument cable for damage. Check the output jack for loose connections.

For issues not covered here, or if you are uncomfortable performing adjustments, please contact a qualified guitar technician.

7. Spesifikasi

8. Garansi dan Dukungan

The Epiphone SG Special Electric Guitar comes with a limited lifetime warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official Epiphone weblokasi.

For technical support, service, or parts inquiries, please contact Epiphone customer service through their official website or authorized service centers. Always provide your model number (ESGSEBCH1) and serial number when seeking support.
