1. Pendahuluan
This manual provides essential information for the proper installation, operation, and maintenance of the MRC 207S Single Row Ball Bearing. Adhering to these instructions will help ensure optimal performance and extend the service life of the bearing. Please read this manual thoroughly before installation or use.
2. Produk Lebihview
The MRC 207S is a high-quality single row ball bearing designed for various industrial applications. It is a deep-groove ball bearing, known for its versatility and ability to handle both radial and axial loads. This bearing is manufactured by MRC, a reputable brand in power transmission products.

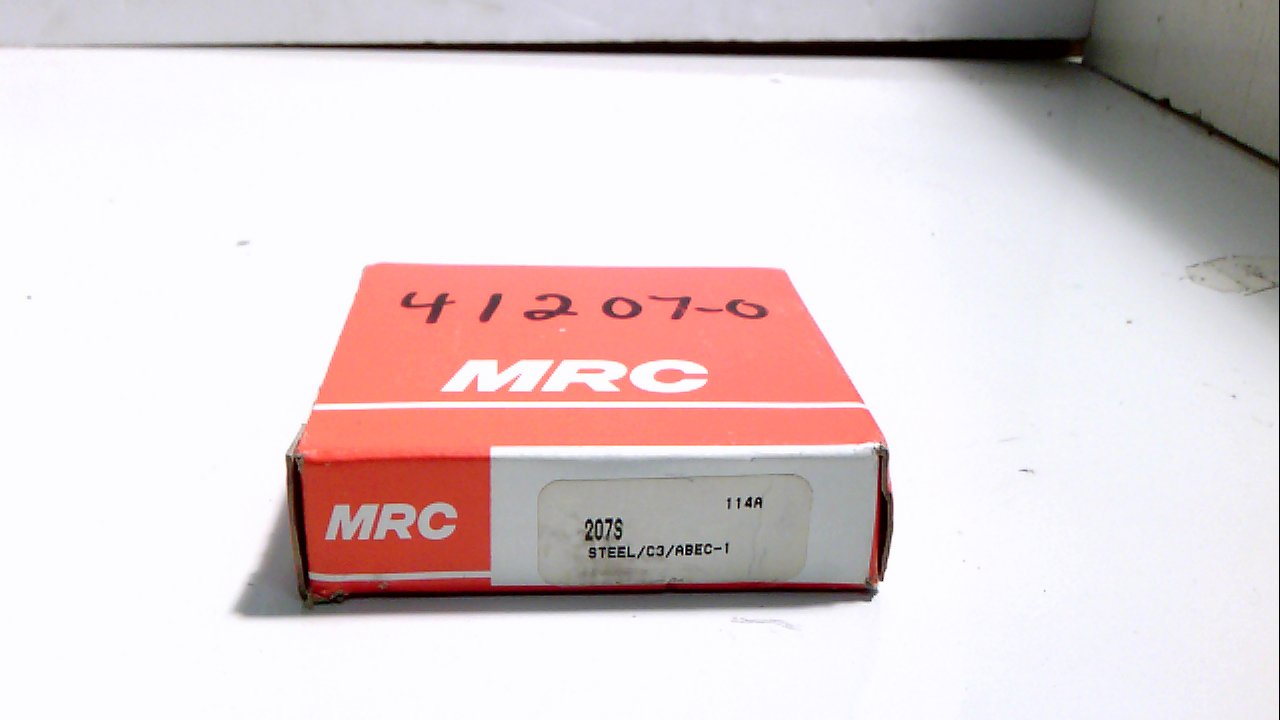

Figure 2.1: The MRC 207S Single Row Ball Bearing, shown in its protective packaging.
3. Pengaturan dan Instalasi
Proper installation is critical for the performance and longevity of the bearing. Follow these guidelines:
- Kebersihan: Ensure the work area, shaft, and housing are thoroughly clean and free from dust, dirt, or metal particles. Contaminants can significantly reduce bearing life.
- Inspeksi: Before installation, inspect the bearing for any signs of damage during transit. Do not remove the bearing from its protective packaging until immediately before installation.
- Metode Pemasangan:
- Press Fit: For interference fits, use a hydraulic press or a suitable mounting tool to apply even pressure to the ring being fitted (inner ring for shaft, outer ring for housing). Never strike the bearing directly with a hammer.
- Pemanas: For larger bearings or tighter fits, the inner ring can be heated to expand it. Use an induction heater or an oil bath. Do not exceed 120°C (248°F).
- Penyelarasan: Pastikan bantalan sejajar dengan benar dengan poros dan rumah bantalan untuk mencegah keausan dini dan getaran.
- Pelumasan: Apply a thin layer of compatible grease (as specified in the Maintenance section) to the shaft and housing seats before mounting to aid installation and provide initial lubrication.

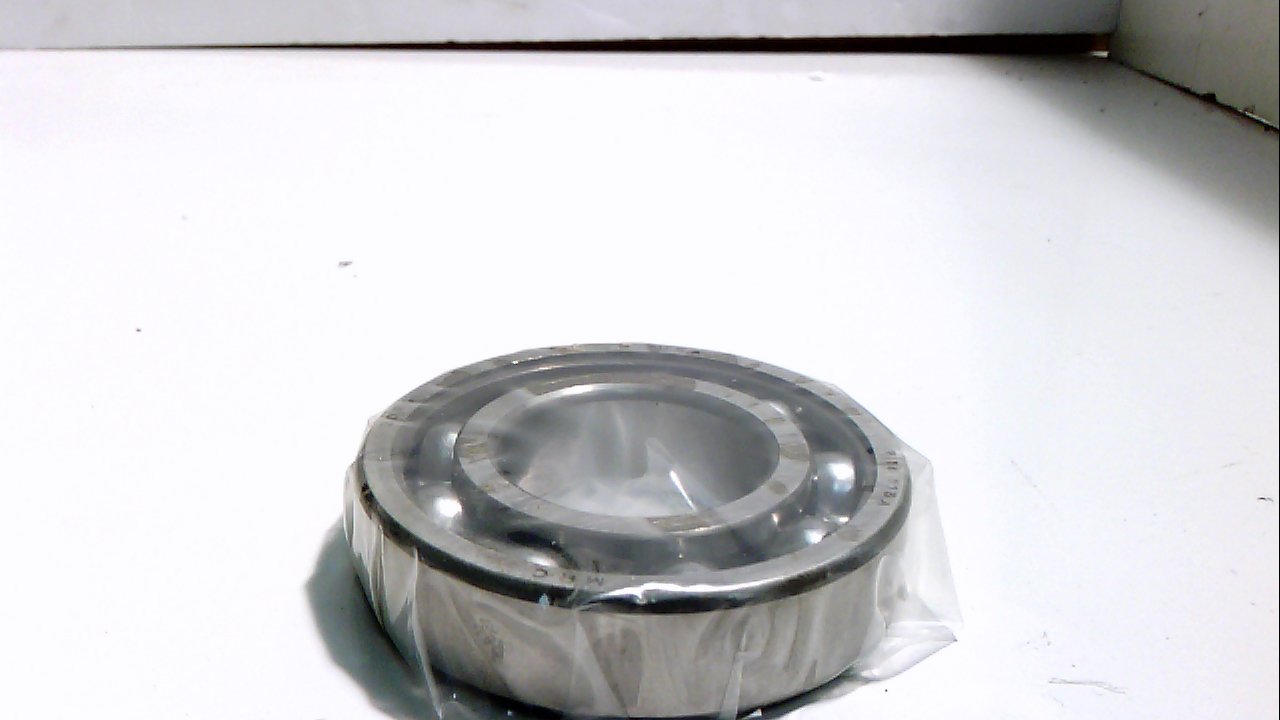

Gambar 3.1: Atas view of the MRC 207S bearing, showing the inner and outer rings with ball elements.
4. Prinsip Operasional
The MRC 207S is a deep-groove ball bearing, designed to support rotating shafts and reduce friction between moving parts. Its operating principle relies on hardened steel balls rolling between two raceways (inner and outer rings). This design allows for efficient transmission of motion while minimizing energy loss due to friction.
- Kapasitas Beban: This bearing is primarily designed for radial loads but can also accommodate moderate axial loads in both directions.
- Kecepatan: The permissible operating speed depends on factors such as lubrication, load, and operating temperature. Refer to technical specifications for detailed limits.
- Suhu: Standard bearings operate effectively within a specific temperature range. Extreme temperatures can affect lubricant performance and bearing material properties.
Gambar 4.1: Sudut view of the MRC 207S bearing, highlighting its deep-groove design.
5. Pemeliharaan
Regular maintenance is essential for maximizing bearing life and preventing unexpected failures.
- Pelumasan: The MRC 207S bearing requires lubrication with grease. The frequency and amount of relubrication depend on operating conditions (speed, load, temperature, environment). Consult a lubrication guide for specific recommendations. Over-lubrication can be as detrimental as under-lubrication.
- Inspeksi: Periodically inspect the bearing for signs of wear, corrosion, or damage. Listen for unusual noises (grinding, squealing) and check for excessive heat or vibration.
- Pembersihan: If the bearing operates in a dusty or contaminated environment, ensure seals are intact and consider periodic cleaning if accessible, followed by relubrication.
- Penyimpanan: Store spare bearings in their original packaging in a dry, temperature-controlled environment to prevent corrosion and contamination.
6. Penyelesaian masalah
Bagian ini menguraikan masalah umum dan solusi potensial untuk bantalan MRC 207S.
| Gejala | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Kebisingan/Getaran Berlebihan | Improper installation, insufficient lubrication, contamination, bearing damage, misalignment. | Check installation, verify lubrication, inspect for contaminants, replace damaged bearing, ensure proper alignment. |
| Terlalu panas | Over-lubrication, under-lubrication, excessive load, improper fit, misalignment, seal friction. | Adjust lubrication, reduce load if possible, check fit tolerances, correct alignment, inspect seals. |
| Kegagalan Prematur | Contamination, improper installation, inadequate lubrication, overloading, corrosion. | Ensure clean environment, follow installation guidelines, maintain proper lubrication, operate within load limits, protect from moisture. |
7. Spesifikasi
Key technical specifications for the MRC 207S Single Row Ball Bearing:
- Merek: MRC
- Nomor Bantalan: 207S MRC
- Jenis Bantalan: Bantalan Bola (Alur Dalam)
- Pelumas yang Kompatibel: Gemuk
- Berat Barang: 2.08 pon (sekitar 0.94 kg)
- Dimensi Produk (P x L x T): 6 x 6 x 2 inci (sekitar 15.24 x 15.24 x 5.08 cm)
- UPC-nya: 097741003865
- ASIN: B00367ATYG
8. Garansi dan Dukungan
For specific warranty information, technical support, or inquiries regarding the MRC 207S Single Row Ball Bearing, please contact the manufacturer, MRC, or your authorized distributor. Retain your purchase receipt for warranty claims.
Manufacturer: MRC
