Pioneer Elite VSX-50 7.1-Channel 3-D Ready A/V Receiver User Manual

1. Pendahuluan

This manual provides detailed instructions for the proper installation, operation, and maintenance of your Pioneer Elite VSX-50 7.1-Channel 3-D Ready A/V Receiver. Please read this manual thoroughly before using the receiver to ensure optimal performance and safety. Keep this manual for future reference.

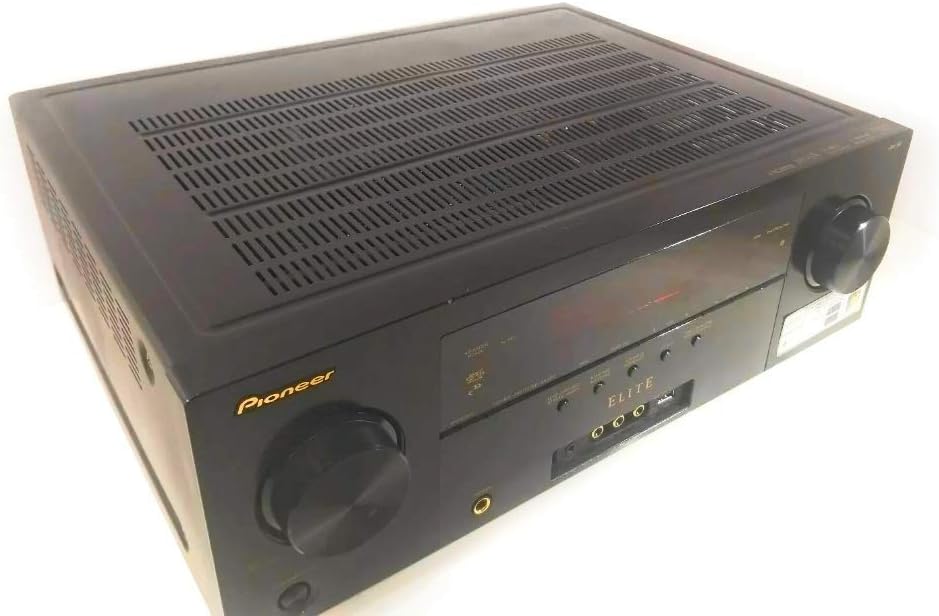

Gambar 1: Depan dan samping view of the Pioneer Elite VSX-50 A/V Receiver. This image shows the main unit with its front panel controls and ventilation grilles.

2. Informasi Keselamatan

Selalu perhatikan tindakan pencegahan keselamatan berikut untuk mencegah sengatan listrik, kebakaran, atau kerusakan pada unit.

• Sumber Daya: Hubungkan unit hanya ke stopkontak AC vol.tage ditentukan pada panel belakang.
• Ventilasi: Ensure adequate ventilation. Do not block ventilation openings. Allow sufficient space around the unit for heat dissipation.
• Air dan Kelembaban: Jangan biarkan unit terkena hujan atau kelembapan. Jangan letakkan benda berisi cairan, seperti vas, di atas unit.
• Benda Asing: Jangan memasukkan benda asing apa pun ke dalam lubang unit.
• Pelayanan: Jangan mencoba memperbaiki unit sendiri. Serahkan semua perbaikan kepada teknisi yang berkualifikasi.
• Kabel: Ensure all cables are securely connected and not damaged. Avoid placing heavy objects on power cords.

3. Pengaturan

3.1 Membongkar

Keluarkan receiver dari kemasannya dengan hati-hati. Simpan bahan kemasan untuk pengangkutan atau penyimpanan di masa mendatang. Pastikan semua aksesori ada.

3.2 Menghubungkan Speaker

The VSX-50 supports a 7.1 channel surround sound configuration. Connect your speakers to the corresponding terminals on the rear panel. Ensure correct polarity (+ to + and - to -) for all speakers.

1. Speaker Depan (Kiri/Kanan): Connect to the FRONT L/R terminals.
2. Pembicara Tengah: Connect to the CENTER terminal.
3. Speaker Surround (Kiri/Kanan): Connect to the SURROUND L/R terminals.
4. Surround Back Speakers (L/R): Connect to the SURROUND BACK L/R terminals.
5. subwoofer: Connect to the SUBWOOFER PRE OUT terminal using an RCA cable.

Figure 2: Rear panel of the Pioneer Elite VSX-50 A/V Receiver, showing various input/output ports including speaker terminals, HDMI, and other audio/video connections.

3.3 Menghubungkan Perangkat Audio/Video

The receiver features 5 HDMI inputs and various other analog and digital audio/video inputs.

• Perangkat HDMI: Connect your Blu-ray player, game console, or cable box to any of the HDMI IN ports. Connect the HDMI OUT port to your TV or projector.
• Audio Digital Optik/Koaksial: Untuk perangkat tanpa HDMI, gunakan input audio digital OPTICAL atau COAXIAL.
• Audio/Video Analog: Use RCA cables for older devices.
• Koneksi jaringan: Connect an Ethernet cable to the LAN port for network features (if applicable).

3.4 Sambungan Daya

After all audio/video and speaker connections are made, plug the power cord into a wall outlet. Do not connect the power cord until all other connections are complete.

3.5 Pengaturan Awal dan Kalibrasi

Upon first power-on, follow the on-screen setup guide (if available) to configure basic settings. Utilize the included MCACC (Multi-Channel Acoustic Calibration System) microphone to automatically optimize speaker levels, distances, and equalization for your listening environment. Refer to the on-screen menu for detailed MCACC instructions.

4. Petunjuk Pengoperasian

4.1 Kontrol Dasar

The receiver can be controlled using the front panel buttons and knobs, or the supplied remote control.

• Kekuatan: Press the POWER button on the front panel or remote to turn the unit on/off.
• Volume: Use the MASTER VOLUME knob on the front panel or VOLUME +/- buttons on the remote.
• Pemilih Masukan: Rotate the INPUT SELECTOR knob or use the INPUT buttons on the remote to switch between connected devices.

4.2 Pilihan Masukan

Select the appropriate input source corresponding to the device you wish to use (e.g., "BD/DVD" for a Blu-ray player connected to the BD/DVD HDMI input).

4.3 Sound Modes and Surround Sound

The VSX-50 offers various sound modes to enhance your listening experience. Use the "SURROUND" or "MODE" buttons on the remote to cycle through options like Dolby Digital, DTS, Stereo, and various Pioneer-specific sound fields. Refer to the on-screen display for current mode information.

4.4 Konektivitas Bluetooth

The receiver features built-in Bluetooth for wireless audio streaming from compatible devices such as smartphones and tablets.

1. Aktifkan Bluetooth di perangkat seluler Anda.
2. Select the Bluetooth input on the receiver.
3. Pencarian untuk "Pioneer VSX-50" (or similar) in your device's Bluetooth settings and pair.
4. Once paired, you can stream audio wirelessly to the receiver.

5. Pemeliharaan

5.1 Pembersihan

To clean the unit, wipe the exterior surfaces with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. For stubborn stains, lightly dampBilas kain dengan air dan deterjen ringan, lalu segera lap hingga kering.

5.2 Penyimpanan

If storing the unit for an extended period, disconnect the power cord and store it in a cool, dry place, preferably in its original packaging.

6. Penyelesaian masalah

Sebelum menghubungi dukungan pelanggan, silakan lihat masalah dan solusi umum berikut ini.

7. Spesifikasi

8. Garansi & Dukungan

8.1 Informasi Garansi

This Pioneer Elite VSX-50 A/V Receiver comes with a Garansi 2 tahun from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or acts of nature.

8.2 Dukungan Pelanggan

For technical assistance, service, or further inquiries, please contact Pioneer customer support. Visit the official Pioneer webKunjungi situs ini untuk informasi kontak terbaru, termasuk nomor telepon dan sumber daya dukungan online.

Note: Product specifications and appearance are subject to change without notice for improvement.
