Perkenalan
Thank you for choosing the De'Longhi BCO320 Combi Espresso and Coffee Machine. This appliance is designed to provide both espresso and filter coffee, along with a manual cappuccino system, offering versatility for your coffee preparation needs. Please read this manual carefully before using the appliance to ensure proper operation, maintenance, and safety.
This machine operates on 220-240 Volts and is equipped with a European cord. It is not intended for use in regions with 110-120 Volt electrical systems without a suitable voltage konverter.
Petunjuk Keselamatan
- Always ensure the appliance is connected to a properly grounded electrical outlet with the correct voltage (220-240V).
- Jangan merendam alat, kabel, atau steker di dalam air atau cairan lainnya.
- Cabut mesin dari stopkontak saat tidak digunakan dan sebelum dibersihkan.
- Keep hands and cords away from hot surfaces and steam. The steam wand and hot plates can cause burns.
- Jangan mengoperasikan peralatan jika kabel atau steker rusak, atau jika peralatan mengalami malfungsi atau rusak dalam bentuk apa pun.
- Peralatan ini hanya untuk penggunaan di rumah. Jangan gunakan di luar ruangan.
- Jauhkan alat ini dari jangkauan anak-anak.
- Never open the boiler cap when the machine is operating or under pressure.
Produk Selesaiview
The De'Longhi BCO320 is a versatile coffee machine combining an espresso maker and a filter coffee maker. It features a manual cappuccino system for frothing milk and a practical cup storage area.
Gambar 1: De'Longhi BCO320 Combi Coffee Maker. This image shows the overall design of the black De'Longhi BCO320 machine, featuring both the espresso and filter coffee sections, control buttons, and carafes.
Komponen Utama:
- Bagian Espresso: Includes a portafilter, espresso boiler, and steam wand.
- Bagian Kopi Filter: Features a water reservoir, filter basket, and glass carafe.
- Panel Kontrol: Separate ON/OFF switches for espresso and filter coffee, and a steam knob.
- Cup Storage: A heated area on top of the machine to keep cups warm.
- Baki Tetes: Dapat dilepas untuk memudahkan pembersihan.
Pengaturan
Pembersihan Awal:
- Lepas semua bahan kemasan dan label dari alat.
- Wash the glass carafes, filter baskets, portafilter, and drip tray with warm soapy water. Rinse thoroughly and dry.
- Bersihkan bagian luar mesin dengan adamp kain.
First Use (Priming the Machine):
- Fill the espresso water tank and the filter coffee water tank with fresh, cold water up to the MAX level.
- Place the empty glass carafes on their respective heating plates.
- Colokkan mesin ke stopkontak listrik 220-240V.
- Turn on both the espresso and filter coffee sections. Allow water to run through both systems without coffee to rinse internal components. Repeat this process 2-3 times.
- Turn off the machine and discard the water. The machine is now ready for use.
Gambar 2: Complete Frontal Loading System. This image illustrates the convenience of refilling coffee grounds and water for the drip coffee side from the front, eliminating the need to move the machine.
Petunjuk Pengoperasian
Menyiapkan Espresso:
- Fill the espresso water tank with fresh, cold water.
- Add ground espresso coffee to the portafilter. Tamp enteng.
- Attach the portafilter to the espresso group head.
- Place one or two espresso cups on the drip tray or on the cup warmer.
- Turn on the espresso section. Wait for the indicator light to show the machine is ready.
- Press the coffee button to start brewing. Stop brewing once the desired amount of espresso is dispensed.
Gambar 3: Espresso Coffee Preparation. This image shows the espresso side of the machine in use, with two cups of freshly brewed espresso, highlighting its capability to prepare multiple servings.
Preparing Cappuccino (Manual System):
- Brew your espresso as described above.
- Isi teko dengan susu dingin (sebaiknya susu skim atau semi-skim) hingga sekitar sepertiga penuh.
- Turn the steam knob to activate the steam function. Wait for the steam indicator light to illuminate.
- Immerse the steam wand tip just below the surface of the milk. Turn the steam knob fully open.
- Move the pitcher up and down gently to create foam. Once desired foam is achieved, immerse the wand deeper to heat the milk.
- Turn off the steam knob and remove the pitcher. Wipe the steam wand immediately with a damp kain.
- Tuangkan susu yang sudah berbusa di atas espresso Anda.

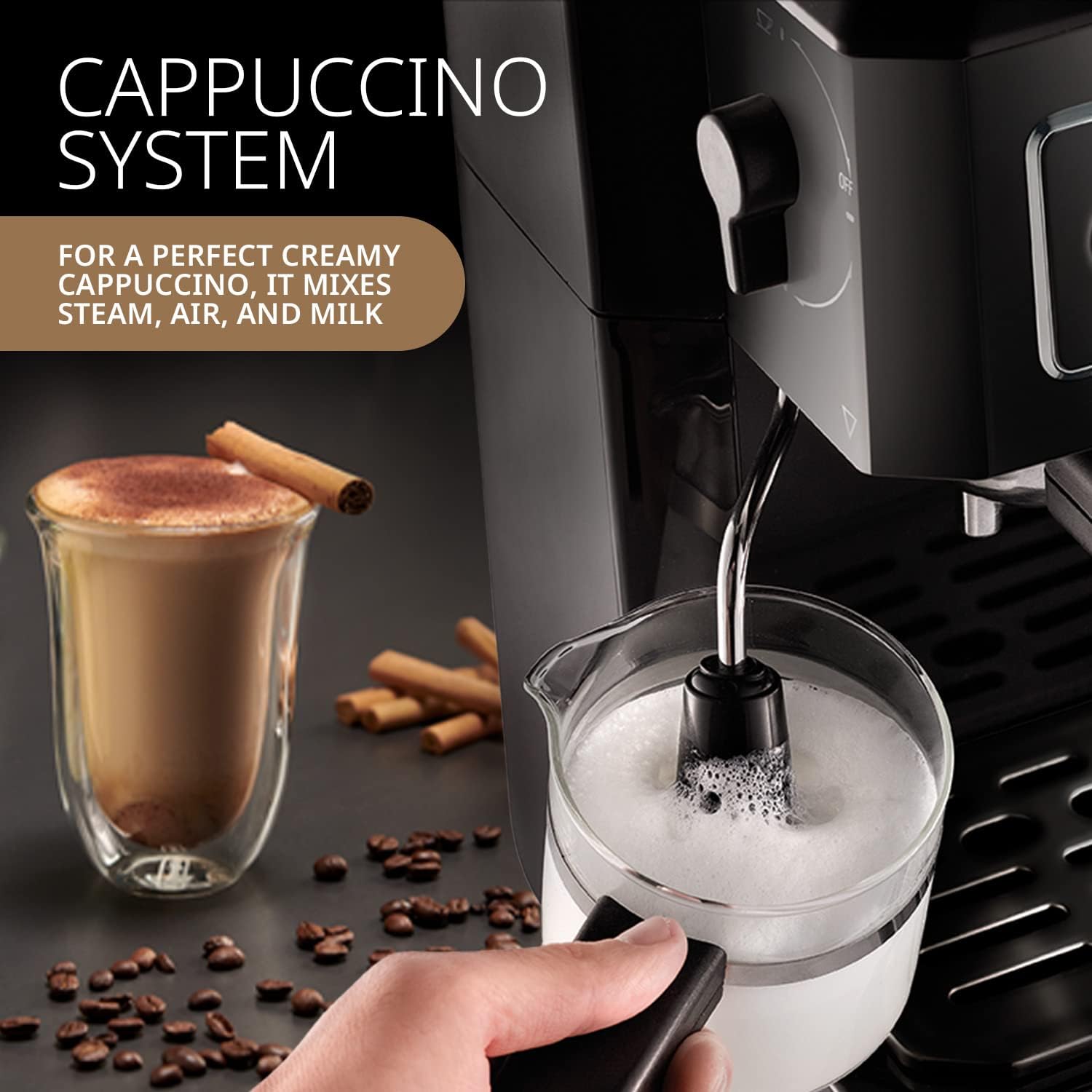

Gambar 4: Cappuccino System. This image demonstrates the manual cappuccino system, showing the steam wand frothing milk in a pitcher, with a finished cappuccino in the background.
Cara Menyiapkan Kopi Filter:
- Open the filter coffee lid and fill the water reservoir with fresh, cold water up to the desired level (max 10 cups).
- Place a paper filter (size No. 4) into the filter basket, or use the reusable filter provided.
- Add ground filter coffee to the filter basket.
- Close the lid and ensure the glass carafe is correctly placed on the heating plate.
- Turn on the filter coffee section. The brewing process will begin automatically.
- Once brewing is complete, the machine will keep the coffee warm on the heating plate.
Gambar 5: Filter Coffee Brewing. This image displays the filter coffee side of the machine, showing a full cup of filter coffee and a latte, illustrating the machine's dual functionality.
Pembersihan dan Perawatan
Pembersihan rutin memastikan kinerja optimal dan memperpanjang umur mesin kopi Anda. Catatan: The item is not dishwasher safe.
Pembersihan Harian:
- After each use, remove and empty the portafilter. Rinse it under running water.
- Empty and rinse the glass carafes.
- Wipe the steam wand immediately after frothing milk to prevent milk residue from drying.
- Kosongkan dan bersihkan baki tetesan.
- Lap bagian luar mesin dengan lembut, damp kain.
Kerak:
Mineral deposits from water can build up over time, affecting machine performance. Descale your machine regularly (e.g., every 2-3 months, or more frequently with hard water) using a commercial descaling solution suitable for coffee machines. Follow the descaling solution manufacturer's instructions carefully.
Penyelesaian Masalah
If you encounter issues with your De'Longhi BCO320, refer to the common problems and solutions below:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Tidak ada dispenser kopi / Aliran lambat | No water in tank, clogged filter, machine needs descaling, coffee too finely ground/over-tampdiedit oleh: | Fill water tank, clean filter, descale machine, use coarser grind/lighter tamp. |
| Kebocoran air dari mesin | Portafilter not properly attached, seals worn, machine needs descaling. | Ensure portafilter is securely locked, check and replace seals if necessary, descale machine. |
| No steam / Weak steam | Steam wand clogged, machine not hot enough, machine needs descaling. | Clean steam wand, wait for steam indicator light, descale machine. |
| Kopi tidak cukup panas | Cups not pre-heated, machine not fully heated. | Pre-heat cups on the cup warmer, allow machine to fully heat up before brewing. |
Jika masalah tetap berlanjut setelah mencoba solusi-solusi ini, silakan hubungi dukungan pelanggan De'Longhi.
Spesifikasi
| Fitur | Spesifikasi |
|---|---|
| Nama Model | BCO320 |
| Merek | De'Longhi |
| Jenis Pembuat Kopi | Combi Espresso Machine |
| Kapasitas | 2 Liters (total water capacity) |
| Warna | Hitam |
| Bahan | Plastik |
| Mode Operasi | Buku petunjuk |
| Apatage | 1700 watt |
| Jil.tage | 240 Volt |
| Masukan Antarmuka Manusia | Tombol |
| Jenis Filter | Dapat digunakan kembali |
| Berat Barang | 4800 gram |
| Aman untuk Mesin Pencuci Piring | TIDAK |
| Komponen yang Termasuk | Buku petunjuk |
Garansi dan Dukungan
Specific warranty details for the De'Longhi BCO320 Combi Espresso and Coffee Machine are typically provided with the product packaging or can be found on the official De'Longhi webKunjungi situs web untuk wilayah Anda. Harap simpan bukti pembelian Anda untuk klaim garansi.
For technical assistance, spare parts, or further information, please visit the official De'Longhi support website or contact their customer service department in your country.
