1. Petunjuk Keselamatan Penting
Read all instructions before using this appliance to ensure safe and efficient operation. Keep this manual for future reference.
- Keamanan Listrik: Ensure the appliance is connected to a grounded outlet. Do not use extension cords or adapters. Disconnect power before cleaning or maintenance.
- Ventilasi: Jaga ventilasi yang memadai di sekitar alat untuk mencegah panas berlebih. Jangan halangi ventilasi udara.
- Anak-anak: Peralatan ini tidak ditujukan untuk digunakan oleh orang (termasuk anak-anak) dengan keterbatasan fisik, sensorik, atau mental, atau kurang pengalaman dan pengetahuan, kecuali mereka telah diawasi atau diberi petunjuk mengenai penggunaan peralatan oleh orang yang bertanggung jawab atas keselamatan mereka. Anak-anak harus diawasi untuk memastikan bahwa mereka tidak bermain-main dengan peralatan ini.
- Bahan Mudah Terbakar: Jangan simpan bahan peledak seperti kaleng aerosol dengan propelan yang mudah terbakar dalam peralatan ini.
- Pembuangan: Dispose of the appliance according to local regulations for refrigerants and flammable blowing gas.
2. Produk Lebihview
The Beko GNE 114613 X is a No Frost Foodcenter designed for efficient food preservation. This side-by-side appliance features a stainless steel finish, four doors, and a convertible lower right compartment that can function as either a freezer or a refrigerator. It boasts an A++ energy rating and a total net capacity of 565 liters.

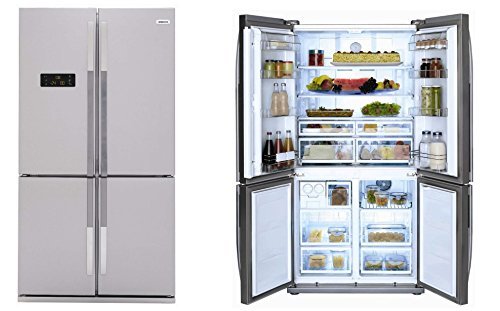

Gambar 2.1: Depan view of the Beko GNE 114613 X Foodcenter. This image displays the appliance's four-door design and stainless steel exterior.
Key features include an automatic defrost system, adjustable temperature control, and a specialized egg holder for convenience.
3. Instalasi (Pengaturan)
3.1 Membongkar
Lepaskan semua bahan kemasan dengan hati-hati. Periksa peralatan untuk mengetahui adanya kerusakan yang terjadi selama pengiriman. Jauhkan bahan kemasan dari jangkauan anak-anak.
3.2 Penempatan
- Letakkan alat ini di permukaan yang kokoh dan rata. Gunakan kaki yang dapat disetel untuk meratakan unit jika perlu.
- Ensure adequate space for air circulation around the appliance. Leave at least 10 cm (4 inches) of space at the back and sides, and 30 cm (12 inches) above.
- Avoid placing the appliance near heat sources such as direct sunlight, ovens, or radiators, as this will increase energy consumption.
3.3 Koneksi Listrik
Hubungkan alat tersebut ke stopkontak listrik khusus yang memiliki ground dan tegangan yang sesuai.tage and frequency as indicated on the rating label. Do not use multi-sockets or extension cords.
3.4 Penggunaan Awal
After placement and electrical connection, wait at least 4 hours before plugging in the appliance. This allows the refrigerant to settle. Before loading food, clean the interior thoroughly.
4. Operasi
4.1 Kontrol Suhu
The Beko GNE 114613 X features adjustable temperature controls for both the refrigerator and freezer compartments. Use the electronic control panel, typically located on the door or inside the appliance, to set desired temperatures. Refer to the on-screen display or indicator lights for current settings.
4.2 Convertible Compartment
The lower right compartment offers flexibility, allowing it to be used as either a freezer or a refrigerator. Select the desired mode via the control panel. Ensure the compartment is empty before changing its function to avoid damaging food items.
4.3 Pedoman Penyimpanan Makanan
- Store raw meat and fish in sealed containers on the lowest shelf of the refrigerator to prevent dripping onto other foods.
- Wrap foods properly to maintain freshness and prevent odors from spreading.
- Jangan menaruh makanan panas langsung ke dalam alat; biarkan dingin terlebih dahulu hingga mencapai suhu ruangan.
- Utilize the provided egg holder for safe and organized storage of eggs.
5. Perawatan dan Pembersihan
Pembersihan dan perawatan rutin memastikan kinerja optimal dan umur pakai yang lebih lama untuk peralatan Anda.
5.1 Pembersihan Umum
- Pedalaman: Disconnect the power supply. Clean the interior with a solution of mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners or sharp objects.
- Luar: Wipe the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals.
- Segel Pintu: Clean door seals regularly with warm soapy water to ensure a tight seal and prevent energy loss.
5.2 Pencairan
Peralatan ini dilengkapi dengan Tidak Ada Embun Beku (automatic defrost) system, eliminating the need for manual defrosting of the freezer compartment. Any accumulated frost will be automatically removed.
5.3 Daya padamtage
Jika terjadi pemadaman listriktage, tutup pintu untuk mempertahankan suhu internal selama mungkin. Hindari membuka pintu jika tidak perlu.
6. Penyelesaian masalah
Sebelum menghubungi layanan pelanggan, review masalah umum berikut dan solusi potensialnya.
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Peralatan tidak beroperasi. | Tidak ada pasokan daya; steker tidak dimasukkan dengan benar; sekring putus. | Periksa sambungan daya; pastikan steker terpasang sepenuhnya; periksa sekring/pemutus arus rumah tangga. |
| Suhu di dalam tidak cukup dingin. | Door opened too frequently; large amount of warm food added; poor ventilation; temperature setting too high. | Reduce door openings; allow hot food to cool before storing; ensure proper ventilation; adjust temperature setting lower. |
| Kebisingan yang berlebihan. | Appliance not level; objects touching the back wall; normal compressor operation. | Level the appliance using adjustable feet; ensure nothing is touching the back; some noise from the compressor is normal. |
| Air di lantai. | Drain hole blocked; water collection tray overflowing. | Clear the drain hole; check and empty the water collection tray if accessible. |
7. Spesifikasi
- Nama Model: GNE 114613 X
- Merek: Beko
- Konfigurasi: Berdampingan
- Total Kapasitas Bersih: 565 liter
- Kapasitas Kulkas: 155 liter
- Sistem Pencairan: Otomatis (Tanpa Embun Beku)
- Kelas Energi: Sebuah++
- Menyelesaikan: Baja tahan karat
- Fitur Khusus: Convertible lower right compartment, Egg holder
- Berat: 120 kg
8. Garansi dan Dukungan
For warranty information, technical support, or to purchase replacement parts, please contact Beko customer service. Refer to your purchase documentation for specific warranty terms and contact details in your region. Always provide the model number (GNE 114613 X) when seeking assistance.
