Perkenalan
The Janome 2212 sewing machine is a quality entry-level model designed for ease of use and versatility. It features 12 built-in stitches, an easy-to-use four-step buttonhole, and adjustable stitch length and zig-zag stitch width. Its free arm and drop feed capabilities make it suitable for various sewing projects, from basic repairs to creative endeavors. This manual provides essential information for setting up, operating, and maintaining your Janome 2212 sewing machine.
Figure 1: The Janome 2212 Sewing Machine with its standard accessories, including the foot pedal, bobbins, needles, and various presser feet.
Pengaturan
Before operating your Janome 2212, ensure it is properly set up. This includes placing the machine on a stable surface, connecting the foot controller and power cord, and preparing the thread and bobbin.
Membongkar dan Pemeriksaan Awal
- Keluarkan mesin dan semua aksesori dari kemasan dengan hati-hati.
- Verify that all included accessories, such as the foot pedal, bobbins, needles, and various presser feet, are present.
- Periksa mesin untuk melihat apakah ada kerusakan yang terlihat akibat pengiriman.
Figure 2: The Janome 2212 Sewing Machine displayed with its comprehensive set of accessories, ready for initial setup.
Koneksi Daya
- Insert the machine plug into the machine's power socket.
- Masukkan steker catu daya ke stopkontak.
- Ensure the machine is switched off when connecting or disconnecting power.
Thread Spool Placement
Place your thread spool on the spool pin located on top of the machine. Ensure the thread unwinds smoothly.
Gambar 3: Tampilan dekat view of the spool pins on the Janome 2212, indicating where the thread spools are placed for sewing.
Berliku Bobbin
The Janome 2212 features a durable metal bobbin winder. To wind a bobbin, place an empty bobbin onto the bobbin winder spindle, guide the thread as indicated in the machine's threading path for bobbin winding, and engage the winder. The machine will automatically stop when the bobbin is full.
Mengulir Mesin
Follow the numbered threading path indicated on the machine for proper upper thread tension and delivery. Ensure the thread is securely seated in all guides and tension discs. For the bobbin, the Janome 2212 utilizes a standard 15-class bobbin system. Insert the wound bobbin into the bobbin case, ensuring the thread is correctly routed through the tension spring.
Petunjuk Pengoperasian
Your Janome 2212 is designed for straightforward operation. Familiarize yourself with the main controls to begin your sewing projects.
Pemilihan dan Penyesuaian Jahitan
The machine offers 12 built-in stitches, including utility stitches, decorative stitches, and a four-step buttonhole. Use the 'Selector' dial to choose your desired stitch pattern. The 'Length' dial adjusts the stitch length, and the zig-zag stitch width can also be adjusted for various applications.
Figure 4: The stitch selector and length adjustment dials on the Janome 2212, allowing users to choose from various stitch patterns and control stitch density.
Gambar 5: Gambaran detail view of the stitch pattern display on the Janome 2212, illustrating the range of available stitches including utility, decorative, and buttonhole options.
Jahit terbalik
To secure stitches at the beginning and end of a seam, press and hold the reverse lever. The machine will sew in reverse as long as the lever is held down.
Free Arm Sewing
The Janome 2212 features a removable accessory storage compartment that converts the flatbed into a free arm. This is ideal for sewing cylindrical items like cuffs, sleeves, and pant hems.
Figure 6: The Janome 2212 with its accessory compartment removed, revealing the free arm for sewing cuffs, sleeves, and other small, circular items.
Pemeliharaan
Perawatan rutin memastikan umur panjang dan kinerja optimal mesin jahit Anda.
Membersihkan Area Gelendong
Lint and thread accumulation in the bobbin area can affect stitch quality. Regularly remove the bobbin case and clean the area with a small brush. The metal components in this area are designed for durability and can withstand minor needle hits, which can often be polished out.
Gambar 7: Gambaran detail view of the bobbin area, showing the metal bobbin case and hook, which should be kept clean for smooth operation.
Needle Plate and Presser Foot Cleaning
Remove the needle plate and clean any lint or debris from the feed dogs. Also, inspect the presser foot for any burrs or damage that could snag fabric. The needle plate and presser foot are made of steel, allowing for minor imperfections to be polished out if a needle accidentally strikes them.

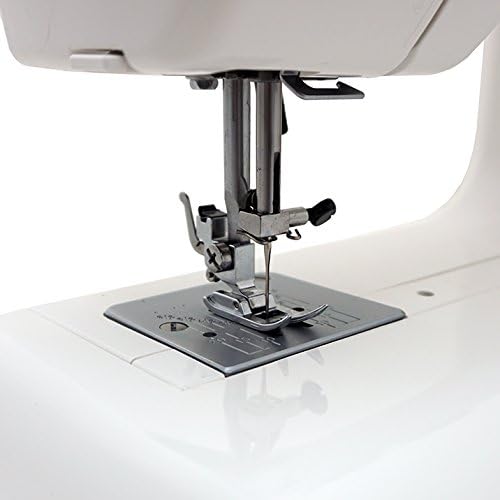

Figure 8: The needle plate and presser foot assembly, highlighting the area where fabric is fed and stitches are formed. Regular cleaning here prevents lint buildup.
Penyelesaian Masalah
Berikut ini beberapa masalah umum dan solusi potensialnya:
- Jahitan yang Dilewatkan: Often caused by an incorrect needle type for the fabric, a bent needle, or improper threading. Ensure the needle is inserted correctly and is not dull or bent. Re-thread the machine completely.
- Thread Jamming: Can occur due to incorrect bobbin insertion, improper upper threading tension, or lint buildup. Check the bobbin case for correct placement and thread routing. Clean the bobbin area thoroughly.
- Jahitan Tidak Rata: May result from incorrect tension settings or using the wrong stitch length for the fabric. Adjust the tension dial and experiment with stitch length settings.
- Jarum Patah: Typically happens if the fabric is pulled while sewing, the needle is bent, or the wrong needle size is used for thick materials. Avoid pulling fabric and ensure the correct needle is installed.
For more detailed troubleshooting, please refer to the comprehensive manual that came with your machine or contact Janome customer support.
Spesifikasi
| Fitur | Detil |
|---|---|
| Merek | Janome |
| Nomor Model | SVD2212BONUSBUNDLE |
| Dimensi Produk | 3.94"Panjang x 7.09"Lebar x 5.51"T |
| Berat Barang | 14 pon |
| Warna | Putih |
| Jahitan bawaan | 12 |
| Jenis Lubang Kancing | Four-step |
| Sistem Bobbin | 15-Class (Metal components) |
| UPC | 708038732329 |
Figure 9: Visual representation of the Janome 2212's dimensions, providing a clear understanding of its physical size.
Garansi dan Dukungan
For detailed information regarding the warranty coverage for your Janome 2212 sewing machine, please refer to the official warranty documentation included with your purchase. This document outlines the terms, conditions, and duration of the warranty.
For additional support, product registration, or to find authorized service centers, please visit the official Janome websitus atau toko merek mereka:
