Inandon KV-306 Karaoke Player User Manual

1. Pendahuluan

Thank you for choosing the Inandon KV-306 Karaoke Player. This 22-inch capacitive touch screen system is designed to provide a comprehensive home entertainment experience with intelligent song selection and free cloud downloads. For optimal performance, please read this manual carefully before use.

Apa yang ada di dalam kotak

• Inandon KV-306 Karaoke Player Unit
• Layar Sentuh Kapasitif 22 inci
• Mikropon
• Adaptor Daya
• Kabel VGA
• Kabel Jaringan
• Kabel Audio RCA
• Optical Cable (optional, for soundbar connection)

2. Informasi Keselamatan

Harap perhatikan tindakan pencegahan keselamatan berikut untuk mencegah kerusakan pada perangkat atau cedera pada diri Anda:

• Ensure the karaoke machine is used with an amplifier and speakers (not included).
• Jangan biarkan unit terkena air atau kelembapan.
• Gunakan hanya adaptor daya yang telah disediakan.
• Jaga agar lubang ventilasi tetap bersih untuk mencegah panas berlebih.
• Hindari meletakkan benda berat di atas unit.
• Putuskan aliran listrik selama badai petir atau saat tidak digunakan dalam waktu lama.

3. Produk Lebihview

The Inandon KV-306 Karaoke Player consists of a main unit and a separate 22-inch touch screen for song selection and control. Below is an overview of the main unit's front and rear panels.

Fitur Utama:

• 22-inch Capacitive Touch Screen for intuitive control.
• Wi-Fi Connectivity for online features and cloud downloads.
• Intelligent Song Deletion to optimize hard drive space.
• KTV Intelligent Scoring System for an interactive singing experience.
• Mobile Device Song Selection via dedicated app.
• System Online Update Service for continuous improvement.

4. Pengaturan

Follow these steps to set up your Inandon KV-306 Karaoke Player:

4.1. Touch Screen Assembly

Assemble the touch screen stand by securing the base and screen mount using the provided screws. Ensure all connections are firm.

4.2. Connecting the Touch Screen to the Karaoke Player

1. Connect the touch screen VGA cable to the VGA output port on the karaoke player unit.
2. Connect the touch screen network cable to the 'TOUCH SCREEN' network interface on the karaoke player unit.
3. Connect the touchscreen power adapter to the touchscreen's power input.

4.3. Koneksi Output Audio

The karaoke player requires an external amplifier and speakers for audio output. There are two primary methods for connecting audio:

Method 1: Using RCA Cables (to Amppengangkat)

1. Connect the RCA red and white cables from the 'AUDIO OUT' ports on the karaoke machine to the 'AUX IN' of your amppengangkat.
2. Connect the microphone power adapter to the 12V port of the microphone host.
3. Connect the RCA red and white cables from the microphone host's AUX output to the audio input of the amppengangkat.

Method 2: Using Optical Cable (to Soundbar/Receiver)

1. Connect an optical cable from the 'OPTICAL' output port on the karaoke player to the optical input of your soundbar or receiver.
2. Switch your soundbar or receiver to the corresponding optical input source.

4.4. Koneksi Daya

1. Connect the power adapter of the karaoke machine to the DC 12V input on the karaoke machine.
2. Hubungkan adaptor daya ke stopkontak di dinding.

4.5. Wiring Demonstration Video

For a visual guide on wiring, please refer to the video below:

5. Petunjuk Pengoperasian

Once the system is set up, you can begin enjoying your karaoke experience.

5.1. Menghidupkan/Mematikan

Press the 'POWER' button on the front panel of the main unit to turn the system on or off.

5.2. Using the Touch Screen Interface

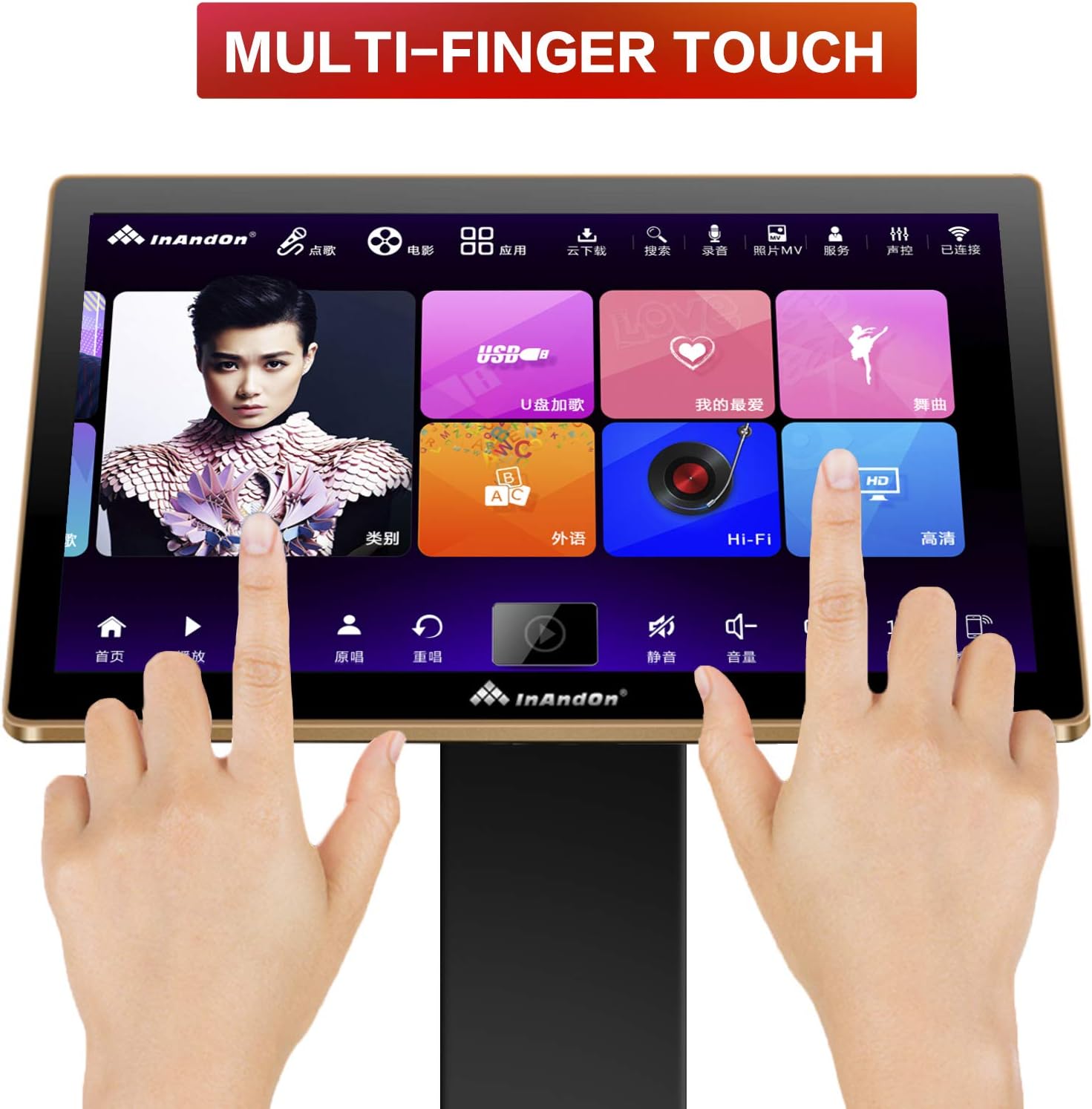

The 22-inch capacitive touch screen provides an intuitive interface for navigating songs and features. It supports multi-finger touch for easy interaction.

5.3. Song Selection and Cloud Download

• Intelligent Song Selection: Browse and select songs directly from the touch screen.
• Mobile Wireless Ordering: Use a mobile phone app (e.g., WeChat) to remotely select songs.
• Cloud Download: Connect to the internet to access a vast cloud song library (approximately 440,000 songs) and download songs for free. The 4T hard drive stores about 90,000 songs.

5.4. Intelligent Song Management

The karaoke machine features intelligent song deletion. When the hard drive memory falls below 10GB, the system automatically deletes songs with low or no click-through rates to free up space. You can re-download these songs from the cloud if needed.

5.5. KTV Intelligent Scoring System

Enhance your singing experience with the built-in KTV intelligent scoring system, providing real-time feedback on your performance.

5.6. Live Demonstrations

Watch these videos for live demonstrations of the karaoke machine in action:

6. Pemeliharaan

To ensure the longevity and optimal performance of your Inandon KV-306 Karaoke Player, follow these maintenance guidelines:

• Pembersihan: Use a soft, dry cloth to clean the touch screen and main unit. Avoid abrasive cleaners or solvents.
• Pembaruan Perangkat Lunak: The system supports online updates. Regularly check for and install available updates to ensure you have the latest features and improvements.
• Manajemen Hard Drive: The intelligent song deletion feature helps manage space. If you frequently download new songs, consider manually reviewing and deleting older, less-played songs.

7. Penyelesaian masalah

If you encounter issues with your Inandon KV-306 Karaoke Player, refer to the following common problems and solutions:

8. Spesifikasi

9. Garansi dan Dukungan

For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. For technical support, you may reach out via WeChat at 17727581630.
