Schylling Steel Works Mechanical Multi-Model Instruction Manual

Produk Selesaiview

The Schylling Steel Works Mechanical Multi-Model set is a unique steel building kit designed to foster creativity and engineering skills. It includes over 300 real steel pieces, essential tools, and detailed instructions to construct 10 different mechanical models, each featuring movable parts. This set encourages hands-on learning and imaginative play for ages 8 and up.

The Schylling Steel Works Mechanical Multi-Model set, showcasing the product box and two example assembled models: a helicopter and a forklift.

Informasi Keselamatan

PERINGATAN: BAHAYA TERSEDAK - Bagian kecil. Tidak untuk anak di bawah 3 tahun.

This product contains small parts which may pose a choking hazard. Adult supervision is recommended, especially for younger users. The recommended age for this set is 8 years and up.

Isi Paket

Upon opening your Schylling Steel Works Mechanical Multi-Model set, please verify that all components are present. The package includes:

• Over 300 real steel construction parts (various beams, plates, gears, wheels, nuts, bolts, etc.)
• Essential assembly tools (wrenches, screwdrivers)
• Step-by-step illustrated instruction manual for 10 different models

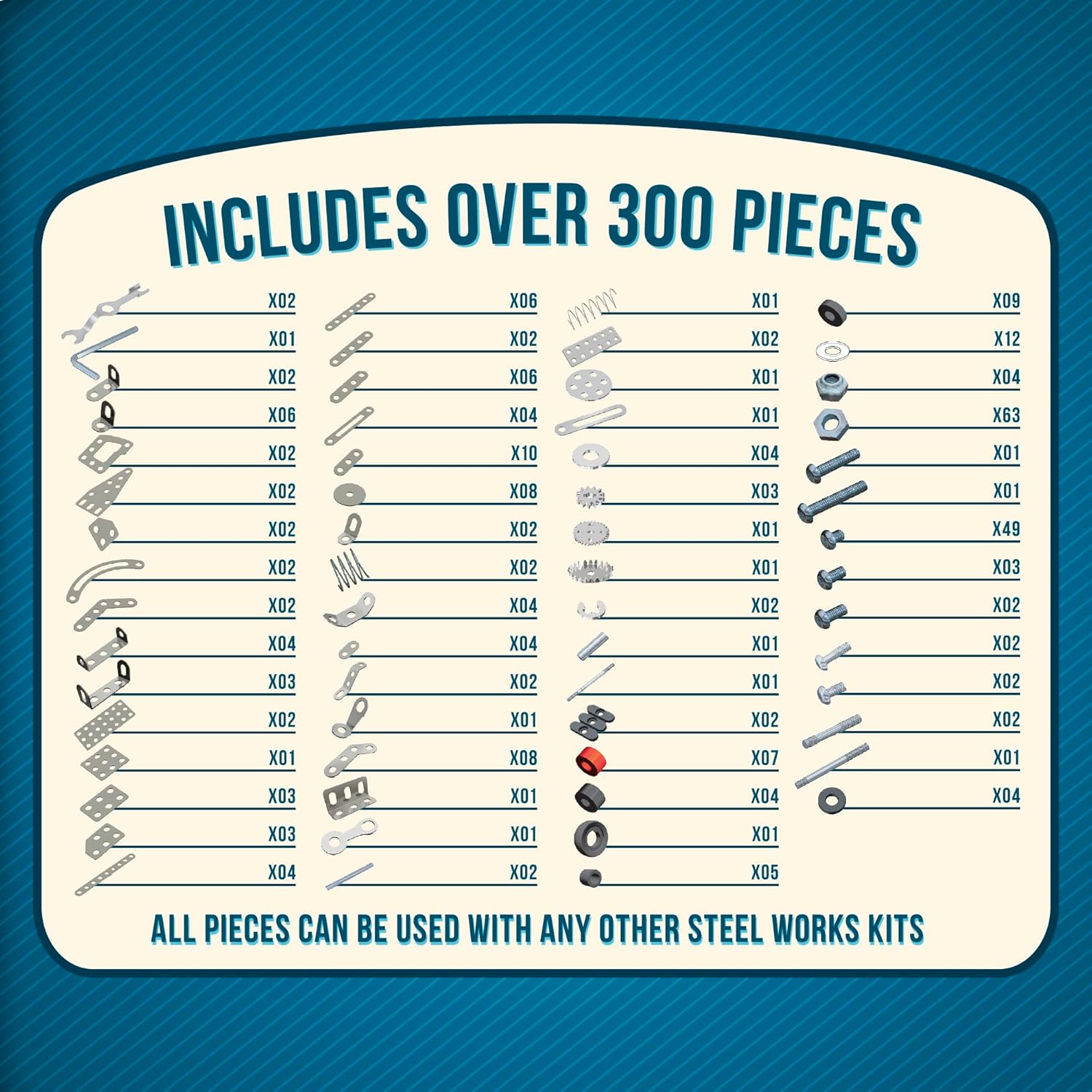

A detailed visual representation of the over 300 individual steel pieces included in the construction set.

Pengaturan dan Perakitan

Before beginning assembly, lay out all the pieces and familiarize yourself with the different types of parts. Refer to the included instruction manual for detailed, step-by-step guidance for each of the 10 models. The manual provides clear illustrations to assist in the assembly process.

1. Identifikasi Bagian: Match the physical pieces to the diagrams in the instruction manual.
2. Gunakan Alat yang Tepat: Utilize the provided tools to securely fasten nuts and bolts.
3. Ikuti Langkah-langkah Secara Berurutan: Assemble the models by following the numbered steps in the manual to ensure correct construction and functionality.
4. Periksa Koneksi: Ensure all connections are tight but do not overtighten, which could damage parts.

The components of the Steel Works set, including the box and individually bagged steel parts, ready for assembly.

Operating Your Models

Each model in the Schylling Steel Works set is designed with mechanical actions, bringing your creations to life. Once assembled, you can observe the movement of gears, wheels, and other components as you push or pull the models. Experiment with different models to understand their unique mechanical functions.

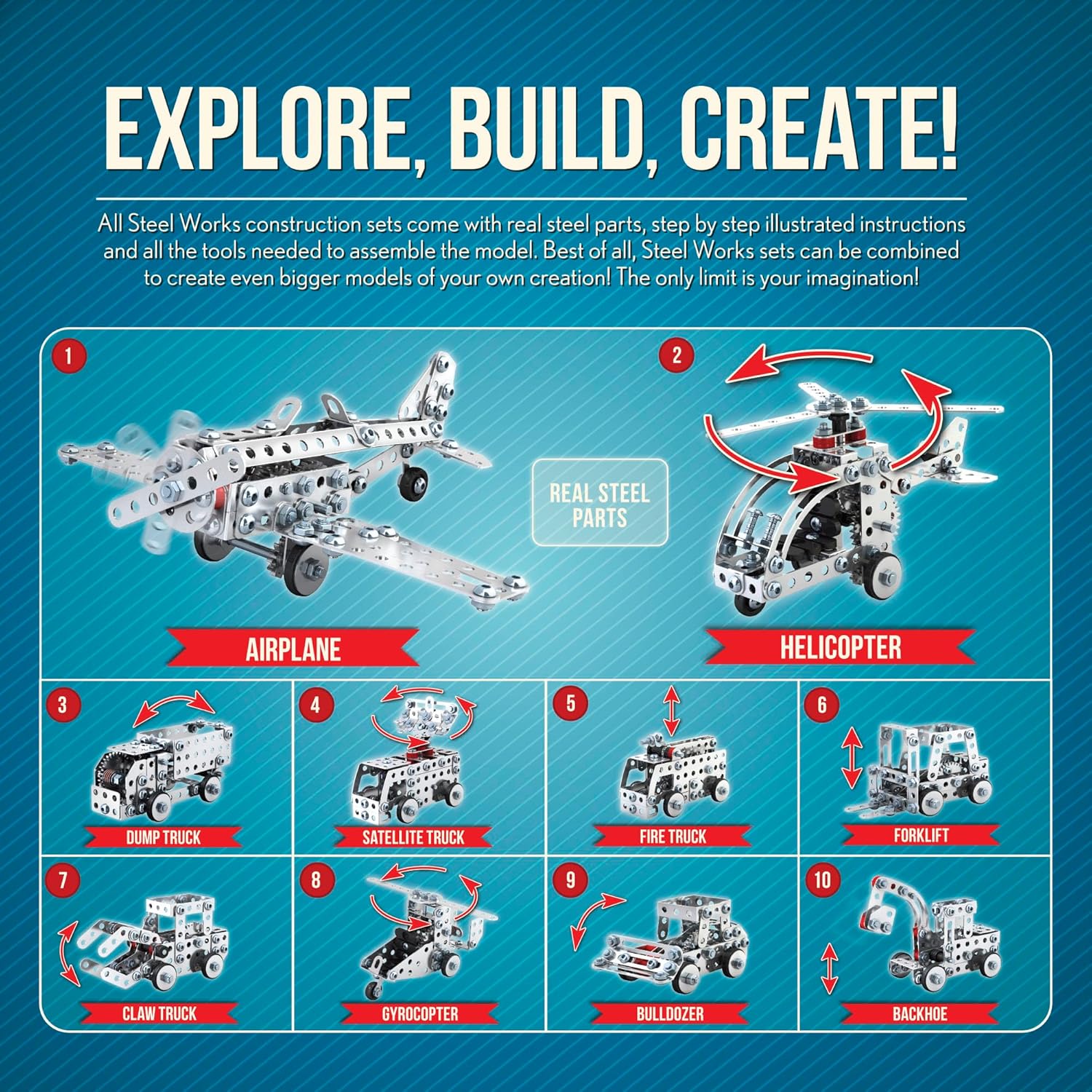

A detailed visual guide to the 10 distinct mechanical models that can be constructed using the set, highlighting their diverse forms and functions.

Bangunan Kreatif: The pieces from this set can be combined with other Schylling Steel Works sets to create even larger and more complex models. The only limit is your imagination. Feel free to design and build your own unique creations beyond the provided instructions.

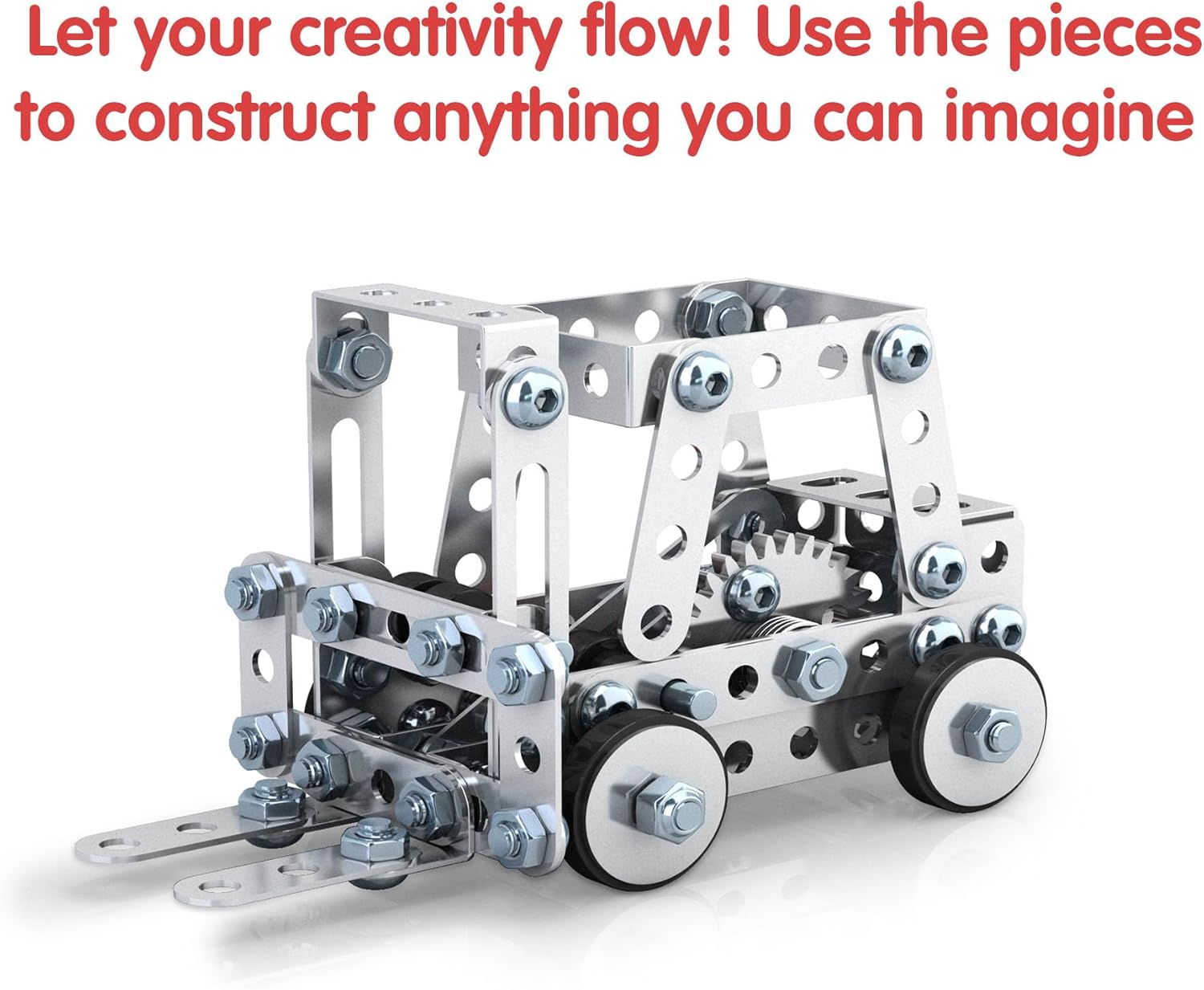

An assembled forklift model, demonstrating the potential for creative construction and encouraging users to build beyond the manual.

Pemeliharaan

To ensure the longevity of your Schylling Steel Works set, follow these simple maintenance guidelines:

• Pembersihan: Wipe parts with a dry cloth to remove dust or debris. Avoid using water or harsh chemicals, as this may cause rust or damage.
• Penyimpanan: Store all pieces and tools in their original packaging or a suitable container to prevent loss and damage. Keep the set in a dry environment.
• Inspeksi: Periodically inspect parts for any signs of wear or damage. Replace any broken or bent pieces if necessary (replacement parts may be available from the manufacturer).

Penyelesaian Masalah

If you encounter any issues during assembly or operation, consider the following troubleshooting steps:

• Model Not Moving Smoothly:
  • Check that all nuts and bolts are securely fastened but not overtightened, which can restrict movement.
  • Ensure gears are properly aligned and meshing correctly.
  • Verify that no parts are bent or obstructing the movement of other components.
• Bagian yang hilang:
  • Periksa semua bahan kemasan dengan saksama. Bagian-bagian kecil terkadang dapat terlewatkan.
  • Refer to the parts list in the instruction manual to confirm what should be included.
  • If parts are genuinely missing, contact Schylling customer support.
• Kesulitan Mengikuti Instruksi:
  • Review the illustrations carefully. Sometimes a different perspective can clarify a step.
  • Break down complex steps into smaller, more manageable actions.
  • Seek assistance from an adult or someone with experience in mechanical assembly.

Spesifikasi

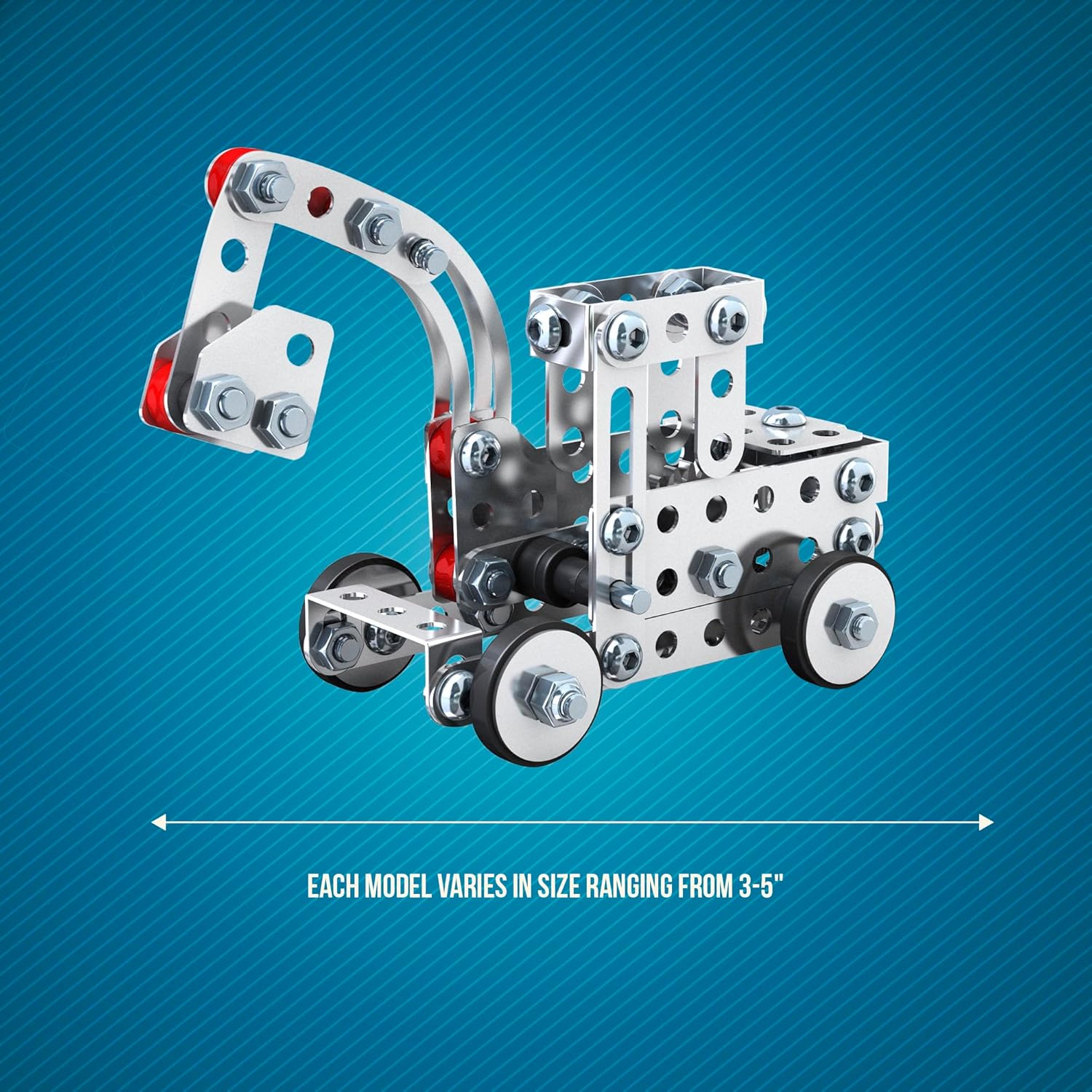

mantanample of an assembled model, a backhoe, illustrating the typical size range of 3-5 inches for models built with this set.

Garansi dan Dukungan

For information regarding product warranty, replacement parts, or additional support, please refer to the contact details provided in your product packaging or visit the official Schylling websitus. Simpan struk pembelian Anda sebagai bukti pembelian.
