Perkenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your Xprite 30-inch UTV Chase Light Bar. Designed for off-road vehicles such as UTVs, RZRs, Can-Am Mavericks, SxS, Yamahas, and ATVs, this light bar enhances rear visibility and safety with multiple lighting functions including running, brake, reverse, turn signal, and various strobe patterns. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Apa yang ada di dalam kotak
- 1 x Xprite 30-inch COB LED Strobe Chase Light Bar
- 1 x Kawat Harness
- 2 x Types of Switch Controls (In-line Dual Switch and Rocker Switch)
- Memasang Braket dan Perangkat Keras
- Instruksi
Fitur
The Xprite 30-inch UTV Chase Light Bar is equipped with advanced features for superior performance and durability:
- Teknologi LED COB: Features 7 blocks of high-power COB LEDs, providing brighter and more uniform illumination than standard LEDs.
- Multi-Function Lighting:
- Blocks #1 & 7: Running and Stop Lights (Red)
- Blocks #2 & 6: Strobe Lights (Amber)
- Blocks #3, 4, & 5: Solid or Reverse Light (White)
- 9 Strobe Patterns: Amber strobe lights offer 9 distinct patterns, including solid light, alternating fast, and slow.
- Kontrol Independen: Brake light, reverse light, and strobe patterns can be controlled independently. Strobe function can be turned off by holding the strobe pattern switch for 3 seconds.
- Konstruksi Tahan Lama: PC plastic lens is scratch-resistant and shatterproof. Heavy-duty black aluminum alloy housing and brackets are shockproof and corrosion-resistant, with an IP65 waterproof rating.
- Umur Panjang: Designed for over 50,000 hours of operation.
- Dual Switch Controls: Includes an in-line dual switch for power on/off and pattern selection, and a rocker switch for integrated control.
Gambar: Detail view of the light bar's multi-function lighting blocks.
Image: High-quality materials ensuring durability and water resistance.
Pengaturan dan Instalasi
Professional installation is recommended for optimal performance and safety. Ensure the vehicle's power is disconnected before beginning installation.
- Lokasi Pemasangan: Measure your desired mounting location to ensure proper fitment. The light bar comes with mounting brackets that allow for angle adjustment (up and down) via screw holes.
- Braket Aman: Attach the provided brackets to your vehicle's roll bar or desired surface using the included hardware. Ensure they are securely fastened to prevent movement during vehicle operation.
- Pasang Lampu Sorot: Mount the light bar to the secured brackets.
- Koneksi Kabel: Connect the wiring harness to your vehicle's electrical system. The harness includes wires for various functions:
- Power (typically Red wire to 12V positive)
- Ground (typically Black wire to vehicle chassis ground)
- Brake Light Signal
- Reverse Light Signal
- Turn Signal (Left and Right)
- Kontrol Strobo
Catatan: Brake and Turn Signal functions may require additional relays (not included) to work properly, depending on your vehicle's electrical system. For 4-door models, an extension cable (UTV-RSL-G2-EXT-10FT, sold separately) may be required due to the 15ft cable length.
- Connect Switches: Connect the desired switch control (in-line dual switch or rocker switch) to the wiring harness.
- Uji Fungsionalitas: Reconnect vehicle power and test all light bar functions (running, brake, reverse, turn signals, and strobe patterns) to ensure correct operation.
Gambar: Example of light bar installation with mounting brackets.

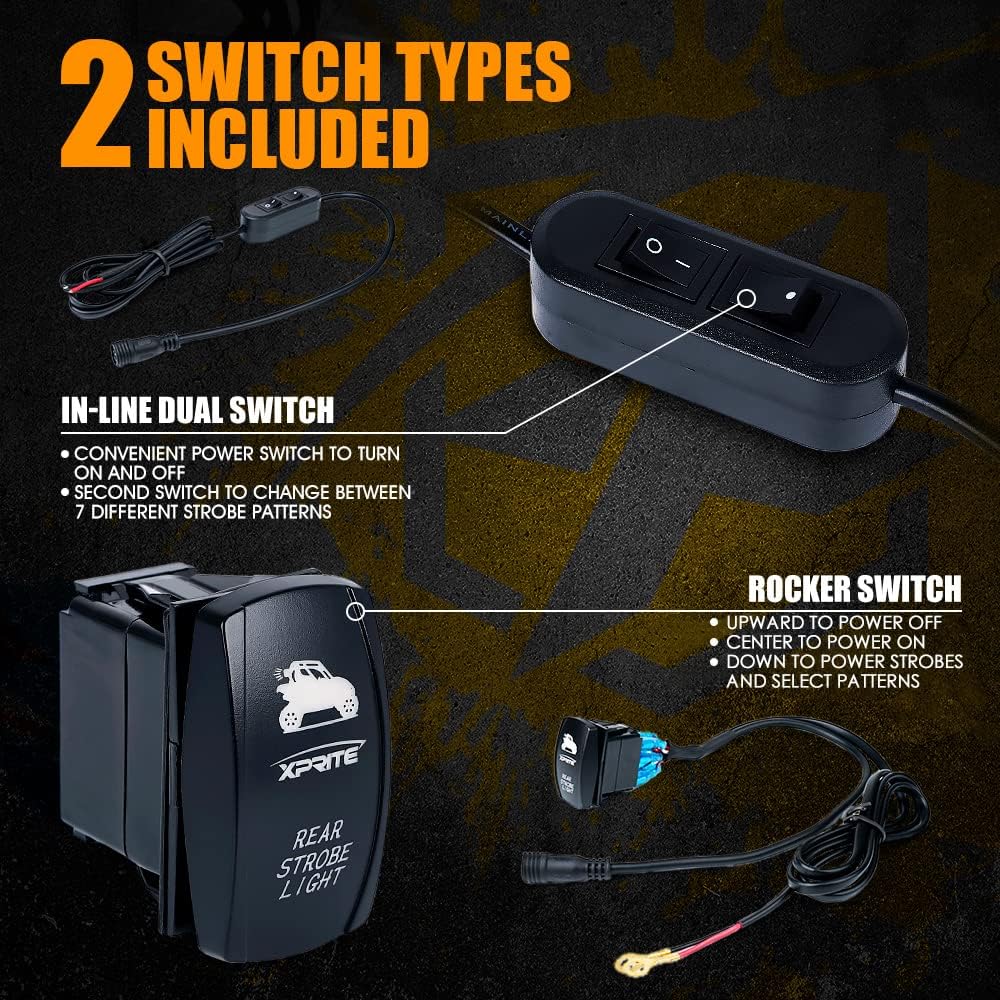

Image: The two types of switch controls included for the light bar.
Video: Membuka kemasan dan seterusnyaview of the Xprite 30-inch UTV Chase Light Bar components, including the light bar and wiring.
Petunjuk Pengoperasian
The Xprite 30-inch UTV Chase Light Bar offers versatile control over its lighting functions.
Operasi Umum
- Daya Hidup/Mati: Use the main power switch on either the in-line dual switch or the rocker switch to turn the light bar on or off.
- Running/Brake Lights: The red sections (Blocks #1 & 7) will illuminate as running lights and brighten when the brake signal is applied.
- Lampu sein: The red sections (Blocks #1 & 7) will flash when the corresponding turn signal is activated.
- Lampu Mundur: The white center sections (Blocks #3, 4, & 5) will illuminate when the reverse gear is engaged.
Strobe Function Control
The amber strobe lights (Blocks #2 & 6) can be controlled independently:
- Pola Perubahan: Use the second switch on the in-line dual switch or the pattern selection function on the rocker switch to cycle through the 9 available strobe patterns.
- Turn Strobe Off: To turn off the strobe function, hold the strobe pattern switch for 3 seconds.
- Mengingat Memori: The light bar features a memory recall function, which will power on to the last selected strobe pattern when reactivated.
Video: Demonstration of the Xprite 30-inch UTV Chase Light Bar's various strobe patterns and functions.
Pemeliharaan
To ensure the longevity and optimal performance of your Xprite 30-inch UTV Chase Light Bar, follow these maintenance guidelines:
- Pembersihan Rutin: Periodically clean the lens with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the PC lens.
- Periksa Kabel: Regularly check all wiring connections for signs of wear, corrosion, or damage. Ensure all connections are secure.
- Periksa Pemasangan: Verify that the mounting brackets and hardware remain tight and secure. Re-tighten if necessary to prevent vibration damage.
- Paparan Lingkungan: While designed for harsh conditions, prolonged exposure to extreme elements (e.g., direct sunlight, heavy rain, snow) can affect lifespan. Store your vehicle in a covered area when not in use if possible.
Penyelesaian Masalah
If you encounter issues with your Xprite 30-inch UTV Chase Light Bar, refer to the following common problems and solutions:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Bilah lampu tidak menyala. | No power, loose connection, faulty switch, blown fuse. | Check power supply, inspect all wiring connections, test the switch, check vehicle's fuse box. |
| Strobe patterns do not change. | Faulty pattern switch, wiring issue to the switch. | Ensure the pattern switch is functioning correctly. Check wiring to the pattern switch. |
| Brake/Turn signals not working correctly. | Vehicle's electrical system requires relays, incorrect wiring. | Install appropriate relays for brake and turn signal functions if needed. Verify wiring connections according to vehicle and light bar instructions. |
| Lampu berkedip atau redup. | Loose connection, insufficient power, damaged wiring. | Check all connections for tightness. Ensure the power source is adequate. Inspect wiring for damage. |
If the problem persists after attempting these solutions, please contact Xprite customer support or consult a qualified automotive electrician.
Spesifikasi
- Merek: Xprite
- Model: G6-RBYYYBR
- Light Bar Dimensions: 30 x 2.5 x 2.5 inci (Panjang x Lebar x Tinggi)
- Panjang Kabel: Over 15 feet (from light bar to end of wire)
- Number of LED Blocks: 7
- Jenis LED: COB LED Modules
- Kekuatan: 35W
- Jil.tage: 12 Volt
- Strobe Patterns: 9 Pola Flash
- Bahan Lensa: Polikarbonat (PC)
- Bahan Perumahan: Heavy-duty black aluminum alloy
- Peringkat Tahan Air: Tingkat IP65
- Nilai umur: Lebih dari 50,000 jam
- Posisi Suku Cadang Mobil: Belakang
- Compatible Vehicle Type: UTV (e.g., Polaris XP 1000 900, Can-Am Maverick X3, SxS, Yamaha, ATV)

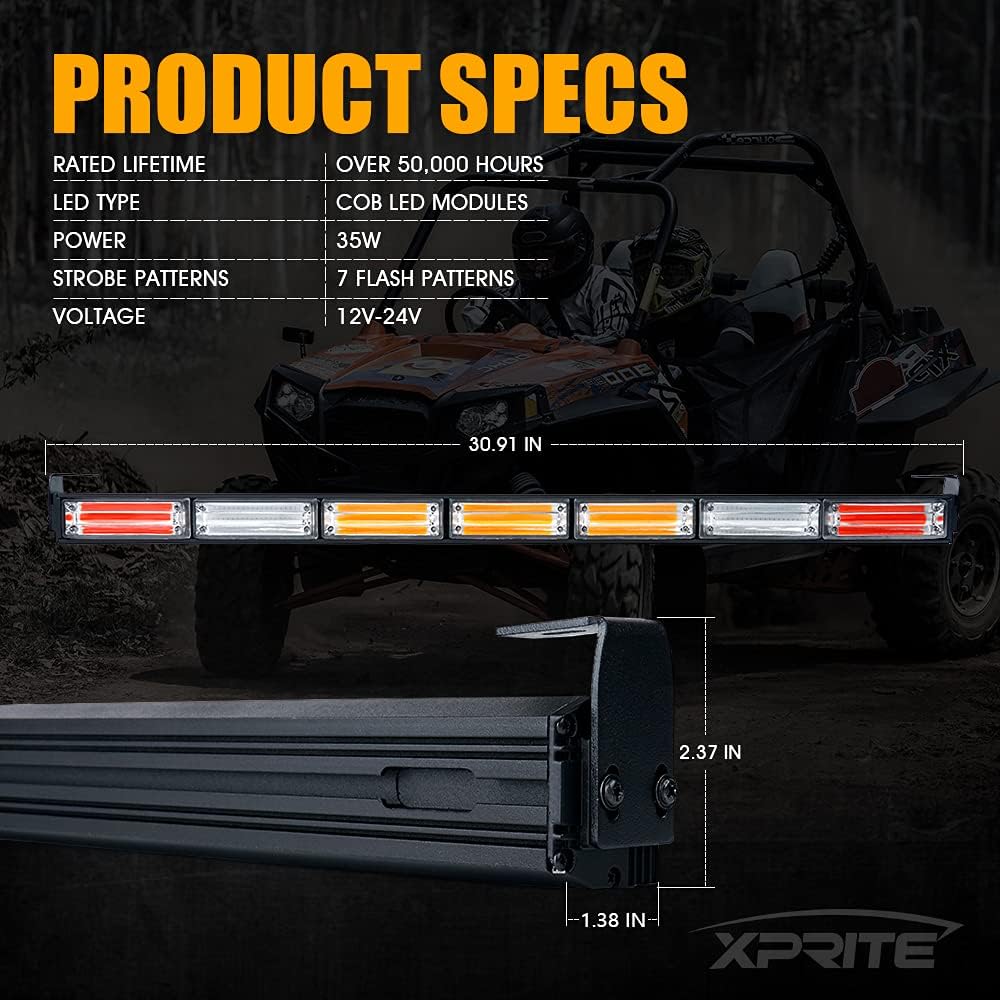

Gambar: Representasi visual dari dimensi produk dan spesifikasi utama.
Garansi dan Dukungan
Your Xprite 30-inch UTV Chase Light Bar is covered by a Garansi Produsen 1 Tahun sejak tanggal pembelian. Garansi ini mencakup cacat bahan dan pengerjaan dalam penggunaan normal.
For warranty claims, technical assistance, or any questions regarding your product, please contact Xprite customer support through their official website or the retailer where the product was purchased. Please have your proof of purchase and product model number ready when contacting support.
