BATURU T-388

BATURU T-388 Kids Walkie Talkies Instruction Manual

Model: T-388 | Brand: BATURU

Perkenalan

Thank you for choosing BATURU Kids Walkie Talkies. This manual provides essential information for the safe and effective use of your new communication devices. These walkie talkies are designed for children aged 3 and up, offering a fun and reliable way to stay connected during various activities. Please read these instructions carefully before use.

Fitur Produk

  • 3-Mile Crystal-Clear Range: Maintain strong signals across backyards, parks, and neighborhoods for uninterrupted communication.
  • Mati Otomatis Cerdas: Automatically powers off after 90 minutes of inactivity to conserve battery life.
  • Suara Sebening Kristal: Advanced noise-filtering technology and enhanced speakers ensure loud, clear conversations.
  • Kunci Tombol: Hold the Menu button for 3 seconds to lock settings, preventing accidental channel changes.
  • Desain Tahan Lama: Engineered to withstand drops and rough outdoor play.
  • Find-Me Now! Call Alert: Press the call button to activate a loud locator beep on any walkie talkie, helping to locate lost devices.
  • Senter bawaan: Provides illumination for low-light conditions or nighttime adventures.
  • 22 Saluran: Offers multiple channels for private conversations.

Isi Paket

  • 3 x BATURU Kids Walkie Talkies (Blue, Pink, Green)

Video: This video demonstrates the BATURU 3-pack walkie talkies for kids, showcasing the different colors included in the package.

Petunjuk Pengaturan

  1. Pemasangan Baterai:
    • Locate the battery compartment on the back of each walkie talkie.
    • Buka penutup kompartemen.
    • Masukkan 4 baterai AAA ke dalam setiap unit, pastikan polaritasnya benar (+/-).
    • Tutup penutup ruang baterai dengan rapat.
    BATURU Walkie Talkie with battery compartment open

    Image: A BATURU walkie talkie with its battery compartment open, showing where to insert the 4 AAA batteries.

  2. Menyalakan/Mematikan:
    • Tekan dan tahan tombol daya (Power button icon on walkie talkie) for a few seconds until the screen lights up.
    • Untuk mematikan perangkat, tekan dan tahan tombol daya lagi hingga layar mati.
  3. Setting Channels:
    • Tekan tombol Menu (Menu button icon on walkie talkie) once. The channel number will flash on the display.
    • Gunakan Atas (Up arrow button icon on walkie talkie) atau Bawah (Down arrow button icon on walkie talkie) tombol untuk memilih saluran yang Anda inginkan (1-22).
    • Press the Talk button or Menu button again to confirm your selection.
    • Ensure all walkie talkies are set to the same channel for communication.
    Illustration of walkie talkie buttons for channel selection and keypad lock

    Image: A visual guide to the walkie talkie buttons, highlighting channel selection and keypad lock features.

Petunjuk Pengoperasian

  1. Talking (Push-to-Talk):
    • Press and hold the Talk button (Talk button icon on walkie talkie) while speaking into the microphone.
    • Release the Talk button when you are finished speaking to listen for a response.
  2. Penyesuaian Volume:
    • Gunakan Atas (Up arrow button icon on walkie talkie) atau Bawah (Down arrow button icon on walkie talkie) buttons to adjust the speaker volume.
    Illustration of walkie talkies with clear sound features, including high quality microphone and 0.5W clear speaker

    Image: An illustration highlighting the clear sound quality of the walkie talkies, featuring a high-quality microphone and a 0.5W clear speaker.

  3. Kunci Tombol:
    • To prevent accidental changes to settings, press and hold the Menu button for approximately 3 seconds until a lock icon appears on the display.
    • To unlock, press and hold the Menu button again for 3 seconds.
    Child holding a green walkie talkie with a lock icon on the screen, indicating keypad lock feature

    Image: A child holding a green walkie talkie, demonstrating the keypad lock feature to prevent accidental changes.

  4. Fungsi Senter:
    • Tekan Lamp tombol (Lamp button icon on walkie talkie) to turn the built-in flashlight on or off.

    Video: This video demonstrates the flashlight feature of the walkie talkies, showing its utility in low-light conditions.

  5. Fungsi Notifikasi Panggilan:
    • Tekan tombol Panggil (Call button icon on walkie talkie) to send an audible alert to other walkie talkies on the same channel.
    Illustration of a child using the call alert feature to find a lost walkie talkie

    Image: An illustration showing how the call alert feature can be used to locate a walkie talkie.

  6. Mati Otomatis:
    • The walkie talkies are equipped with an automatic power-off feature that activates after 90 minutes of inactivity to conserve battery life.
  7. VOX (Voice Operated Exchange) Mode:
    • This feature allows hands-free communication. To activate, press the Menu button twice until 'VOX' appears on the screen. Use the Up/Down buttons to select a sensitivity level (1-3, with 3 being most sensitive). Press Talk or Menu to confirm.
    • When VOX is active, the walkie talkie will transmit automatically when it detects your voice.
    Child climbing with a green walkie talkie clipped to their belt, demonstrating hands-free VOX mode

    Image: A child using the walkie talkie in hands-free VOX mode while climbing, showing the convenience of the belt clip.

Pemeliharaan

  • Pembersihan: Gunakan yang lembut, damp cloth to clean the exterior of the walkie talkies. Do not use harsh chemicals or abrasive cleaners.
  • Perawatan Baterai: Remove batteries if the devices will not be used for an extended period to prevent leakage.
  • Penyimpanan: Simpan walkie talkie di tempat yang sejuk dan kering, jauhkan dari sinar matahari langsung dan suhu ekstrem.

Penyelesaian Masalah

MasalahLarutan
Tidak ada dayaCheck battery installation and replace with fresh AAA batteries if needed. Ensure the power button is pressed and held until the screen lights up.
Cannot communicate with other unitsVerify that all walkie talkies are set to the same channel. Ensure you are within the effective range.
Kualitas suara buruk/statisAdjust the volume. Move closer to the other unit. Ensure there are no major obstructions (e.g., thick walls, large metal structures) between units.
Tombol tidak meresponsCheck if the keypad lock is activated. Press and hold the Menu button for 3 seconds to unlock.

Spesifikasi

  • Nomor Model: Tentara T-388
  • Ukuran: 5.7x2.1x1 inci
  • Berat: 9.1 ons
  • Baterai: 4 AAA batteries required per unit (not included)
  • Jumlah Saluran: 22
  • Rentang Frekuensi: 462.5625 - 462.7125MHz, 467.5625 - 467.7125MHz
  • Jangkauan Bicara Maksimum: 3 Kilometers (approximately 1.86 miles)
  • Fitur Khusus: Automatic Squelch, Battery Saver Mode, Keypad Lock, Lightweight, Noise Reduction, Built-in Flashlight
  • Tingkat Tahan Air: Tidak Tahan Air

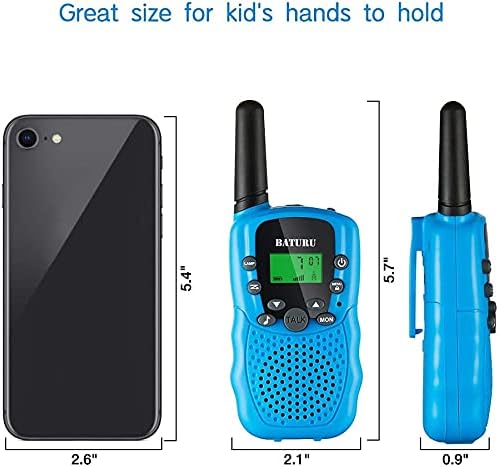

Diagram showing dimensions of BATURU walkie talkie compared to a smartphone

Image: A diagram illustrating the compact dimensions of the BATURU walkie talkie, shown next to a smartphone for scale.

Informasi Keselamatan

  • Bahaya Tersedak: Produk ini mengandung bagian-bagian kecil dan tidak cocok untuk anak di bawah 3 tahun.
  • Keamanan Baterai: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Insert batteries with correct polarity. Remove exhausted batteries promptly.
  • Volume: Avoid prolonged exposure to loud volumes, which may cause hearing damage.
  • Paparan Air: These walkie talkies are not water resistant. Avoid exposure to water or moisture.
  • Pengawasan: Pengawasan orang dewasa disarankan selama penggunaan, terutama untuk anak-anak yang lebih kecil.

Garansi dan Dukungan

BATURU products are designed for quality and durability. For any questions, concerns, or support needs regarding your walkie talkies, please refer to the retailer's return policy or contact BATURU customer service through the official channels provided at the point of purchase. Please retain your proof of purchase for any warranty claims.
