Yosoo Electric Clothes Dryer User Manual

1. Pendahuluan

Terima kasih sudah membeliasing the Yosoo Electric Clothes Dryer. This portable, ventless air drying machine is designed to efficiently dry clothes, shoes, and other garments while preserving their original shape and color. Its foldable design makes it ideal for use in homes, apartments, dormitories, hotels, and for travel. Please read this manual thoroughly before operation to ensure safe and proper use.

2. Petunjuk Keselamatan

• Always plug the dryer into a grounded electrical outlet.
• Do not operate the dryer with a damaged cord or plug. If damaged, contact customer support.
• Keep the dryer away from water or other liquids to prevent electric shock.
• Ensure adequate ventilation around the dryer during operation.
• Do not overload the dryer. Refer to the specifications for maximum capacity.
• Do not allow children to operate the dryer unsupervised.
• Unplug the dryer when not in use or before cleaning.
• Jangan halangi saluran masuk dan keluar udara selama pengoperasian.
• The internal temperature can reach up to 60℃. Exercise caution when handling clothes immediately after drying.

3. Produk Lebihview

The Yosoo Electric Clothes Dryer consists of a foldable drying cabinet, a hot air pump, and various accessories for hanging clothes.

Komponen yang Termasuk:

• Foldable Drying Cabinet (Blue)
• Hot Air Pump (800W)
• Tabung Penghubung
• Support Rods (for internal structure)
• Hangers and Clips

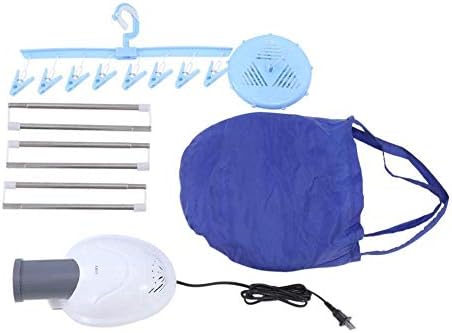

Gambar 3.1: Lebihview dari semua komponen yang disertakan.

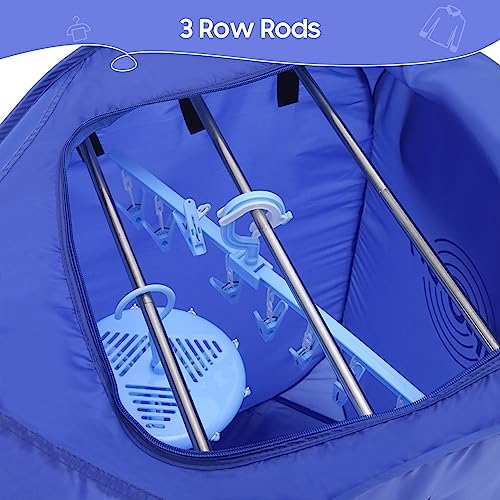

Gambar 3.2: Interior view showing the three support rods and hanging accessories.

Figure 3.3: Detailed features including zipper, hanger, motor, fabric, and air inlet.

4. Petunjuk Penyiapan

Follow these steps to assemble your Yosoo Electric Clothes Dryer:

1. Unfold the blue drying cabinet. It will pop open into its cylindrical shape.
2. Assemble the metal support rods by connecting the segments.
3. Insert the assembled support rods into the designated loops or pockets inside the top of the drying cabinet to create a sturdy frame.
4. Locate the air inlet sleeve at the bottom of the drying cabinet.
5. Connect the hot air pump to the air inlet sleeve, ensuring a secure fit to prevent air leakage.
6. Place the hangers and clips onto the support rods inside the cabinet.

Figure 4.1: Visual guide for dryer assembly.

5. Petunjuk Pengoperasian

Once assembled, operate your dryer as follows:

1. Hang your damp clothes inside the drying cabinet using the provided hangers. Ensure clothes are not dripping wet and are spaced to allow for proper air circulation. The dryer can hold approximately 5 kg of laundry.
2. Close the zipper on the drying cabinet completely to seal it.
3. Plug the hot air pump into a suitable electrical outlet.
4. Set the desired drying time using the timer dial on the hot air pump. The timer can be set between 30 to 180 minutes.
5. The hot air pump will begin to circulate warm air (up to 60℃) inside the cabinet, drying your clothes.
6. Once the timer completes, the dryer will automatically shut off. Unzip the cabinet and remove your dry clothes.

Figure 5.1: Hot air circulation and timer function.

Figure 5.2: Drying capacity and suitable garment types.

6. Pemeliharaan

• Membersihkan Kabinet: Wipe the interior and exterior of the drying cabinet with a damp cloth. Do not use abrasive cleaners. Ensure it is completely dry before folding and storing.
• Cleaning the Air Pump: Periodically check the air inlet of the hot air pump for dust or lint accumulation. Clean with a soft brush or vacuum cleaner if necessary. Do not immerse the air pump in water.
• Penyimpanan: When not in use, unplug the unit, allow it to cool, and fold the drying cabinet for compact storage. Store in a cool, dry place.

7. Penyelesaian masalah

8. Spesifikasi

Gambar 8.1: Dimensi produk.

9. Garansi dan Dukungan

For warranty information or technical support, please refer to the product packaging or contact the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
