1. Pendahuluan
This manual provides detailed instructions for the installation, operation, and maintenance of your Xprite 4-Piece White LED Hideaway Strobe Lights Kit. This high-output LED system is designed to enhance safety and visibility for emergency vehicles, trucks, cars, and other applications requiring hazard warning lights. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
The Xprite 4-Piece White LED Hideaway Strobe Lights Kit includes four LED light heads and a control panel for versatile emergency lighting.
2. Fitur Produk
- High Output LEDs: Each light head is equipped with high-output LEDs, significantly improving safety and visibility in emergency situations.
- Quick Mode Control System: Features an easy-to-use control panel to switch between 20 different flash patterns and quick-select buttons for directional patterns.
- Penggunaan Universal: Compatible with all emergency hazard vehicles operating on a 12V power source.
- Instalasi Mudah: Designed to easily replace traditional hideaway strobes with an existing 1-inch hole, suitable for internal mounting within headlights, fog lights, taillights, and other light assemblies.
- Konstruksi Tahan Lama: Engineered to be waterproof, dustproof, and corrosion-resistant for reliable performance in various environmental conditions.
Each light head is equipped with 4 high-output LEDs to enhance visibility and safety.
The included control panel allows easy selection of 20 different flash patterns and directional modes.
These strobe lights are designed to be waterproof, dustproof, and corrosion-resistant for reliable performance in various conditions.
The Xprite strobe lights are designed for universal fit across various emergency vehicles, trucks, and cars.
3. Isi Paket
The Xprite 4-Piece White LED Hideaway Strobe Lights Kit includes the following components:
- 4 x LED Hideaway Strobe Light Heads (White)
- 1 x Panel Kontrol
- Necessary wiring and mounting hardware

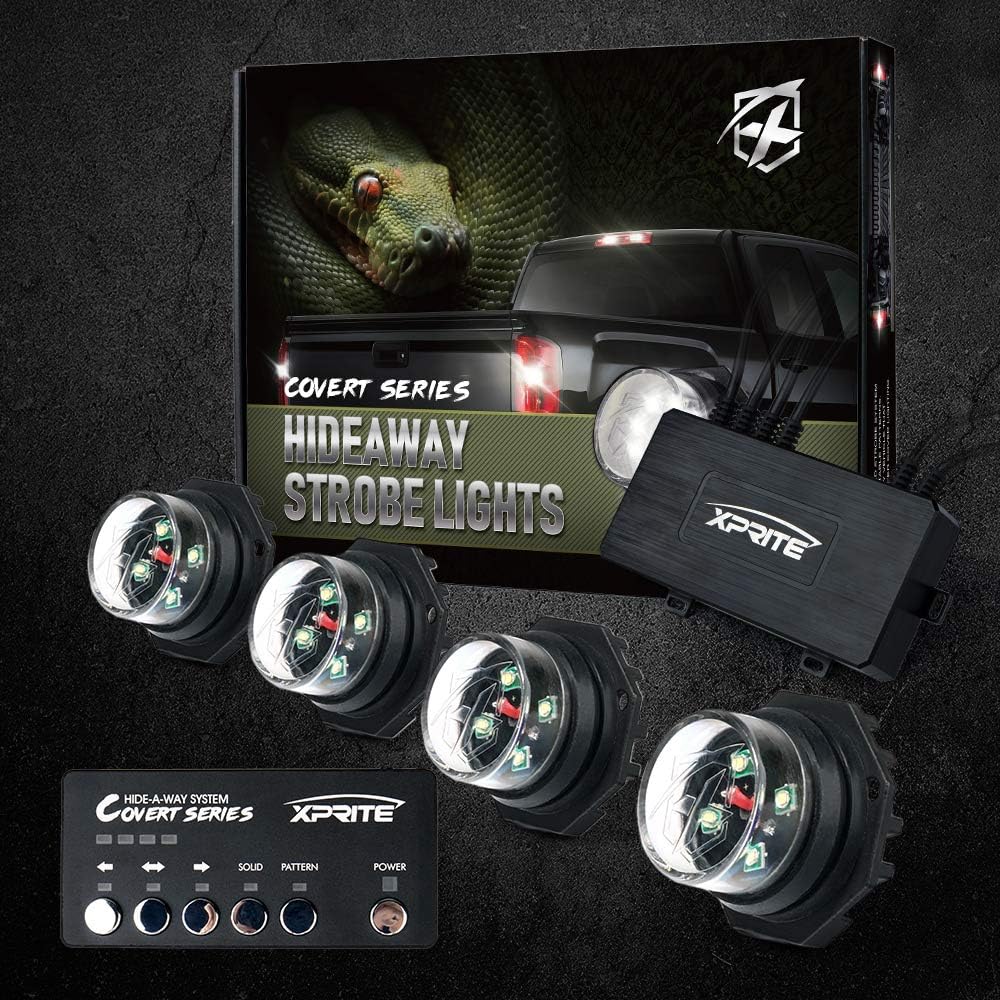

The complete kit includes four LED hideaway strobe light heads and the central control unit.
4. Spesifikasi
| Atribut | Nilai |
|---|---|
| Merek | Xprite |
| Nomor Model | Nomor telepon 52013-4-W |
| Warna | Putih |
| Jenis Sumber Cahaya | DIPIMPIN |
| Jil.tage | 12 Volt |
| Apatage | 31 watt |
| Fitur Khusus | Tahan air |
| Bahan Lensa | Polikarbonat |
| Jenis Layanan Kendaraan | Truck, Car, Emergency Vehicle |
5. Petunjuk Instalasi
Proper installation is crucial for the performance and safety of your strobe lights. It is recommended that installation be performed by a qualified professional if you are unfamiliar with automotive electrical systems.
5.1. Daftar Periksa Pra-Instalasi
- Ensure the vehicle's power is off and the battery is disconnected.
- Gather all necessary tools: drill, 1-inch hole saw, wire strippers, crimpers, electrical tape, zip ties, safety glasses.
- Plan the mounting locations for each light head and the control panel. Consider visibility and wire routing.
5.2. Mounting the Light Heads
- Carefully select the desired mounting locations within your vehicle's light assemblies (headlights, taillights, fog lights). Ensure there is sufficient space behind the mounting surface for the light head and wiring.
- Using a 1-inch hole saw, drill a clean hole at each chosen location. Deburr the edges of the hole to prevent wire damage.
- Insert each LED light head into the drilled hole. Secure it firmly using the provided mounting hardware, ensuring a watertight seal if applicable.
Installation requires drilling a standard 1-inch hole for mounting the hideaway strobe lights.
5.3. Menghubungkan Sistem
While a specific wiring diagram is not provided in this manual, the general connections are as follows:
- Connect the wiring from each LED light head to the main control unit. Ensure all connections are secure and properly insulated.
- Connect the main power wire from the control unit to a fused 12V power source in your vehicle.
- Connect the ground wire from the control unit to a suitable chassis ground point.
- Mount the control panel in an easily accessible location within the vehicle's cabin.
- Once all connections are made, reconnect the vehicle's battery and test the system.
6. Petunjuk Pengoperasian
The Xprite Hideaway Strobe Lights Kit features a user-friendly control panel for easy operation.
6.1. Fungsi Panel Kontrol
- Tombol ON/OFF: Press to power the strobe lights system on or off.
- Tombol Pola: Cycle through the 20 available flash patterns. Each press will advance to the next pattern.

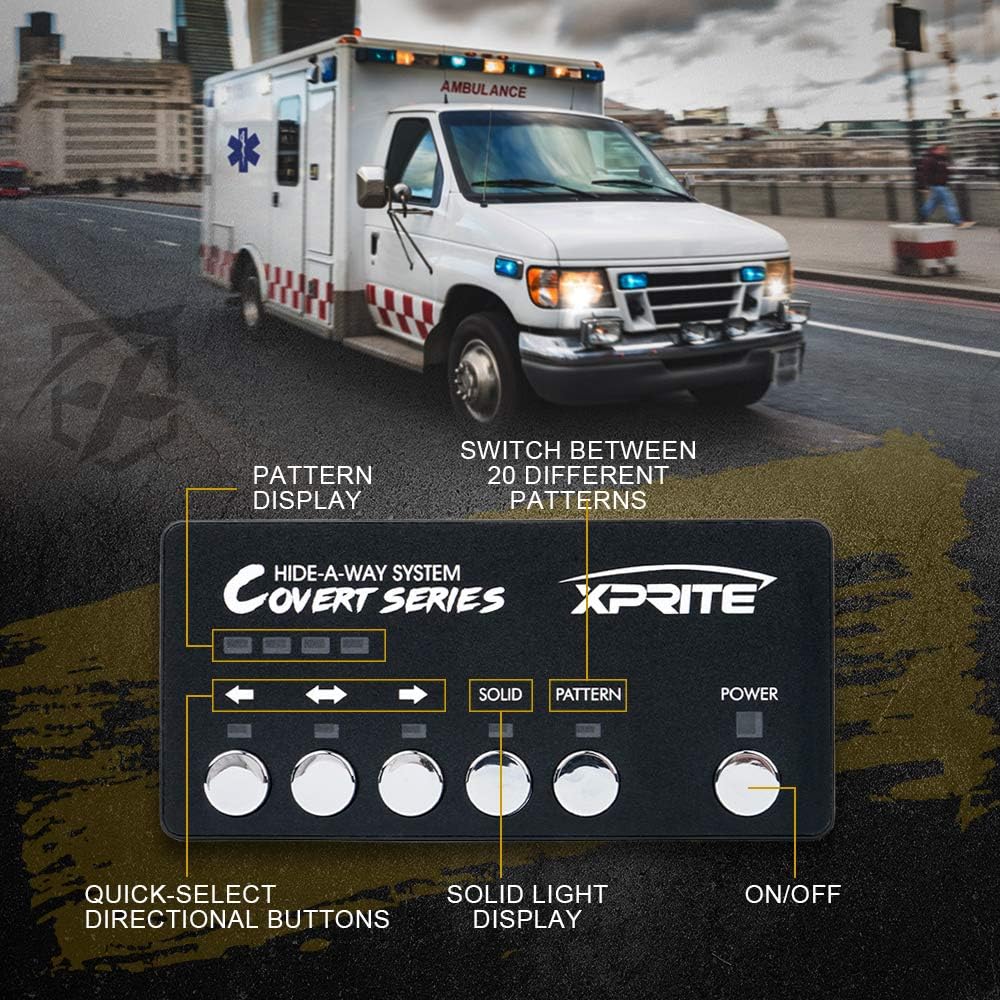

- Tombol Arah: Use the left and right arrow buttons to activate directional flash patterns (e.g., left arrow for left-side warning, right arrow for right-side warning, both for full warning).
- Solid Button: Activates a steady-on light mode, if available.
- Pattern Display: Indicators on the control panel show the currently active flash pattern.
6.2. Mode Lampu Kilat
The system offers 20 distinct flash patterns. Experiment with the 'Pattern' button to find the most suitable mode for your needs. The patterns include various alternating, simultaneous, and sequential flashes designed for maximum visibility.
Watch this official video to see the Xprite White LED Hideaway Strobe Lights Kit in action, demonstrating its 20 distinct flashing patterns.
7. Pemeliharaan
To ensure optimal performance and extend the lifespan of your Xprite LED Hideaway Strobe Lights, follow these simple maintenance guidelines:
- Pembersihan Rutin: Periodically clean the light heads with a soft, damp cloth to remove dirt, dust, and debris. Avoid abrasive cleaners or solvents that could damage the lens.
- Periksa Kabel: Regularly check all wiring connections for signs of wear, fraying, or corrosion. Ensure all connections remain secure and insulated.
- Periksa Pemasangan: Verify that all light heads and the control panel are securely mounted. Tighten any loose hardware as needed.
- Uji Fungsi: Periodically test all flash patterns and directional functions to ensure the system is operating correctly.
8. Penyelesaian masalah
If you encounter issues with your Xprite LED Hideaway Strobe Lights, refer to the following troubleshooting guide:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Lampu tidak menyala | No power, blown fuse, loose connection, faulty control unit. | Check power supply, inspect fuse, verify all wiring connections, test control unit. |
| Lampu berkedip atau redup | Poor connection, insufficient power, damaged wiring. | Inspect wiring for damage, ensure secure connections, check vehicle's 12V power supply. |
| Patterns do not change | Faulty control panel button, wiring issue to control unit. | Ensure control panel buttons are functioning, check wiring between control panel and main unit. |
| Satu atau lebih lampu tidak menyala | Faulty light head, loose connection to specific light. | Check connections to the non-functioning light, test the light head if possible. |
If these steps do not resolve the issue, please contact Xprite customer support for further assistance.
9. Garansi dan Dukungan
9.1. Garansi Produk
The Xprite 4-Piece White LED Hideaway Strobe Lights Kit is covered by a Garansi Produsen 1 Tahun Terhitung sejak tanggal pembelian. Garansi ini mencakup kerusakan material dan pengerjaan dalam penggunaan normal. Garansi ini tidak mencakup kerusakan yang disebabkan oleh pemasangan yang tidak tepat, penyalahgunaan, kecelakaan, atau modifikasi tanpa izin.
9.2. Dukungan Pelanggan
For technical assistance, warranty claims, or any questions regarding your Xprite product, please visit the official Xprite website or contact their customer service department. Please have your product model number and proof of purchase ready when contacting support.
Note: Xprite is not responsible for compatibility issues with other brands. This kit is designed to fit Xprite 52013 Covert Series hideaway strobe lights kit.
