1. Pendahuluan
Thank you for choosing the AUNA Pro Amp-Pro1 BT PA Amppengangkat. Ini amplifier is designed to deliver professional-level sound for various events, including karaoke nights, parties, and general audio amplification. It features a robust 2 x 50W RMS output, Bluetooth connectivity, multiple microphone inputs, USB/SD media playback, and a 7-band equalizer for precise sound control. This manual provides essential information for safe operation, setup, and maintenance of your device.
2. Petunjuk Keselamatan
Please read these safety instructions carefully before operating the device and keep them for future reference. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Catu Daya: Connect the device only to a 230 V, 50 Hz AC power outlet. Ensure the power cord is not damaged or pinched.
- Ventilasi: Do not block any ventilation openings. Ensure adequate airflow around the unit to prevent overheating. Do not place the amplifier on soft surfaces that may block vents.
- Air dan Kelembaban: Do not expose the device to rain or moisture. Do not place objects filled with liquids, such as vases, on or near the amppengangkat.
- Sumber Panas: Pertahankan amplifier away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
- Pembersihan: Cabut perangkat dari stopkontak sebelum membersihkan. Gunakan kain kering dan lembut. Jangan gunakan cairan pembersih atau pembersih aerosol.
- Pelayanan: Jangan mencoba memperbaiki produk ini sendiri. Serahkan semua perbaikan kepada personel servis yang berkualifikasi. Membuka unit dapat membuat Anda terpapar tegangan berbahaya.tagatau bahaya lainnya.
- Entri Benda dan Cairan: Jangan sekali-kali memasukkan benda apa pun ke dalam produk ini melalui celah karena dapat menyentuh volatilitas yang berbahaya.tagtitik e atau bagian yang mengalami hubungan arus pendek yang dapat mengakibatkan kebakaran atau sengatan listrik.
- Penempatan: Place the unit on a stable, level surface. Avoid placing it in direct sunlight or in areas with high humidity or dust.
3. Produk Lebihview
The AUNA Pro Amp-Pro1 BT is a versatile PA amplifier designed for powerful audio output and flexible connectivity. It can be used as a standalone unit or installed in a 19-inch Hi-Fi rack.
Fitur Utama:
- Keluaran yang kuat: 2 x 50 W RMS power at 4 ohms.
- Fungsi Bluetooth: For wireless audio streaming from smartphones, tablets, or laptops.
- Beberapa Input Mikrofon: Three fully adjustable 6.3 mm jack microphone inputs for karaoke and vocal performances.
- Pemutaran Media: USB port and SD/MMC card slot for direct playback of digital audio files.
- Equalizer 7-Band: Two-channel, 7-band equalizer for precise adjustment of treble, bass, and mid-range frequencies.
- Konektivitas Luas: 2 x stereo RCA inputs, 1 x antenna input, 1 x 3.5 mm AUX input, and 2 x stereo speaker outputs.
- Dapat Dipasang di Rak: Suitable for installation in a 19-inch Hi-Fi rack.
Kontrol dan Koneksi Panel Depan:
The front panel provides access to power, microphone inputs, media playback controls, and sound adjustments.
Koneksi Panel Belakang:
The rear panel houses the main audio inputs and speaker outputs.
4. Pengaturan dan Koneksi
Follow these steps to set up your AUNA Pro Amp-Pro1 BT amppengangkat.
4.1 Menghubungkan Speaker
- Pastikan amplifier dimatikan dan dicabut dari stopkontak.
- Connect your passive speakers to the stereo speaker outputs on the rear panel. Use appropriate speaker cables.
- For a single set of speakers, ensure their impedance is between 4 and 16 ohms.
- If connecting two sets of speakers simultaneously, ensure their combined impedance is between 8 and 16 ohms.
4.2 Menghubungkan Sumber Audio
Itu ampAmplifier menawarkan berbagai pilihan input:
- Masukan RCA: Connect external audio devices like CD players, DVD players, or mixers to the 2 x stereo RCA inputs on the rear panel.
- Masukan AUX: For portable devices, use the 3.5 mm AUX input on the front panel.
- USB/SD: Insert a USB stick or SD/MMC card into the respective slots on the front panel for direct media playback.
- Bluetooth dapat digunakan untuk berbagai keperluan, seperti: Untuk streaming audio nirkabel dari perangkat yang kompatibel.
4.3 Menghubungkan Mikrofon
Connect up to three 6.3 mm jack microphones to the dedicated inputs on the front panel.
4.4 Sambungan Daya
Setelah semua koneksi audio dan speaker terpasang, colokkan amplifier's power cord into a suitable 230 V, 50 Hz AC power outlet.
5. Petunjuk Pengoperasian
5.1 Menghidupkan/Mematikan
Tekan tombol KEKUATAN tombol di panel depan untuk menghidupkan amplifier on or off. The display will illuminate when the unit is powered on.
5.2 Pemilihan Sumber
Gunakan MASUKAN selector button on the front panel to cycle through available audio sources: Bluetooth, USB, SD, AUX, and RCA inputs.
5.3 Operasi Bluetooth
- Select the Bluetooth input source using the MASUKAN button. The display will show 'BLUE' or a similar indicator.
- Aktifkan Bluetooth di ponsel pintar, tablet, atau laptop Anda.
- Pencarian untuk available devices and select 'AUNA Amp-Pro1 BT' (or similar) from the list.
- Setelah terhubung, Anda dapat mengalirkan audio secara nirkabel ke amppengangkat.

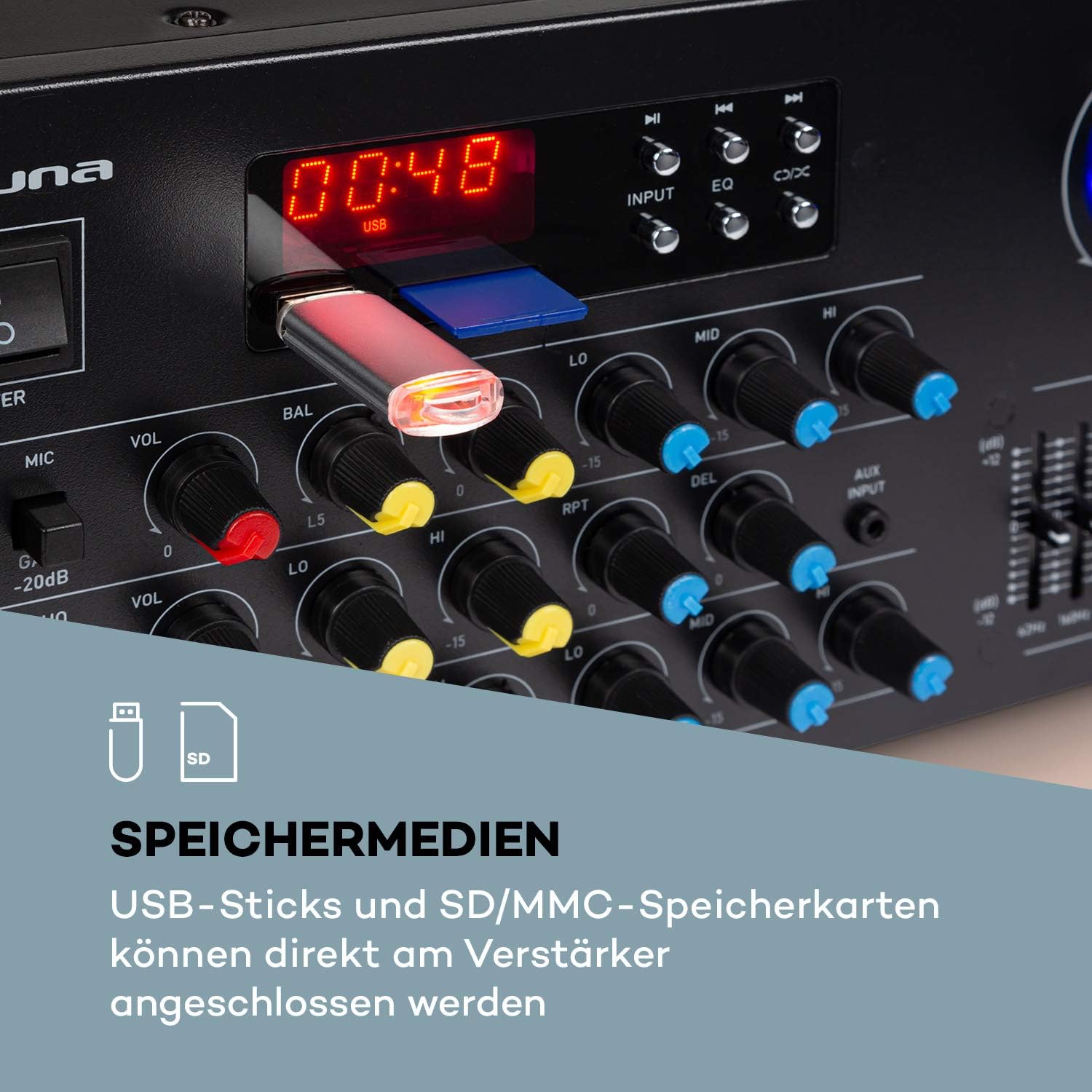

5.4 Pemutaran USB/SD
- Insert a USB stick or SD/MMC card into the corresponding slot on the front panel.
- Select the USB or SD input source using the MASUKAN tombol. amplifier will automatically detect and begin playing compatible audio files.
- Use the playback controls (Play/Pause, Next, Previous) on the front panel to manage your music.
5.5 Kontrol Mikrofon
Each microphone input has individual volume, 3-band equalizer (treble, mid, bass), balance, and echo effect controls. The echo effect also has 2-band equalizer, repeat, delay, and volume controls.
- Sesuaikan mikrofon vol knob for the overall microphone volume.
- Gunakan individu tersebut JILID knobs for each microphone input.
- Sesuaikan LO, PERTENGAHAN, HI knobs for microphone equalization.
- Control the echo effect using the GEMA, RPT (Repeat), and MENGHAPUS (Delay) knobs.
5.6 Penyesuaian Ekualiser
Itu amplifier features a 2-channel, 7-band equalizer to fine-tune your audio output. Adjust the sliders for each frequency band (62Hz, 160Hz, 400Hz, 1KHz, 3KHz, 8KHz, 16KHz) to shape your sound.
5.7 Kontrol Volume Utama
Adjust the large VOLUME UTAMA knob to control the overall output level of the amppengangkat.
6. Pemeliharaan
6.1 Pembersihan
Selalu cabut amplifier before cleaning. Use a soft, dry cloth to wipe the exterior surfaces. Do not use abrasive cleaners, waxes, or solvents, as they may damage the finish.
6.2 Penyimpanan
Jika amplifier will not be used for an extended period, unplug it from the power outlet and store it in a cool, dry place, away from direct sunlight and extreme temperatures.
6.3 Penggantian Sekring
Itu amplifier is equipped with a 2A fuse. If the unit fails to power on, the fuse may need replacement. This should only be performed by qualified service personnel to ensure safety and proper operation.
7. Penyelesaian masalah
Jika Anda mengalami masalah dengan amplifier, lihat masalah umum dan solusi berikut:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Tidak ada daya | Power cord unplugged; Power outlet faulty; Fuse blown | Check power cord connection; Try a different outlet; Contact service for fuse replacement. |
| Tidak ada keluaran suara | Incorrect input selected; Volume too low; Speakers not connected or faulty; Mute function active | Select correct input source; Increase Master Volume; Check speaker connections; Ensure no mute is active. |
| Bluetooth tidak terhubung | Amplifier not in Bluetooth mode; Device not discoverable; Interference | Select Bluetooth input; Ensure Bluetooth is enabled on your device and in pairing mode; Move devices closer; Restart both devices. |
| Mikrofon tidak berfungsi | Microphone not connected; Microphone volume too low; Microphone faulty | Check microphone connection; Increase individual MIC VOL; Test with another microphone. |
| Suara terdistorsi | Volume too high; Input signal too strong; Speaker impedance mismatch | Reduce Master Volume or input source volume; Check speaker impedance. |
Jika masalah berlanjut setelah mencoba solusi ini, hubungi dukungan pelanggan.
8. Spesifikasi Teknis
Below are the technical specifications for the AUNA Pro Amp-Pro1 BT PA Amppengangkat:
| Fitur | Spesifikasi |
|---|---|
| Daya Keluaran | 2 x 50 W RMS at 4 ohms |
| Respon Frekuensi | 20 Hz - 20 kHz |
| Signal-to-Noise Ratio | > 76dB |
| Speaker Impedance (1 set) | 4 - 16 ohm |
| Speaker Impedance (2 sets synchronized) | 8 - 16 ohm |
| Input Mikrofon | 3 x 6.3 mm jack (front) |
| Input Audio | 2 x stereo RCA, 1 x 3.5 mm AUX, USB, SD/MMC |
| Masukan Antena | 1 x antenna input |
| Keluaran Pembicara | 2 x stereo (screw terminals/banana connector) |
| Catu Daya | 230 V, 50 Hz |
| Sekering | 2 Sebuah |
| Dimensi (L x T x D) | Kira-kira 43 x 16.3 x 32.5 cm |
| Berat | Sekitar 3.0 kg |
| Teknologi Konektivitas | AUX, Bluetooth, USB |
| Perangkat yang Kompatibel | Laptop, Telepon Pintar |
9. Informasi Pembuangan
Do not dispose of this product with normal household waste. This product should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
10. Garansi dan Dukungan
For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact your retailer. You can also visit the official AUNA websitus untuk bantuan lebih lanjut.
