Relaxdays Key Safe with Combination Lock - Model 10027686 User Manual

Perkenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Relaxdays Key Safe with Combination Lock, Model 10027686. Please read this manual carefully before using the product to ensure proper function and security.

Produk Selesaiview

The Relaxdays Key Safe is designed for secure storage of keys and access cards, providing convenient access for authorized individuals such as family members, employees, or caregivers. It features a 4-digit combination lock and includes an emergency key for backup access. The robust metal construction is suitable for both indoor and outdoor wall mounting, offering protection against weather elements.

Gambar 1: Depan view of the Relaxdays Key Safe, showing the combination lock and emergency key access.

Isi Paket

Verifikasi bahwa semua komponen ada dalam paket:

• 1x Key Safe
• 4x Sekrup
• 4x Colokan Dinding
• 1x Kunci Darurat
• Instruksi Manual (dokumen ini)

Pengaturan dan Instalasi

The key safe is designed for wall mounting. Choose a discreet yet accessible location, suitable for both indoor and outdoor use.

1. Pilih Lokasi Pemasangan: Choose a sturdy wall surface.
2. Titik Pengeboran Mark: Hold the key safe against the wall at the desired height and mark the positions for the mounting holes.


Gambar 2: Kembali view of the key safe, indicating the pre-drilled mounting holes.

3. Lubang Bor: Gunakan mata bor yang sesuai untuk mengebor lubang pada titik yang ditandai.
4. Masukkan Steker Dinding: Masukkan steker dinding yang disediakan ke dalam lubang yang dibor.
5. Pasang Brankas Kunci: Align the key safe with the wall plugs and secure it using the provided screws. Ensure it is firmly attached to the wall.


Figure 3: The key safe securely mounted on an exterior wall.

Setting and Changing the Combination Code

The key safe comes with a default combination (usually 0-0-0-0). It is highly recommended to change this immediately to a personal code.

1. Buka Kotak Kunci: Enter the current combination (default 0-0-0-0) and turn the knob to open the safe door.

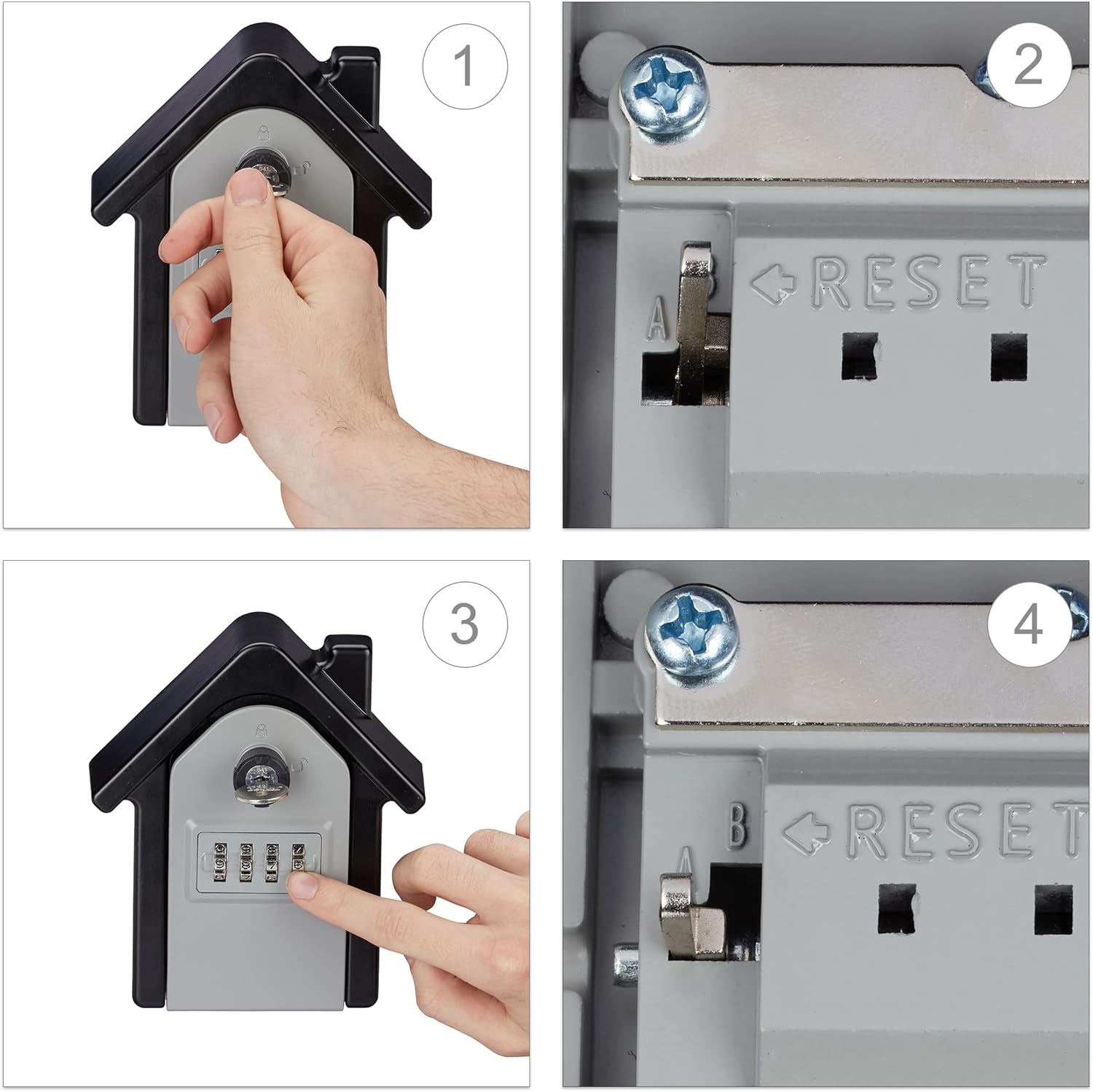

Figure 4: Visual guide for changing the combination code.

2. Temukan Tuas Reset: Inside the open door, find the reset lever. It will typically be labeled 'A' and 'B'.
3. Move the Lever: Push the lever from position 'A' to position 'B'.
4. Atur Kombinasi Baru: While the lever is in position 'B', rotate the number dials to your desired 4-digit combination. Choose a memorable but secure code.
5. Return the Lever: Push the lever back from position 'B' to position 'A'.
6. Test the New Code: Close the safe door, scramble the dials, and then try to open it with your new combination to ensure it works correctly.

Penting: Do not forget your new combination. Store the emergency key in a secure location, separate from the key safe.

Petunjuk Pengoperasian

Using the key safe for daily access:

1. Untuk Membuka: Rotate the dials to your set 4-digit combination. Turn the knob to open the door.

Figure 5: A user entering the combination to open the key safe.
2. Untuk menutup: Place keys or cards inside. Close the door and scramble the dials to lock the safe and conceal the combination.
3. Akses Darurat: In case you forget your combination, use the provided emergency key to open the safe. The keyhole is located above the combination dials.

Pemeliharaan

To ensure the longevity and smooth operation of your key safe:

• Pembersihan: Bersihkan bagian luar dengan iklanamp kain. Hindari pembersih abrasif.
• Pelumasan: If the mechanism feels stiff, apply a small amount of lubricant (e.g., silicone spray or light oil) to the moving parts of the lock and hinges.
• Perlindungan Cuaca: Although designed for outdoor use, regular inspection for any signs of wear or weather damage is recommended, especially in harsh climates.

Penyelesaian Masalah

Spesifikasi

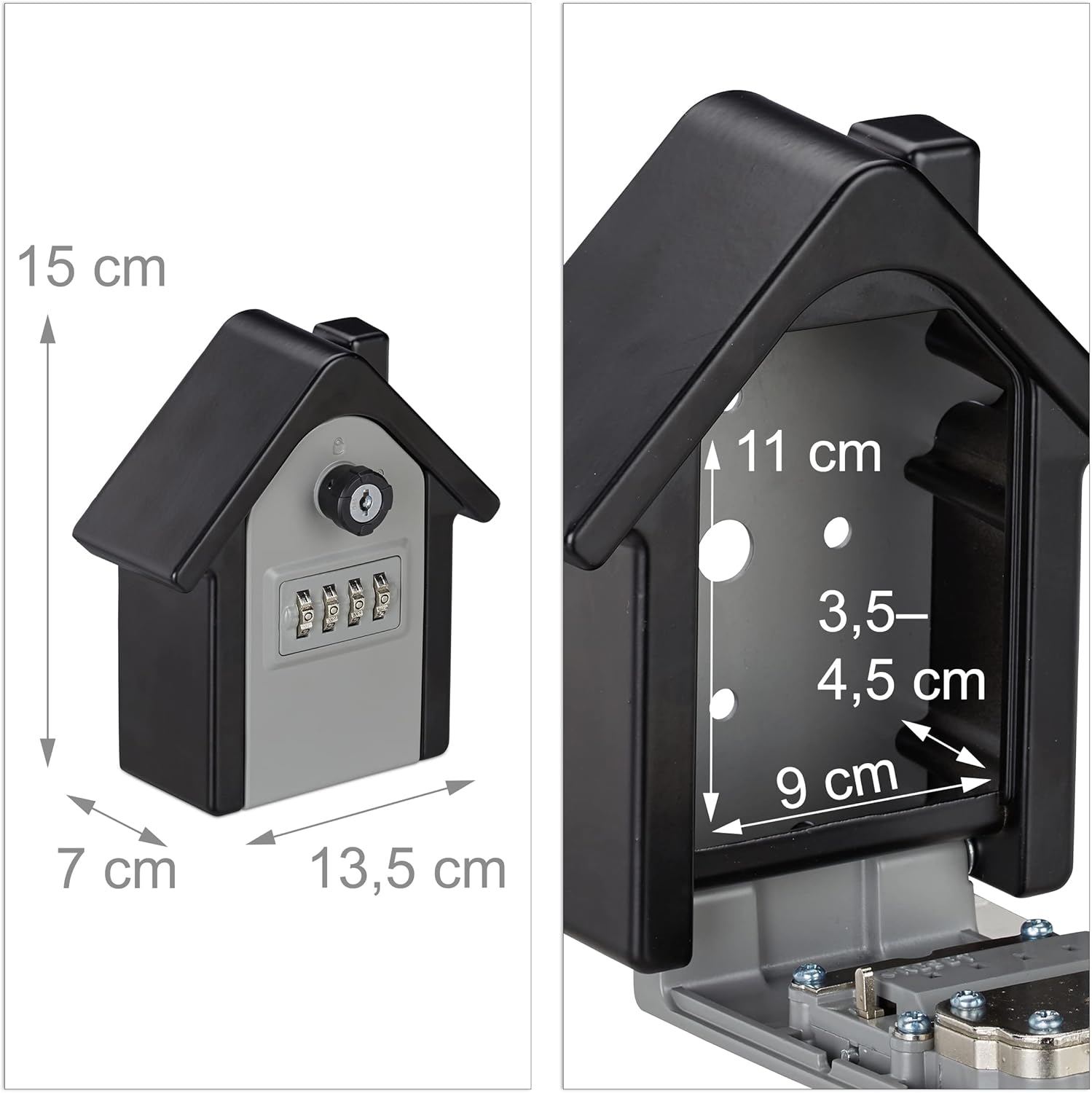

Figure 6: Detailed dimensions of the key safe.

Video Produk Resmi

Garansi dan Dukungan

This product is provided without a manufacturer's warranty as per the product information. For any questions or issues regarding your Relaxdays Key Safe, please contact the retailer or the Relaxdays customer service directly.

Anda dapat mengunjungi Relaxdays Brand Store untuk informasi lebih lanjut dan pilihan kontak.
