HOMCOM Shoe Cabinet with 3 Drawers - Instruction Manual

1. Produk Lebihview

This HOMCOM shoe cabinet is designed to provide an organized storage solution for your footwear. Its slim design makes it suitable for various spaces, including hallways and entryways, helping to keep your home tidy and shoes out of sight. The cabinet features three compartments, each with adjustable internal dividers, offering storage for up to 18 pairs of shoes.

Image 1.1: The HOMCOM shoe cabinet in a typical home environment, showcasing nya ramping profile and modern design.

2. Informasi Keselamatan

Harap baca semua petunjuk keselamatan sebelum perakitan dan penggunaan. Kegagalan mengikuti petunjuk ini dapat mengakibatkan cedera atau kerusakan pada produk.

• Bahaya Tipping: To prevent unintended tipping, it is strongly recommended to fix the furniture to the wall using the provided anti-tip hardware.
• Batas Berat: Do not exceed the maximum load capacity of 15 kg (33 lbs) for the entire unit. Overloading can compromise stability and safety.
• Perakitan: Pasang unit di atas permukaan yang lembut dan bersih untuk mencegah goresan. Pastikan semua sekrup dan pengencang terpasang dengan kencang sebelum digunakan.
• Anak-anak: Jauhkan anak-anak dari area perakitan. Bagian-bagian kecil dapat menyebabkan bahaya tersedak. Jangan biarkan anak-anak memanjat atau bermain dengan kabinet.

3. Isi Paket

Pastikan semua komponen tersedia sebelum memulai perakitan. Jika ada komponen yang hilang atau rusak, silakan hubungi dukungan pelanggan.

• Panel kabinet (atas, bawah, samping, belakang)
• Drawer fronts and internal mechanisms
• Adjustable dividers
• Hardware pack (screws, dowels, cam locks, handles, protective pads, anti-tip kit)
• Petunjuk perakitan

4. Pengaturan dan Perakitan

Follow these steps carefully for proper assembly. Two people are recommended for assembly.

1. Bongkar dan Identifikasi Bagian-bagiannya: Lay out all components on a clean, soft surface. Refer to the parts list in the included assembly guide to identify each piece.
2. Merakit Rangka Utama: Connect the side panels to the top and bottom panels using the provided hardware (e.g., cam locks and dowels). Ensure the back panel groove is correctly aligned.
3. Install Drawer Mechanisms: Attach the drawer runners and pivot mechanisms to the inside of the cabinet frame according to the instructions.
4. Merakit Laci: Attach the internal dividers to the drawer fronts. The dividers have 3 adjustable positions to accommodate different shoe sizes.
5. Pasang Bantalan Pelindung: Apply the protective pads to the bottom of the cabinet feet to prevent floor scratches.
6. Pasang ke Dinding (Disarankan): Position the cabinet in its desired location. Use the anti-tip kit to secure the cabinet to a wall stud. This is crucial for stability and safety.

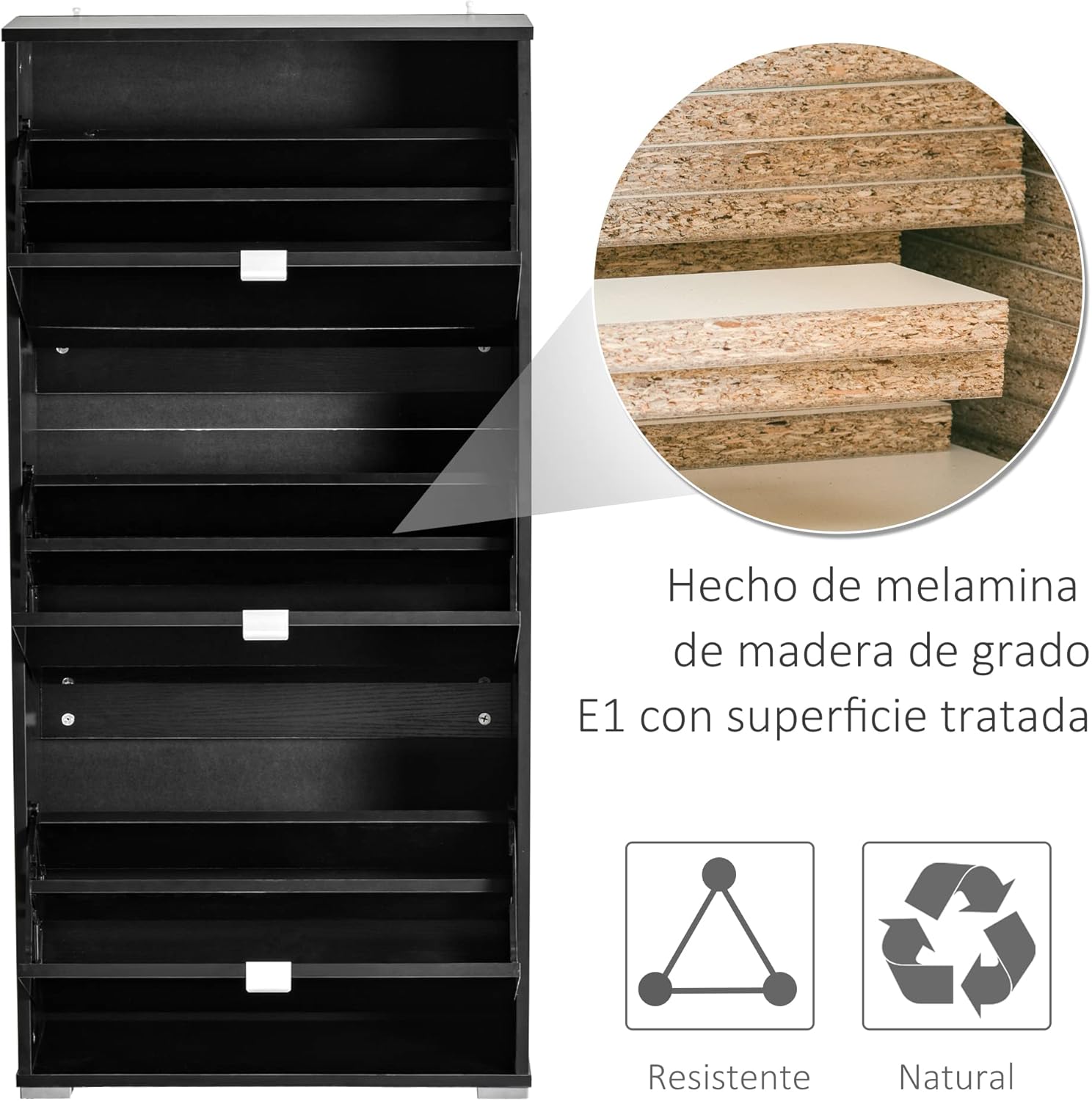

Gambar 4.1: Interior view of the cabinet, highlighting the E1 grade melamine wood material and adjustable shelf positions.

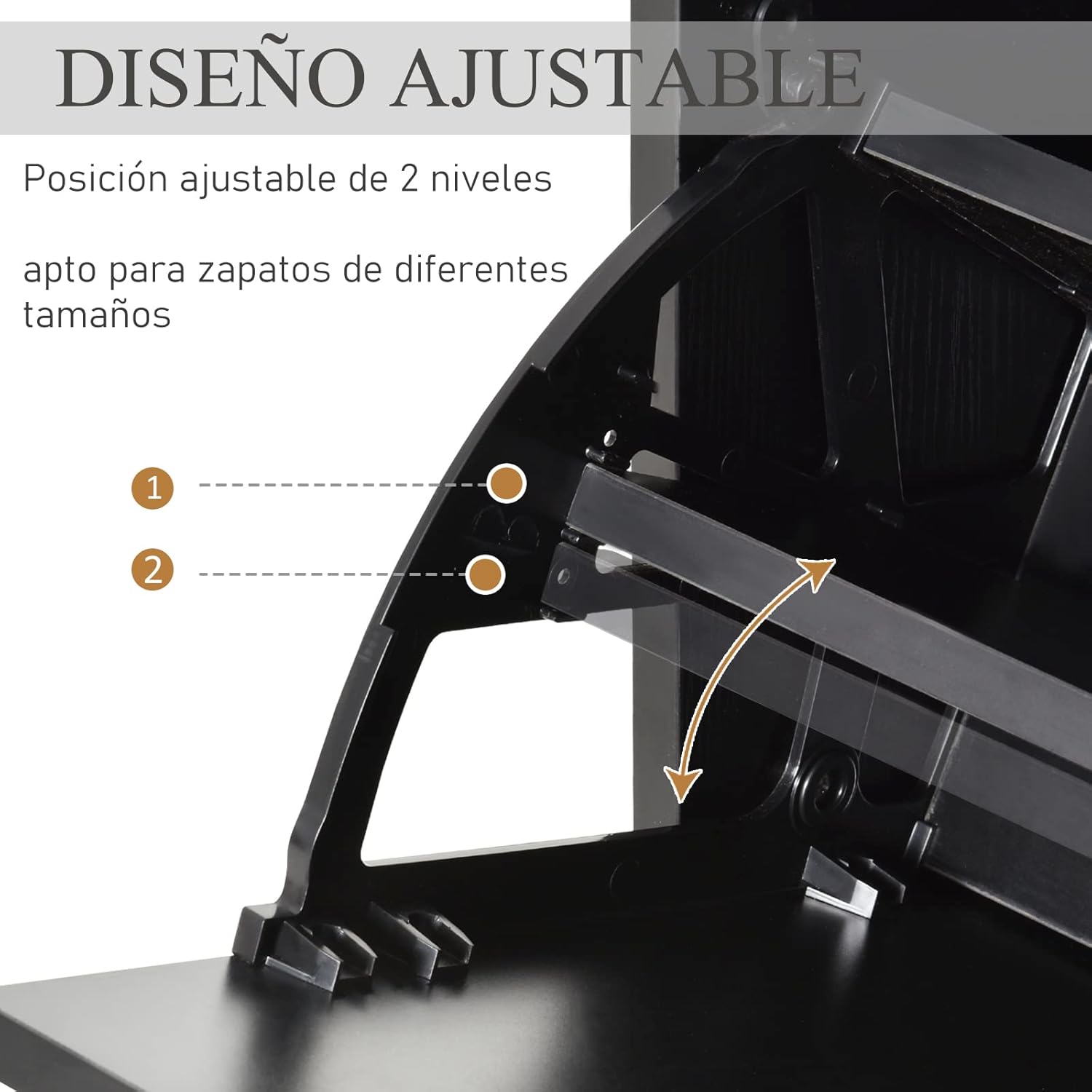

Image 4.2: Detail of the adjustable divider design, allowing customization for various shoe types and sizes.

5. Petunjuk Pengoperasian

The HOMCOM shoe cabinet is designed for simple and efficient use.

• Membuka Laci: Gently pull the handle on each drawer front to open the compartment. The drawers pivot outwards.
• Menyimpan Sepatu: Place shoes on the internal dividers. Each compartment can hold multiple pairs depending on shoe size and the divider's position. The double-level design maximizes storage.
• Menyesuaikan Pembatas: To adjust the height of the internal dividers, carefully remove them and reinsert them into one of the 3 available slots to best fit your footwear.
• Menutup Laci: Push the drawer front back into the cabinet until it is flush with the main frame.

Image 5.1: The shoe cabinet with a drawer open, demonstrating how shoes are stored on the internal divider.

6. Pemeliharaan

Perawatan rutin akan membantu memperpanjang umur dan tampilan lemari sepatu Anda.

• Pembersihan: Bersihkan permukaan kabinet dengan kain lembut dan kering.amp kain. Hindari penggunaan bahan kimia keras atau pembersih abrasif, karena dapat merusak lapisan akhir.
• debu: Bersihkan debu secara teratur dengan kain kering dan lembut.
• Pemeriksaan Perangkat Keras: Periksa semua sekrup dan pengencang secara berkala untuk memastikannya tetap kencang. Kencangkan kembali jika perlu.
• Hindari Kelembaban: Do not expose the cabinet to excessive moisture or direct sunlight, which can cause warping or fading.

7. Penyelesaian masalah

Jika Anda mengalami masalah dengan lemari sepatu Anda, lihat solusi umum berikut:

• Drawers not closing properly:
  • Check for obstructions inside the drawer or along the closing mechanism.
  • Ensure shoes are not overhanging the dividers, preventing the drawer from closing flush.
  • Verify that the drawer mechanisms are correctly installed and not damaged.
• Kabinet terasa goyang:
  • Pastikan semua sekrup perakitan dikencangkan dengan aman.
  • Confirm the cabinet is placed on a level surface.
  • Verify that the anti-tip kit is properly installed and secured to the wall.
• Goresan di lantai:
  • Ensure the protective pads are correctly attached to all feet of the cabinet.

8. Spesifikasi

Image 8.1: Dimensional drawing of the shoe cabinet.

9. Garansi dan Dukungan

For warranty information or customer support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Please have your model number (837-060BK) and purchase date available when contacting support.
