Panduan Pengguna Stasiun Docking Tiga Layar USB-C WAVLINK WL-UMD04

Perkenalan

This WAVLINK USB-C Triple Display Docking Station (Model WL-UMD04) provides comprehensive connectivity and display expansion for compatible laptops. Featuring HDMI, DisplayPort, and VGA outputs for triple display setups, 100W Power Delivery, Gigabit Ethernet, multiple USB 3.0/2.0 ports, and SD/Micro SD card readers, it enhances productivity for various computing environments.

Special Remark: This docking station is only compatible with PCs or laptops equipped with a full-featured USB-C port. A full-featured Type-C port supports USB-C power delivery, VESA video output mode, and data transfer.

Panduan Pengaturan

1. Unboxing dan Pemeriksaan Komponen:

   Carefully remove the docking station and all accessories from the packaging. Ensure the main unit, quick start guide, and any included documentation are present.



   Image: The WAVLINK WL-UMD04 USB-C Triple Display Docking Station, quick start guide, and other accessories neatly packaged.
2. Instalasi Driver (bila perlu):

   If your computer does not automatically recognize the Ethernet port or other functions, you may need to download the driver. Refer to the quick start guide or scan the QR code provided for the official WAVLINK website to download drivers based on the RTL8153 main control chip.



   Image: The docking station alongside its quick start guide and a mini-CD for driver installation (or download link).
3. Connecting to your Laptop:

   Connect the integrated USB-C cable from the docking station to a full-featured USB-C port on your laptop.



   Gambar: Sebuah overhead view of the WAVLINK WL-UMD04 docking station, highlighting its various ports and the integrated USB-C connection cable.

4. Sambungan Daya (Opsional tetapi Disarankan):

   For optimal performance and laptop charging, connect your laptop's USB-C power adapter to the "USB-C Power In" port on the docking station. This port supports up to 100W PD3.0, providing up to 85W to your laptop and 15W to other peripherals.



   Image: The docking station connected to a laptop via USB-C and to a power adapter for pass-through charging.

Petunjuk Pengoperasian

Konektivitas Tampilan

The docking station supports triple display output via HDMI, DisplayPort, and VGA ports. You can configure your displays in mirror or extend mode.

• Tampilan Tunggal: HDMI or DisplayPort can support up to 4K@30Hz (under DP1.2 source).
• Tampilan Ganda: Resolution will be 2K@60Hz when two monitors are used simultaneously.
• Tiga Tampilan: Resolution will be 1600x900@60Hz when HDMI, DisplayPort, and VGA are used together.

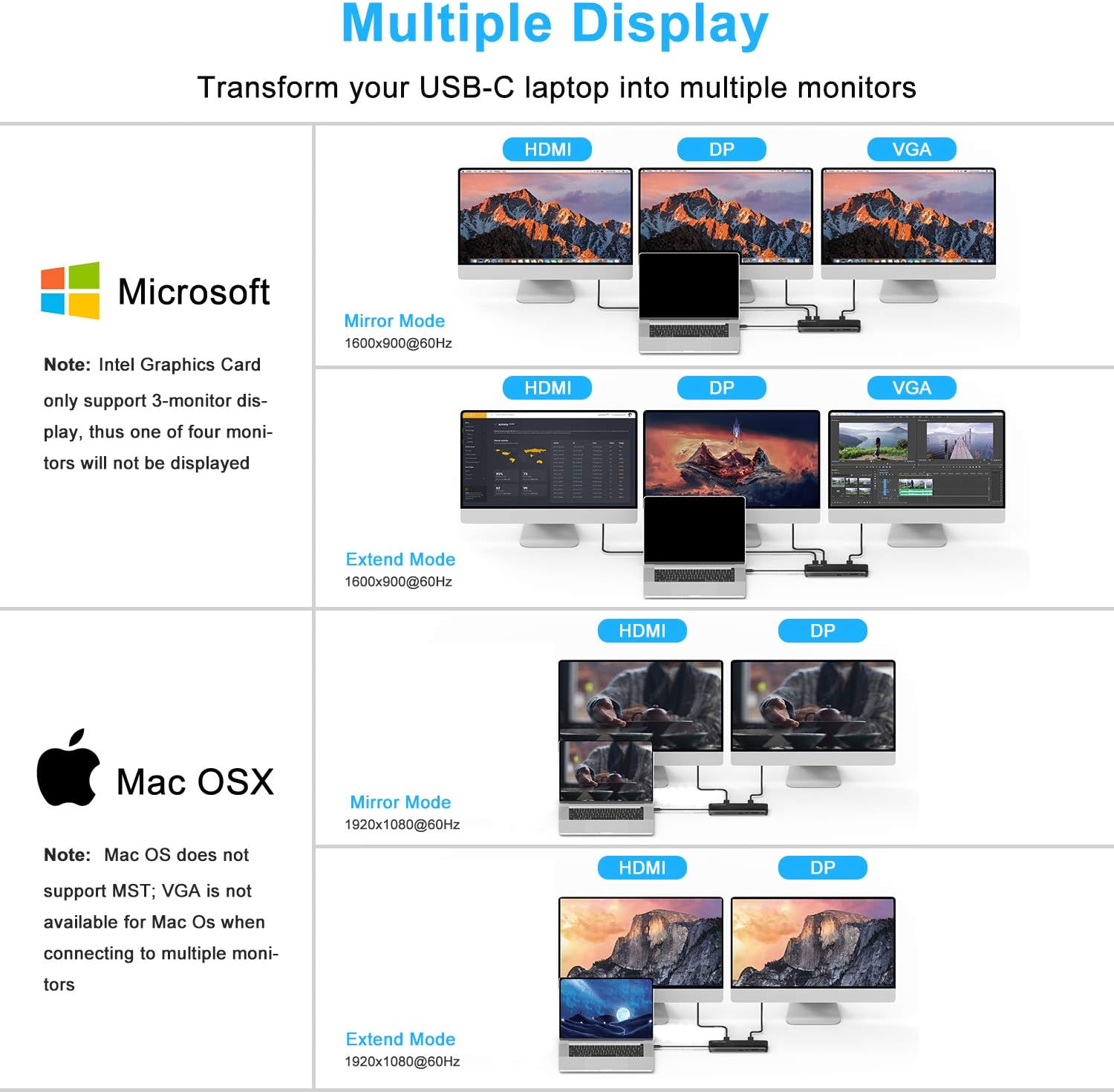

Image: A visual guide illustrating mirror and extend display modes for both Microsoft Windows and Mac OS, showing connections to HDMI, DisplayPort, and VGA.

Note for Apple M1 Chip users: There may be no sound output from the DisplayPort interface. Subsequent OS updates may resolve this issue.

Image: A laptop connected to a large 4K monitor through the WAVLINK docking station, demonstrating high-resolution video output.

Data Transfer and Network

• Port USB3.0: Two USB 3.0 ports provide data transfer speeds up to 5Gbps.
• Port USB2.0: Two USB 2.0 ports are suitable for connecting wireless mice, keyboards, and other peripherals.
• Pembaca Kartu SD/Micro SD: Built-in slots support SD and Micro SD memory cards up to 2TB, with simultaneous reading capability.
• Gigabit-Ethernet: The 1000Mbps Ethernet port ensures a stable and fast wired network connection.

Image: The docking station connected to a laptop, with various USB-A devices such as a mouse, keyboard, and external storage, demonstrating its versatile connectivity.

Pemeliharaan

• Jaga kebersihan docking station dengan menyekanya menggunakan kain lembut dan kering.
• Hindari memaparkan perangkat pada suhu ekstrem, kelembapan, atau sinar matahari langsung.
• Pastikan ventilasi yang baik di sekitar perangkat untuk mencegah panas berlebih.
• Disconnect all cables when not in use for extended periods.

Penyelesaian Masalah

• No Network Connection via Ethernet:

  If your computer is connected to the Ethernet port on the dock but there is no network, you may need to download the driver based on the RTL8153 main control chip. Visit the official WAVLINK website for more details and driver downloads.

• Display Issues (Apple M1 Chip):

  When using on an Apple computer with an M1 chip, there might be no sound output from the DisplayPort interface. This is a known issue that may be resolved with subsequent OS updates from Apple.
• Pengiriman Daya Tidak Berfungsi:

  Ensure your laptop's USB-C port is full-featured and supports Power Delivery. Use a compatible USB-C power adapter connected to the dock's "Power In" port.

• General Connectivity Problems:

  Ensure all cables are securely connected. Try restarting your laptop and reconnecting the docking station. Verify that your laptop's USB-C port supports data transfer and video output.

Spesifikasi

Garansi dan Dukungan

For warranty information, technical support, and further assistance, please visit the official WAVLINK websitus atau hubungi layanan pelanggan mereka.

Official WAVLINK Store: WAVLINK Amazon Store

Kontak: Contact@wavelink.com

Phone: +1 8889730883 (UTC -5) Mon - Fri 9AM - 6PM
