1. Produk Lebihview
This manual provides instructions for the 180W 19.5V 9.2A AC Adapter Charger, model SL195334. This power supply is designed to provide reliable power to compatible laptops, specifically MSI GT60 and GT70 models. It features an input voltage range of 100-240V, making it suitable for worldwide use, and delivers a stable 19.5V output at 9.2A (180W).
The adapter is equipped with a 5.5mm x 2.5mm barrel tip connector to ensure proper fit with specified devices. It replaces part number ADP-180NB BC.
2. Informasi Keselamatan
Please read all safety instructions before using this product to prevent injury or damage to your device.
- Keamanan Listrik: Do not expose the adapter to water, moisture, or extreme temperatures. Use only with compatible voltage outlet.
- Ventilasi: Ensure adequate ventilation around the adapter during use. Do not cover it with cloth or place it in an enclosed space.
- Perawatan Kabel: Avoid bending, twisting, or pinching the power cord. Do not place heavy objects on the cord.
- Pemisahan: Disconnect the power adapter from the wall outlet during lightning storms or when unused for extended periods.
- Sertifikasi: This adapter is designed with international safety features including Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). It is CE, FCC, ROHS, and UL certified.
- Memperbaiki: Jangan mencoba membuka atau memperbaiki adaptor sendiri. Serahkan semua perbaikan kepada personel yang berkualifikasi.
3. Isi Paket
Verifikasi bahwa semua item ada dalam paket:
- 1 x 180W AC Adapter
- 1 x Power Cord (US plug, compatible with your country)
Gambar 1: Atas view of the AC Adapter with cables. This image shows the main adapter unit, the attached DC output cable with its barrel connector, and the detachable AC input power cord.
4. Petunjuk Penyiapan
- Hubungkan Kabel Listrik: Insert the 3-prong end of the AC power cord into the AC input port on the adapter. Ensure it is firmly seated.
- Hubungkan ke Stopkontak: Plug the other end of the AC power cord into a standard wall electrical outlet (100-240V).
- Hubungkan ke Laptop: Insert the barrel tip connector of the DC output cable into the power input port on your compatible MSI GT60 or GT70 laptop.
- Verifikasi Koneksi: Ensure all connections are secure. The laptop should indicate that it is receiving power or charging.

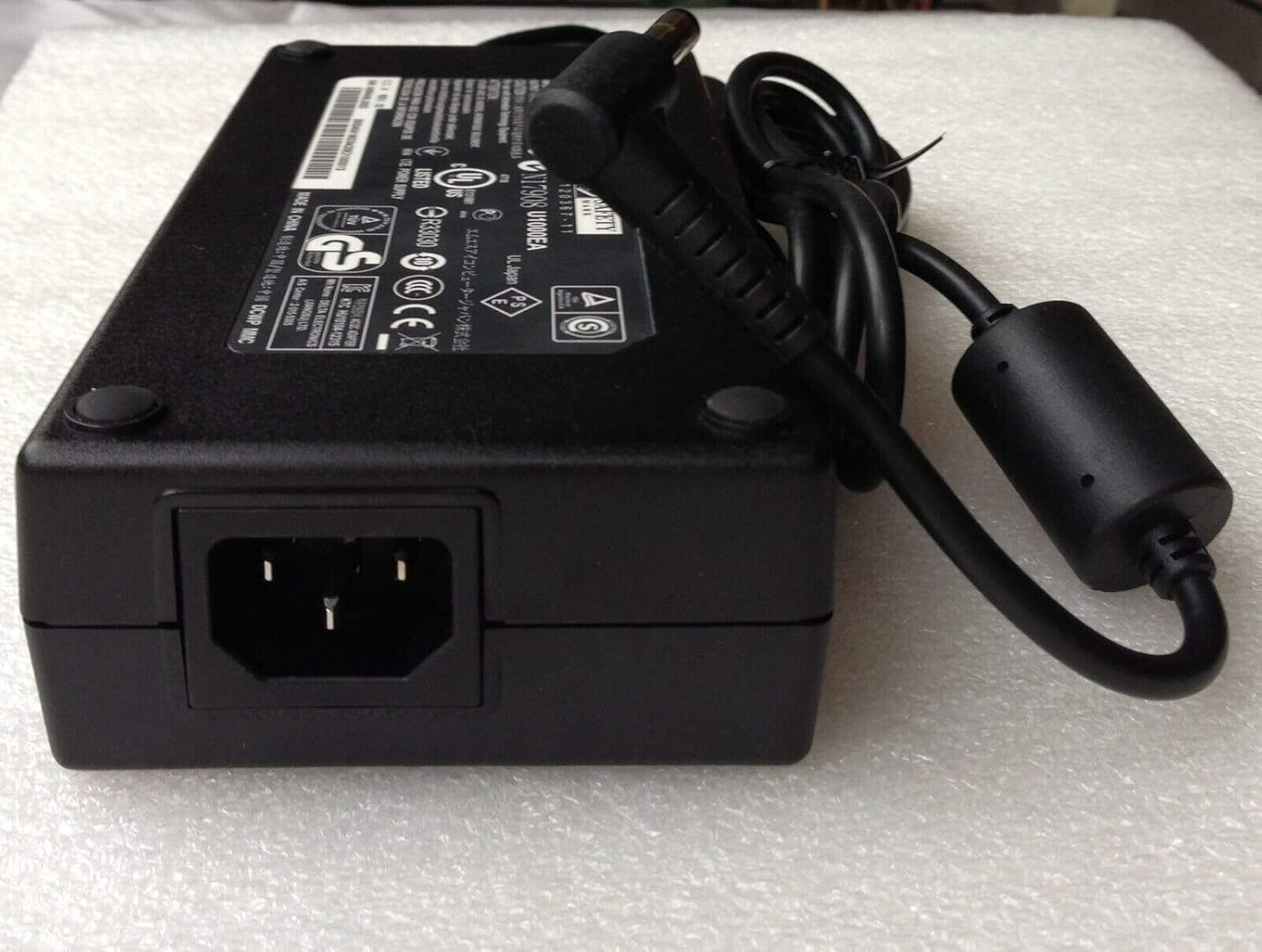

Gambar 2: Samping view of the AC Adapter showing the AC input port. This image highlights where the detachable 3-prong power cord connects to the adapter unit.
5. Petunjuk Pengoperasian
Once properly connected, the adapter will automatically supply power to your laptop and charge its battery. No additional user interaction is required for basic operation.
- Always ensure the adapter is connected to a functioning power outlet.
- If your laptop is not charging, verify all connections are secure and the power outlet is active.
- Avoid using the adapter in environments with excessive heat or humidity.
6. Pemeliharaan
- Pembersihan: Lepaskan adaptor dari semua sumber daya sebelum membersihkan. Gunakan kain lembut dan kering untuk menyeka bagian luarnya. Jangan gunakan cairan pembersih atau aerosol.
- Penyimpanan: When not in use, store the adapter in a cool, dry place. Avoid tightly wrapping the cables to prevent damage.
- Inspeksi: Periodically inspect the power cord and adapter for any signs of damage, such as frayed wires or cracks. If damage is found, discontinue use and replace the adapter.
7. Penyelesaian masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Laptop tidak mengisi daya. | Loose connection, faulty outlet, incompatible adapter. | Ensure all cables are securely connected. Test the wall outlet with another device. Verify the adapter specifications match your laptop's requirements. |
| Adaptor terasa terlalu panas. | Poor ventilation, overloaded circuit, internal fault. | Ensure the adapter is in a well-ventilated area. Disconnect and allow to cool. If overheating persists, discontinue use. |
| Sparking at outlet. | Loose plug, faulty outlet, damaged cord. | Immediately unplug the adapter. Do not use the outlet or adapter. Consult a qualified electrician or replace the adapter if damaged. |
Jika langkah pemecahan masalah tidak menyelesaikan masalah, lihat bagian Garansi dan Dukungan.
8. Spesifikasi
| Nomor Model | SL195334 |
| Masukan Voltage | 100-240V AC |
| Frekuensi Masukan | frekuensi 50-60Hz |
| Volume Keluarantage | Tegangan DC 19.5V |
| Arus Keluaran | 9.2A |
| Daya Keluaran | 180W |
| Ukuran Konektor | 5.5mm x 2.5mm Barrel Tip |
| Model yang Kompatibel | MSI GT60, MSI GT70 |
| Replace Part Number | ADP-180NB BC |
| Sertifikasi | Sertifikasi CE, FCC, ROHS, UL |
| Fitur Perlindungan | OVP (Lebih dari Voltage Protection), OCP (Over Current Protection), SCP (Short Circuit Protection) |
9. Garansi dan Dukungan
Produk ini dilengkapi dengan Garansi 12 bulan terhitung sejak tanggal pembelian. Garansi ini mencakup cacat produksi dan kerusakan material dalam penggunaan normal.
The warranty does not cover damage caused by misuse, accident, unauthorized modification, or improper installation. Please retain your proof of purchase for warranty claims.
For technical support or warranty inquiries, please contact your retailer or the manufacturer directly. Contact information is typically provided on the product packaging or the retailer's weblokasi.
