Weewooday DC-DC Step-Up Power Module Instruction Manual

1. Pendahuluan

This manual provides essential information for the safe and effective use of the Weewooday DC-DC Step-Up Power Module. This module is designed to convert a lower DC input voltage (0.9V-5V) to a stable 5V DC output, suitable for various electronic projects and applications requiring a boosted voltage pasokan.

2. Informasi Keselamatan

• Masukan Voltage Batas: Pastikan volume inputtage does not exceed 5V. Exceeding this limit can damage the module.
• Output Current Limits: Do not exceed the maximum output current of 480mA. Overloading the module can lead to voltage drop or damage.
• Input Power vs. Output Power: The input power must always be greater than the desired output power. If input power is insufficient, the output voltage may be lower than the nominal 5V.
• Polaritas: Always observe correct input and output polarity. Incorrect connections can cause irreversible damage.
• Penanganan: Handle the module with care to avoid electrostatic discharge (ESD) damage.
• Ventilasi: Ensure adequate ventilation, especially when operating at higher loads, to prevent overheating.

3. Produk Lebihview

The Weewooday DC-DC Step-Up Power Module is a compact and efficient voltage boost converter. It is designed for applications requiring a stable 5V output from a lower voltage source. The module features a small form factor, making it suitable for integration into various electronic circuits.

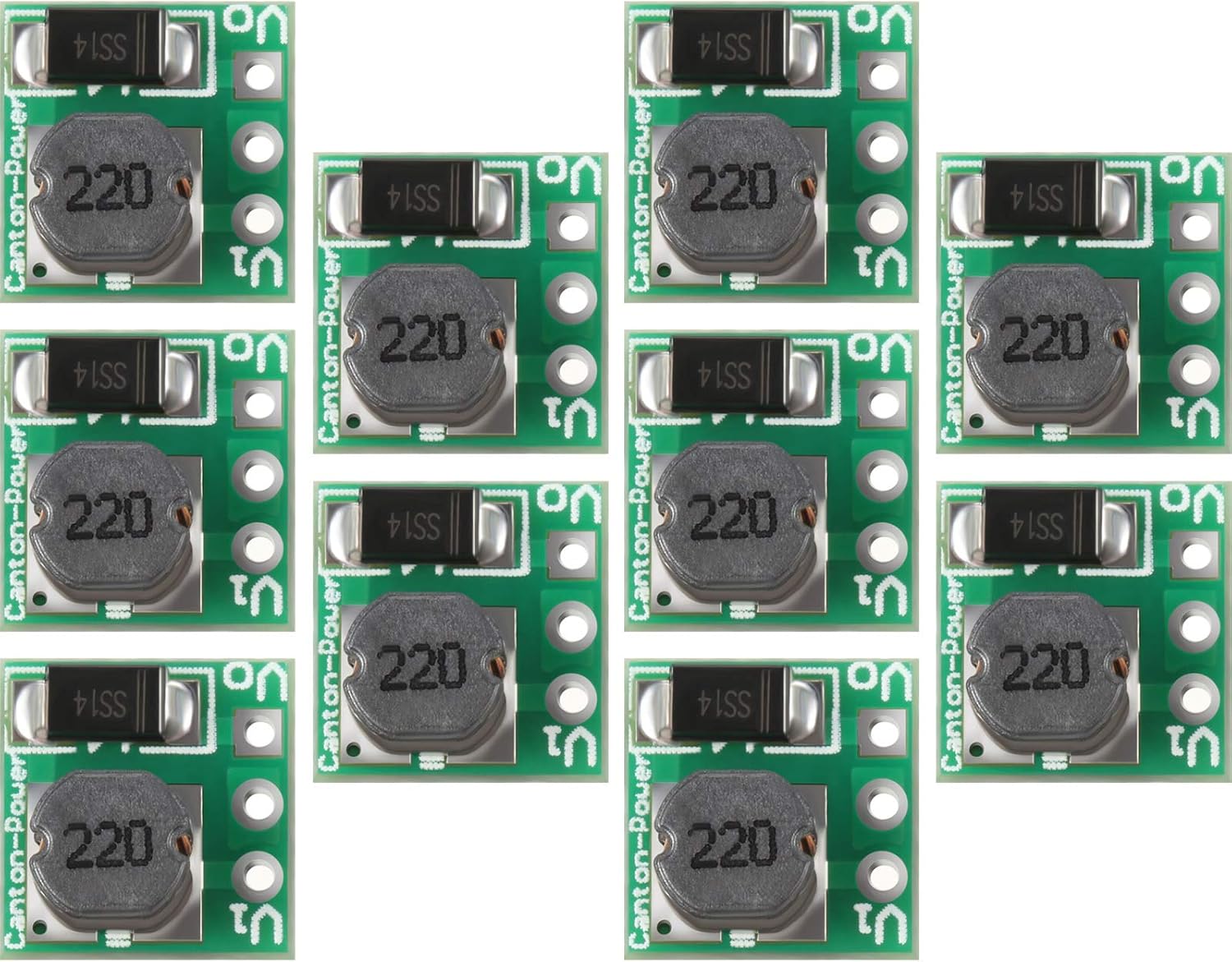

Image 3.1: A set of ten Weewooday DC-DC Step-Up Power Modules, showcasing their compact size and green PCB design.

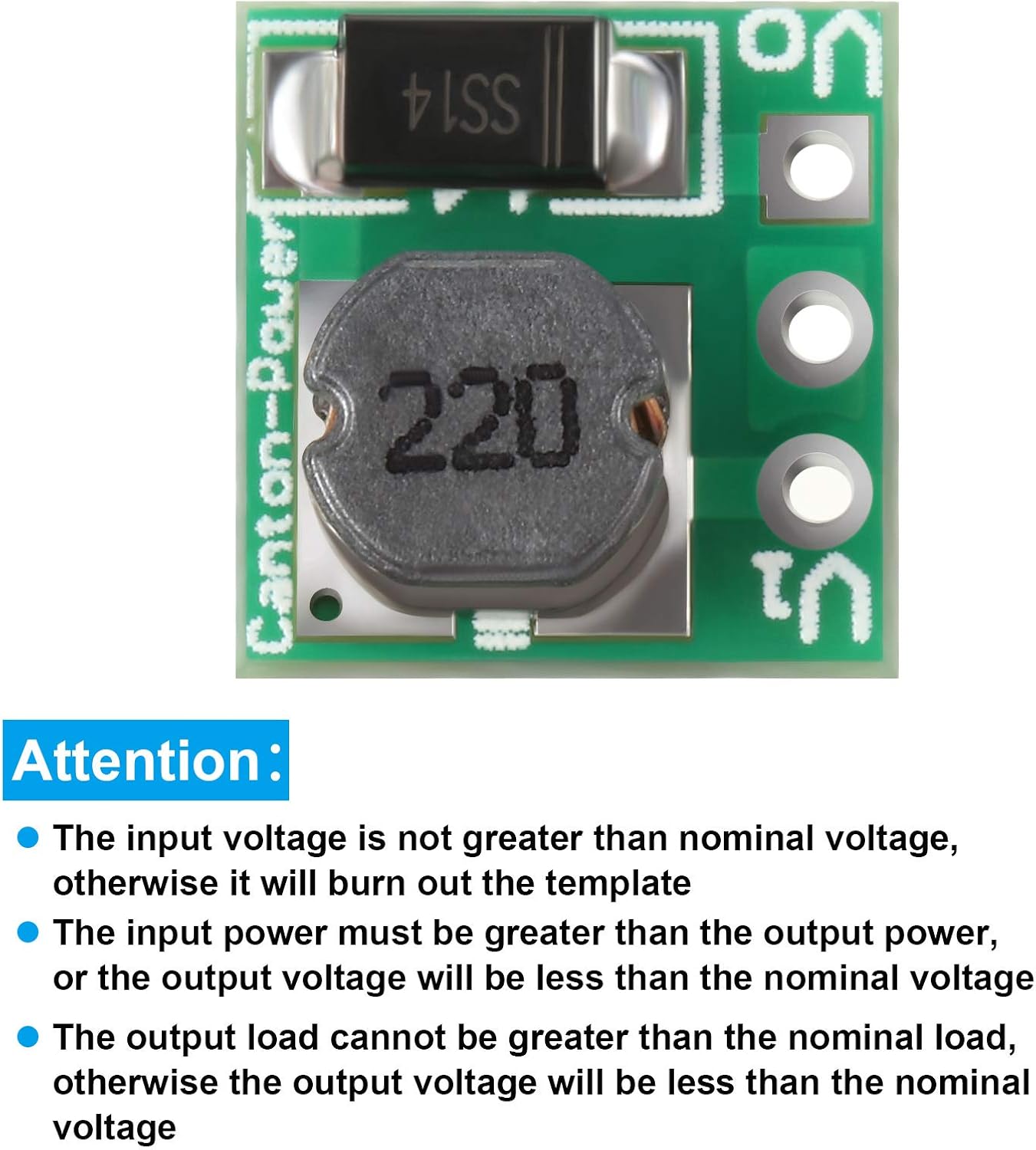

Image 3.2: A detailed top-down view of a single DC-DC Step-Up Power Module, highlighting the inductor (labeled '220') and the SS14 diode.

Image 3.3: A close-up of the module, showing the input (Vi), ground (GND), and output (Vo) solder pads, along with the integrated circuit (IC) on the underside.

4. Spesifikasi

Image 4.1: Diagram illustrating the dimensions of the DC-DC Step-Up Power Module, showing its length (11mm), width (10.5mm), and pin spacing (2.54mm).

5. Pengaturan

Before connecting the module, ensure all power sources are disconnected.

5.1 Pin keluar

The module typically has three main connection points:

• Vi (Input Voltage): Connect your DC input voltage source (0.9V to 5V) to this pin.
• GND (Tanah): Connect the common ground for both input and output to this pin.
• Vo (Output Voltage): Connect your 5V load to this pin.

5.2 Prosedur Koneksi

1. Identify the Vi, GND, and Vo pins on the module.
2. Solder wires or connect appropriate connectors to these pins.
3. Connect the positive terminal of your input power source (e.g., battery, solar panel) to the Vi pin.
4. Connect the negative terminal of your input power source to the GND pin.
5. Connect the positive terminal of your 5V load to the Vo pin.
6. Connect the negative terminal of your 5V load to the GND pin.
7. Double-check all connections for correct polarity and secure soldering/connections.

Gambar 5.1: Sebuah example setup showing the DC-DC Step-Up Power Module connected to a power supply for input and a multimeter for output voltage measurement, illustrating typical wiring.

6. Operasi

Once the module is correctly wired, apply power to the input. The module will automatically boost the input voltage to a stable 5V output. Monitor the output voltage and current to ensure it remains within the specified limits for your application.

• The module's operating frequency is 150KHz.
• Typical conversion efficiency is 85%. Efficiency may vary based on input voltage dan kondisi beban.

7. Pemeliharaan

The Weewooday DC-DC Step-Up Power Module requires minimal maintenance. Keep the module clean and free from dust and moisture. Periodically inspect connections for any signs of corrosion or loose wiring. Ensure the operating environment allows for proper heat dissipation, especially during continuous operation at higher loads.

8. Penyelesaian masalah

• Tidak ada Volume Keluarantage or Low Output Voltage:
  • Verifikasi masukan voltage berada dalam kisaran 0.9V-5V.
  • Periksa semua kabel untuk memastikan polaritas yang benar dan sambungan yang aman.
  • Ensure the input power source can supply enough current for the desired output power. The input power must be greater than the output power.
  • Reduce the load on the output. The maximum output current is 480mA. Exceeding this can cause voltagjatuh.
• Modul Terlalu Panas:
  • Reduce the output load.
  • Pastikan ventilasi yang memadai di sekitar modul.
• Module Damaged:
  • Jika volume masukantage exceeded 5V, the module may be permanently damaged.
  • If output current significantly exceeded 480mA for an extended period, the module may be damaged.

9. Garansi & Dukungan

Untuk informasi garansi atau dukungan teknis, silakan lihat kemasan produk atau hubungi pengecer Anda. Simpan bukti pembelian Anda untuk klaim garansi.
