Hantek DSO2D15 2-Channel Digital Storage Oscilloscope Instruction Manual

1. Pendahuluan

The Hantek DSO2D15 is a 2-channel digital storage oscilloscope featuring a 150MHz bandwidth, 1GSa/s sampling rate, and 8M memory depth. It also includes a built-in 25MHz DDS waveform generator. This instrument is designed for various electronic testing and measurement applications, offering advanced trigger modes, serial protocol decoding, and automatic measurement functions.

This manual provides essential information for the safe and efficient operation of your DSO2D15 oscilloscope. Please read it thoroughly before use and retain it for future reference.

2. Informasi Keselamatan

Always observe the following safety precautions to prevent injury and avoid damage to the instrument or connected devices.

• Sumber Daya: Pastikan osiloskop terhubung ke sumber daya dalam tegangan yang ditentukan.tage range (100-240V AC, 50/60Hz). Use only the provided power cord or an approved equivalent.
• Pembumian: The instrument must be properly grounded to prevent electric shock. Do not defeat the grounding feature of the power plug.
• Kondisi Lingkungan: Operate the oscilloscope in a dry, well-ventilated area. Avoid exposure to extreme temperatures, humidity, dust, or corrosive gases.
• Vol berbahayatage: Volume berbahayatages are present inside the device. Do not remove the cover unless performed by qualified service personnel. Refer to the warning label on the rear panel.
• Probe: Gunakan hanya probe yang sesuai dengan tegangan tersebut.tage and frequency being measured. Ensure probes are properly connected before making measurements.
• Pembersihan: Putuskan sambungan daya sebelum membersihkan. Gunakan kain lembut dan lembut.amp kain. Jangan gunakan pembersih atau pelarut yang bersifat abrasif.
• Pelayanan: Serahkan semua servis kepada teknisi yang berkualifikasi.

Figure 2.1: Rear panel of the DSO2D15, highlighting the power input and safety warning label regarding hazardous voltage.

3. Pengaturan

3.1 Pembongkaran dan Pemeriksaan

Carefully unpack the oscilloscope and all accessories. Inspect for any signs of damage during transit. If any damage is found, contact your supplier immediately.

3.2 Isi Paket

The standard package for the Hantek DSO2D15 includes the following items:

• Hantek DSO2D15 Oscilloscope Unit
• 1 PP150B 150MHz Probe
• 1 Hantek PP150 100MHz Probe (for 2nd channel)
• 1 Kabel USB
• 2 Clip Lines
• 1 US Power Cable (Note: Some units may include a European power cable. If so, a compatible US power cable will be required for operation in the US.)

Figure 3.1: The DSO2D15 oscilloscope unit shown with its various included accessories, such as probes, cables, and clip lines.

Figure 3.2: A closer look at the included oscilloscope probes, various clip lines, and a wire stripping tool, essential for connecting to circuits.

3.3 Sambungan Daya

1. Connect the provided power cable to the AC input on the rear panel of the oscilloscope.
2. Colokkan ujung kabel daya lainnya ke stopkontak AC yang memiliki ground.
3. Ensure the power switch (usually located near the AC input) is in the OFF position before connecting to power.

3.4 Koneksi Pemeriksaan

Connect the oscilloscope probes to the BNC input connectors on the front panel (CH1, CH2). Ensure a secure connection by twisting the BNC connector until it locks.

Before making measurements, perform probe compensation to ensure accurate readings. Refer to the "Probe Compensation" section in the Operating Instructions.

4. Petunjuk Pengoperasian

4.1 Menghidupkan/Mematikan

1. To power on, press the power switch located on the rear panel. The display will illuminate, and the system will boot up.
2. Untuk mematikan, tekan kembali tombol daya.

4.2 Panel Depan Atasview

The front panel of the DSO2D15 features a large display, control buttons, and input connectors. Familiarize yourself with the layout for efficient operation.

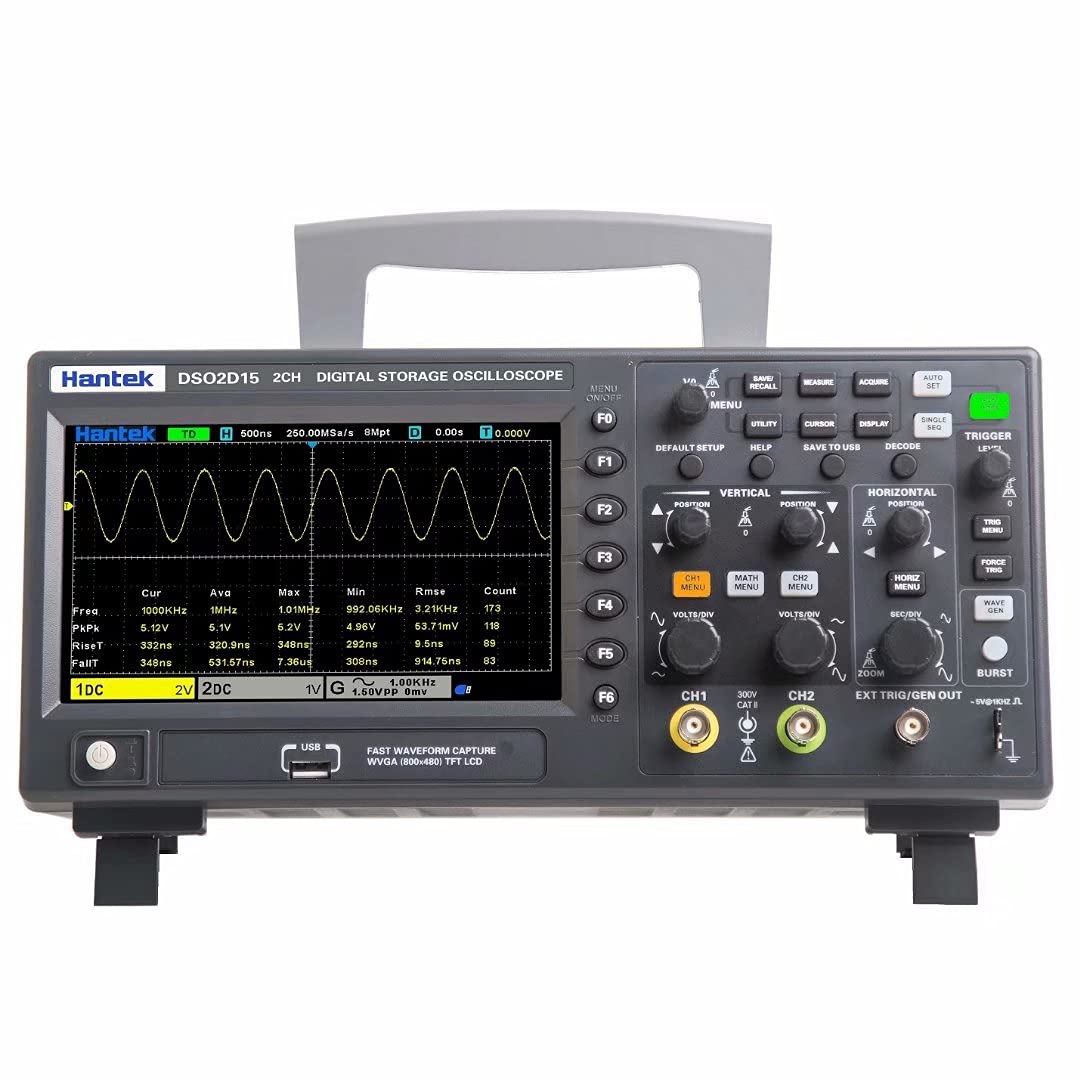

Figure 4.1: Front panel of the DSO2D15, showing the display, function buttons (F1-F6), vertical and horizontal controls, trigger controls, and channel inputs.

4.3 Fungsi Dasar Osiloskop

• Kontrol Vertikal: Sesuaikan volumetage per division (Volts/Div) and vertical position for each channel (CH1, CH2).
• Kontrol Horizontal: Adjust time per division (Sec/Div) and horizontal position to control the time base.
• Sistem Pemicu: Use the trigger controls to stabilize waveforms. Select trigger type (Edge, Pulse, Video, Slope, etc.), source, and level. The DSO2D15 offers 14 kinds of trigger modes.
• Acquisition Mode: Select between Normal, Peak Detect, and Average modes for waveform acquisition.
• Pengukuran: Access automatic measurement functions (32 kinds available) to display parameters like frequency, period, Vpp, Vmax, Vmin, etc.
• Penguraian Protokol Serial: The unit supports 5 kinds of serial protocol decoding. Refer to the on-screen menu for specific setup and analysis.

4.4 DDS Waveform Generator

The DSO2D15 includes a built-in 25MHz DDS waveform generator. This generator can produce various standard waveforms (sine, square, triangle, etc.) for testing circuits.

1. Connect the DDS output (labeled EXT TRIG/GEN OUT) to the circuit under test.
2. Access the generator menu via the front panel controls.
3. Select the desired waveform type, frequency, amplintang, dan offset.
4. Enable the output to generate the waveform.

Note: The built-in DDS generator is suitable for general testing but should not be confused with a dedicated arbitrary waveform generator for complex signal generation.

5. Pemeliharaan

5.1 Perawatan Umum

• Jaga instrumen tetap bersih dan kering.
• Hindari menjatuhkan atau membiarkan unit terkena benturan keras.
• Store in a dust-free environment when not in use.

5.2 Pembersihan

To clean the exterior of the oscilloscope:

1. Cabut kabel daya dari stopkontak AC.
2. Gunakan kain lembut ringan dampdibersihkan dengan air atau pembersih ringan yang tidak bersifat abrasif.
3. Wipe the surfaces gently. Do not allow liquids to enter the instrument.
4. Pastikan unit benar-benar kering sebelum menyambungkan kembali daya.

5.3 Pembaruan Firmware

Periksa secara berkala Hantek resmi website for available firmware updates. Updating the firmware can improve performance, add features, or resolve known issues. Follow the instructions provided with the firmware update package carefully.

6. Penyelesaian masalah

This section addresses common issues you might encounter with your DSO2D15 oscilloscope.

7. Spesifikasi

The following are key technical specifications for the Hantek DSO2D15 oscilloscope:

• Lebar pita: Frekuensi 150 MHz
• Saluran: 2 Saluran Analog
• SampTingkat ling: 1 GSa/s (Real-time)
• Kedalaman Memori: 8M points
• Built-in DDS Waveform Generator: Frekuensi 25 MHz
• Mode Pemicu: 14 types (Edge, Pulse, Video, Slope, etc.)
• Penguraian Protokol Serial: 5 jenis
• Pengukuran Otomatis: 32 jenis
• Menampilkan: LCD TFT 7 inci
• Konektivitas: Host USB, Perangkat USB

Fisik dan Lingkungan

• Dimensi Paket: 14.3x8.25x7.75 inci
• Berat Barang: 6.14 pon
• Pabrikan: Qingdao Hantek Elektronik Co, Ltd.
• Volume Operasitage: Tegangan 100-240VAC, 50/60Hz
• Tanggal Pertama Tersedia: 24 Maret 2021

8. Garansi dan Dukungan

8.1 Informasi Garansi

Hantek products are typically covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For detailed warranty information, please refer to the warranty card included with your product or visit the official Hantek weblokasi.

8.2 Dukungan Teknis

If you encounter issues not covered in this manual or require further assistance, please contact Hantek technical support. You can typically find contact information on the official Hantek websitus atau melalui pengecer produk Anda.

When contacting support, please have your product model (DSO2D15) and serial number ready, along with a detailed description of the issue.

Anda juga dapat mengunjungi Hantek Store on Amazon untuk informasi produk dan sumber daya tambahan.
