Ikea FÖRNUFTIG Air Purifier User Manual

Perkenalan

The Ikea FÖRNUFTIG Air Purifier is designed to improve indoor air quality by filtering out various airborne particles and pollutants. This manual provides essential information for the safe and efficient use, installation, and maintenance of your air purifier.

Informasi Keselamatan

• Bacalah semua petunjuk dengan saksama sebelum menggunakan alat ini.
• Jangan mengoperasikan pembersih udara dengan kabel atau steker yang rusak.
• Jauhkan peralatan dari air dan kelembapan.
• Pastikan ventilasi yang baik di sekitar unit; jangan menghalangi lubang masuk atau keluar udara.
• Peralatan ini hanya untuk penggunaan di dalam ruangan.
• Cabut steker pembersih udara sebelum membersihkan atau melakukan perawatan apa pun.

Isi Paket

Verifikasi bahwa semua komponen ada dalam paket:

• FÖRNUFTIG Air Purifier unit
• Particle filter (pre-installed or separate)
• Lantai berdiri
• Kabel listrik
• Handle (removable)

Pengaturan

The FÖRNUFTIG air purifier offers flexible placement options: on the floor with the included stand or mounted on a wall.

Penempatan Lantai

1. Attach the floor stand to the bottom of the air purifier unit.
2. Tempatkan penjernih udara di permukaan yang rata dan stabil.
3. Ensure there is adequate space around the unit for air circulation.

Image: The FÖRNUFTIG Air Purifier positioned on its floor stand next to a sofa, demonstrating typical floor placement.

Pemasangan di Dinding

1. Remove the handle if it is attached.
2. Identify a suitable wall location, ensuring access to a power outlet.
3. Use appropriate wall fasteners (not included) to securely mount the air purifier. The unit can be mounted vertically or horizontally.

Image: The FÖRNUFTIG Air Purifier mounted horizontally on a wall above a desk, showcasing a wall-mounted setup.

Pemasangan Filter

The air purifier comes with a particle filter. A gas filter can be purchased separately and used in conjunction with the particle filter.

1. Buka penutup belakang alat pembersih udara.
2. Insert the particle filter into the designated slot.
3. If using a gas filter, insert it after the particle filter.
4. Tutup penutup belakang dengan rapat.

Petunjuk Pengoperasian

The FÖRNUFTIG Air Purifier is controlled via a single rotary knob.

1. Daya Hidup/Mati: Rotate the knob clockwise from the 'O' (off) position to turn the unit on. Continue rotating to select a fan speed. Rotate counter-clockwise back to 'O' to turn off.
2. Penyesuaian Kecepatan Kipas: The knob allows selection of three fan speeds (I, II, III). Speed I is the lowest, and Speed III is the highest. Choose the appropriate speed based on your air purification needs and desired noise level.

Gambar: Close-up view of the control knob on the top of the FÖRNUFTIG Air Purifier, showing the power and fan speed settings.

Portabilitas

The integrated handle allows for easy transportation of the air purifier between rooms. When wall-mounted, the handle can be removed.

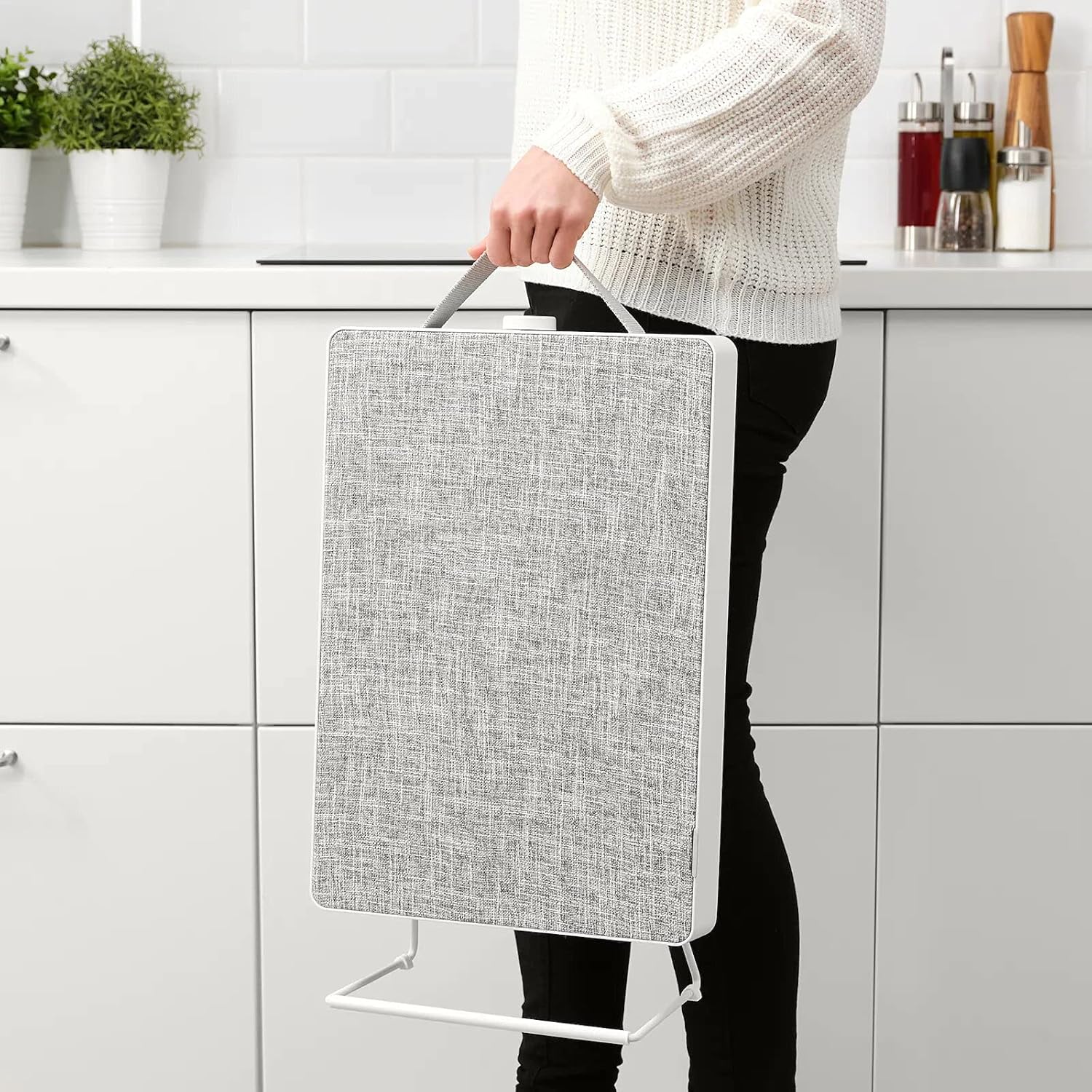

Image: A person carrying the FÖRNUFTIG Air Purifier by its top handle, demonstrating its portability.

Pemeliharaan

Penggantian Filter

Filters should be replaced regularly to maintain optimal performance. The frequency depends on usage and air quality. A filter indicator light on the control panel will illuminate when it's time to check or replace the filter.

1. Cabut alat pembersih udara dari stopkontak.
2. Buka penutup belakang unit tersebut.
3. Remove the old filter(s).
4. Insert new filter(s) into the correct slots.
5. Tutup penutup belakang dengan rapat.
6. Plug in the air purifier. Reset the filter indicator by pressing and holding the reset button (usually located near the control knob) for a few seconds until the light turns off.

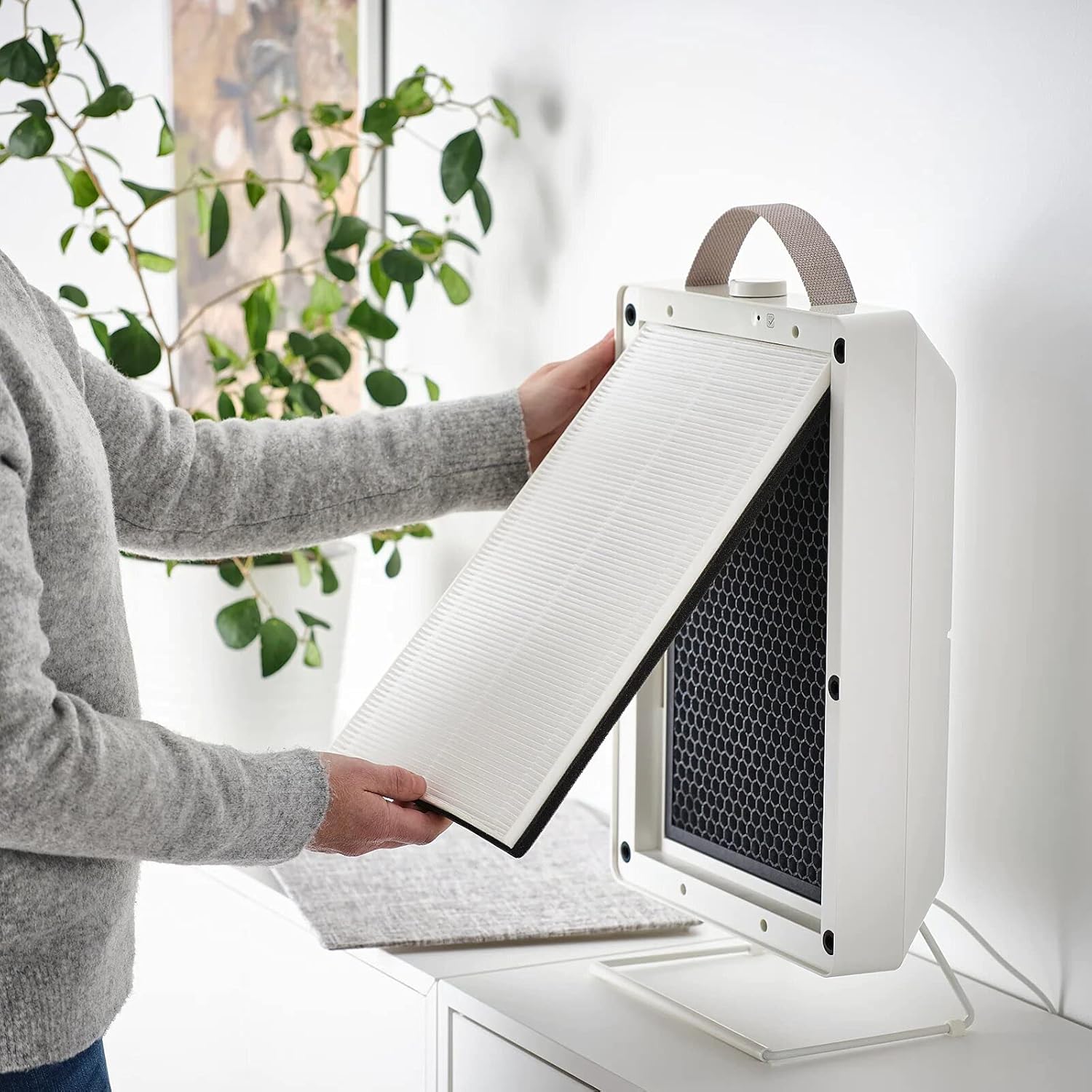

Image: A person demonstrating the process of removing and replacing the filter in the FÖRNUFTIG Air Purifier.

Pembersihan

• Lap bagian luar alat pembersih udara dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang bersifat abrasif.
• Jangan mencuci filter.
• Periodically vacuum the air inlets and outlets to remove dust accumulation.

Penyelesaian Masalah

Spesifikasi

Garansi dan Dukungan

Untuk informasi garansi dan dukungan pelanggan, silakan merujuk pada dokumentasi yang disertakan dengan pembelian Anda atau kunjungi situs web resmi Ikea website. You can also contact Ikea customer service directly for assistance with product inquiries, troubleshooting, or replacement parts.

Ikea Resmi Weblokasi: www.ikea.com
