OTTOLIVES Baby Playpen Model TA20 Instruction Manual

Informasi Keselamatan Penting

Please read all instructions carefully before assembling and using the OTTOLIVES Baby Playpen. Failure to follow these instructions could result in serious injury or death.

• Always ensure all parts are correctly assembled and securely fastened before placing a child in the playpen.
• Never leave a child unattended in the playpen. Constant supervision is required.
• Do not modify the playpen or use accessories not approved by OTTOLIVES.
• Jauhkan tempat bermain dari api terbuka, pemanas, dan sumber panas lainnya.
• Ensure the playpen is placed on a flat, stable surface.
• Discontinue use if any part of the playpen is damaged or broken.
• The playpen is designed for children who cannot climb out and are within the recommended age range (5 months to 6 years).
• Remove all toys and objects that could be used as steps to climb out of the playpen.

Isi Paket

Sebelum perakitan, pastikan semua komponen sudah lengkap:

• Fabric Playpen Enclosure (Oxford Cloth with Mesh Panels)
• Thickened Steel Pipes (various lengths for frame)
• ABS Plastic Connectors (for corners and joints)
• Anti-skid Bottom Suction Cups
• Anti-collision Foam Sponge (for upper and side steel pipes)
• Pull Rings (4 units)
• Tote Bag (for storage and transport)

Gambar: Lebih dariview of playpen dimensions, folded tote bag, and included pull rings.

Petunjuk Pengaturan

Assembly typically requires two adults due to the snug fit of the fabric. No tools are required.

1. Bongkar Komponen: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify all components are present as listed above.
2. Merakit Rangka Dasar: Connect the longer steel pipes using the appropriate ABS plastic connectors to form the rectangular base of the playpen. Ensure all connections are secure.
3. Attach Fabric Base: Lay the fabric enclosure flat. Insert the assembled base frame into the bottom sleeve of the fabric enclosure. Ensure the waterproof Oxford cloth base is correctly positioned.
4. Install Vertical Pipes: Insert the vertical steel pipes into the corner and mid-point connectors of the base frame.
5. Merakit Rangka Atas: Connect the remaining steel pipes to form the top rectangular frame. This step may require some force to ensure a tight and secure fit within the fabric sleeves. It is recommended to have two people for this step to stretch the fabric and align the pipes.
6. Secure Top Frame: Once the top frame is assembled, connect it to the vertical pipes using the remaining ABS plastic connectors. Ensure all snap designs are engaged and zippers on the top steel pipe are closed.
7. Apply Anti-collision Foam: Place the anti-collision foam sponge around the upper and side steel pipes to prevent bumps.
8. Pasang Cangkir Hisap: Ensure the anti-skid bottom suction cups are firmly pressed onto a smooth, clean floor surface for maximum stability.
9. Install Pull Rings: Attach the four pull rings to the designated loops on the top frame of the playpen.

Gambar: Detail view of the safe and stable fence frame assembly, illustrating pipe and connector connections.

Image: Close-up of structural components including thickened steel pipes, upgraded connectors, and non-slip suction cups.

Petunjuk Pengoperasian

The OTTOLIVES Baby Playpen provides a secure and spacious environment for your child.

• Masuk dan Keluar: The playpen features two zippered doors for easy access. Always ensure these zippers are closed from the outside when a child is inside to prevent accidental opening.
• Visibilitas: The soft, breathable mesh side panels allow for 360° visibility, enabling you to observe your child from any angle.
• Interaksi: The large space accommodates multiple children or an adult, allowing for interactive play.
• Pull Rings: The included pull rings can assist babies in learning to stand and walk. Ensure they are securely attached.

Image: Illustrates the outer zipper for secure closure and the scientific safety height of the playpen.

Image: Shows a mother interacting with a baby through the breathable mesh, emphasizing safety features like corner protection and eco-friendly fabric.

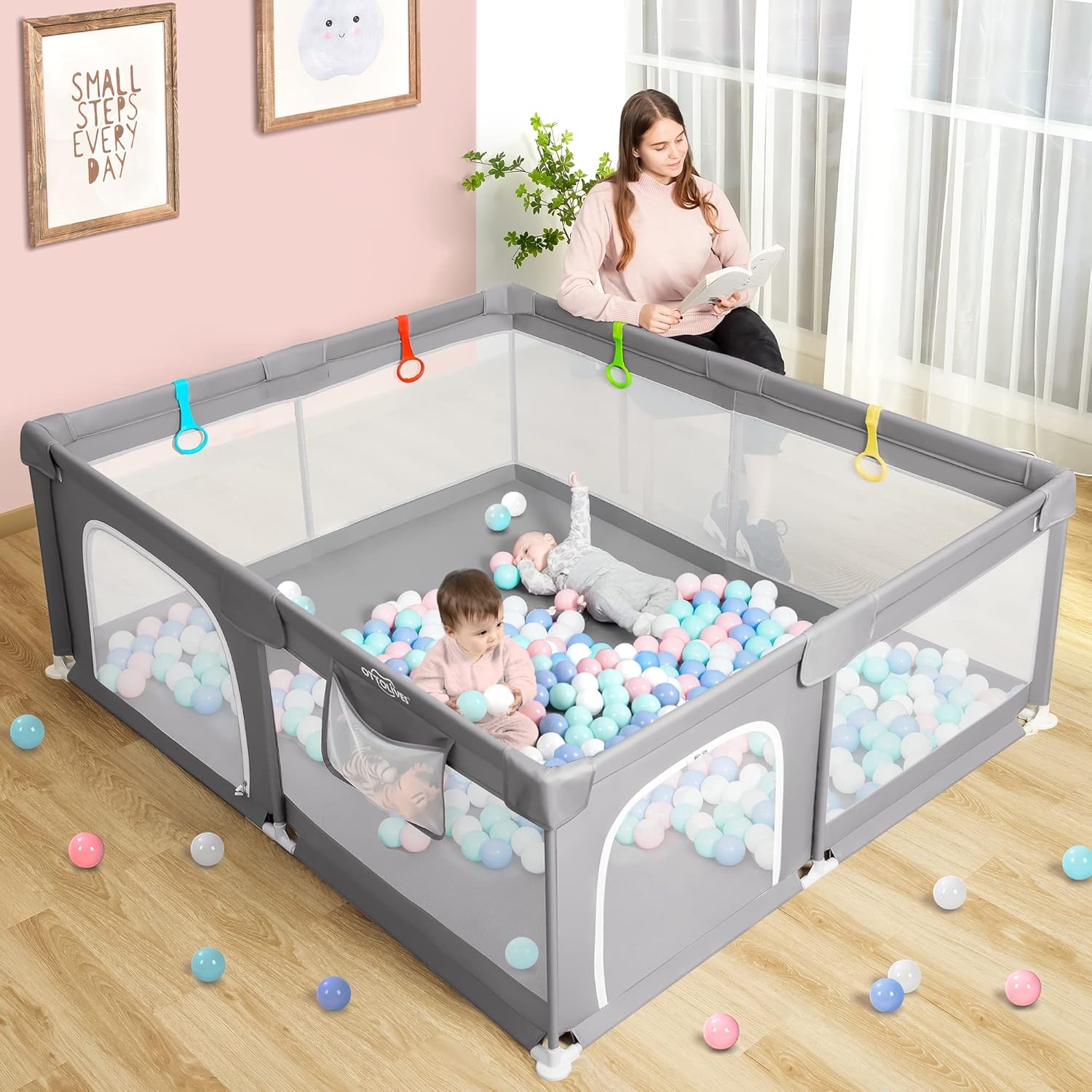

Image: Two babies playing safely inside the OTTOLIVES playpen, demonstrating ample space for activity.

Image: An adult and baby playing together inside the large OTTOLIVES playpen, illustrating the spacious design.

Pemeliharaan dan Perawatan

Proper maintenance ensures the longevity and hygiene of your playpen.

• Kain Pembersih: The base is made of waterproof Oxford cloth. Stains can be wiped clean with a damp cloth and mild soap. The fabric is washable; refer to the care label for specific washing instructions. Regular cleaning helps reduce bacterial growth.
• Bingkai Pembersih: Wipe down steel pipes and plastic connectors with a damp kain. Hindari pembersih abrasif.
• Inspeksi: Regularly inspect all parts for wear, damage, or loose connections. Tighten or replace components as necessary.
• Penyimpanan: For storage or transport, disassemble the playpen and store it in the provided tote bag in a cool, dry place.

Penyelesaian Masalah

Jika Anda mengalami masalah selama perakitan atau penggunaan, lihat solusi umum berikut:

• Difficulty Assembling Last Bars: The fabric is designed to be taut for safety. This step often requires significant force and is best performed by two adults. Ensure the fabric is stretched evenly before attempting to connect the final pipes.
• Playpen Feels Unstable: Ensure all steel pipes are fully inserted into their connectors and all snap designs are engaged. Verify that the anti-skid suction cups are firmly attached to a clean, smooth floor surface.
• Zippers Not Closing Smoothly: Check for any fabric obstruction in the zipper path. Ensure the zipper is aligned correctly.
• Komponen yang Rusak: If any part is damaged, discontinue use immediately and contact customer support for replacement parts.

Spesifikasi

Image: Visual representation of the playpen's dimensions (71x59x27 inches) and folded tote bag dimensions.

Garansi dan Dukungan

OTTOLIVES is committed to providing quality products and customer satisfaction.

• Informasi Garansi: Specific warranty details are not provided in this manual. Please refer to the product packaging or the official OTTOLIVES webKunjungi situs ini untuk melihat syarat dan ketentuan garansi terkini.
• Dukungan Pelanggan: If you have any questions regarding product assembly, operation, maintenance, or require assistance with any issues, please contact OTTOLIVES customer service. We aim to respond and resolve any concerns within 24 hours.
• Informasi Kontak: Please refer to your purchase documentation or the OTTOLIVES official website for the most up-to-date contact methods (e.g., email, phone number).
