1. Pendahuluan
The Sanpyl KX-T777CID is a reliable and easy-to-use corded landline telephone designed for both home and office environments. Featuring an LCD display, Caller ID function, Flash, and Redial capabilities, this phone offers essential communication features in a compact and durable design. Its versatile mounting options allow for desktop placement or wall installation.

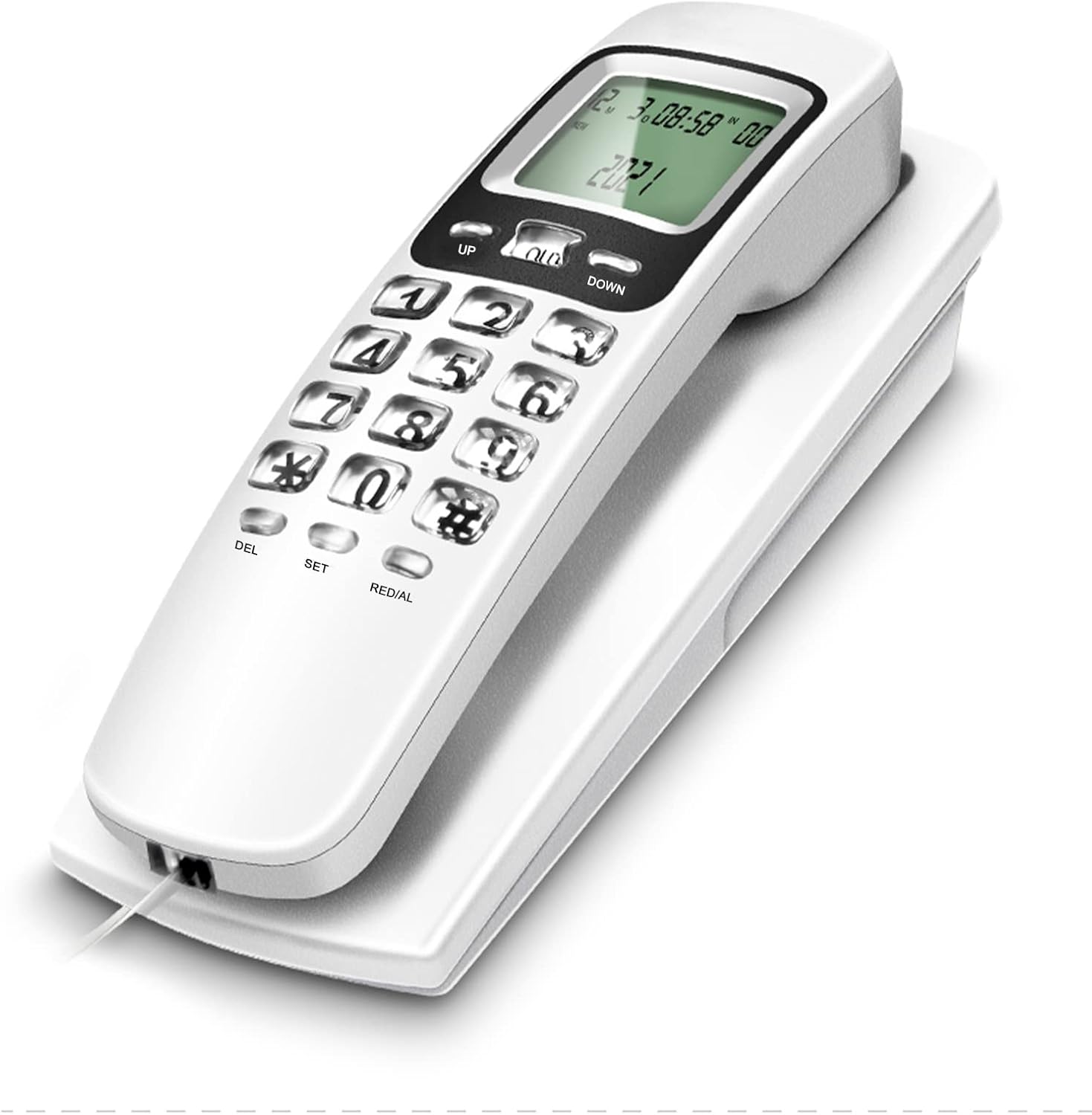

The Sanpyl KX-T777CID landline telephone in white, showcasing its compact design and LCD display.
2. Fitur Utama
- Layar LCD: Clear screen for time, date, and Caller ID information.
- Caller ID Function: Displays incoming caller's number and time.
- Fungsi Lampu Kilat: For call waiting or transferring calls (requires service provider support).
- Fungsi Panggilan Ulang: Quickly redial the last dialed number.
- Selectable Ringer Sound: Sesuaikan nada dering ponsel Anda.
- Konstruksi Tahan Lama: Made from high-quality Acrylonitrile Butadiene Styrene (ABS) material for longevity.
- Desk or Wall Mountable: Flexible placement options for convenience.
- Pengoperasian Bebas Baterai: Powered directly by the phone line.
A view of two Sanpyl KX-T777CID phones, one with the handset separated from the base, demonstrating its multifunctionality including flash, selectable ringer sound, last number redial, and a calendar LCD display.
A visual representation of the Sanpyl KX-T777CID phone's core functionalities, including backlit keys for visibility, Caller ID, versatile desk or wall mounting, redial function, call inquiry, a single interface for simplicity, battery-free operation, and dual-use capability.
3. Pengaturan
3.1 Isi Paket
- Sanpyl KX-T777CID Landline Telephone Unit
- Telepon Genggam
- Kabel Handset Melingkar
- Kabel Saluran Telepon
Koneksi 3.2
- Connect one end of the coiled handset cord to the handset and the other end to the port labeled 'HANDSET' or with a phone icon on the side of the telephone base.
- Connect one end of the telephone line cord to the port labeled 'LINE' or 'OUT' on the back of the telephone base.
- Connect the other end of the telephone line cord to your wall telephone jack.
- Once connected, the LCD display should illuminate and show the current time and date, indicating the phone is ready for use.
The Sanpyl KX-T777CID telephone is displayed with both its coiled cord connecting the handset to the base and the straight line cord for connecting to the wall jack, showing all included cables.
This image showcases the Sanpyl KX-T777CID landline phone available in red, white, and black. It also illustrates the simple setup process: just plug in the phone line, and the screen will display normally, indicating readiness for use.
4. Petunjuk Pengoperasian
4.1 Melakukan Panggilan
Lift the handset. Wait for a dial tone. Dial the desired phone number using the keypad. The number will appear on the LCD display as you dial.
4.2 Menerima Panggilan
Saat telepon berdering, angkat gagang telepon untuk menjawab panggilan.
4.3 Fungsi Panggilan Ulang
Untuk menghubungi kembali nomor terakhir yang dihubungi, angkat gagang telepon dan tekan tombol. PANGGIL ULANG button. The phone will automatically dial the last outgoing number.
4.4 Fungsi Flash
Selama panggilan, tekan KILATAN button to use call waiting or transfer calls. This function requires support from your telephone service provider.
4.5 Tampilan ID Penelepon
When an incoming call is received, the caller's number (if available) and the time of the call will be displayed on the LCD screen before you answer. Use the UP Dan TURUN buttons to scroll through recent call records.
A red Sanpyl KX-T777CID phone is depicted, with a close-up of its LCD screen clearly showing the Caller ID function, displaying the time, date, and the incoming caller's number.
5. Pemasangan di Dinding
The Sanpyl KX-T777CID telephone can be easily mounted on a wall. Locate the keyhole slots on the back of the phone base. Use two screws (not included) spaced appropriately to align with these slots on your wall. Secure the phone by sliding it down onto the screw heads.
This image demonstrates the flexible placement options for the Sanpyl KX-T777CID phone, showing it securely mounted on a wall and also conveniently placed on a desk surface.
This composite image provides detailed close-up shots of the Sanpyl KX-T777CID telephone, highlighting key features such as the wall-mounting slots on the back, the secure handset cradle, the clear LCD display, and the integrated speaker.
6. Pemeliharaan
- Pembersihan: Usap permukaan ponsel dengan kain lembut dan kering.amp kain. Jangan gunakan bahan kimia keras atau pembersih abrasif.
- Hindari Cairan: Keep the phone away from water and other liquids to prevent damage.
- Suhu: Jangan biarkan ponsel terkena suhu ekstrem atau sinar matahari langsung.
- Penyimpanan: If storing the phone for an extended period, disconnect it from the telephone line.
7. Penyelesaian masalah
| Masalah | Larutan |
|---|---|
| Tidak ada nada sambung | Ensure the telephone line cord is securely connected to both the phone and the wall jack. Check if your telephone service is active. |
| Layar LCD kosong | Verify the telephone line cord connection. The phone draws power from the line. |
| Tidak dapat mendengar penelepon / Penelepon tidak dapat mendengar saya | Check the handset cord connection. Ensure the handset is properly seated. Test with another phone if possible to rule out line issues. |
| Caller ID not working | Ensure you have Caller ID service activated with your telephone service provider. |
| Tombol tidak responsif | Disconnect the phone from the line for a few minutes, then reconnect it. If the issue persists, contact support. |
8. Spesifikasi
| Spesifikasi | Nilai |
|---|---|
| Model | KX-T777CID |
| Dimensi (P x L x T) | 7.48x3.15x3.15 inci |
| Berat Barang | 9.8 ons |
| Jenis Telepon | Yg dijalin dgn tali |
| Bahan | Akrilonitril Butadiena Stirena (ABS) |
| Sumber Daya | Bertenaga Listrik Berkabel (Ditenagai Listrik Jaringan) |
| Jenis Pemanggil | Papan tombol tunggal |
| Identifikasi Penelepon | Ya |
9. Skenario Penggunaan
The Sanpyl KX-T777CID is versatile and suitable for various environments:
- Home Desk: Perfect for personal use in a study or living room.
- Home Wall: Saves desk space in kitchens or hallways.
- Kantor: Reliable communication for workstations or common areas.
- Hotel Rooms: Provides essential guest communication.
- Elevators: A dependable emergency communication device.
This image illustrates the versatility of the Sanpyl KX-T777CID phone, showing its suitability for different environments such as a home desk, a wall in a home, a hotel room, and even an elevator, emphasizing its adaptability.
10. Garansi dan Dukungan
For warranty information and technical support, please refer to the product packaging or contact Sanpyl customer service directly. Contact details can typically be found on the manufacturer's official websitus web atau di halaman penjualan produk.
