Akozon 150A Car Stereo Audio Fuse Holder User Manual

Perkenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Akozon 150A Car Stereo Audio Fuse Holder. Designed for automotive audio systems, this fuse holder offers comprehensive protection and features a digital voltage display for convenient monitoring. Its robust construction ensures durability and stable performance.

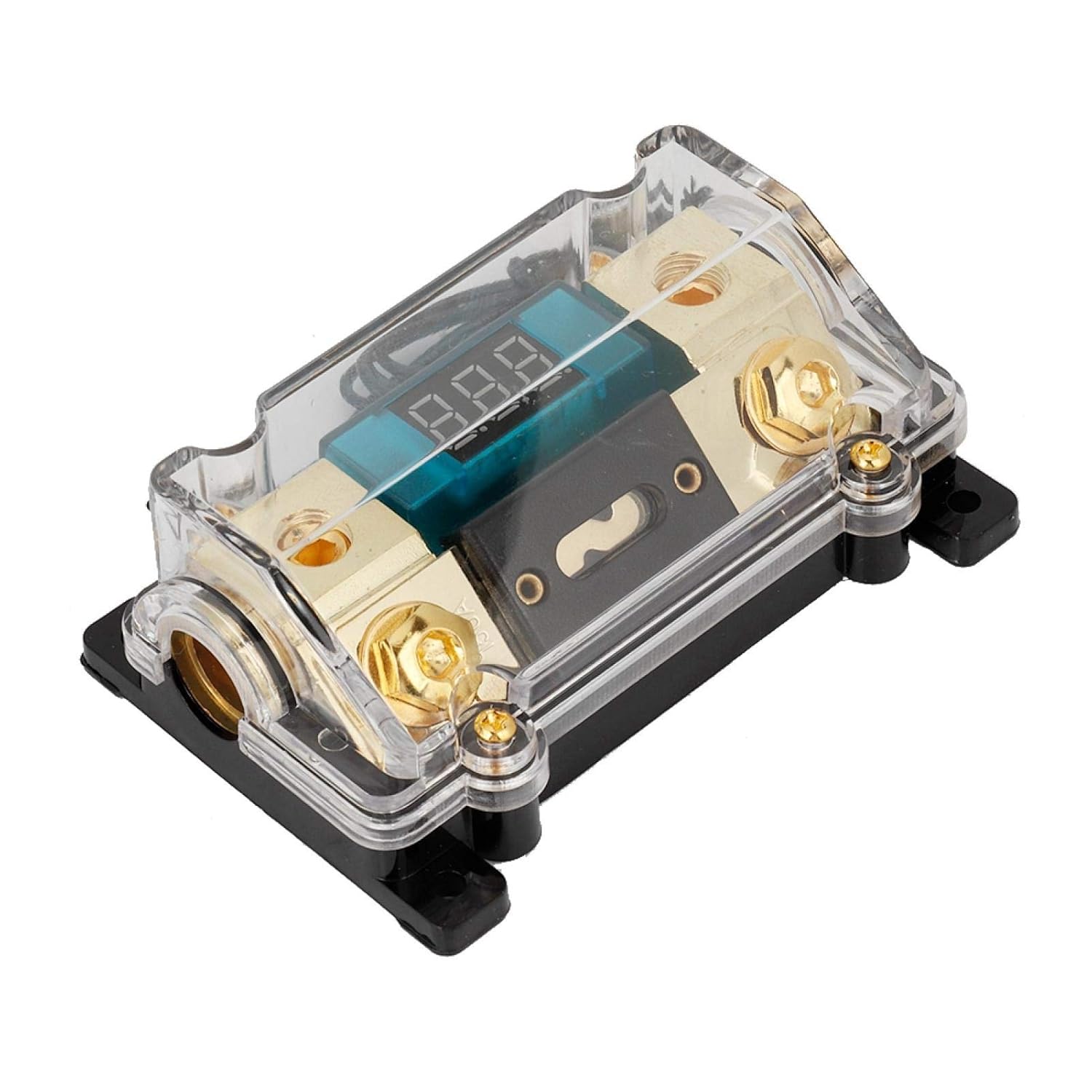

Gambar 1: Depan view of the Akozon 150A Car Stereo Audio Fuse Holder, showing the clear casing, gold-plated terminals, and digital LED voltagtampilan.

The fuse holder is constructed from high-quality metal alloy and plastic materials, ensuring excellent wear resistance, corrosion resistance, aging resistance, and a long service life. It is suitable for use in various vehicles, including cars and boats, providing essential protection for your audio system.

Fitur Produk

• Konstruksi Berkualitas Tinggi: Made from durable metal alloy and plastic for enhanced longevity and stability.
• Volume DigitaltagTampilan: Integrated LED display provides real-time voltage readings for your car's electrical system.
• Perlindungan Beban Berlebih: Automatically powers off when the current is overloaded, protecting your audio system from damage.
• Instalasi serbaguna: Can be securely installed on a panel or firewall.
• Aplikasi Luas: Ideal for use in cars, boats, and other vehicles requiring robust audio system protection.

Figure 2: Key features of the fuse holder, highlighting its durable construction and suitability for various vehicle types.

Pengaturan dan Instalasi

Proper installation is crucial for the safe and effective operation of your fuse holder. Please follow these steps carefully:

1. Putuskan Daya: Before beginning any electrical work, ensure the vehicle's battery is disconnected to prevent short circuits or electrical shock.
2. Pilih Lokasi Pemasangan: Select a suitable location for the fuse holder, such as a panel or firewall, that is dry, secure, and easily accessible for future maintenance.
3. Secure the Fuse Holder: Use appropriate screws or fasteners to firmly mount the fuse holder in the chosen location.
4. Koneksi Kawat:
   • Connect the main power cable from the battery to one of the large gold-plated terminals (input).
   • Connect the power cable leading to your audio system to the other large gold-plated terminal (output).
   • Connect the small black wire from the fuse holder to a ground point on the vehicle chassis. This provides power for the digital voltagtampilan.
5. Insert Fuse: Carefully insert the 150A ANL fuse into the designated slot within the fuse holder. Ensure it is seated correctly.
6. Sambungkan kembali daya: Setelah semua sambungan aman dan terverifikasi, sambungkan kembali baterai kendaraan.

Gambar 3: Rinci view of the fuse holder's terminals, showing where power cables are connected.

Figure 4: Underside of the fuse holder, illustrating the mounting points for secure installation.

Petunjuk Pengoperasian

Once installed, the Akozon 150A Fuse Holder operates automatically to protect your audio system.

• Jil.tagTampilan: The integrated LED display will show the current voltage of your car's electrical system. This allows for quick monitoring of your power supply.
• Perlindungan Beban Berlebih: In the event of an overcurrent or short circuit, the fuse within the holder will blow, automatically cutting off power to your audio system. This prevents damage to your amplifier, speakers, and other components.

Figure 5: Illustration of the fuse holder's protective function within a car audio system, emphasizing safety and automatic power cut-off.

Pemeliharaan

To ensure continued optimal performance and safety, periodic maintenance is recommended:

• Inspeksi Visual: Regularly inspect the fuse holder for any signs of damage, corrosion, or loose connections.
• Penggantian Sekring: If the fuse blows, disconnect power before replacing it with a new ANL fuse of the same 150A rating. Never use a fuse with a higher rating than specified.
• Pembersihan: Keep the fuse holder clean and free from dust and debris. Use a dry, soft cloth for cleaning. Avoid using harsh chemicals or abrasive materials.

Penyelesaian Masalah

If you encounter issues with your fuse holder or audio system, consider the following common troubleshooting steps:

• No Power to Audio System:
  • Check if the fuse in the holder has blown. If so, replace it with a new 150A ANL fuse.
  • Verify all power and ground connections are secure and free from corrosion.
  • Ensure the vehicle's battery is fully charged and properly connected.
• LED Display Not Lighting Up:
  • Check the small black ground wire connection from the fuse holder to the chassis.
  • Ensure there is power flowing through the main terminals.
• Sekring Sering Putus:
  • This indicates an overcurrent condition. Check your audio system for short circuits or components drawing excessive power.
  • Ensure the total current draw of your audio system does not exceed 150A.
  • Consult a professional car audio installer if the issue persists.

Spesifikasi

Garansi dan Dukungan

Akozon is committed to providing high-quality products and attentive service. Each product undergoes strict inspection to ensure reliable quality.

• Kebijakan Pengembalian: This product is eligible for a 30-day free return period. Please refer to your purchase platform's return policy for detailed terms and conditions.
• Dukungan Produsen: For any questions, technical assistance, or warranty claims, please contact Akozon customer support through the retailer where the product was purchased or visit the official Akozon store page.

We hope you have a pleasant shopping and user experience with our products.
