LiebeWH WiFi Smart Circuit Breaker TOWSM1-100 16A User Manual

1. Pendahuluan

This manual provides essential information for the safe and effective use of your LiebeWH WiFi Smart Circuit Breaker, model TOWSM1-100 16A. This device is designed to offer advanced electrical protection and smart control capabilities for various applications.

The smart circuit breaker integrates overload, short-circuit, over-voltage, dan di bawah voltage protection. It supports remote control via a dedicated mobile application and voice control through compatible smart terminals, enhancing convenience and safety in your electrical system.

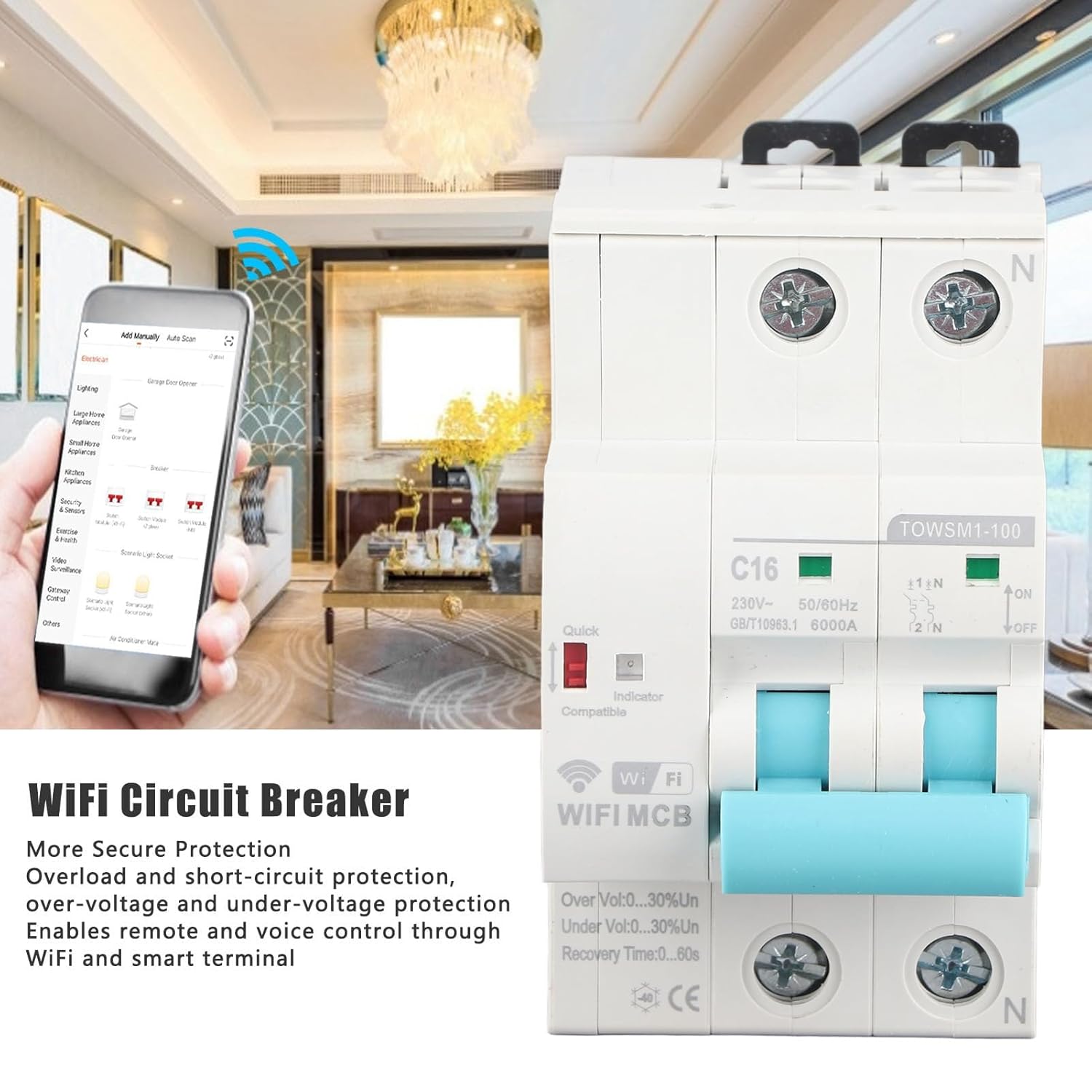

Image 1.1: LiebeWH WiFi Smart Circuit Breaker with remote control via smartphone app.

2. Informasi Keselamatan

PERINGATAN: Electrical installation and maintenance should only be performed by qualified personnel in accordance with all local and national electrical codes and regulations. Failure to comply with these instructions can result in electric shock, fire, serious injury, or death.

• Selalu putuskan aliran listrik di panel layanan utama sebelum memasang atau memperbaiki pemutus sirkuit.
• Pastikan pentanahan dan sambungan kabel sudah benar.
• Jangan operasikan perangkat jika tampak rusak.
• Jangan melebihi volume terukurtage and current specifications of the device.
• Jauhkan perangkat dari air dan kelembapan berlebihan.

3. Produk Lebihview

The LiebeWH TOWSM1-100 16A is a 2-pole smart circuit breaker designed for DIN rail mounting. It features clear indicators for its status and protection mechanisms.

Gambar 3.1: Depan view of the circuit breaker.

Komponen Utama:

• Sakelar utama: Lever for manual ON/OFF operation.
• Indikator Daya: Menunjukkan status daya.
• Indikator WiFi: Displays the WiFi connection status.
• Quick Indicator: Red indicator for quick trip status.
• terminal: Input and output terminals for wiring connections.
• Klip Rel DIN: For secure mounting on a standard DIN rail.

Image 3.2: Close-up of indicators and switch, showing 'ON' and 'OFF' positions, 'C16' rating, and 'TOWSM1-100' model.

4. Pengaturan dan Instalasi

Proper installation is crucial for the safe and reliable operation of the smart circuit breaker. Always ensure power is disconnected before beginning installation.

4.1 Mechanical Installation (DIN Rail Mounting)

1. Ensure the main power supply is OFF.
2. Locate a suitable position on a standard DIN rail within your electrical panel.
3. Engage the top clip of the circuit breaker onto the DIN rail.
4. Press the bottom part of the circuit breaker firmly until the bottom clip snaps onto the DIN rail, securing the device in place.

Image 4.1: DIN rail mounting diagram, illustrating 'Tilt Out' and 'Pull Down' actions.

4.2 Kabel Listrik

1. With power still OFF, connect the incoming live (L) and neutral (N) wires to the upper terminals of the circuit breaker.
2. Connect the outgoing load live (L) and neutral (N) wires to the lower terminals of the circuit breaker.
3. Ensure all wire connections are tight and secure to prevent loose contacts and overheating.
4. Verify that the wiring matches the circuit diagram and local electrical standards.

Image 4.2: Close-up of wiring terminals for secure connections.

4.3 Pemasangan Aplikasi dan Koneksi Jaringan

1. Download the compatible smart home application (e.g., Tuya Smart, Smart Life) from your smartphone's app store.
2. Daftar atau masuk ke akun Anda.
3. Power on the circuit breaker. The WiFi indicator should start blinking, indicating it's in pairing mode. If not, refer to the app's instructions for manual pairing mode activation.
4. In the app, select "Add Device" or the '+' icon, then choose "Electrical" or "Circuit Breaker".
5. Follow the on-screen instructions to connect the device to your 2.4GHz WiFi network.
6. Once successfully paired, the WiFi indicator will become solid, and the device will appear in your app.

5. Petunjuk Pengoperasian

5.1 Operasi Manual

• To turn the circuit breaker ON, push the lever upwards to the 'ON' position.
• To turn the circuit breaker OFF, push the lever downwards to the 'OFF' position.

5.2 Kontrol Jarak Jauh melalui Aplikasi

• Open the smart home application on your smartphone.
• Select the LiebeWH WiFi Smart Circuit Breaker from your device list.
• Use the virtual switch or controls within the app to turn the circuit breaker ON or OFF remotely.
• The app also provides real-time monitoring of power status and protection events.

5.3 Kontrol Suara

If integrated with a compatible voice assistant (e.g., Amazon Alexa, Google Assistant), you can control the circuit breaker using voice commands. Refer to your voice assistant's setup guide for connecting smart home devices.

• Example commands: "Alexa, turn on the living room circuit breaker." or "Hey Google, turn off the water heater."

5.4 Automatic Reclosing and Protection Features

The circuit breaker is equipped with automatic reclosing functionality and various protection features:

• Perlindungan Beban Berlebih: Automatically trips when the current exceeds the rated capacity (16A).
• Perlindungan Sirkuit Pendek: Trips instantly in case of a short circuit.
• Over-Voltage Perlindungan: Protects connected devices from excessive voltage.
• Di bawah Voltage Perlindungan: Protects connected devices from insufficient voltage.
• Penutupan Otomatis: After a trip event (e.g., temporary overload), the device can automatically attempt to reclose after a configurable recovery time (0-60 seconds), if the fault condition is no longer present. This feature helps maintain continuous power supply where appropriate.

6. Pemeliharaan

The LiebeWH WiFi Smart Circuit Breaker is designed for minimal maintenance. However, periodic checks are recommended to ensure optimal performance and safety.

• Inspeksi Visual: Periksa pemutus sirkuit secara berkala untuk melihat adanya tanda-tanda kerusakan fisik, perubahan warna, atau sambungan yang longgar.
• Pembersihan: Jika perlu, bersihkan bagian luar perangkat dengan lembut menggunakan kain kering dan lembut. Jangan gunakan cairan pembersih atau pelarut.
• Pemeriksaan Fungsi: Test the manual ON/OFF switch periodically to ensure it operates smoothly.
• Pembaruan Firmware: Check the smart home application for any available firmware updates for the device to ensure you have the latest features and security enhancements.

For any internal maintenance or repairs, contact a qualified electrician or the manufacturer's support.

7. Penyelesaian masalah

8. Spesifikasi

Image 8.1: Wide application of the LiebeWH WiFi Smart Circuit Breaker.

9. Informasi Garansi

Specific warranty details for the LiebeWH TOWSM1-100 16A WiFi Smart Circuit Breaker are not provided in the product information. Please refer to the retailer's return policy or contact the manufacturer directly for warranty terms and conditions.

10. Dukungan

For technical assistance, troubleshooting beyond this manual, or inquiries regarding your LiebeWH WiFi Smart Circuit Breaker, please contact your point of purchase or the manufacturer's customer support channels.

• Pabrikan: LiebeWH
• Sumber Daya Daring: Check the LiebeWH official website or the smart home app's help section for FAQs and additional support.
