RYOBI 40-Volt Lithium-Ion Quick Charger User Manual

1. Pendahuluan

The RYOBI 40-Volt Lithium-Ion Quick Charger (Model OP408AVNM) is designed to efficiently charge RYOBI 40-Volt Lithium-Ion batteries. This quick charger offers significantly faster charging times compared to standard chargers, ensuring your tools are ready for use with minimal downtime. It features LED indicators to provide clear status updates on the charging process and incorporates fan-cooled technology for improved heat management, which helps protect the battery and extend its lifespan. The charger is also wall-mountable for convenient storage and accessibility.

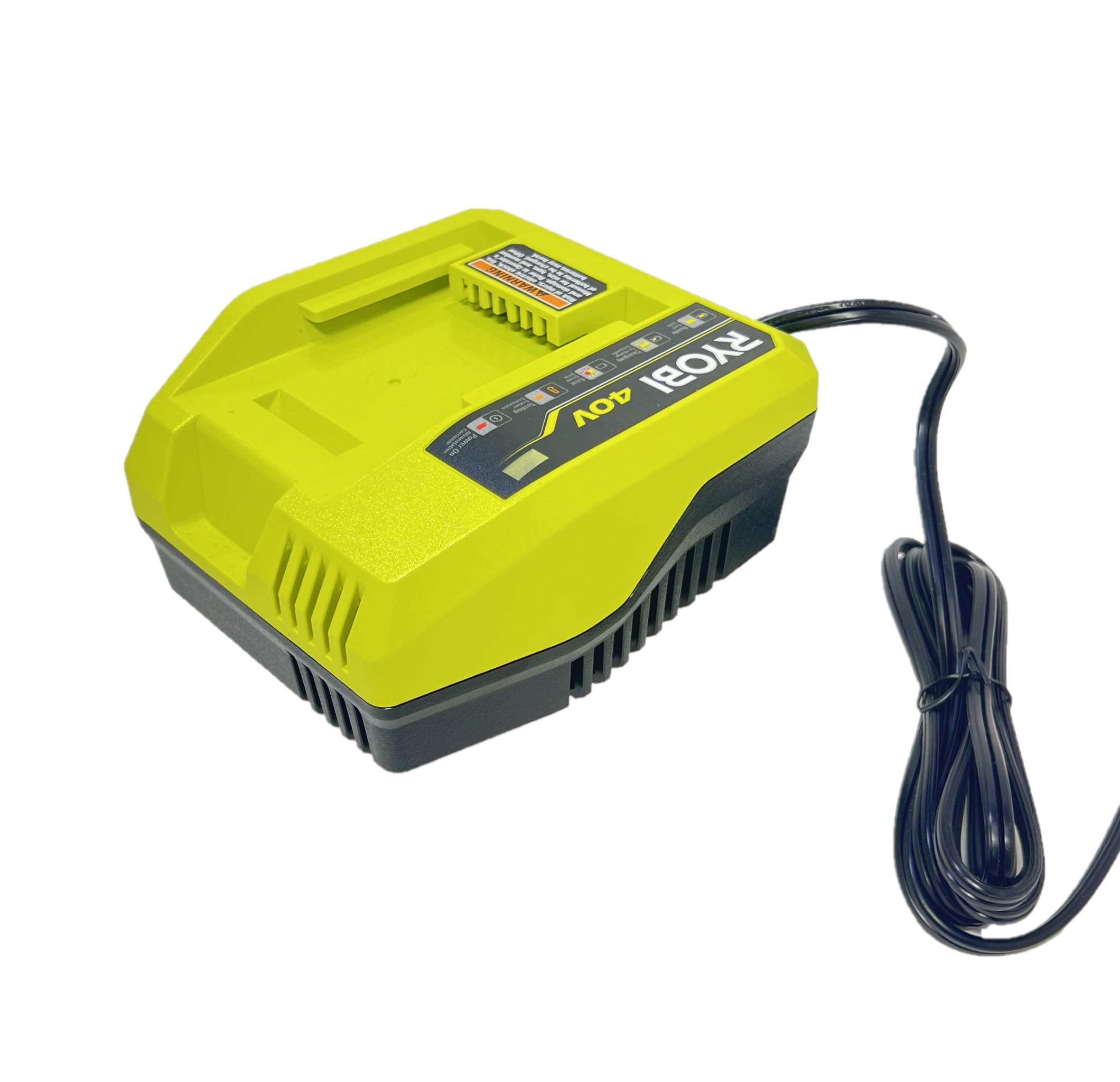

Figure 1: RYOBI 40-Volt Lithium-Ion Quick Charger (Model OP408AVNM)

2. Informasi Keselamatan

PERINGATAN: To reduce the risk of injury, electric shock, fire, and damage, always read and understand the operator's manual for the specific battery and charger model before use. Other batteries may burst, causing personal injury or damage.

• Use this charger only with RYOBI 40-Volt Lithium-Ion batteries.
• Jangan biarkan pengisi daya terkena hujan atau kondisi basah.
• Jangan mengisi daya baterai di dalam ruangan.amp atau lokasi basah.
• Ensure proper ventilation during charging. Do not block ventilation openings.
• Jangan operasikan pengisi daya jika terkena benturan keras, terjatuh, atau rusak.
• Cabut pengisi daya dari catu daya saat tidak digunakan.

3. Fitur Produk

• Pengisian Cepat: Provides 2X faster charging compared to standard RYOBI 40V chargers (e.g., OP403A).
• Indikator LED: Clearly displays battery status, including ready, charging, error, and testing.
• Fan-Cooled Technology: Manages heat during charging to protect the battery and prolong its life.
• Dapat dipasang di dinding: Designed for convenient storage and accessibility.
• Perlindungan Baterai: Monitors charge current and temperature to optimize battery life.

4. Pengaturan

4.1 Membongkar

Carefully remove the charger from its packaging. Inspect the charger for any signs of damage during shipping. If any damage is observed, do not use the charger and contact customer support.

Figure 2: The charger is sold separately from the battery.

4.2 Menghubungkan ke Daya

1. Plug the charger's power cord into a standard 120-Volt AC outlet.
2. The 'Power On' indicator light on the charger will illuminate, indicating that the charger is receiving power.

4.3 Pemasangan di Dinding (Opsional)

The charger can be mounted on a wall for convenient storage. Use appropriate hardware (not included) to secure the charger to a sturdy surface. Ensure the mounting location allows for adequate ventilation and easy access to the power outlet and charging port.

5. Operasi

5.1 Mengisi Baterai

1. Ensure the charger is plugged into a live power outlet. The 'Power On' indicator should be lit.
2. Slide a RYOBI 40-Volt Lithium-Ion battery into the charging port on the charger. Ensure the battery is fully seated.
3. The 'Charging' indicator light will illuminate, indicating that the battery is actively charging.
4. Once the battery is fully charged, the 'Ready' indicator light will illuminate, and the 'Charging' light will turn off.
5. Remove the fully charged battery by pressing the release latches and sliding it out of the charger.

Figure 3: Proper insertion of a RYOBI 40V battery into the quick charger.

5.2 Memahami Indikator LED

5.3 Pengoperasian Kipas

The integrated fan will activate during charging to dissipate heat, ensuring optimal battery temperature and extending battery life. It is normal for the fan to produce some noise during operation.

6. Pemeliharaan

6.1 Pembersihan

Keep the charger clean and free of debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation openings are clear of obstructions.

6.2 Penyimpanan

When not in use, store the charger in a dry, cool place away from direct sunlight and moisture. Disconnect it from the power outlet. Do not store batteries on the charger for extended periods after they are fully charged.

6.3 Perawatan Baterai

For optimal battery life, avoid completely draining batteries before recharging. Store batteries in a cool, dry place. Do not store batteries in extreme temperatures.

7. Penyelesaian masalah

If the charger is not functioning as expected, refer to the LED indicator table in Section 5.2 for initial diagnosis. Common issues and their solutions are listed below:

• No Lights On: Ensure the charger is securely plugged into a working 120-Volt AC outlet. Check the circuit breaker.
• Flashing Red (Error): This indicates a problem with the battery or charger. Try removing and reinserting the battery. If the error persists, the battery may be faulty or the charger may require service.
• Solid Orange (Testing): The charger is evaluating the battery. This is a normal part of the charging cycle, especially if the battery is very hot or cold. Charging will begin once testing is complete and the battery temperature is within an acceptable range.
• Baterai Tidak Mengisi: Ensure the battery is fully seated in the charger. Check for any debris in the charging port or on the battery terminals.

If problems persist after attempting these solutions, contact RYOBI customer support.

8. Spesifikasi

9. Garansi dan Dukungan

For warranty information, technical support, or service inquiries, please refer to the documentation included with your product or visit the official RYOBI websitus. Simpan struk pembelian Anda sebagai bukti pembelian untuk klaim garansi.
