Perkenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your AINAVIGO PND-P7 7-inch Touch Screen Car Stereo. This device enhances your driving experience with features such as Apple CarPlay, Android Auto, Bluetooth connectivity, backup camera support, GPS navigation, and mirror link functionality.
Apa yang ada di dalam kotak
Harap verifikasi bahwa semua komponen ada dalam paket Anda:
- AINAVIGO PND-P7 Main Unit
- Kamera Cadangan AHD
- Kabel Daya Pemantik Rokok 12V
- Audio Output Cable (AUX)
- Dudukan Pengisap
- Gunung Perekat
- Panduan Pengguna

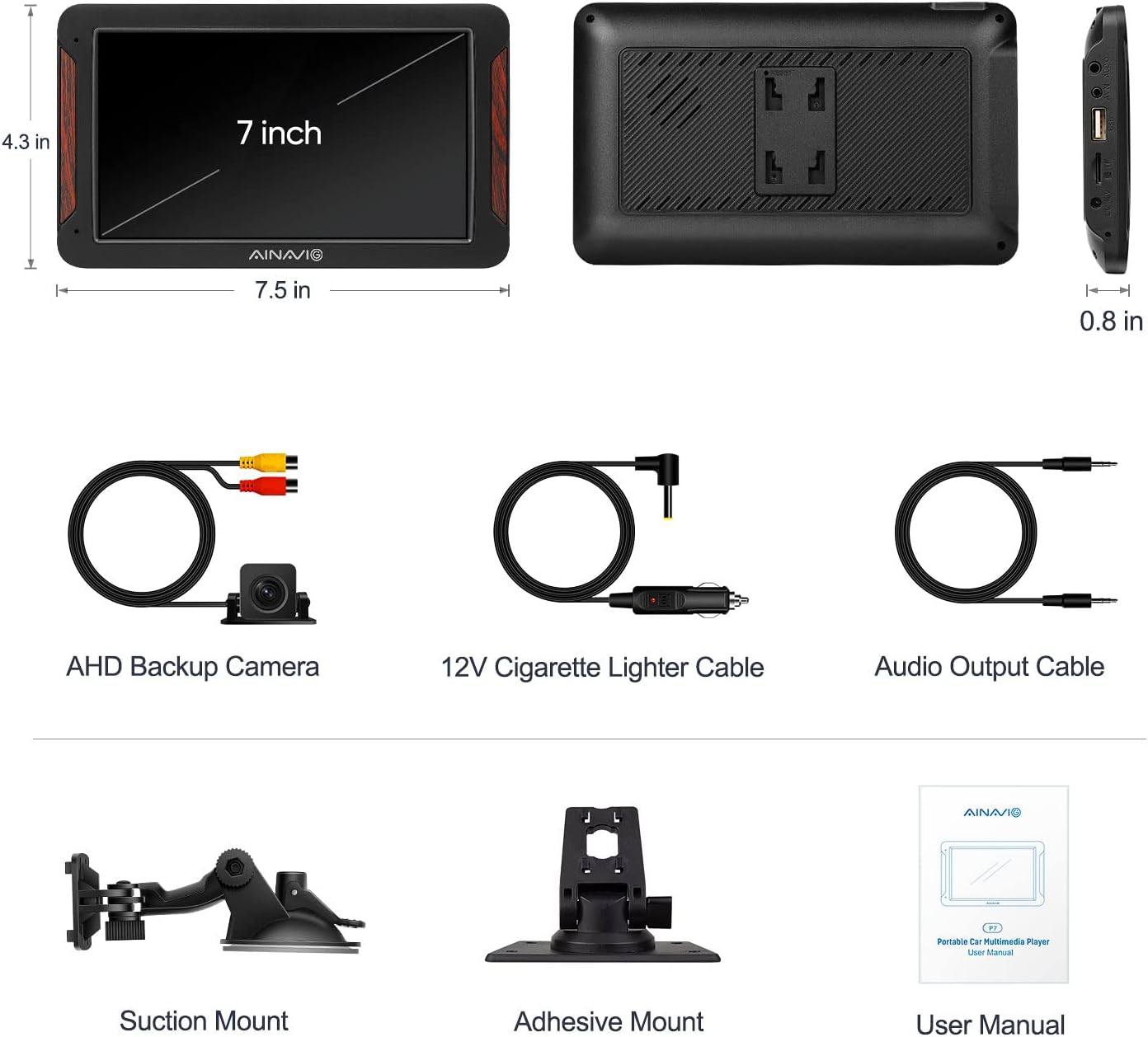

This image displays all items included in the product package: the PND-P7 main unit, AHD backup camera, 12V cigarette lighter cable, audio output cable, suction mount, adhesive mount, and user manual.
Pengaturan
1. Memasang Unit
The PND-P7 unit can be mounted using either the provided suction mount for windshield attachment or the adhesive mount for dashboard placement. Ensure the mounting surface is clean and dry before application.
This video illustrates the process of mounting the AINAVIGO PND-P7 unit to the car dashboard and connecting it to the car's power supply via the cigarette lighter.
2. Koneksi Daya
Connect the 12V cigarette lighter power cable to the corresponding port on the PND-P7 unit and then plug it into your car's cigarette lighter socket. The unit will power on automatically.
3. Backup Camera Connection (Optional)
To utilize the backup camera feature, connect the backup camera's video output (yellow RCA connector) to the AVIN port on the PND-P7 unit. The red wire from the camera extension cable should be connected to your car's reverse light (12V+ possible) to enable automatic display when reversing. The black wire is not needed for this connection.
This video provides a step-by-step guide on how to connect the included backup camera to the AINAVIGO PND-P7. It shows connecting the camera to the AVIN port and wiring the red cable to the car's reverse light for automatic activation.

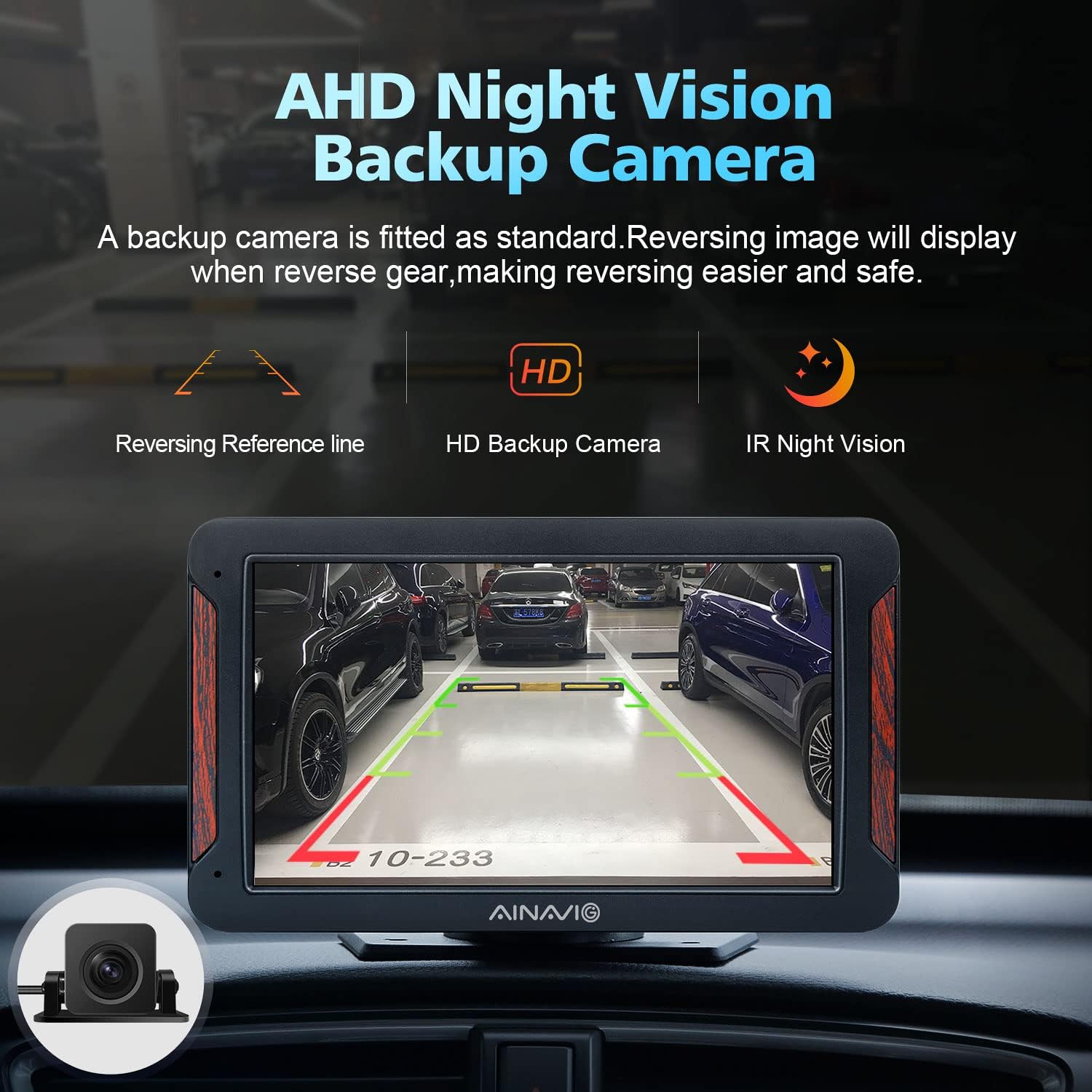

This image demonstrates the AHD Night Vision Backup Camera in operation, providing a clear rear view with reversing reference lines for easier and safer parking.
Petunjuk Pengoperasian
1. Antarmuka Utama
Upon powering on, the device will display the main interface with various function icons. You can adjust brightness and volume directly from the top bar.
2. Apple CarPlay & Android Auto
The PND-P7 supports both wired and wireless Apple CarPlay and Android Auto. To connect:
- Koneksi Kabel: Connect your iPhone or Android phone to the device via a high-quality data cable.
- Koneksi Nirkabel: Pencarian untuk the device's Bluetooth name (e.g., "CarBt_XXXX") on your phone and confirm the authorization request. For Android Auto wireless, your phone must be Android 11 or above and support 5GHz WiFi.
This image highlights the device's compatibility with both Apple CarPlay and Android Auto, detailing the required iPhone (6 and higher, iOS 12+) and Android (11 or above, 5GHz WiFi) phone models and versions for wireless connection.
This video illustrates the seamless wireless connection and operation of Apple CarPlay and Android Auto on the PND-P7, demonstrating features like navigation, music, and calls directly from the touch screen.
3. Voice Control (Siri & Google Assistant)
The PND-P7 supports voice commands through Siri (for CarPlay) and Google Assistant (for Android Auto). Activate by pressing the voice command button on the screen or your phone. This allows for hands-free operation of navigation, calls, and music.
This image demonstrates the integrated Siri and Google Assistant voice control, allowing users to safely manage navigation, calls, and music playback using voice commands while driving.
4. Koneksi Bluetooth
Connect your phone via Bluetooth for hands-free calling and audio streaming. Access the Bluetooth settings on the device to pair with your phone. You can sync contacts and view log panggilan.
5. Multiple Audio Playback Options
The PND-P7 offers several ways to output audio:
- Transmisi FM: Transmit audio wirelessly to your car's speakers by setting the device and your car radio to the same FM channel.
- Speaker bawaan: Use the integrated speakers for direct audio output.
- Port Audio AUX: Connect wired headphones or an external audio system using the provided AUX cable.
This image explains the Bluetooth connectivity for hands-free calls and contact synchronization. It also shows various audio output methods: FM transmission to car speakers, built-in speakers, and an AUX audio port for wired headphones.
6. Tautan Cermin
The Mirror Link function allows you to display your smartphone screen directly on the PND-P7 unit. Follow the on-screen instructions for your specific phone model to establish the connection.
7. USB/Card Playback
Insert a USB device or a micro SD card into the designated ports to play video or music files directly on the PND-P7 unit.
Pemeliharaan
- Pembersihan: Gunakan kain lembut dan kering untuk membersihkan layar dan bagian luar unit. Hindari pembersih abrasif atau pelarut.
- Suhu: Do not expose the device to extreme temperatures. Prolonged exposure to direct sunlight or very cold conditions can affect performance and lifespan.
- Penyimpanan: Jika menyimpan perangkat untuk jangka waktu yang lama, cabut perangkat dari sumber listrik dan simpan di tempat yang sejuk dan kering.
Penyelesaian Masalah
- Unit tidak menyala: Ensure the 12V cigarette lighter cable is securely connected to both the unit and the car's power socket. Check the car's fuse for the cigarette lighter.
- "No Signal" on backup camera: Verify that the backup camera is correctly connected to the AVIN port and that the red power wire is properly connected to the reverse light (12V+).
- CarPlay/Android Auto tidak terhubung: For wired connections, ensure you are using a high-quality data cable. For wireless, check your phone's Bluetooth and Wi-Fi settings, and confirm the authorization request. Ensure your phone meets the minimum OS requirements (iOS 12+ for Apple, Android 11+ for Android Auto wireless).
- Tidak ada keluaran audio: Check the volume settings on both the PND-P7 unit and your car's audio system. If using FM transmission, ensure the device and car radio are on the same, clear FM channel. If using AUX, ensure the cable is fully inserted and the car's audio input is set to AUX.
- Layar sentuh tidak responsif: Try restarting the device by disconnecting and reconnecting the power. If the issue persists, contact customer support.
Spesifikasi
- Dimensi Produk: 7.48x0.39x4.33 inci
- Berat Barang: 2.2 pon
- Nomor Model Barang: PND-P7
- Merek: AINAVIGO
- Teknologi Konektivitas: USB, 3.5mm Jack, Wi-Fi
- Tipe Pengontrol: Layar Sentuh
- Fitur Khusus: Android Auto, Apple CarPlay, Backup Camera, GPS Navigation, Mirror Link
- Perangkat yang Kompatibel: Mobil
- Tipe Konektor: Jack 3.5mm, USB
- Mode Keluaran Audio: Stereo, Mengelilingi
- Konfigurasi Saluran Suara Surround: 5.1
- Enkode Video: H.264, H.265/HEVC, MPEG-4
- Warna: Hitam
Garansi dan Dukungan
For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official AINAVIGO weblokasi. Simpan kwitansi pembelian Anda untuk klaim garansi.
