1. Pendahuluan
This manual provides essential instructions for the proper installation, operation, and maintenance of the Buddy RC HEEWING F-01 Ultra Delta Wing Propeller 5x5E. Adherence to these guidelines will ensure optimal performance and longevity of your propellers. This set includes five 5x5E propellers designed for specific remote-controlled aircraft applications.
2. Pengaturan dan Instalasi
Correct propeller installation is crucial for safe and efficient flight. Always ensure the motor is disarmed or the battery is disconnected before handling propellers.
2.1 Propeller Identification
The propellers in this set are designated as 5x5E. The '5x5' indicates a 5-inch diameter and a 5-inch pitch. The 'E' typically denotes an electric propeller, optimized for electric motors.
Image 1: A set of five 5x5E propellers, showing their uniform design and size.
2.2 Petunjuk Pemasangan
- Periksa baling-baling: Before mounting, carefully inspect each propeller for any cracks, nicks, or deformities. Do not use damaged propellers.
- Motor Shaft Compatibility: Ensure the propeller's hub hole matches the diameter of your motor shaft. Adapters may be required for proper fit.
- Arah putaran: Propellers are designed for specific rotation directions. Ensure the leading edge of the blade faces the direction of rotation for thrust. Most propellers have markings (e.g., 'R' for reverse or no marking for standard) or an airfoil shape that indicates the correct orientation.
- Pengikat Aman: Mount the propeller onto the motor shaft. Use the provided propeller nuts, washers, or collets to secure it firmly. Do not overtighten, as this can damage the propeller hub, but ensure it is tight enough to prevent slippage during operation.
- Pemeriksaan Saldo: For optimal performance and to minimize vibration, it is recommended to balance each propeller using a propeller balancer. Unbalanced propellers can lead to excessive vibration, reducing efficiency and potentially damaging other components.

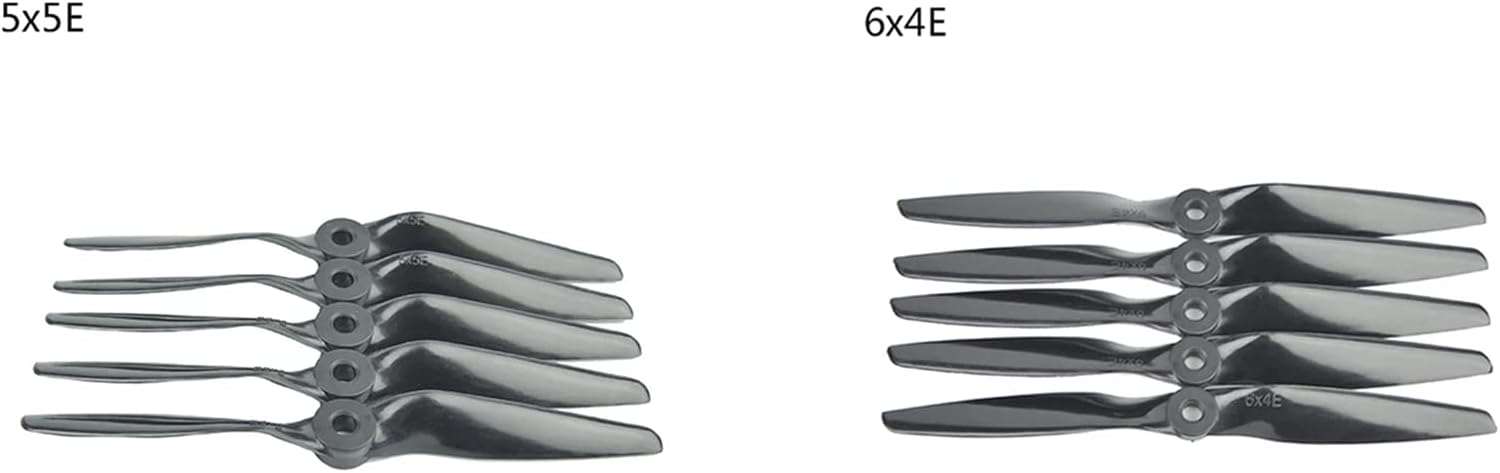

Image 2: A visual comparison between 5x5E propellers (left) and 6x4E propellers (right), highlighting the size difference. This manual pertains to the 5x5E type.
3. Pedoman Pengoperasian
Once installed, observe the following guidelines during operation:
- Pemeriksaan Pra-Penerbangan: Always perform a visual inspection of all propellers before each flight. Check for any signs of damage, looseness, or foreign objects.
- Izin: Ensure adequate clearance between the propeller tips and any part of the aircraft frame, landing gear, or other components.
- Jarak aman: Maintain a safe distance from rotating propellers. They can cause serious injury. Never attempt to stop a rotating propeller with your hand or any object.
- Kondisi Lingkungan: Avoid operating in conditions where debris (e.g., tall grass, loose gravel) could strike the propellers, as this can cause damage.
4. Pemeliharaan
Regular maintenance helps extend the life of your propellers and ensures safe operation.
- Pemeriksaan Rutin: After every flight, inspect propellers for any signs of wear, cracks, chips, or bending. Even minor damage can lead to imbalance and failure.
- Pembersihan: Clean propellers with a soft cloth to remove dirt, dust, or residue. Avoid harsh chemicals that could degrade the material.
- Penyimpanan: Store spare propellers in a protective manner to prevent damage from impacts or pressure.
- Penggantian: Replace any propeller that shows signs of damage, excessive wear, or has been involved in a significant impact, even if damage is not immediately visible. Using damaged propellers can lead to catastrophic failure during flight.
5. Penyelesaian masalah
Addressing common issues related to propellers:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Getaran Berlebihan | Unbalanced propeller, damaged propeller, loose propeller nut. | Balance propeller, replace damaged propeller, tighten propeller nut. |
| Daya Dorong/Kinerja Berkurang | Incorrect propeller direction, damaged propeller, motor issue. | Verify propeller direction, replace damaged propeller, check motor functionality. |
| Unusual Noise During Flight | Propeller striking frame, damaged propeller, loose propeller. | Check clearances, replace damaged propeller, secure propeller. |
6. Spesifikasi
- Model: HEEWING F-01 Ultra Delta Wing Propeller
- Ukuran: 5x5E (5-inch diameter, 5-inch pitch, Electric type)
- Kuantitas: Set of 5 propellers
- Kesesuaian: Designed for HEEWING F-01 Ultra Delta Wing and similar RC aircraft requiring 5x5E propellers.
- Usia yang Direkomendasikan: 18 years and up (as per manufacturer's recommendation for associated RC products)
7. Informasi Garansi
For specific warranty details regarding the Buddy RC HEEWING F-01 Ultra Delta Wing Propeller 5x5E, please refer to the official Buddy RC website or contact their customer service directly. Warranty terms typically cover manufacturing defects but may not cover damage resulting from improper installation, misuse, or normal wear and tear.
8. Dukungan
If you encounter issues not covered in this manual or require further assistance, please contact Buddy RC customer support through their official website or the retailer from whom the product was purchased. Provide your product model and a detailed description of the issue for efficient support.
Buddy RC Weblokasi: www.buddyrc.com
