Beko RBIM19200AD Built-in Electric Oven Instruction Manual

1. Pendahuluan

This manual provides essential information for the safe and efficient operation of your Beko RBIM19200AD built-in electric oven. Please read these instructions carefully before installation, use, and maintenance. Keep this manual for future reference.

The Beko RBIM19200AD is a 72-liter electric oven featuring AeroPerfect technology for even heat distribution, Halogen Illumination for clear visibility, and a Durable Oven Door designed to support heavy dishes.

2. Informasi Keselamatan

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury. This appliance is intended for domestic use only.

• Pastikan alat telah dibumikan dengan benar.
• Jangan biarkan anak-anak mengoperasikan oven tanpa pengawasan.
• The oven becomes hot during use. Avoid touching heating elements.
• Selalu gunakan sarung tangan oven saat menangani hidangan panas.
• Jangan gunakan pembersih abrasif atau pengikis logam tajam untuk membersihkan kaca pintu oven.
• Putuskan sambungan alat dari catu daya sebelum dibersihkan atau dirawat.

3. Pengaturan dan Instalasi

The Beko RBIM19200AD is a built-in electric oven. Proper installation is crucial for safe and efficient operation. It is highly recommended that installation be performed by a qualified technician.

3.1 Membongkar

• Lepaskan semua bahan kemasan dengan hati-hati.
• Check the appliance for any signs of damage. If damaged, do not install or use it, and contact your retailer.
• Jauhkan bahan kemasan dari jangkauan anak-anak.

3.2 Koneksi Listrik

• Pastikan tegangan listriktage sesuai dengan pelat peringkat pada peranti.
• Peralatan tersebut harus diarde dengan benar.
• Do not use adapters, multiple sockets, or extension cables.

3.3 Penggunaan Pertama

• Sebelum penggunaan pertama, bersihkan bagian dalam oven dengan adamp kain dan deterjen ringan.
• Panaskan oven kosong pada suhu maksimum selama kurang lebih 30 menit untuk membakar sisa-sisa proses pembuatan. Pastikan ventilasi yang baik selama proses ini.

4. Petunjuk Pengoperasian

Your Beko RBIM19200AD oven is equipped with intuitive controls for various cooking functions.

Figure 1: Oven Control Panel. This image shows a close-up of the oven's control knobs, including the function selector, temperature control, and the central analog clock.

4.1 Panel Kontrol Selesaiview

The oven features three main controls:

• Tombol Pemilih Fungsi (Kiri): Used to choose the desired cooking function (e.g., convection, grill, defrost, bottom heating).
• Kenop Pengatur Suhu (Kanan): Used to set the oven temperature in degrees Celsius, ranging from 50°C to 250°C.
• Analog Clock (Center): Displays the time and may include basic timer functions.

Gambar 2: Depan View of the Oven. This image displays the full front of the oven, highlighting the elegant anthracite finish, gold-colored handle, and the control panel.

4.2 Setting a Cooking Program

1. Putar Kenop Pemilih Fungsi to the desired cooking mode (e.g., Convection, Grill, Bottom Heating).
2. Putar Tombol Kontrol Suhu to set the desired cooking temperature.
3. The oven will begin to heat up. The indicator light will turn off once the set temperature is reached.
4. To stop cooking, turn both knobs to the "Off" position.

4.3 Fitur Khusus

• AeroPerfect Technology: This innovative ventilation system ensures uniform hot air distribution throughout the oven cavity, minimizing temperature fluctuations for consistent cooking results.
• Halogen Illumination: The internal halogen light provides a clear view of your food without needing to open the oven door, preserving heat and ensuring precise monitoring.
• Durable Oven Door: The oven door is designed to support up to 22.5 kg, allowing you to safely rest heavy dishes on the open door during transfer.
• Fungsi Pencairan: Use this function to gently thaw frozen foods.

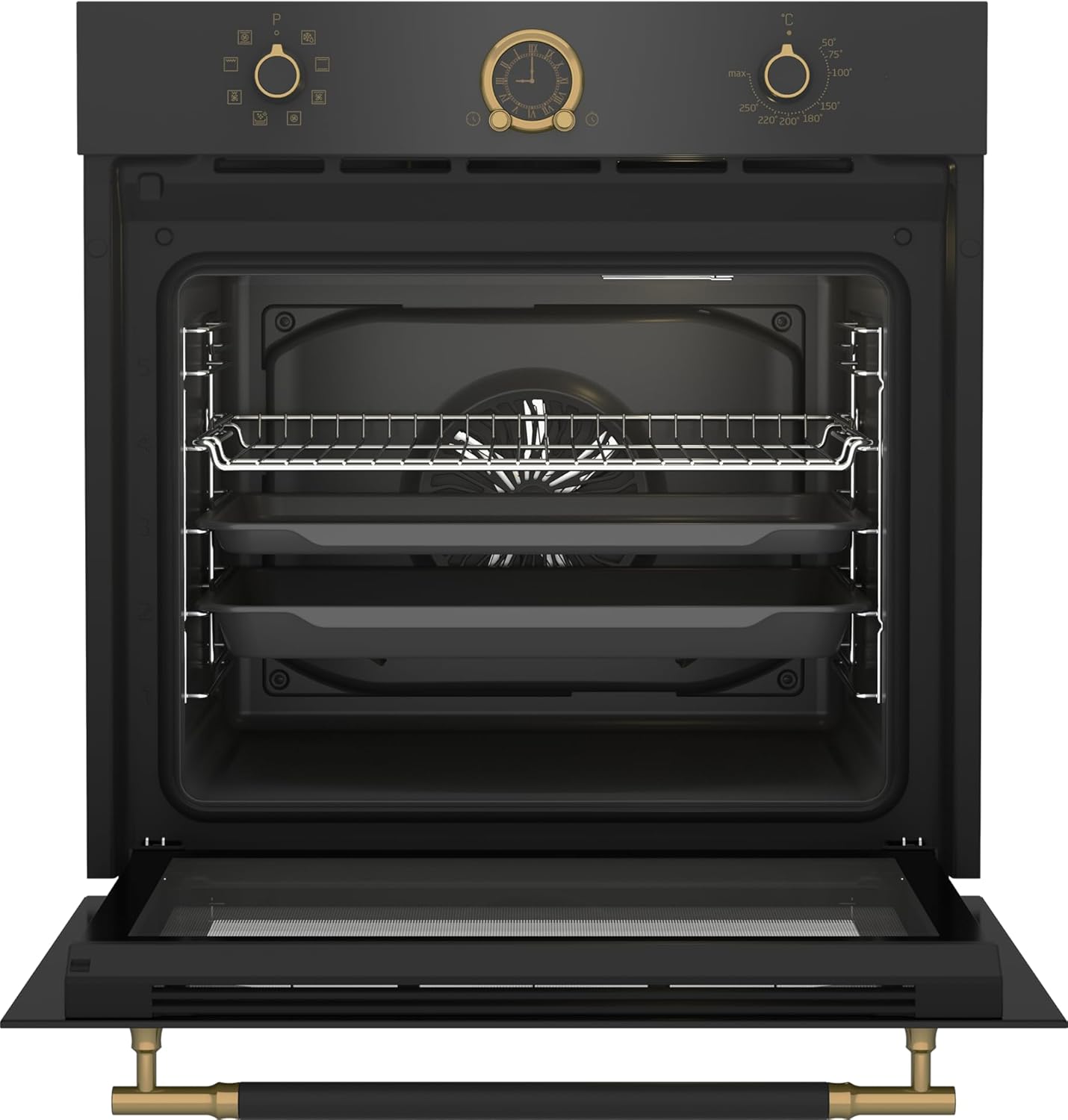

Figure 3: Oven Interior. This image shows the oven with its door fully open, revealing the spacious 72-liter interior, multiple rack positions, and included baking trays.

5. Perawatan dan Pembersihan

Pembersihan dan perawatan yang teratur akan memastikan umur panjang dan kinerja oven Anda yang optimal.

5.1 Pembersihan Umum

• Selalu pastikan oven dingin dan terputus dari catu daya sebelum dibersihkan.
• Bersihkan interior dengan iklanamp cloth and a mild, non-abrasive detergent. Avoid harsh chemicals or scouring pads.
• Untuk noda membandel, gunakan pembersih oven khusus, ikuti petunjuk penggunaan produk dengan cermat.
• Bersihkan permukaan luar dengan kain lembut dan halus.amp kain.
• The oven racks and trays can be removed and washed in warm soapy water.

5.2 Membersihkan Pintu Oven

The oven door glass can be cleaned with a soft cloth and glass cleaner. Do not use abrasive materials that could scratch the glass.

5.3 Mengganti Oven Lamp

Ensure the oven is cool and unplugged. Unscrew the protective glass cover, replace the old bulb with a new heat-resistant oven bulb (E14, 25W, 300°C), and reattach the cover.

6. Penyelesaian masalah

Sebelum menghubungi layanan pelanggan, harap periksa masalah umum dan solusi berikut:

Jika masalah berlanjut setelah mencoba solusi ini, hubungi dukungan pelanggan Beko.

7. Spesifikasi Teknis

Figure 4: Energy Label. This label indicates the oven's energy efficiency class (A) and energy consumption per cycle for both conventional and fan-forced modes.

8. Garansi dan Dukungan Pelanggan

8.1 Garansi Produk

Your Beko RBIM19200AD oven comes with a warranty period of 2 years for private users Dan 1 year for businessesHarap simpan bukti pembelian Anda untuk klaim garansi. Garansi mencakup cacat produksi dalam kondisi penggunaan normal.

8.2 Dukungan Pelanggan

For technical assistance, spare parts, or warranty service, please contact Beko customer support. You can find contact information on the official Beko websitus atau melalui pengecer lokal Anda.

For more information, visit the official Beko store: Toko Beko di Amazon.
