Buku Panduan Pengguna Pompa Udara Elektrik RHAEGON CP12

1. Produk Lebihview

The RHAEGON CP12 Electric Air Pump is a compact, lightweight, and portable inflation device designed for various applications, including car tires, bicycle tires, balls, and inflatable floats. Equipped with a built-in rechargeable battery, it offers convenience and reliability on the go. Its intelligent design includes an auto-stop function to prevent over-inflation and a clear digital display for precise pressure monitoring.

Image 1.1: RHAEGON CP12 Electric Air Pump with all accessories.

2. Isi Paket

Harap verifikasi bahwa semua item yang tercantum di bawah ini disertakan dalam paket Anda:

• 1 x RHAEGON CP12 Electric Air Pump
• 1 x High Pressure Inflatable Tube (17.7 inches / 450 mm)
• 1 x Kabel Pengisian Tipe-C USB
• 1 x Katup Schrader
• 1 x Katup Presta
• 1 x Ball Needle Valve
• 1 x Balloon Valve
• 1 x Tas Penyimpanan
• 1 x Buku Petunjuk

3. Fitur Produk

• Inflasi Cepat: Capable of inflating a 195/55/R15 car tire from 0 to 35 PSI in approximately 6 minutes, with a maximum pressure of 160 PSI (11 bar) and an air flow of 30 L/min.


Image 3.1: Visual representation of the pump's fast inflation capability.

• High Precision & Digital Display: Features an LED screen that simultaneously displays preset and actual tire pressure values. The built-in pneumatic sensor chip ensures accuracy within ±0.5 PSI.

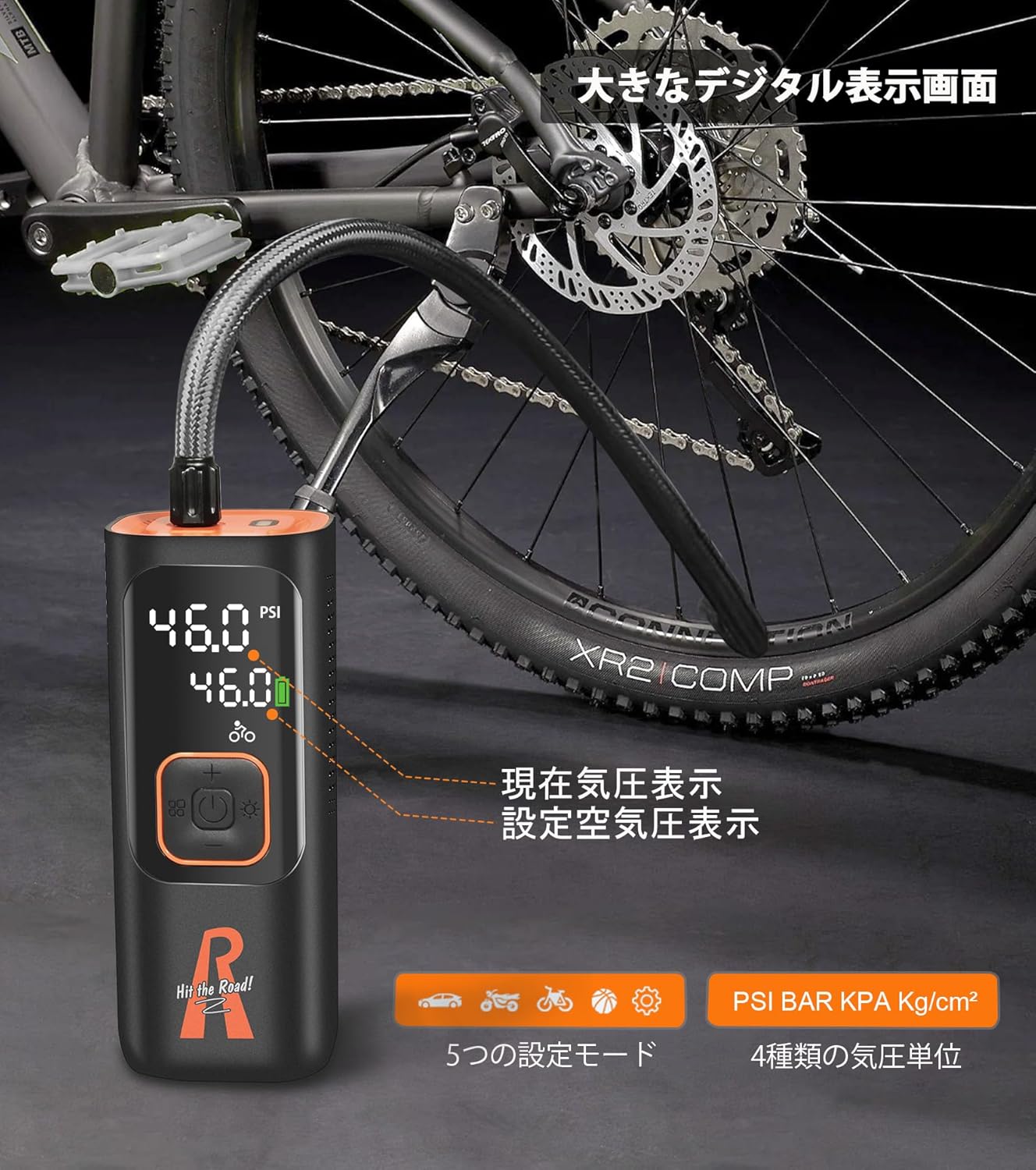

Image 3.2: The clear digital display showing pressure readings.

• Beberapa Opsi Daya: Operates cordlessly with its internal 6000mAh (3x 2000mAh) battery or can be powered via a 12V car cigarette lighter socket (adapter not included).

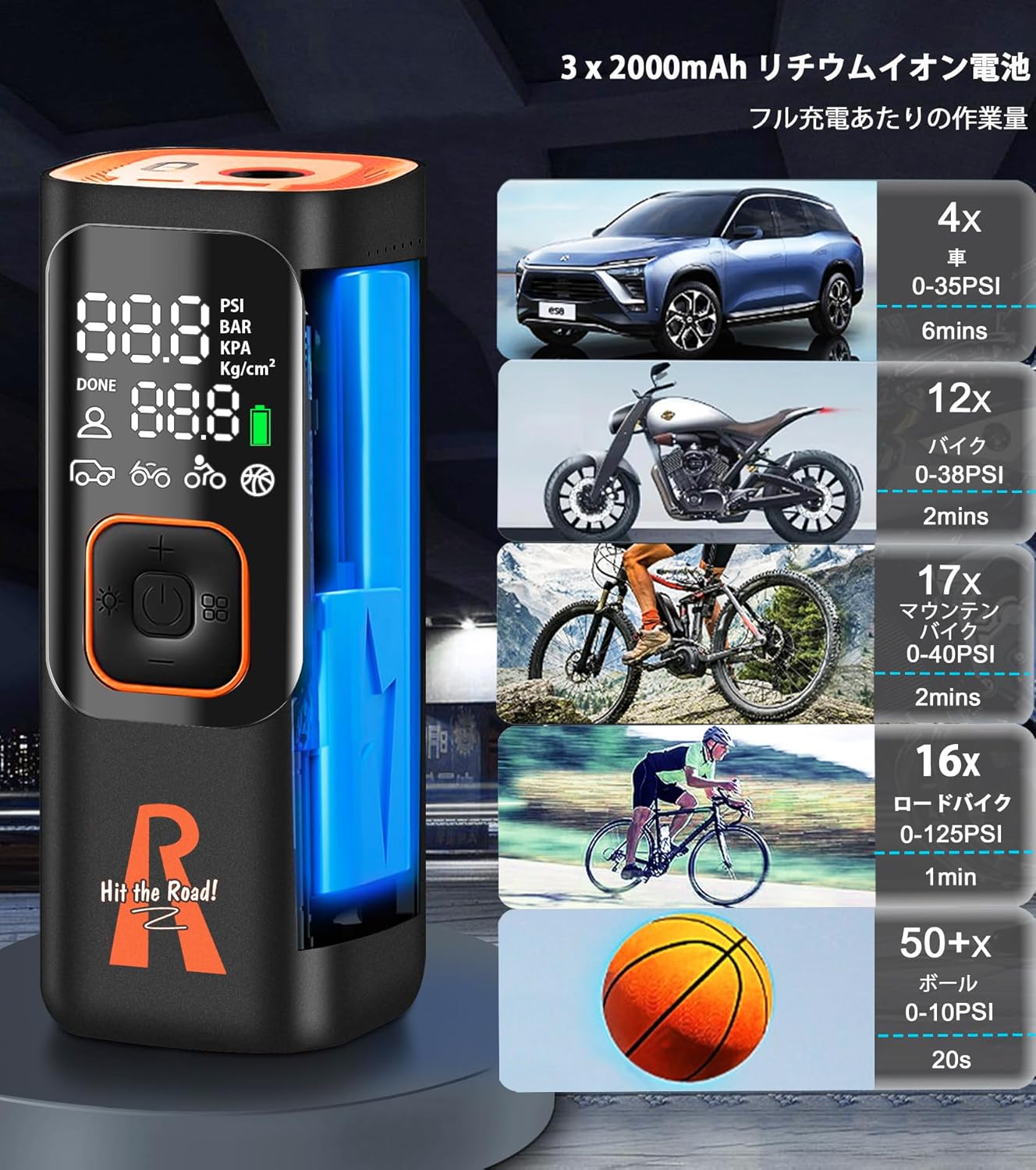

Image 3.3: Battery capacity and estimated inflation counts for different applications.

• 5 Inflation Modes & Auto Shut-Off: Pre-programmed modes for bicycles, motorcycles, cars, and balls, plus a custom mode. The pump automatically stops when the preset pressure is reached, preventing over-inflation. Supports PSI, kPa, BAR, and KG/CM² units.
• Portable & Multi-functional: Compact and lightweight (576g, 160 x 63 x 62 mm) for easy transport and storage. Includes an LED flashlight for night use and a 5V/2A USB output port to charge mobile devices.


Image 3.4: The compact dimensions and portability of the air pump.



Image 3.5: The pump's additional functions as a power bank and flashlight.

4. Pengaturan

1. Isi Daya Pompa: Before first use, fully charge the air pump using the provided USB Type-C charging cable and a compatible 5V/2A or 9V/1.5A USB power adapter (not included). The battery indicator on the display will show charging status.
2. Pasang Selang Udara: Screw the high-pressure inflatable tube securely into the inflation port at the top of the pump.
3. Select and Attach Valve Adapter: Choose the appropriate valve adapter (Schrader, Presta, Ball Needle, or Balloon Valve) for the item you intend to inflate. Screw it onto the end of the air hose.

5. Petunjuk Pengoperasian

1. Nyalakan: Tekan dan tahan tombol daya (⏻) for 2-3 seconds to turn on the pump. The display will light up.
2. Pilih Modus: Tekan tombol mode (M) repeatedly to cycle through the preset inflation modes: Car, Motorcycle, Bicycle, Ball, and Custom. Each mode has a default pressure unit and recommended pressure range.
3. Tetapkan Tekanan Target: Use the '+' and '-' buttons to adjust the target pressure. The value will flash while being adjusted. The pump supports PSI, BAR, KPA, and KG/CM² units. You can switch units by briefly pressing the mode button after selecting a mode.
4. Hubungkan ke Item: Securely connect the valve adapter to the item you wish to inflate (e.g., tire valve, ball valve). The display will show the current pressure of the connected item.
5. Mulai Inflasi: Tekan tombol daya (⏻) once to start inflation. The pump will begin to inflate and the display will show the real-time pressure increase.


Image 5.1: Inflating a car tire using the RHAEGON CP12.



Image 5.2: The pump's versatility across different inflation needs.

6. Mati Otomatis: The pump will automatically stop inflating once the preset target pressure is reached.
7. Hentikan Secara Manual: To stop inflation manually at any time, press the power button (⏻) lagi.
8. Matikan: Tekan dan tahan tombol daya (⏻) for 2-3 seconds to turn off the pump. The pump will also automatically power off after a period of inactivity.

Menggunakan Senter LED:

Briefly press the flashlight button (💡) to turn the LED light on or off. This is useful for inflating in low-light conditions.

Menggunakan sebagai Power Bank:

Connect your mobile device to the USB-A output port (5V/2A) on the pump using a compatible USB cable to charge your device.

6. Pemeliharaan

• Pembersihan: Bersihkan bagian luar pompa dengan kain lembut dan kering.amp kain. Jangan gunakan bahan kimia keras atau pembersih abrasif. Pastikan perangkat kering sebelum disimpan.
• Penyimpanan: Store the pump and its accessories in the provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Perawatan Baterai: To prolong battery life, avoid fully discharging the battery frequently. Recharge the pump regularly, even if not in use, at least once every 3 months.
• Pemeriksaan Selang: Periodically check the high-pressure hose for any signs of wear, cracks, or damage. Replace if necessary.

7. Penyelesaian masalah

• Pompa tidak menyala:
  • Ensure the battery is charged. Connect to a power source and charge for at least 30 minutes.
  • Tekan dan tahan tombol daya selama 2-3 detik.
• Pump inflates slowly or not at all:
  • Check that the air hose and valve adapter are securely connected and there are no leaks.
  • Ensure the correct inflation mode and target pressure are set.
  • Verify the battery level. A low battery can affect performance.
• Pembacaan tekanan yang tidak akurat:
  • Ensure the valve adapter is fully seated on the item's valve.
  • Disconnect and reconnect the pump to reset the reading.
• Pump is noisy during operation:
  • It is normal for the pump to produce a noticeable operating sound during inflation due to the internal motor and compressor. This is not indicative of a fault.
• Perlindungan terhadap panas berlebih diaktifkan:
  • If the pump becomes too hot during prolonged use, it may automatically shut down. Allow it to cool down for at least 15-20 minutes before resuming operation. The built-in fan aids in heat dissipation.

8. Spesifikasi

9. Informasi Keselamatan

• Do not leave the operating pump unattended.
• Jauhkan dari jangkauan anak-anak. Ini bukan mainan.
• Do not expose the pump to rain, moisture, or extreme temperatures.
• Hindari memompa barang secara berlebihan. Selalu perhatikan tekanan yang disarankan untuk barang yang akan dipompa.
• Jangan menghalangi lubang masuk atau keluar udara selama pengoperasian.
• Do not disassemble or attempt to repair the pump yourself. Contact qualified personnel for service.
• The pump may become warm during prolonged use. Avoid direct contact with the hose and pump body immediately after inflation.

10. Garansi dan Dukungan

For warranty information, technical support, or any inquiries regarding your RHAEGON CP12 Electric Air Pump, please refer to the purchase platform or contact RHAEGON customer service directly. You can find more information and contact details on the official RHAEGON store page: Visit the RHAEGON Store.
