Genwiss LED Diving Torch T45 Instruction Manual

1. Pendahuluan

The Genwiss LED Diving Torch is engineered for underwater exploration, offering powerful illumination and robust construction. This manual provides essential information for the safe and effective use of your diving torch, ensuring optimal performance and longevity. Please read this manual thoroughly before operating the device.

Image 1: Genwiss LED Diving Torch. This image displays the main product, a black diving flashlight with a lanyard attached.

2. Informasi Keselamatan

Always prioritize safety when using diving equipment. Failure to follow these instructions may result in injury or damage to the product.

• Keamanan Baterai: Use only the specified Lithium-ion battery. Do not expose batteries to extreme heat, direct sunlight, or dispose of them in fire. Do not short-circuit the battery. Keep batteries out of reach of children.
• Pelapis kedap air: Before each dive, ensure all O-rings are clean, properly seated, and lubricated. Tighten the torch head and tail cap securely to maintain the IPX8 waterproof rating.
• Intensitas Cahaya: The torch emits a powerful beam. Avoid shining the light directly into eyes, as it may cause temporary vision impairment.
• Suhu: Do not operate the torch in temperatures outside its specified range.
• Pemeliharaan: Regular maintenance is crucial for safe operation. Refer to the Maintenance section for details.

3. Isi Paket

Verifikasi bahwa semua item ada dalam paket:

• 1 x Genwiss LED Diving Torch
• 1 x Rechargeable Lithium-ion Battery (5000mAh)
• 1 x Charger Baterai
• 1 x Kabel Pengisian Daya USB
• 1 x Tali
• 2 x O-Ring Cadangan
• 1 x Panduan Pengguna

Image 2: Package Contents. This image shows the diving torch, battery, charger, USB cable, lanyard, spare O-rings, and user manual.

4. Fitur Produk

The Genwiss LED Diving Torch is equipped with advanced features for superior underwater performance:

• Sumber Cahaya LED: High-power Luminus SST40.2 LED.
• Kecerahan: Up to 2000 lumens for exceptional underwater visibility.
• Sudut Pancaran: Focused 9-degree beam for clear, bright illumination.
• Peringkat Tahan Air: IPX8, tested to a maximum depth of 150 meters.
• Konstruksi Tahan Lama: Aerospace-grade 6061 aluminum alloy body with three-stage anodic oxidation treatment for corrosion resistance and high hardness.
• High-Strength Lens: 4mm tempered glass lens for durability and shock resistance.
• Baterai: High-capacity 5000mAh Lithium-ion battery for extended runtime (2 to 25 hours).
• Perlindungan Baterai: Features over-charge, overvoltage, dan volume rendahtage perlindungan.
• Magnetic Control Switch: Enhances operational reliability and ease of use underwater.
• Beberapa Mode Cahaya: High, Medium, Low, Strobe, and SOS.
• Indikator Daya Baterai: Visual indicator for remaining battery level.

Image 3: Super Bright LED. This image highlights the Luminus SST40.2 LED, 2000 lumens brightness, 300m light range, and 75-degree beam angle (note: product description specifies 9-degree focused beam).

Image 4: Waterproof Depth. This image illustrates the IPX8 waterproof rating, allowing submersion up to 150 meters, and shows a waterproof silicone ring.

5. Pengaturan

Follow these steps to prepare your diving torch for use:

1. Membongkar: Keluarkan semua komponen dari kemasannya dengan hati-hati.
2. Pemasangan Baterai: Unscrew the tail cap of the torch. Insert the 5000mAh Lithium-ion battery with the positive (+) end facing towards the torch head. Screw the tail cap back on securely.
3. Tagihan Awal: Before first use, fully charge the battery using the provided charger and USB cable. The charger indicator will typically change color (e.g., red to green) when charging is complete.
4. Pasang Tali Pengikat: Secure the lanyard to the designated attachment point on the torch for added security during use.
5. Periksa O-Ring: Before every dive, unscrew the torch head and tail cap to inspect the O-rings. Ensure they are clean, free of debris, and properly lubricated with silicone grease. This is critical for maintaining the waterproof seal.

6. Petunjuk Pengoperasian

The Genwiss LED Diving Torch features a magnetic control switch for easy operation underwater.

1. Menyalakan/Mematikan: Rotate the magnetic control switch to the 'ON' position to turn on the torch. Rotate it to the 'OFF' position to turn it off.
2. Mengubah Mode Cahaya: With the torch on, rotate the magnetic control switch to cycle through the available modes: High, Medium, Low, Strobe, and SOS. Each rotation will advance to the next mode.
3. Indikator Daya Baterai: The torch is equipped with a battery indicator light to show the remaining power:
   • Lampu hijau: Tingkat baterai di atas 80%.
   • Lampu Kuning: Level baterai antara 20% dan 80%.
   • Red Light (flashing): Battery level is below 20%. Recharge immediately.

Image 5: 5 Light Modes. This image illustrates the High, Medium, Low, Strobe, and SOS modes, and shows how to rotate the switch to change modes.

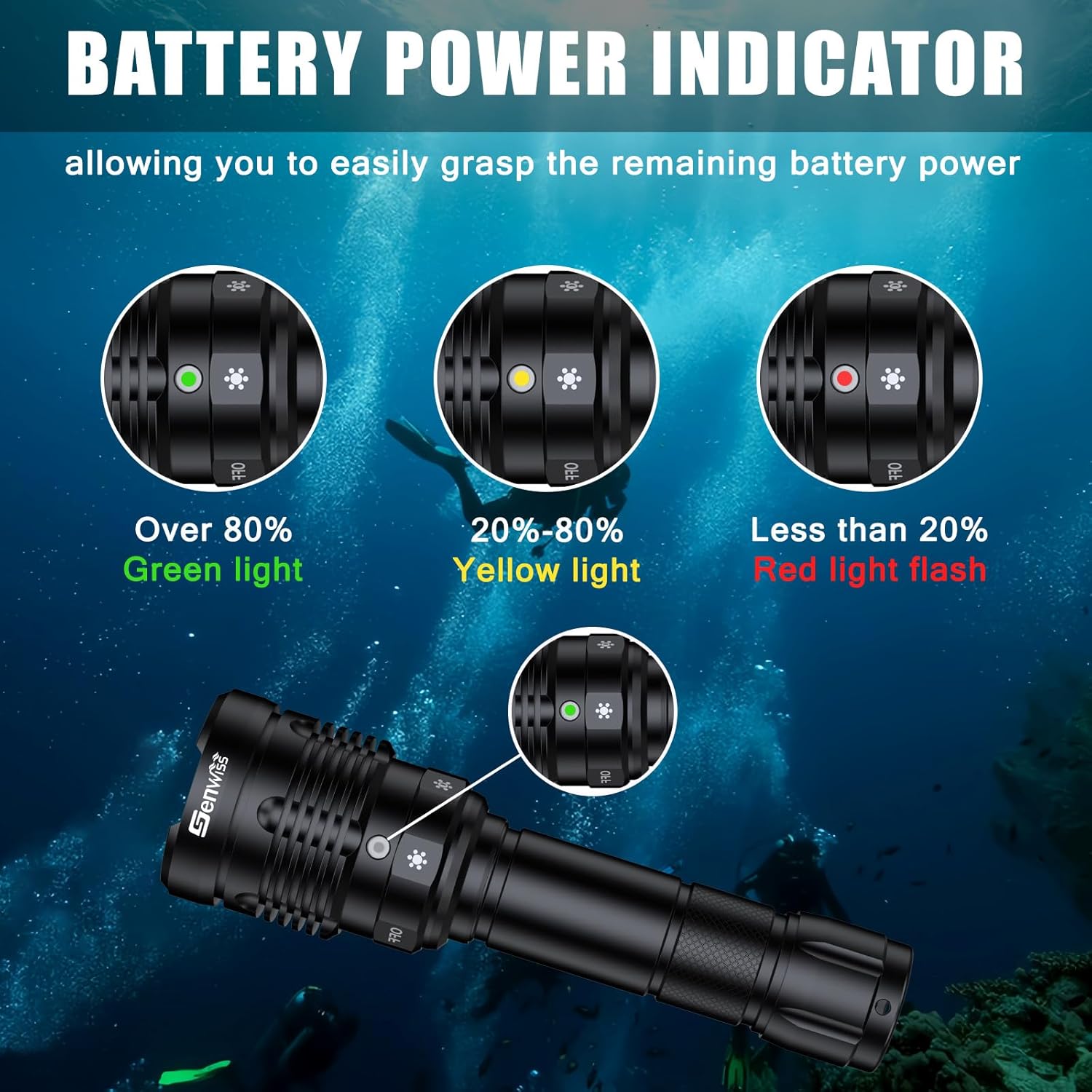

Image 6: Battery Power Indicator. This image details the green, yellow, and red flashing lights indicating battery levels (over 80%, 20-80%, less than 20% respectively).

7. Informasi Baterai

The Genwiss LED Diving Torch uses a high-capacity 5000mAh Lithium-ion battery, providing a long runtime of 2 to 25 hours depending on the selected mode. The battery is equipped with advanced protection features:

• Perlindungan kelebihan biaya: Mencegah kerusakan akibat pengisian daya yang berlebihan.
• Berlebihantage Perlindungan: Pengamanan terhadap voltage paku.
• Vol rendahtage Perlindungan: Prevents deep discharge, extending battery life.
• Siklus Pengisian Daya: Designed for approximately 500 charge cycles.

For optimal battery life, charge the battery fully before initial use and after each dive. If storing the torch for an extended period, charge the battery every 3-6 months to prevent deep discharge.

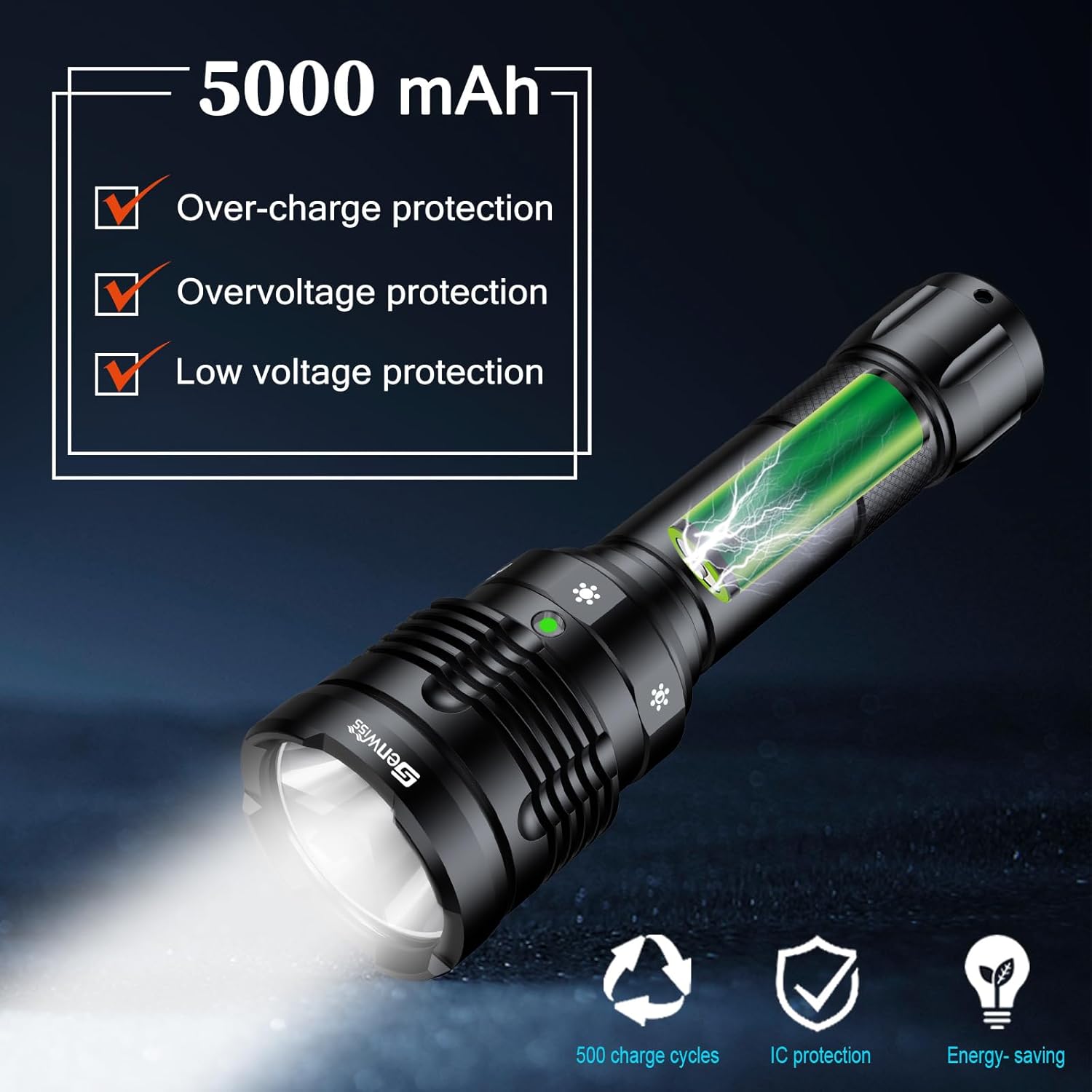

Image 7: 5000 mAh Battery. This image highlights the 5000mAh battery capacity and its protection features: over-charge, overvoltage, dan volume rendahtage protection, along with 500 charge cycles and energy-saving benefits.

8. Pemeliharaan

Proper maintenance ensures the longevity and reliable performance of your diving torch.

• Bilas Setelah Digunakan: After every dive, rinse the torch thoroughly with fresh water to remove salt, sand, and other debris. Do not use hot water.
• Perawatan O-Ring: Regularly inspect the O-rings for any signs of wear, cuts, or dirt. Clean them gently and apply a thin layer of silicone grease to keep them supple and ensure a watertight seal. Replace damaged O-rings with the provided spares.
• Pembersihan: Usap badan obor dengan kain lembut,amp kain. Hindari penggunaan pembersih atau pelarut yang bersifat abrasif.
• Penyimpanan: Store the torch in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the battery or ensure it is charged periodically.

9. Penyelesaian masalah

If you encounter issues with your Genwiss LED Diving Torch, refer to the following common problems and solutions:

Jika masalah berlanjut setelah mencoba solusi ini, silakan hubungi dukungan pelanggan.

10. Spesifikasi

Detailed technical specifications for the Genwiss LED Diving Torch T45:

11. Garansi dan Dukungan

No specific warranty information is provided with this product. For any support inquiries, technical assistance, or to report issues, please contact your retailer or the manufacturer directly through their official channels.

12. Tujuan Penggunaan

The Genwiss LED Diving Torch is designed for a variety of underwater and outdoor activities, including:

• Menyelam
• Underwater Hunting
• Cave Exploration
• Search and Rescue Operations
• General Outdoor Illumination
• Marine Vessel Work Lighting

Image 8: Usage Scenarios. This image depicts various applications for the diving torch, including scuba diving, underwater hunting, cave exploration, and rescue operations.
