Vitrifrigo DW90 OCX2 RFX Drawer Fridge Freezer User Manual

1. Pendahuluan

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Vitrifrigo DW90 OCX2 RFX Drawer Fridge Freezer. Please read these instructions carefully before using the appliance and retain them for future reference.

The Vitrifrigo DW90 OCX2 RFX is a high-quality stainless steel drawer fridge freezer designed for various applications. Key features include a robust stainless steel drawer, a versatile double door position system (DOOR INSIDE-DOOR OUTSIDE), the secure Steelock locking mechanism, and a vent position to prevent odors when not in use. It also incorporates a self-venting frame for improved air circulation and an efficient 12/24Vdc electronic control system with LED lighting.

2. Informasi Keselamatan

Selalu perhatikan tindakan pencegahan keselamatan berikut untuk mengurangi risiko kebakaran, sengatan listrik, atau cedera.

• Bacalah semua petunjuk dengan saksama sebelum pemasangan dan pengoperasian.
• Pastikan peralatan dibumikan dengan benar untuk mencegah sengatan listrik.
• Jangan simpan bahan peledak seperti kaleng aerosol dengan propelan yang mudah terbakar dalam peralatan ini.
• Jaga agar lubang ventilasi bebas dari halangan.
• Jangan gunakan perangkat mekanis atau cara lain untuk mempercepat proses pencairan, selain yang direkomendasikan oleh produsen.
• Jangan merusak sirkuit refrigeran.
• Jangan gunakan peralatan listrik di dalam kompartemen penyimpanan makanan pada peralatan tersebut, kecuali jenis peralatan tersebut adalah yang direkomendasikan oleh produsen.
• Cabut alat dari sumber listrik sebelum membersihkan atau melakukan perawatan apa pun.
• Peralatan ini tidak ditujukan untuk digunakan oleh orang (termasuk anak-anak) dengan keterbatasan fisik, sensorik, atau mental, atau kurang pengalaman dan pengetahuan, kecuali mereka telah diberi pengawasan atau petunjuk mengenai penggunaan peralatan oleh orang yang bertanggung jawab atas keselamatan mereka.

3. Membongkar dan Isi

Carefully unpack your Vitrifrigo DW90 OCX2 RFX Drawer Fridge Freezer. Inspect the appliance for any signs of damage during transit. Report any damage to your supplier immediately.

Apa yang ada di dalam kotak:

• Vitrifrigo DW90 OCX2 RFX Drawer Fridge Freezer unit
• Charger (Power supply unit)
• User Manual (dokumen ini)

4. Pengaturan dan Instalasi

The Vitrifrigo DW90 OCX2 RFX is designed for built-in installation. Proper installation is crucial for optimal performance and longevity.

4.1 Penempatan dan Ventilasi

Ensure the installation area provides adequate space for the appliance dimensions (635H x 533W x 543D mm). The appliance features a self-venting frame to improve ventilation. Ensure that the ventilation slots are not obstructed to allow proper airflow around the refrigerator.

Image: Detail of the self-venting frame, showing the ventilation slots for improved air circulation.

4.2 Double Door Position

The appliance offers a double door position feature, allowing for either 'DOOR INSIDE' or 'DOOR OUTSIDE' installation with a single fitting flange. This provides flexibility for integration into various cabinet designs.

Image: Illustration of the double door position feature, showing two distinct door panel configurations.

Image: Diagram illustrating the 'Door Outside' and 'Door Inside' installation options.

4.3 Koneksi Listrik

Connect the appliance to a 12/24Vdc power supply. The electronic control system operates at 50/60Hz. Ensure the power plug type (Type F - 2 pin, German & Spanish) is compatible with your electrical outlet. Always ensure the power supply is disconnected before making any electrical connections.

Image: The D power electronic control unit with its power connectors.

4.4 Dimensi

Lihat gambar teknis untuk mengetahui dimensi dan jarak bebas yang diperlukan untuk pemasangan.

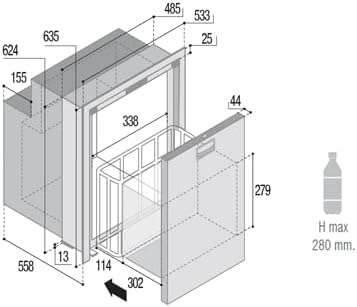

Image: Technical drawing with detailed dimensions of the appliance.

5. Petunjuk Pengoperasian

5.1 Pengoperasian Laci

The appliance features a stainless steel drawer for easy access to contents. To open, pull the integrated handle. To close, push the drawer firmly until the Steelock locking system engages, ensuring a secure seal.

Gambar: Produk utama view showing the stainless steel drawer front and integrated handle.

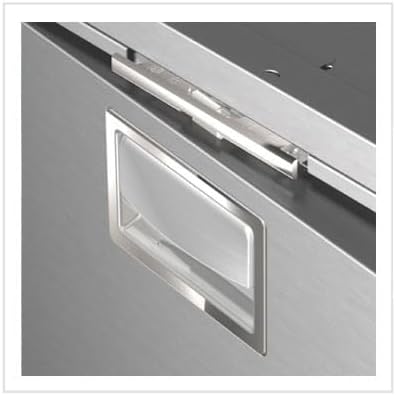

Image: Close-up of the recessed stainless steel drawer handle.

Image: Detail of the Steelock locking system, showing the mechanism that secures the drawer.

Gambar: Interior view of the drawer, showing storage for bottles and other items.

5.2 Kontrol Suhu

The appliance features adjustable temperature control. Refer to the control panel for specific instructions on setting and adjusting the desired temperature for both the fridge and freezer compartments.

5.3 Vent Position

When the appliance is not in use for an extended period, utilize the vent position feature. This function helps to avoid unpleasant odors by allowing air circulation within the compartments, preventing mold and mildew buildup.

5.4 Lampu LED

The interior is equipped with a high-intensity LED lighting system for clear visibility of contents.

6. Pemeliharaan

6.1 Pembersihan

Regular cleaning helps maintain the hygiene and efficiency of your appliance. Disconnect power before cleaning. Clean the interior and exterior surfaces with a mild detergent and warm water. Avoid abrasive cleaners or solvents that could damage the stainless steel finish. Dry thoroughly after cleaning.

6.2 Pencairan

The Vitrifrigo DW90 OCX2 RFX features an automatic defrost system, minimizing the need for manual defrosting. If ice buildup occurs, ensure the door seal is intact and the appliance is operating correctly.

6.3 Ventilation Maintenance

Periodically check that the self-venting frame and any other ventilation openings are clear of dust and debris to ensure proper airflow and prevent overheating of the compressor.

7. Penyelesaian masalah

If you encounter issues with your appliance, refer to the following common troubleshooting steps. If the problem persists, contact customer support.

• Perangkat tidak mendinginkan: Check if the power cord is securely plugged in. Verify the power supply is active. Ensure the temperature control is set correctly. Check if the ventilation openings are obstructed.
• Suara yang tidak biasa: Ensure the appliance is level. Check for any items inside or around the unit that might be vibrating. Normal compressor operation will produce some sound.
• Kebocoran air: Check if the drain hose (if applicable) is clear and properly positioned. Ensure the door seal is clean and intact, providing a tight seal.
• Interior light not working: Check if the LED light is damaged. Ensure the door is closing completely to activate the light switch.
• Penumpukan es yang berlebihan: Verify the door seal is not compromised. Avoid frequent or prolonged door openings.

8. Spesifikasi

9. Garansi dan Dukungan

For warranty information, please refer to the documentation provided at the time of purchase or contact your authorized Vitrifrigo dealer. If you require technical assistance or have questions not covered in this manual, please contact Vitrifrigo customer support or your product retailer.
