EDISHINE Outdoor/Indoor Wall Light (Model KH1845)

1. Pendahuluan

Thank you for choosing the EDISHINE Outdoor/Indoor Wall Light, Model KH1845. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

This wall light is designed for both indoor and outdoor use, featuring an IP44 waterproof rating and a standard E27 socket, allowing for various bulb types (not included).

2. Petunjuk Keselamatan

Keamanan Listrik: Always disconnect power at the main circuit breaker before installing, servicing, or cleaning the fixture. Ensure proper grounding to prevent electric shock.
Teknisi Listrik Berkualifikasi: Installation should be performed by a qualified electrician or a competent person in accordance with local electrical codes and regulations.
Tipe Bohlam: Gunakan hanya bohlam dengan dudukan E27. Jangan melebihi daya maksimum.tage: LED Max. 15W, Incandescent Max. 40W.
Peringkat IP44: The fixture is IP44 rated, meaning it is protected against solid objects over 1mm and splashing water from any direction. While suitable for outdoor use, avoid direct high-pressure water jets.
Penanganan: Tangani perlengkapan ini dengan hati-hati. Jangan menjatuhkannya atau membuatnya terkena benturan keras.
Ventilasi: Ensure adequate ventilation around the fixture, especially when using incandescent bulbs, to prevent overheating.

3. Isi Paket

Verifikasi bahwa semua komponen ada dan tidak rusak sebelum melanjutkan instalasi.

EDISHINE Wall Light Fixture (Model KH1845)
Perangkat Keras Pemasangan (sekrup, colokan dinding)
Panduan Pengguna

Catatan: Bola lampu tidak termasuk dan harus dibeli secara terpisah.

4. Spesifikasi

Merek	EDISHINE
Nomor Model	KH1845
Warna	Hitam
Bahan	Aluminium, Plastik
Dimensi (P x L x T)	27L x 11W x 11Tcm
Jil.tage	220-240 Volts
Basis Bohlam	E27
Maks Wattage (LED)	15 Watt
Maks Wattage (Pijar)	40 Watt
Peringkat IP	IP44 (Tahan Air)
Jenis Pemasangan	Pemasangan di Dinding, Pemasangan Rata
Penggunaan yang Direkomendasikan	Patio, Garage, Terrace, Garden, Living Room

5. Panduan Instalasi

The EDISHINE wall light is designed for simple and intuitive installation. Follow these steps carefully:

Siapkan Area Instalasi: Ensure the power supply to the installation area is turned off at the main circuit breaker. Mark the desired mounting position on the wall.
Pasang Braket: Use the provided mounting hardware (screws and wall plugs) to securely attach the universal mounting plate to the wall. Ensure it is level and stable.
Hubungkan Kabel: Connect the household electrical wires to the fixture's wires according to local electrical codes (typically Live to Live, Neutral to Neutral, Ground to Ground). Ensure all connections are secure and insulated.
Pasang Perlengkapan: Sejajarkan perlengkapan dengan pelat pemasangan dengan hati-hati dan kencangkan dengan sekrup yang disediakan.
Pasang Bohlam: Buka tutup plastik lampshade. Insert an E27 base bulb (LED Max. 15W or Incandescent Max. 40W) into the socket. Screw the lampshade back into place, ensuring it is tight to maintain the IP44 rating.
Pulihkan Daya: Turn on the power supply at the main circuit breaker and test the light.

Figure 5.1: Dimensions of the EDISHINE Wall Light (27cm H x 11cm W x 11cm D) with mounting screws.

Figure 5.2: Three-step installation guide for the EDISHINE Wall Light, showing mounting, wiring, and bulb insertion.

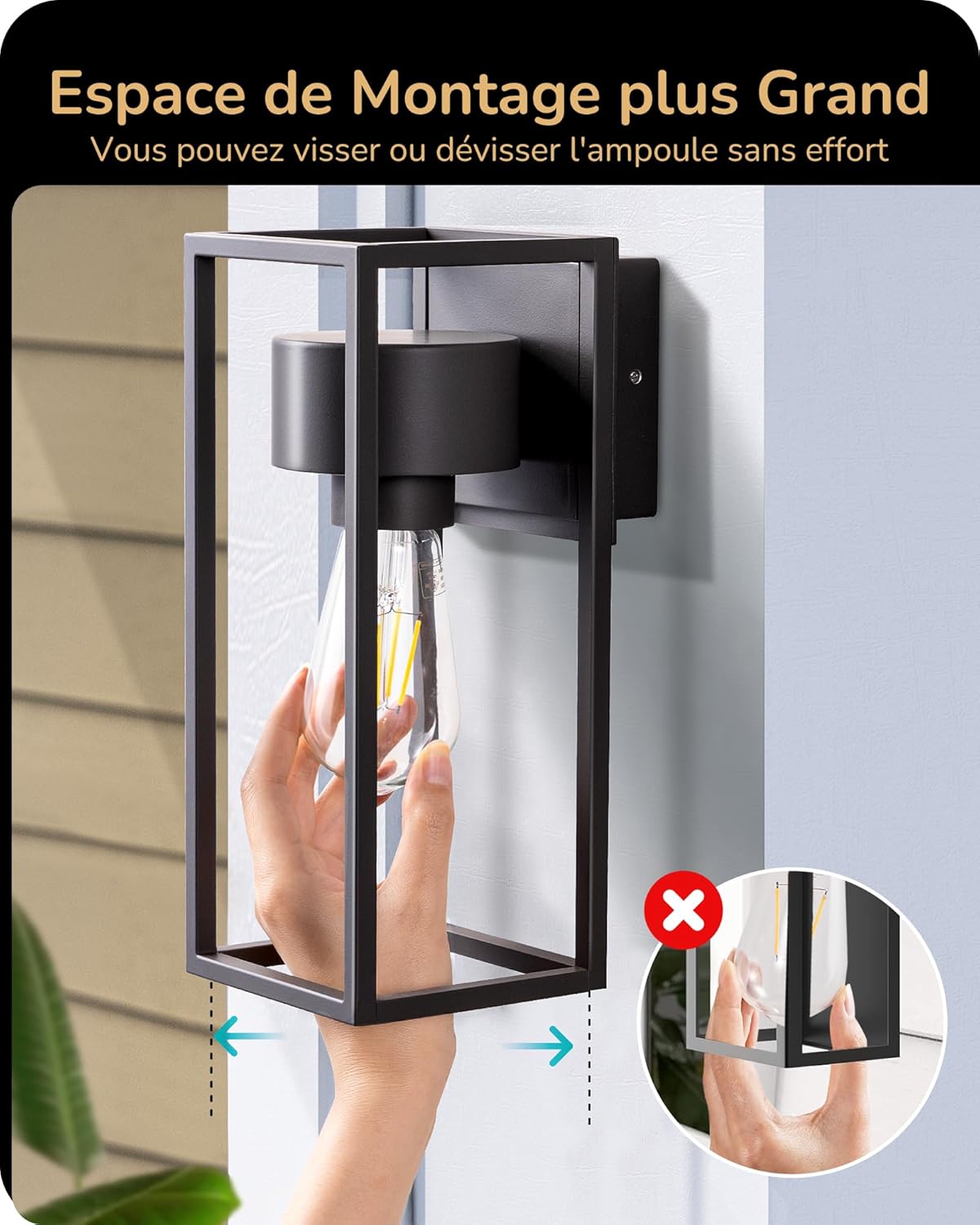

Figure 5.3: Hand installing an E27 bulb into the EDISHINE Wall Light, highlighting the spacious design for easy bulb replacement.

6. Petunjuk Pengoperasian

Once installed and powered, the EDISHINE wall light operates via your standard wall switch. Simply toggle the switch to turn the light on or off.

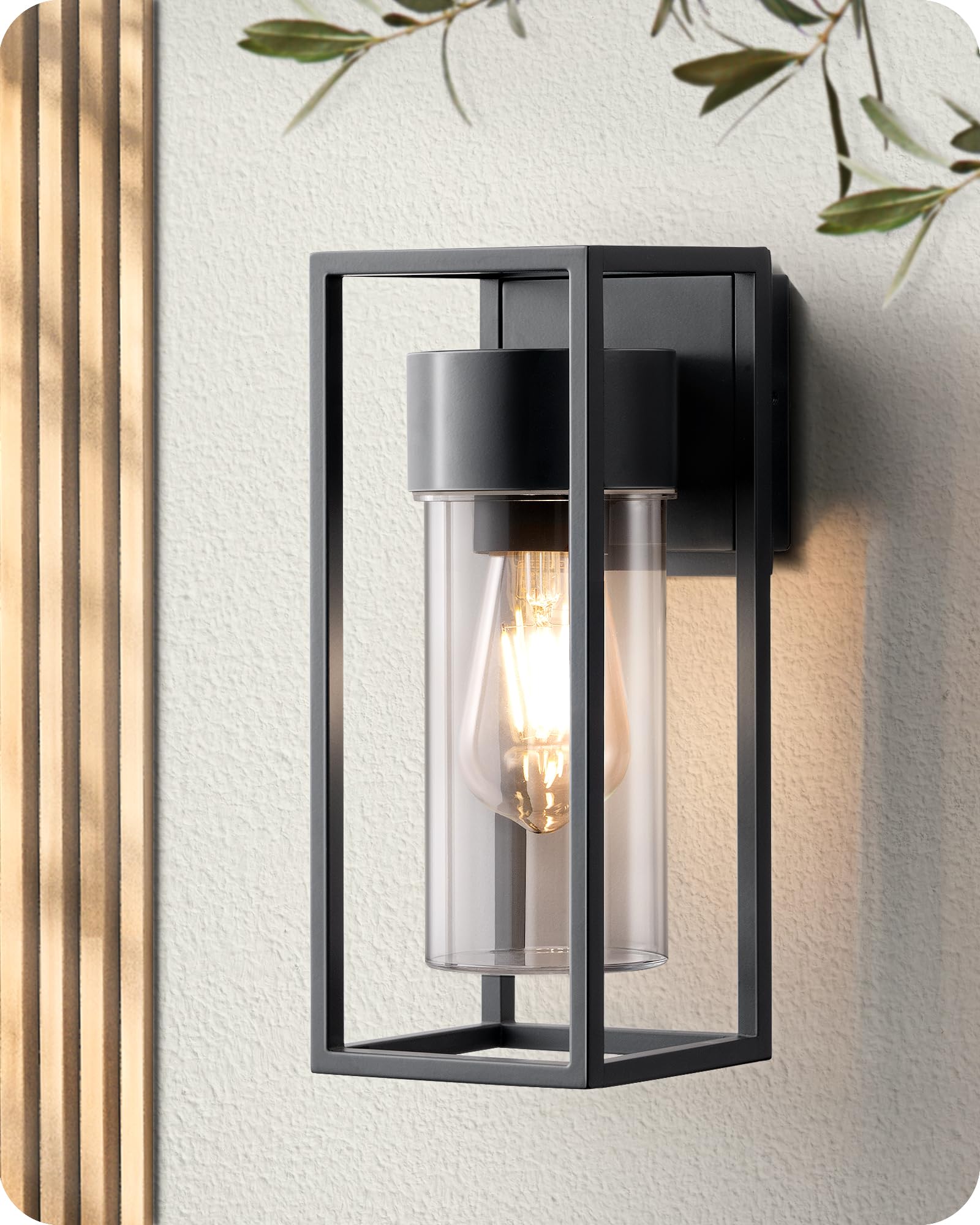

Figure 6.1: EDISHINE Outdoor/Indoor Wall Light, Model KH1845, illuminated.

EDISHINE Wall Light showing different light temperatures — Figure 6.2: EDISHINE Wall Light demonstrating different light temperatures (Cool White and Warm White) depending on the installed E27 bulb.

7. Pemeliharaan

Pembersihan: Untuk membersihkan perlengkapan tersebut, pastikan daya listrik dimatikan. Usap dengan kain lembut,amp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or plastic lampnaungan.
Penggantian Bohlam: Disconnect power before replacing the bulb. Unscrew the plastic lampshade, carefully remove the old bulb, and screw in a new E27 bulb (observing wattage limits). Reattach the lampteduh dengan aman.
Inspeksi: Periodically inspect the fixture for any signs of wear, damage, or loose connections. If any issues are found, disconnect power and consult a qualified electrician.

Terperinci view of EDISHINE Wall Light components — Gambar 7.1: Rinci view of EDISHINE Wall Light components, including the E27 socket and plastic lampshade, for maintenance reference.

8. Penyelesaian masalah

Masalah	Kemungkinan Penyebab	Larutan
Lampu tidak menyala.	Tidak ada catu daya. Bohlam rusak. Sambungan kabel longgar.	Periksa pemutus sirkuit. Ganti bohlam. Inspect wiring (with power off), tighten connections.
Cahaya berkedip.	Bohlam longgar. Bohlam rusak. Pasokan listrik tidak stabil.	Kencangkan bohlam. Ganti bohlam. Konsultasikan dengan teknisi listrik untuk memeriksa pasokan daya.
Air masuk ke dalam perlengkapan tersebut.	Lampshade not securely tightened. Damage to fixture.	Pastikan lampshade is tightly screwed. Periksa apakah ada keretakan atau kerusakan; ganti jika perlu.

9. Garansi dan Dukungan

EDISHINE products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your product, please refer to the EDISHINE official website or contact their customer service directly. Please have your model number (KH1845) and purchase details ready when contacting support.

Dukungan online: Visit the EDISHINE Store on Amazon
