Generic 32-inch Tow Behind Spike Aerator Instruction Manual

1. Informasi Keselamatan

Please read and understand all safety warnings and instructions before operating this tow-behind spike aerator. Failure to follow these instructions may result in serious injury or property damage.

• Always wear appropriate protective clothing, including eye and ear protection, when operating the aerator.
• Be aware of debris being thrown by the aerator during operation. Keep bystanders, especially children and pets, at a safe distance.
• Ensure the aerator is properly and securely hitched to your tractor or ATV before operating. Verify all connections are tight.
• Do not operate the aerator on excessively uneven or steeply inclined surfaces. Maintain control of your towing vehicle at all times.
• Always turn off the engine of your towing vehicle and allow the aerator to come to a complete stop before dismounting or performing any adjustments or maintenance.
• Inspect the aerator for damaged or loose parts before each use. Replace or repair any damaged components immediately.
• Keep hands and feet clear of the spike disks during operation and when the aerator is in motion.

2. Produk Lebihview

The Generic 32-inch Tow Behind Spike Aerator is designed to improve lawn health by allowing air, water, and nutrients to penetrate compacted soil. This model features durable construction and an efficient design for effective aeration.

Fitur Utama:

• 8 Steel Spike Trays: Equipped with eight steel spike trays, each featuring eight 2-inch tips, to maximize soil penetration.
• Adjustable Weighing Tray: An extra-wide tray allows for the addition of up to 200 lbs of cement blocks or other weights to increase soil penetration depth.
• Universal Hitch: Features a single-pin universal hitch for easy attachment to most lawn tractors and ATVs.
• Konstruksi Tahan Lama: Made with thickened iron material and a double-rod design for enhanced stability and longevity.

Image: The 32-inch Tow Behind Spike Aerator, showcasing its overall design and spike disks.

Image: Diagram illustrating the product dimensions, including the 31-inch width and 2-inch spike penetration depth.

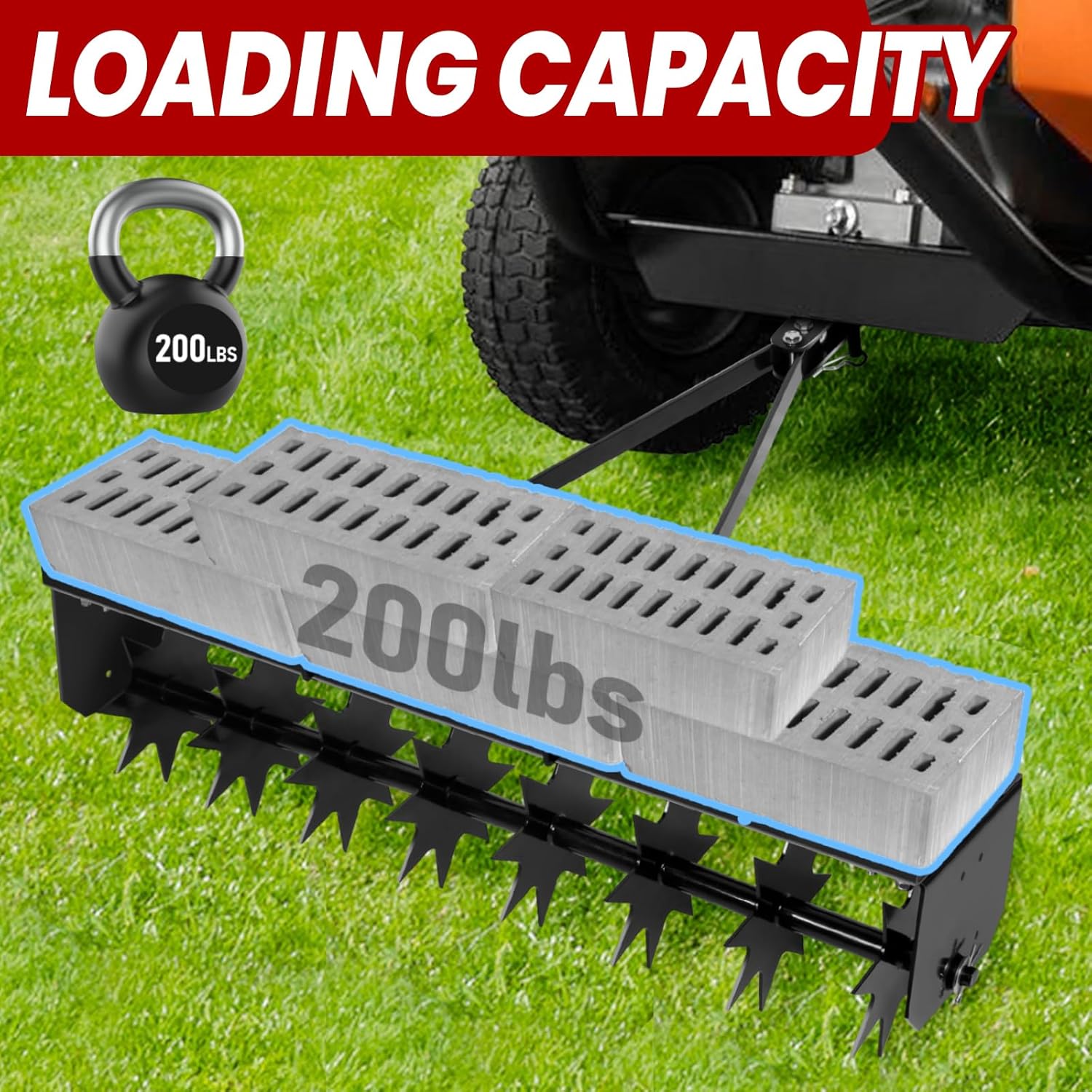

Image: The aerator's weight tray with concrete blocks, demonstrating its capacity to hold up to 200 lbs for increased soil penetration.

3. Daftar Komponen

Before assembly, ensure all parts are present and undamaged. Refer to the diagram below for identification.

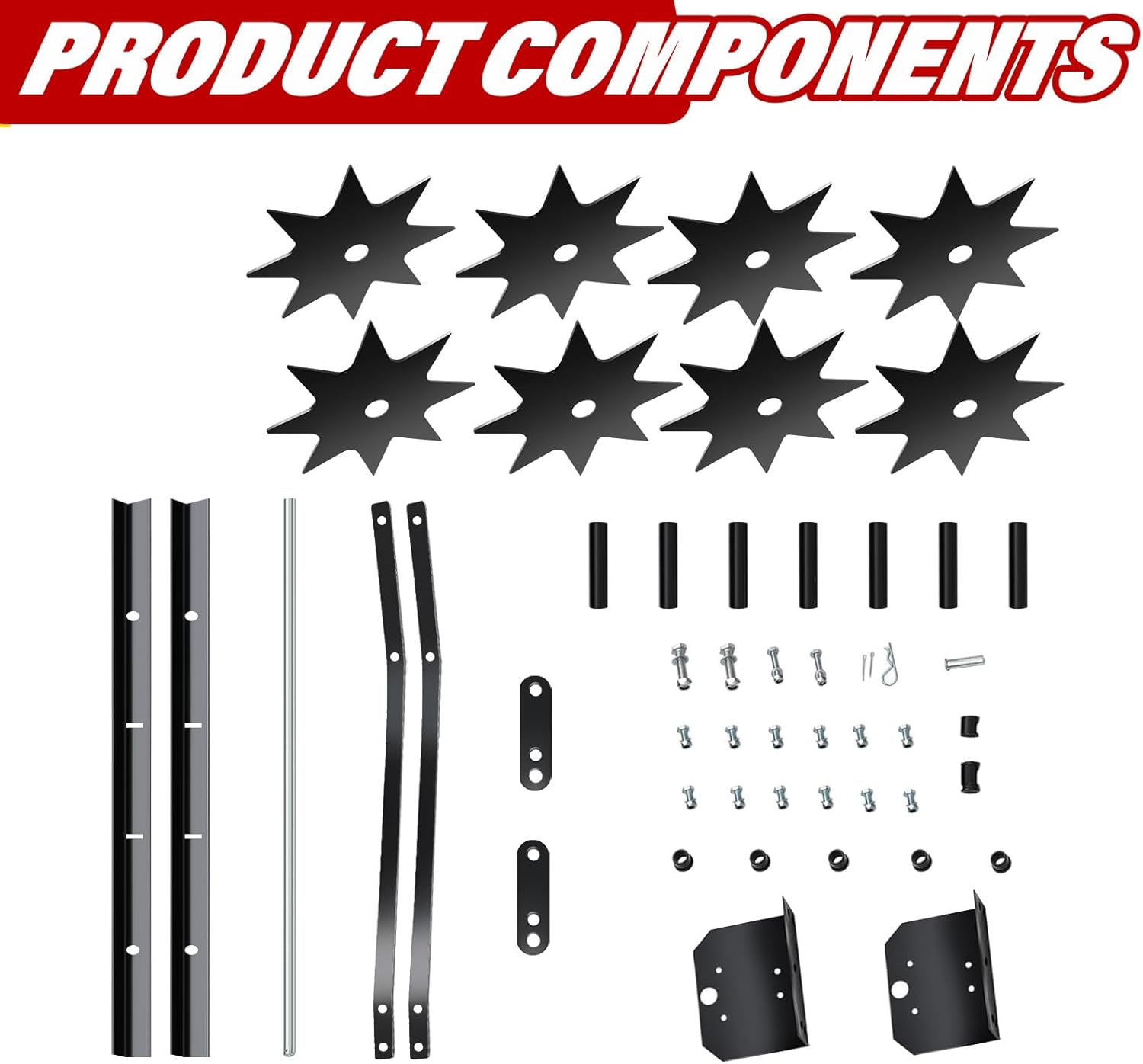

Image: All individual components of the aerator laid out, including spike disks, frame bars, hitch arms, and various fasteners.

Komponen yang Termasuk:

• Bingkai Utama (1)
• Spike Disk Assemblies (8)
• Hitch Arms (2)
• Weight Tray (1)
• Axle Rod (1)
• Mounting Brackets (various)
• Fasteners: Bolts, Nuts, Washers, Cotter Pins (various sizes)
• Panduan Pengguna (1)

4. Petunjuk Perakitan

Assembly typically requires basic hand tools such as wrenches and pliers. Follow these steps carefully.

1. Bongkar dan Identifikasi Bagian-bagiannya: Carefully remove all components from the packaging. Lay them out and compare them against the parts list to ensure everything is present.
2. Attach Spike Disk Assemblies: Slide the spike disk assemblies onto the axle rod. Ensure the spikes are oriented correctly for soil penetration. Secure them in place according to the design, typically with spacers and retaining clips or bolts.
3. Merakit Rangka Utama: Connect the main frame sections using the provided bolts, nuts, and washers. Ensure all connections are tight and secure.
4. Install Axle Rod into Frame: Mount the axle rod with the spike disks into the main frame. Secure it using the designated bearings or mounting points and fasteners.
5. Attach Hitch Arms: Connect the two hitch arms to the front of the main frame using the appropriate bolts and nuts. Ensure they are securely fastened and can pivot freely.
6. Mount Weight Tray: Secure the weight tray to the top of the main frame using the provided brackets and fasteners. This tray should be stable and capable of holding additional weight.
7. Inspeksi Akhir: Double-check all bolts, nuts, and pins to ensure they are tightened and secured. Verify that all moving parts operate smoothly without excessive play.

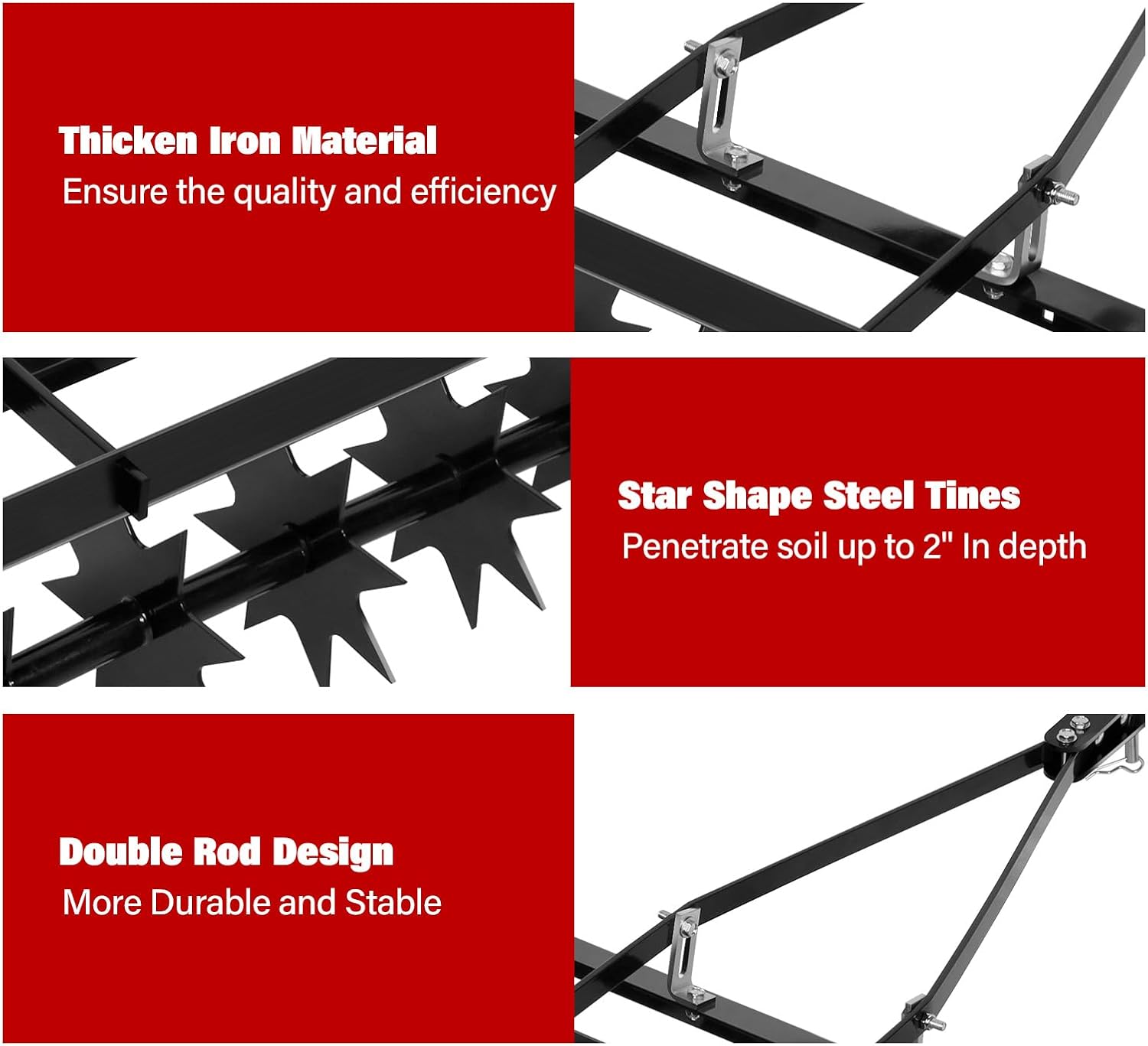

Gambar: Detail views of the aerator's construction, highlighting the thickened iron material, star-shaped steel tines, and the stable double-rod design.

5. Petunjuk Pengoperasian

Proper operation ensures effective aeration and extends the life of your equipment.

1. Siapkan halaman rumput: For best results, aerate when the soil is moist but not waterlogged. Avoid aerating extremely dry or hard soil, as this can damage the spikes or reduce effectiveness. Clear the area of any large debris, rocks, or obstacles that could interfere with the aerator.
2. Attach to Towing Vehicle: Connect the aerator's universal hitch to the hitch point of your lawn tractor or ATV using the single-pin attachment. Ensure the pin is securely inserted and a cotter pin or R-clip is used to prevent accidental detachment.
3. Add Weight (Optional): If deeper soil penetration is desired, place cement blocks or other suitable weights onto the aerator's weight tray. Do not exceed the maximum recommended weight of 200 lbs.
4. Begin Aeration: Start your towing vehicle and slowly drive across the lawn in a systematic pattern. Overlapping passes slightly will ensure complete coverage. Maintain a consistent, moderate speed.
5. Monitor Kinerja: Periodically check the aerator to ensure the spikes are penetrating the soil effectively and no debris is accumulating.
6. Finish Aeration: Once the desired area is aerated, remove any added weights from the tray. Disconnect the aerator from the towing vehicle.

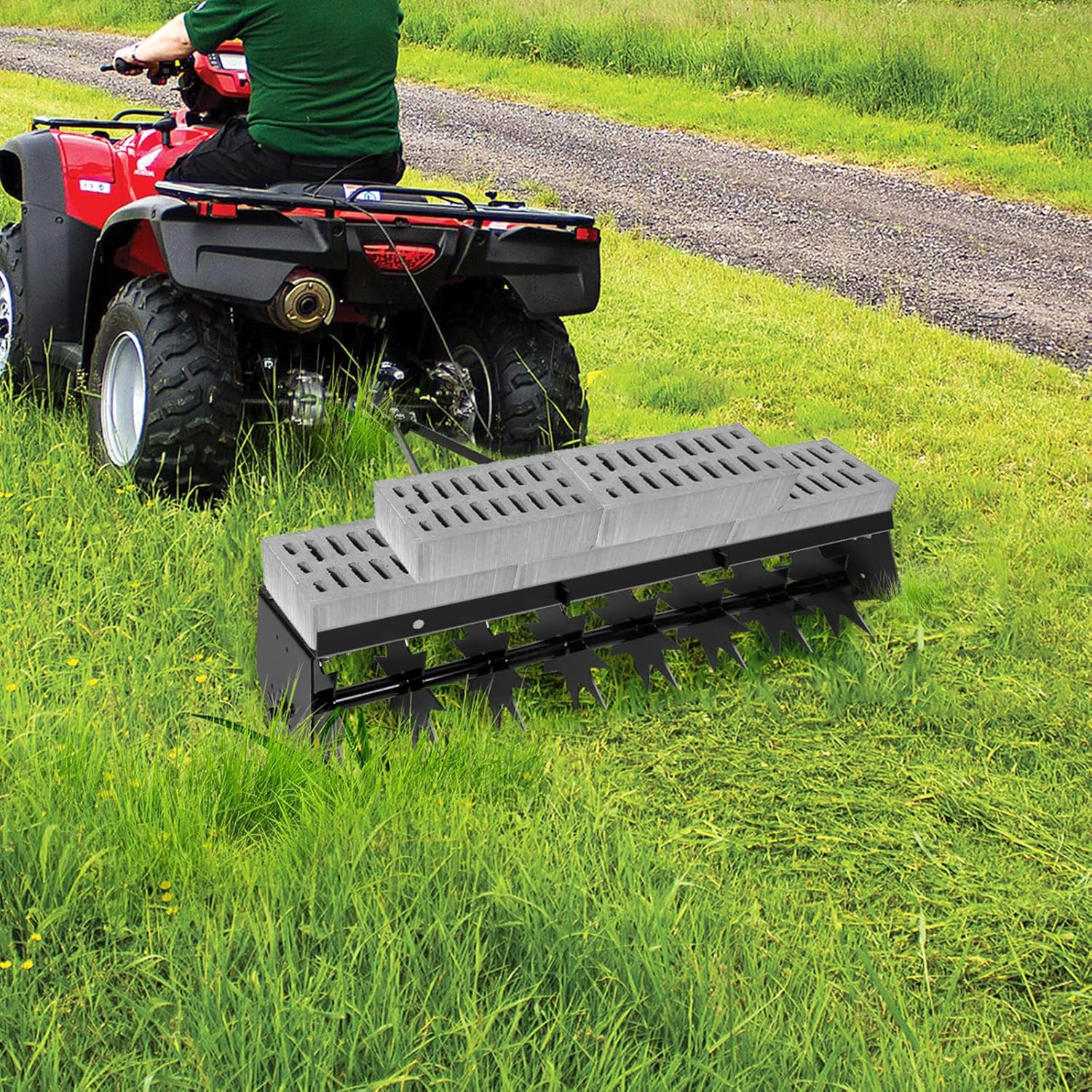

Image: The spike aerator hitched to an ATV, ready for operation in a grassy area.

Image: Visual representation of how aeration benefits various soil types, including clay, sand, dirt, loam, and humus, by improving penetration.

Image: A sequence showing the benefits of aeration: from shallow roots and compact soil to absorption of water and air, leading to new root growth and healthier, lush grass.

6. Pemeliharaan

Regular maintenance will ensure your aerator remains in optimal working condition.

• Pembersihan: After each use, clean any soil, grass, or debris from the spike disks and frame. A stiff brush or hose can be used. Ensure the aerator is dry before storage.
• Inspeksi: Regularly inspect the spike disks for wear or damage. Sharp spikes are crucial for effective aeration. Replace excessively worn or bent spikes.
• Pengencang: Check all bolts, nuts, and pins periodically for tightness. Tighten any loose fasteners to prevent parts from detaching during operation.
• Pelumasan: Apply a light coat of lubricant to any pivot points or moving parts, such as the axle rod, to prevent rust and ensure smooth operation.
• Penyimpanan: Store the aerator in a dry, covered area to protect it from the elements when not in use.

7. Penyelesaian masalah

Lihat bagian ini untuk masalah umum dan solusinya.

8. Spesifikasi

9. Garansi dan Dukungan

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer.

For technical support, replacement parts, or any questions regarding the operation or maintenance of your Generic 32-inch Tow Behind Spike Aerator, please contact the manufacturer or your point of purchase. Have your model number (Tow Behind Spike Aerator 001) and purchase date ready when contacting support.
