DEVAISE 4-Drawer Vertical File Cabinet with Lock (Model AWJG024BL) Instruction Manual

1. Pendahuluan

This manual provides detailed instructions for the assembly, operation, and maintenance of your DEVAISE 4-Drawer Vertical File Cabinet. Please read this manual thoroughly before beginning assembly or use to ensure proper function and safety. Keep this manual for future reference.

Image 1.1: The DEVAISE 4-Drawer Vertical File Cabinet in black, featuring a drawer open with hanging files.

2. Informasi Keselamatan

Demi keselamatan Anda dan mencegah kerusakan produk, perhatikan panduan berikut:

• Always secure the cabinet to the wall using the included anti-tip kit to prevent tipping hazards.
• Do not overload the cabinet. Distribute weight evenly across drawers.
• Ensure the cabinet is properly balanced at all times, especially when drawers are open.
• Keep children away from the cabinet during assembly and ensure all hardware is out of reach.
• Jangan berdiri atau memanjat lemari.

3. Isi Paket

Sebelum perakitan, pastikan semua komponen ada dan tidak rusak. Jika ada bagian yang hilang atau rusak, hubungi dukungan pelanggan.

• Panel Kabinet (berbagai ukuran)
• Drawer Components (fronts, sides, backs, bottoms)
• Drawer Slides (left and right pairs)
• Pegangan
• Locking Mechanism with Keys
• Adjustable Hanging Rails
• Perangkat Keras Perakitan (sekrup, pasak, kunci cam, dll.)
• Kit Anti Tip
• Manual Instruksi

4. Petunjuk Perakitan

Assembly is required for this product. Follow the step-by-step instructions provided in the included assembly guide. It is recommended to have a second person assist with assembly for stability and ease.

1. Persiapan: Clear a spacious area for assembly. Lay out all parts and hardware. Identify each component using the labels and illustrations in the manual.
2. Majelis Panel: Begin by connecting the main cabinet panels as indicated in the instructions. Ensure all connections are secure.
3. Drawer Construction: Assemble each drawer individually. Pay close attention to the orientation of drawer sides and bottoms. Install drawer slides onto the drawers and the cabinet interior.
4. Pemasangan Pegangan dan Kunci: Attach handles to the drawer fronts. Install the locking mechanism according to the instructions, ensuring it operates smoothly.
5. Drawer Insertion: Carefully insert the assembled drawers into the cabinet. Test each drawer for smooth operation.
6. Pemasangan Kit Anti Tip: Securely attach the anti-tip kit to the back of the cabinet and to a wall stud, following the specific instructions provided with the kit. This step is crucial for safety.
7. Pemeriksaan Akhir: Verify that all screws and fasteners are tightened and the cabinet is stable.

Image 4.1: An illustration demonstrating labeled parts and clear diagrams to assist with the assembly process.

5. Penggunaan dan Pengoperasian

The DEVAISE 4-Drawer Vertical File Cabinet is designed for organizing A4 and Letter size documents and office supplies.

5.1 Pengoperasian Laci

• Membuka/Menutup Laci: Use the easy-pull handles to open and close drawers. The smooth slides ensure effortless movement.
• Adjustable Hanging Rails: The drawers feature adjustable hanging rails to accommodate both A4 and Letter size files. Adjust the rails by repositioning them in the designated slots within the drawer.

Image 5.1: Detail showing the adjustable hanging bar for A4 and Letter size files.

5.2 Mekanisme Penguncian

The cabinet features an interlocking system with two high-quality locks to secure all four drawers simultaneously.

• Penguncian: Insert the key into the lock on the designated drawer and turn to the locked position. This action will secure all drawers.
• Membuka kunci: Insert the key and turn to the unlocked position. Ensure all drawers are fully closed before attempting to lock.
• Keep spare keys in a safe, accessible location.

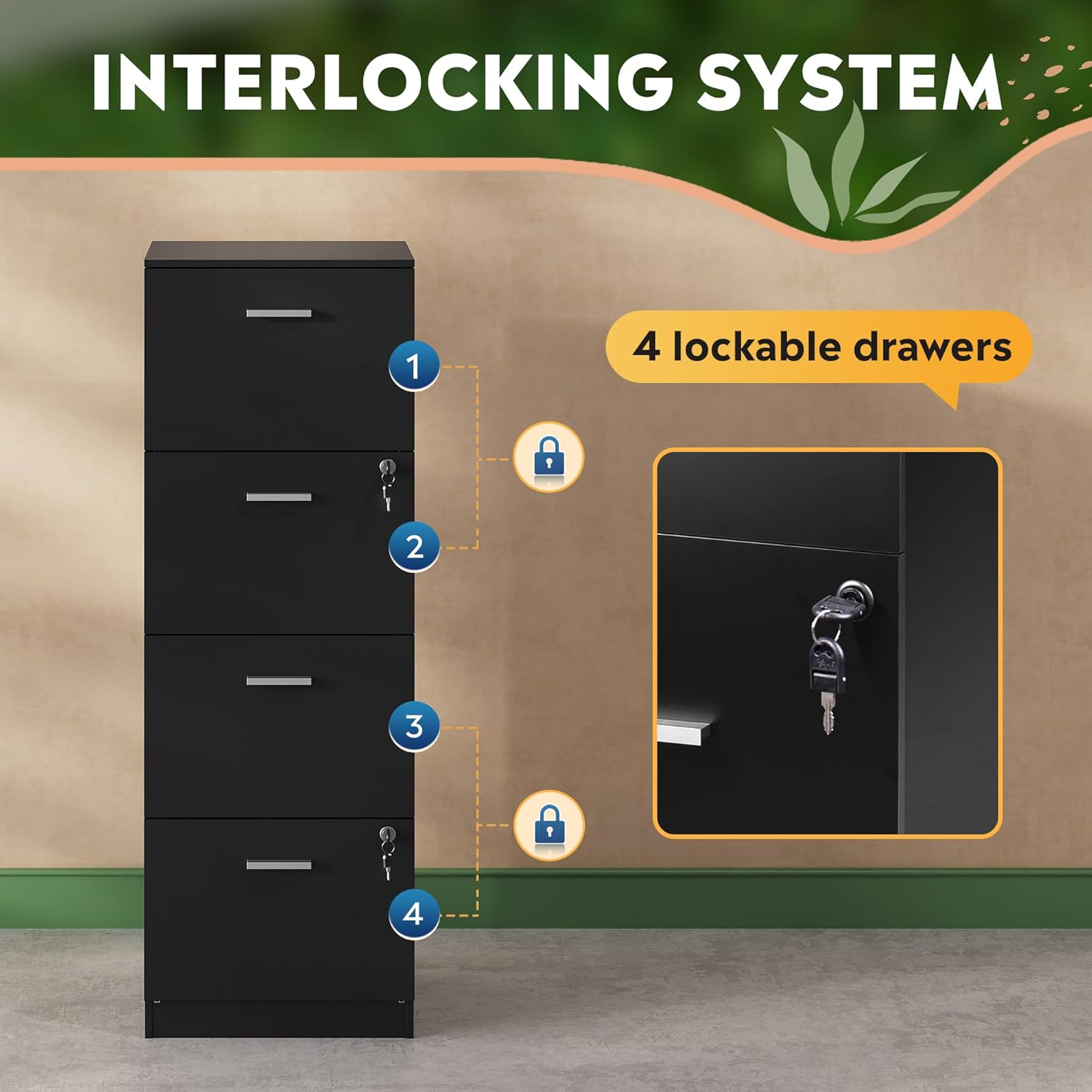

Image 5.2: Visual representation of the interlocking system, securing all four drawers with two locks.

6. Pemeliharaan

Untuk memastikan umur panjang dan penampilan Anda file Untuk kabinet, ikuti panduan perawatan berikut:

• Pembersihan: The cabinet features a waterproof and easy-to-clean surface. Wipe surfaces with a soft, damp kain. Hindari pembersih yang bersifat abrasif atau bahan kimia keras yang dapat merusak lapisan akhir.
• Tumpahan: Segera bersihkan tumpahan apa pun untuk mencegah noda atau kerusakan pada kayu olahan.
• Perangkat keras: Periksa semua sekrup dan pengencang secara berkala untuk memastikannya tetap kencang. Kencangkan kembali jika perlu.
• Geser Laci: If drawer movement becomes stiff, a small amount of silicone-based lubricant can be applied to the slides.

7. Penyelesaian masalah

If you encounter issues with your DEVAISE file Untuk kabinet, silakan lihat solusi umum berikut:

• Laci tidak menutup dengan lancar: Check for obstructions in the drawer slides. Ensure the cabinet is on a level surface. Verify that drawer slides are properly aligned and secured.
• Ketidakstabilan kabinet: Confirm that the anti-tip kit is correctly installed and secured to the wall. Ensure all assembly hardware is tightened. Distribute contents evenly to maintain balance.
• Lock not engaging: Pastikan semua laci tertutup rapat sebelum mencoba mengunci. Periksa apakah kunci sudah terpasang sepenuhnya dan diputar dengan benar.

For persistent issues or further assistance, please contact DEVAISE customer support.

8. Spesifikasi

Detailed specifications for the DEVAISE 4-Drawer Vertical File Cabinet (Model AWJG024BL):

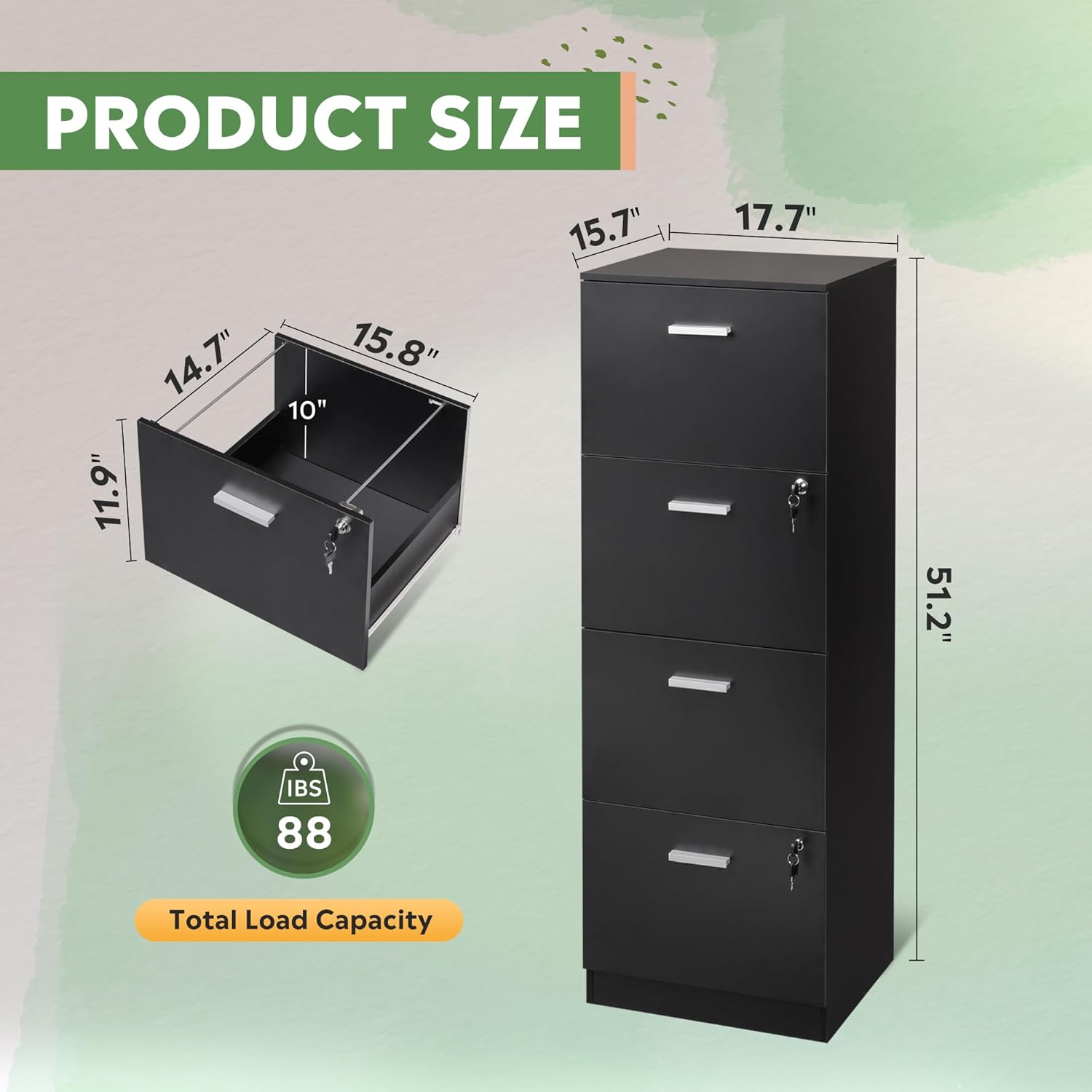

Image 8.1: Product dimensions and total load capacity of the cabinet.

9. Garansi dan Dukungan

For information regarding product warranty, returns, or customer support, please refer to the purchase documentation or contact DEVAISE directly through their official website or the retailer where the product was purchased. DEVAISE is committed to providing assistance for any product-related inquiries.
