1. Pendahuluan
This manual provides detailed instructions for the installation, operation, and maintenance of your Massive Audio GTR84-8" Dual 4 Ohm Subwoofer. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your product. The GTR84 is an 8-inch subwoofer designed for powerful bass reproduction, featuring a heavy-gauge steel basket, dual stacked high-flux Y30 Strontium Ferrite magnets, and a 2-inch high-temperature voice coil.
Figure 1: Massive Audio GTR84-8" Subwoofer
The GTR84 subwoofer is engineered with a custom high-roll foam surround and a textured non-pressed pulp cone infused with resin, contributing to enhanced excursion and responsiveness. It is equipped with high-grade woven round tinsel leads and a precision spider suspension system for accurate cone movement and efficient signal transfer.
2. Fitur Utama
- Rugged Steel Basket & Premium Finish: Heavy-gauge steel basket with industrial-grade textured paint for durability and minimal resonance.
- High Flux Magnet & USA-Made Voice Coil: Powered by dual stacked high-flux Y30 80oz Strontium Ferrite magnets and a 2" high-temp voice coil (Made in USA) for deep, controlled bass and thermal stability.
- Custom Surround & Cone: Features a custom high-roll foam surround with the MASSIVE logo and a textured non-pressed pulp cone infused with resin for enhanced excursion and responsiveness.
- Precision Suspension & Signal Flow: High-grade woven round tinsel leads and a precision spider suspension system ensure accurate cone movement and efficient signal transfer.
- Optimized Specs for Performance: X-Max of 12.5mm, FS of 39.5Hz, and a terminal case using flexible pure copper wire. Dual impedance options offer versatile wiring for custom installations.
3. Pengaturan dan Instalasi
3.1 Rekomendasi Lampiran
The GTR84 subwoofer performs optimally in properly designed enclosures. For best results, consider the following recommendations:
- Ported Box: Approximately 0.96 cubic feet (9.6"H x 15"D x 10.8"W) tuned to 39.9Hz.
- Kotak tersegel: Approximately 0.5 cubic feet.
3.2 Wiring Configurations (Dual 4 Ohm)
The GTR84 features dual 4 Ohm voice coils, offering flexibility in wiring to match your amplifier's impedance requirements. Always ensure your ampPenguat tersebut stabil pada impedansi yang dipilih.
Figure 2: Subwoofer terminals with flexible pure copper wire.
3.2.1 Series Wiring (8 Ohm Total)
Connect the positive terminal of Voice Coil 1 to the negative terminal of Voice Coil 2. Then, connect the amplifier's positive output to the positive terminal of Voice Coil 2, and the amplifier's negative output to the negative terminal of Voice Coil 1. This configuration results in an 8 Ohm load.
3.2.2 Parallel Wiring (2 Ohm Total)
Connect the positive terminals of both voice coils together. Connect the negative terminals of both voice coils together. Then, connect the amplifier's positive output to the combined positive terminals, and the amplifier's negative output to the combined negative terminals. This configuration results in a 2 Ohm load.
3.3 Pemasangan
Ensure the mounting surface is rigid and free from obstructions. Use appropriate mounting hardware to secure the subwoofer firmly within the enclosure. Refer to the dimension diagram for precise cutout and mounting hole measurements.
Figure 3: GTR84 Subwoofer dimensions (all measurements in mm).
4. Petunjuk Pengoperasian
4.1 Initial Power-Up and Break-in
After installation, gradually increase the volume during the first few hours of use. This 'break-in' period allows the subwoofer's suspension components to loosen and settle, leading to optimal performance. Avoid playing at maximum volume during this initial phase.
4.2 AmpPengaturan lifier
Properly setting your amplifier's gain and crossover frequencies is crucial for sound quality and subwoofer longevity.
- Pengaturan Keuntungan: Mengatur ampPenguat gain agar sesuai dengan volume output.tage pada head unit Anda. Hindari mengatur gain terlalu tinggi, karena hal ini dapat menyebabkan distorsi dan potensi kerusakan.
- Filter Akses Rendah (LPF): Atur LPF pada Anda amplifier to filter out frequencies above the subwoofer's intended range, typically between 80Hz and 120Hz.
- Filter Subsonik: If available, set a subsonic filter to protect the subwoofer from playing frequencies below its resonant frequency (Fs), which is 39.9Hz for the GTR84. A setting around 30Hz is often appropriate.
5. Pemeliharaan
To ensure the longevity and performance of your GTR84 subwoofer, follow these maintenance guidelines:
- Pembersihan: Use a soft, dry cloth to gently wipe down the subwoofer cone and surround. Avoid using harsh chemicals or excessive moisture.
- Inspeksi: Periodically inspect the subwoofer for any signs of damage, such as tears in the surround or cone, loose connections, or unusual wear.
- Kondisi Lingkungan: Protect the subwoofer from extreme temperatures, direct sunlight, and moisture. Ensure adequate ventilation around the enclosure to prevent overheating.

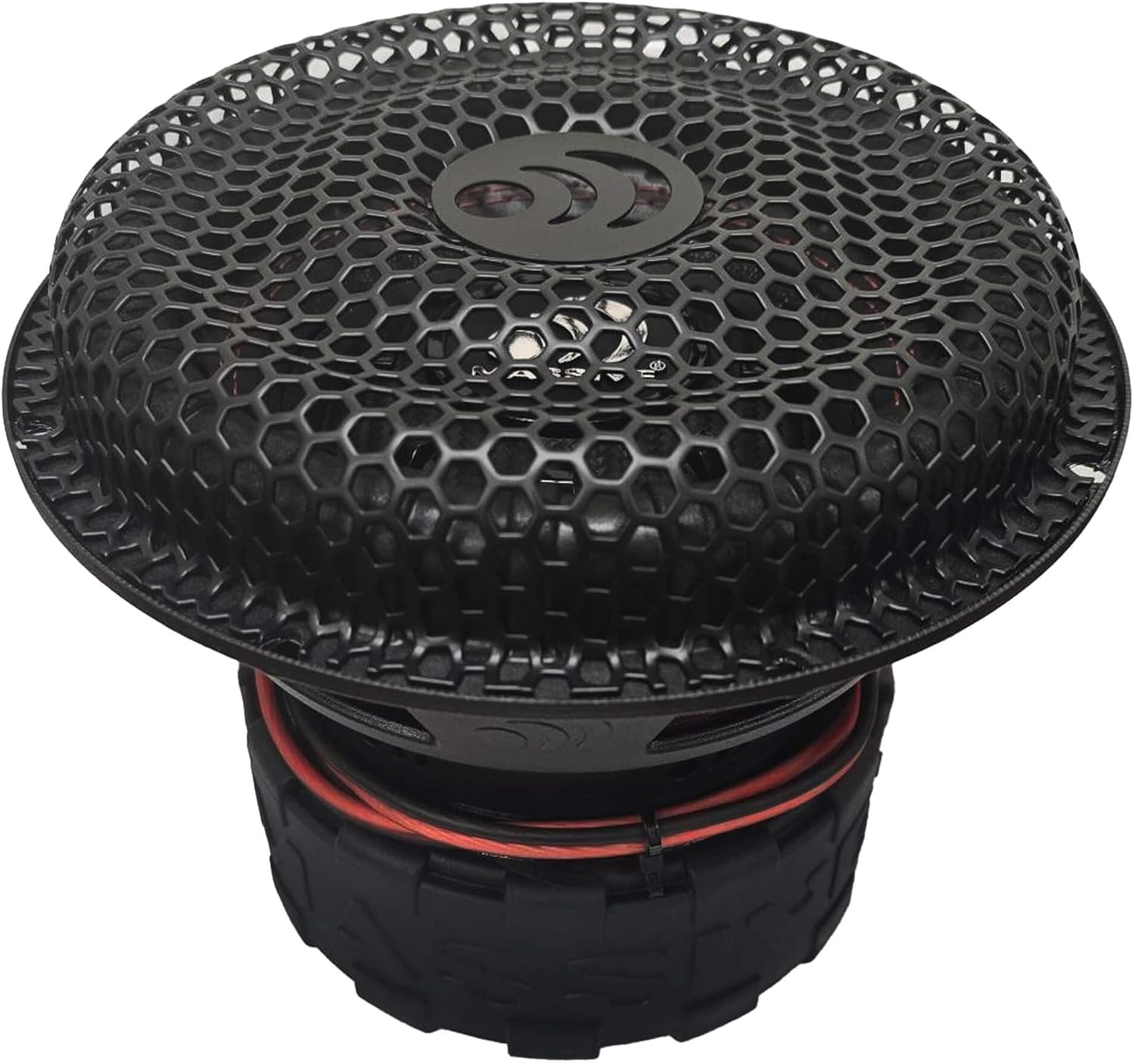

Figure 4: GTR84 Subwoofer with integrated protective grill.
6. Penyelesaian masalah
If you experience issues with your GTR84 subwoofer, refer to the following common troubleshooting steps:
- Tidak ada suara:
- Check all wiring connections (power, ground, remote, signal, speaker).
- Verifikasi ampAmplifier dalam keadaan menyala dan tidak dalam mode proteksi.
- Pastikan unit utama mengirimkan sinyal audio.
- Suara Terdistorsi:
- Mengurangi amppengaturan penguatan amplifier.
- Periksa pengaturan crossover yang tepat.
- Periksa konus dan sekeliling subwoofer untuk melihat adanya kerusakan fisik.
- Terlalu panas:
- Pastikan ventilasi yang memadai di sekitar amplifier dan subwoofer.
- Verifikasi amplifier's impedance matches the subwoofer's wiring configuration.
- Reduce prolonged high-volume playback.
7. Spesifikasi
| Fitur | Spesifikasi |
|---|---|
| Nomor Model | GTR 84, mobil sport mewah |
| Ukuran Speaker | 8 inci |
| Rentang Daya RMS | 300W-600W (500W RMS Ideal) |
| Daya Puncak | 800W |
| Coil Suara | 1.5" Dual 4 Ohm, Hi-Temp (Made in USA) |
| Magnet | Dual Stacked High Flux Y30 120oz Strontium Ferrite |
| Keranjang | Heavy Gauge Steel with Industrial Texture Painting |
| Kerucut | Textured Non-Pressed Pulp with Resin |
| Mengelilingi | Custom High Roll Foam with MASSIVE Logo |
| X-Maks | ukuran 12.5mm |
| Bahasa Inggris | 82.5dB |
| FS (Resonant Frequency) | frekuensi 39.9Hz |
| Volume Kotak Port yang Direkomendasikan | 0.96 ft³ (9.6"H x 15"D x 10.8"W) |
| Volume Kotak Tertutup yang Direkomendasikan | 0.5 kaki³ |
| Berat Barang | 15 pon |
| Dimensi Barang (P x L x T) | 11"Panjang x 11"Lebar x 11"T |
