Lvifur Farmhouse Nightstand 91098Black Instruction Manual

1. Pendahuluan

This manual provides detailed instructions for the assembly, operation, and maintenance of your Lvifur Farmhouse Nightstand Model 91098Black. This versatile nightstand features a concealed gun drawer, human sensor LED lighting, a built-in charging station, and three storage drawers, designed to enhance convenience and security in your bedroom or living space.

Image 1.1: The Lvifur Farmhouse Nightstand Model 91098Black in black finish.

2. Informasi Keselamatan

Harap baca dan pahami semua peringatan keselamatan sebelum merakit dan menggunakan. Kegagalan mengikuti petunjuk ini dapat mengakibatkan cedera atau kerusakan pada produk.

• Selalu ikuti petunjuk perakitan dengan hati-hati. Ensure all parts are correctly installed and tightened before use.
• Keep the gun safe drawer locked when not in use and store the key in a safe place. This is crucial for preventing unauthorized access, especially by children.
• Never leave firearms unattended. Always secure firearms immediately after use.
• Always keep firearms unloaded and store them in a secure location. This product is designed for secure storage, but proper firearm handling practices are paramount.
• Do not overload drawers or shelves. Distribute weight evenly to prevent tipping.
• Jauhkan komponen kecil dan bahan kemasan dari jangkauan anak-anak untuk mencegah bahaya tersedak.
• Ensure the nightstand is placed on a stable, level surface.
• Do not use abrasive cleaners or harsh chemicals on the surface, as this may damage the finish.

3. Isi Paket

Sebelum memulai perakitan, pastikan semua komponen yang tercantum di bawah ini ada dan tidak rusak. Jika ada komponen yang hilang atau rusak, silakan hubungi dukungan pelanggan.

• 1 x Nightstand (disassembled components)
• 1 x Assembly Kit (screws, dowels, etc.)
• 1 x Buku Petunjuk
• All necessary assembly tools (Hammer, Screw Driver)

4. Pengaturan & Perakitan

Assembly typically requires 1 person. Please follow the visual instructions provided in the video and diagrams carefully. It is recommended to assemble the nightstand on a soft, clean surface to prevent scratches.

4.1. Panduan Video Perakitan

4.2. Key Assembly Steps (Visuals)

Refer to the provided diagrams for component identification and assembly sequence.

Gambar 4.1: Meledak view of the nightstand components, showing individual parts for assembly.

Image 4.2: Assembly of the main frame and drawer slides. Ensure all screws are tightened securely.

Image 4.3: Installation of the charging station module. Connect the wires as indicated in the detailed instructions.

Image 4.4: Final assembly of the LED lighting and top panel. Ensure the LED strip is properly secured.

5. Petunjuk Pengoperasian

5.1. Sistem Pencahayaan LED

The nightstand features a multi-functional LED lighting system with adjustable colors and brightness, and a human body sensing function.

• Tombol Daya: Locate the power button on the side control panel. Press once to turn the LED light on/off.
• Perubahan warna: With the light on, press the power button repeatedly to cycle through 3 dimmable colors: White, Warm, and Blue.
• Penyesuaian Kecerahan: Press and hold the power button to adjust the brightness of the selected color. Release when desired brightness is reached.
• Human Sensor Mode: Activate the human sensor mode by pressing the dedicated sensor button on the control panel. The LED light will automatically turn on when motion is detected nearby and turn off after a period of inactivity.

Image 5.1: The human body induction feature automatically illuminates the shelf when motion is detected.

Image 5.2: Close-up of the multi-functional smart module, showing the light and sensor controls, along with USB and Type-C ports.

5.2. Stasiun Pengisian Daya

The integrated charging station provides convenient power for your electronic devices.

• Port USB: Plug your USB-A compatible charging cables into the available USB ports.
• Tipe-C Port: Use the Type-C port for devices that support USB-C charging.
• Ensure the nightstand is plugged into a power outlet for the charging station to function.

Image 5.3: The integrated charging station with USB and Type-C ports for convenient device charging.

5.3. Concealed Gun Safe Drawer

The nightstand features a discreet, lockable top compartment for secure storage of valuables.

• Pembukaan: Gently slide the top panel forward to reveal the hidden compartment.
• Penguncian: Insert the provided key into the lock mechanism located at the back of the compartment. Turn the key to secure the drawer. Ensure the top panel is fully closed and the lock is engaged.
• Membuka kunci: Insert the key and turn to unlock the compartment.
• Always store the key in a secure location, separate from the nightstand.

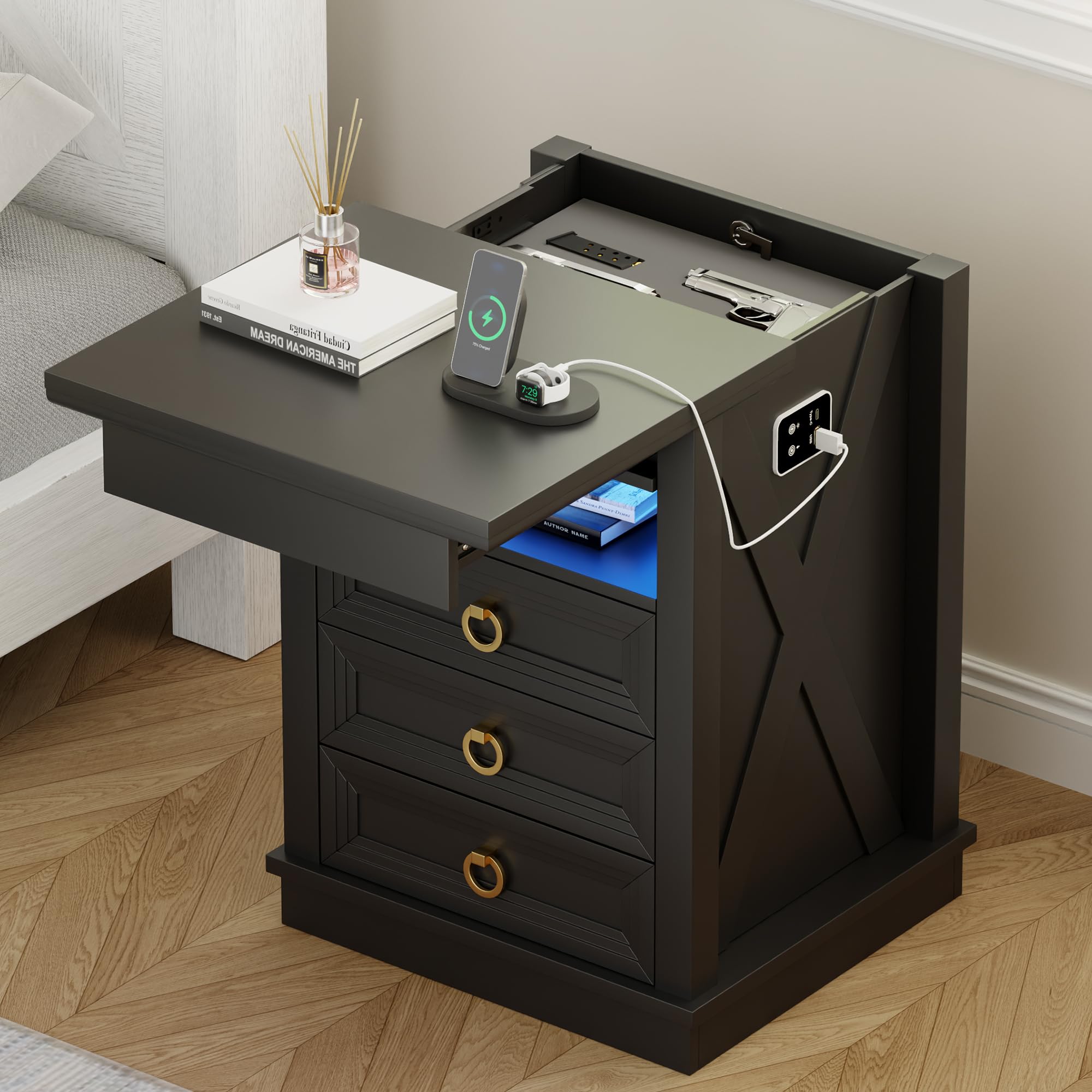

Image 5.4: The nightstand with its top panel slid open, revealing the concealed gun drawer. The lock mechanism is visible at the back.

Image 5.5: Close-up of the lock mechanism for the concealed drawer, ensuring secure storage.

Image 5.6: The interior of the concealed compartment, designed to securely hold items.

5.4. Laci Penyimpanan

The nightstand includes three bottom drawers and an open shelf for diversified storage.

• Pembukaan/Penutupan: Use the ring handles to smoothly pull out or push in the drawers.
• Rak Terbuka: Utilize the open shelf for easy access items like books or decorative pieces.

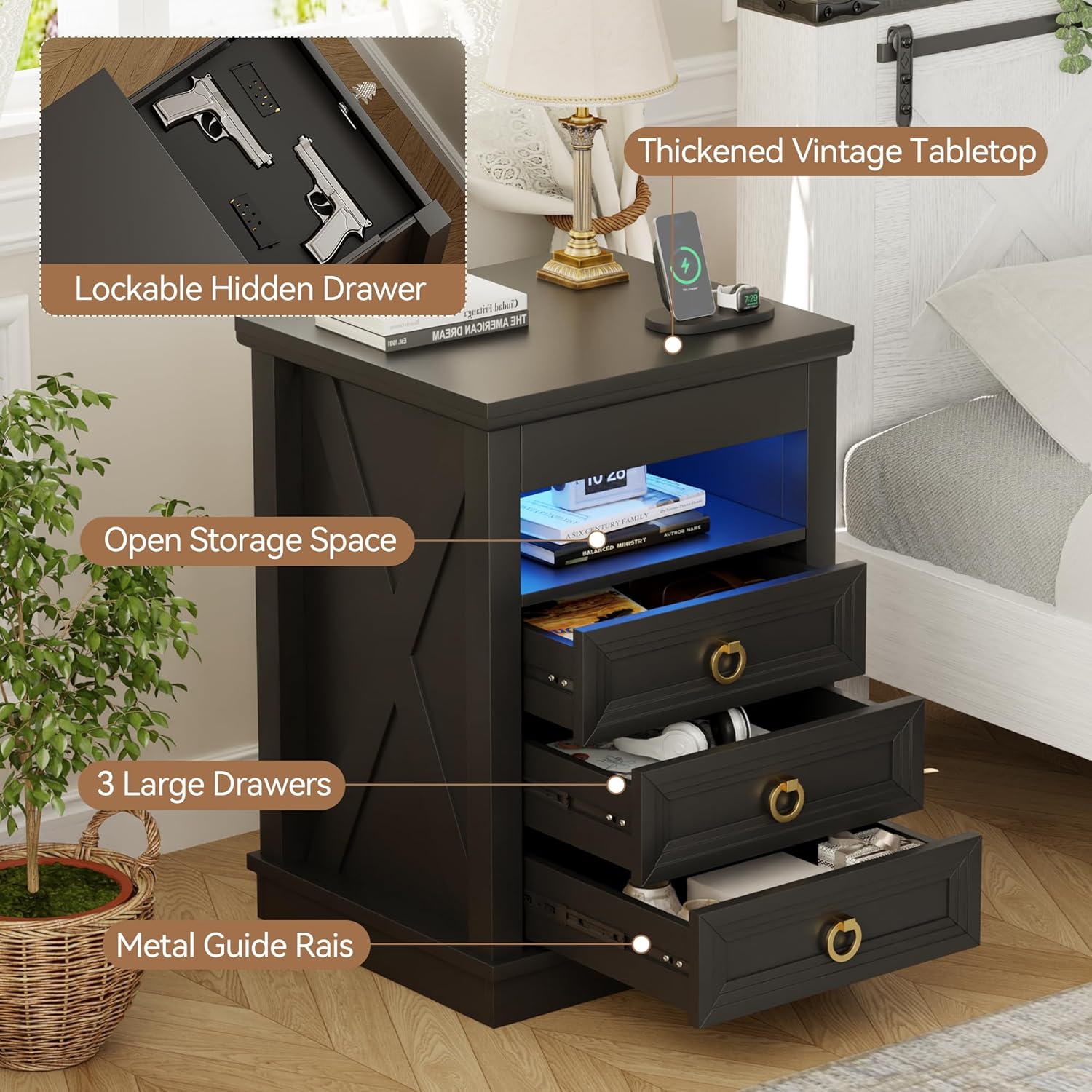

Image 5.7: The nightstand with its three bottom drawers and open shelf, showcasing amppilihan penyimpanan.

6. Pemeliharaan

• Pembersihan: Lap permukaan dengan lembut, damp kain. Hindari bahan kimia keras atau pembersih abrasif.
• debu: Regularly dust with a dry, soft cloth to maintain the finish.
• Perangkat keras: Periksa dan kencangkan semua sekrup dan pengencang secara berkala untuk memastikan stabilitas.
• Lampu LED: If LED lights malfunction, ensure the power connection is secure. Contact customer support if issues persist.

7. Penyelesaian masalah

8. Spesifikasi

9. Garansi & Dukungan

For warranty information, technical support, or to report missing/damaged parts, please contact Lvifur customer service through your original purchase platform. Please have your model number (91098Black) and purchase date ready when contacting support.
