Buku Panduan Penggunaan Baterai LiFePO4 Power Queen 24V 50Ah

1. Pendahuluan

This manual provides essential information for the safe and efficient use of your Power Queen 24V 50Ah LiFePO4 Battery. Please read this manual thoroughly before installation, operation, or maintenance. Retain this manual for future reference.

Peringatan Keamanan

• This battery is an energy storage battery, not a start-up battery. Do not use it to start engines or golf carts.
• Ensure correct polarity when connecting the battery. Reverse polarity can damage the battery and connected equipment.
• Use only a LiFePO4 battery charger.
• Hindari hubungan arus pendek pada terminal baterai.
• Jangan membongkar, menusuk, atau merusak baterai.
• Do not expose the battery to fire or extreme temperatures.
• Gunakan alat pelindung diri (APD) yang sesuai saat bekerja dengan baterai.

2. Produk Lebihview

The Power Queen 24V 50Ah LiFePO4 battery is designed for deep cycle applications, offering advanced features for reliable and long-lasting power.

Fitur Utama

• Smart Bluetooth Connectivity: Integrated Bluetooth 5.0 for real-time monitoring via smartphone app.
• Kinerja Unggul: 1280Wh energy capacity, 50A max continuous discharge, over 4000 cycle life.
• Low-Temperature Protection (LTCP): Prevents charging below 0°C/32°F and resumes above 5°C/41°F.
• Desain Tahan Lama & Ringkas: ABS casing, IP65 water and dust resistance, lightweight (21.7 lbs).
• Keamanan yang Ditingkatkan: Robust Battery Management System (BMS) with overcharge, over-discharge, and short-circuit protection.

Apa yang ada di dalam kotak

• 1 x Baterai Power Queen 24V 50Ah LiFePO4
• 2 x M8 Terminal Bolts
• 2 x Insulating Caps
• 1 x Panduan Pengguna

Image 1: Power Queen 24V 50Ah LiFePO4 Battery with carrying strap.

3. Pengaturan

Biaya Awal

To enable the Bluetooth function and ensure optimal performance, power on the battery by charging it for 3-10 seconds with a compatible LiFePO4 battery charger. The battery may not be fully charged upon arrival due to shipping regulations.

Koneksi Terminal

• Connect the positive (+) terminal of the battery to the positive (+) terminal of your equipment.
• Connect the negative (-) terminal of the battery to the negative (-) terminal of your equipment.
• If OT terminals are attached directly with screws and their thickness is less than 2mm, add gaskets to ensure secure attachment and prevent loosening or overheating. The same precaution applies when using clamps.
• Pastikan semua sambungan kencang dan aman untuk mencegah percikan api atau panas berlebih.

Image 2: Power Queen 24V 50Ah LiFePO4 Battery showing dimensions and a smartphone displaying the Bluetooth app interface.

Instalasi Aplikasi Bluetooth

Download the Power Queen app from the App Store (iOS) or Google Play Store (Android). Scan the QR code on the battery label to quickly access the app download page. The effective working distance for Bluetooth is 10 meters without obstacles.

4. Petunjuk Pengoperasian

The Power Queen app allows for real-time monitoring and management of your battery's status. Once connected via Bluetooth, you can view critical information directly on your smartphone.

Bluetooth App Functionality

• State of Charge (SOC): Displays the remaining battery capacity as a percentage.
• Jil.tage (V): Menunjukkan tegangan baterai saat initage.
• Saat ini (A): Indicates the current flowing into or out of the battery.
• Daya (W): Displays the real-time power consumption or generation.
• Suhu: Monitors the internal temperature of the battery.
• Waktu Siklus: Tracks the number of charge/discharge cycles the battery has undergone.
• Status PMS: Provides information on the Battery Management System's operational status.

5. Pemeliharaan

Pengisian daya

• Always use a compatible LiFePO4 battery charger.
• The Low-Temperature Charging Protection (LTCP) function will prevent charging when the battery temperature drops below 0°C/32°F. Charging will resume automatically when the temperature rises above 5°C/41°F.
• Pastikan ventilasi yang memadai selama pengisian daya.

Penyimpanan

• Simpan baterai di tempat yang sejuk dan kering, jauh dari sinar matahari langsung dan sumber panas.
• For long-term storage, ensure the battery is charged to 50-70% capacity.
• Recharge the battery every 3 months during long-term storage to maintain its health.

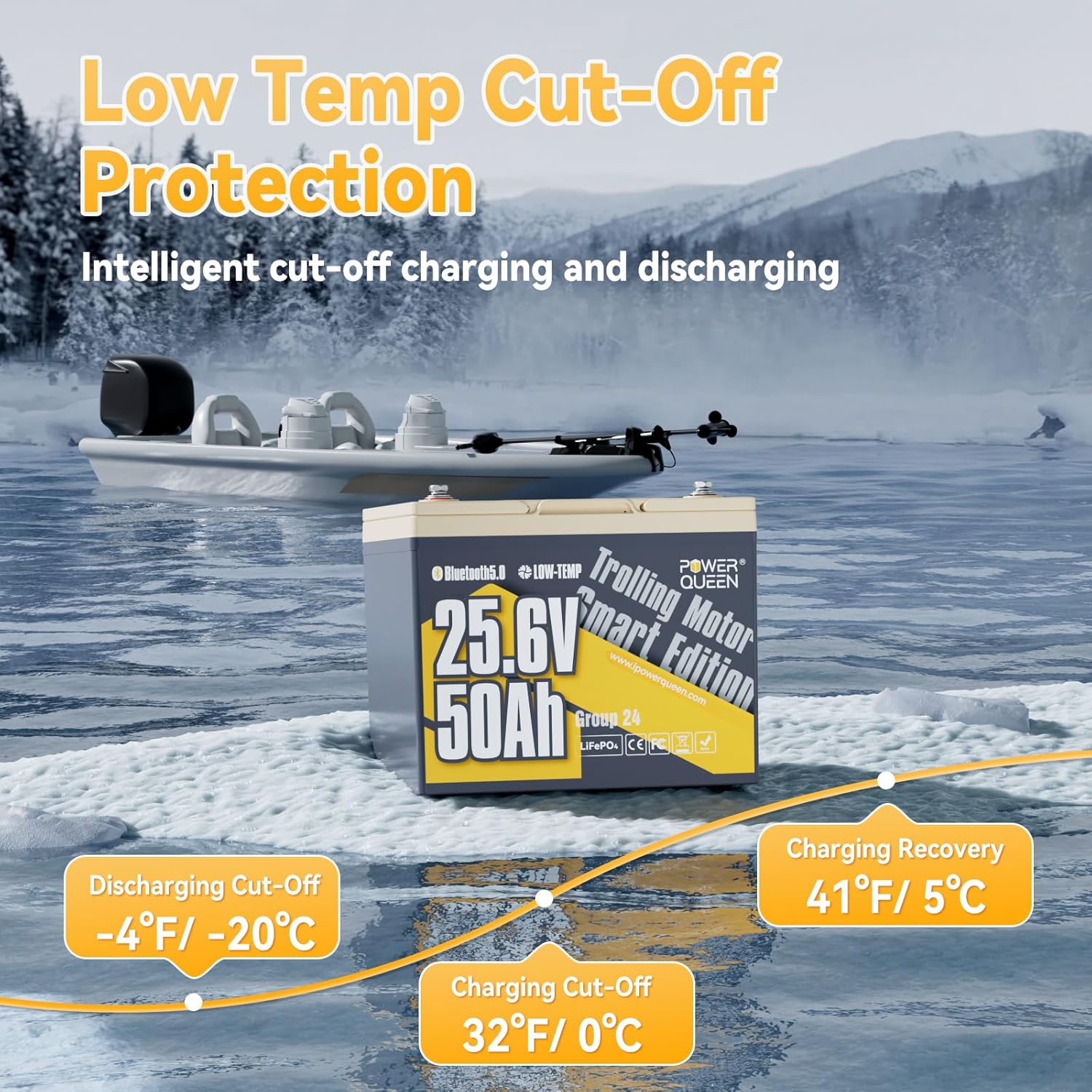

Image 3: Diagram illustrating the Low-Temperature Cut-Off Protection (LTCP) features of the Power Queen LiFePO4 battery, showing cut-off and recovery temperatures for charging and discharging.

6. Penyelesaian masalah

Masalah & Solusi Umum

• Baterai tidak mengisi daya: Check if the battery temperature is below 0°C/32°F (LTCP active). Ensure the charger is compatible and properly connected.
• Bluetooth tidak terhubung: Ensure the battery has been initially charged for 3-10 seconds. Verify the effective working distance (10 meters without obstacles). Restart the app or your phone.
• Performa menurun: Check the battery's State of Charge (SOC) via the app. Ensure all connections are secure and free from corrosion.
• Terlalu panas: Disconnect the battery from all loads and charging sources. Allow it to cool down. Check for proper ventilation around the battery.

Image 4: Illustration detailing the Intelligent BMS Multiple Protection features of the Power Queen LiFePO4 battery, including safeguards against over-charge, over-discharge, over-current, short-circuit, over-temperature, and low-temperature.

7. Spesifikasi

8. Garansi & Dukungan

Informasi Garansi

Power Queen offers protection plans for their products. Please refer to your purchase documentation for specific warranty terms and conditions.

• 3-Year Protection Plan (available for purchase)

Dukungan Pelanggan

For any questions, technical assistance, or warranty claims, please contact Power Queen customer service. Visit the official Power Queen websitus atau lihat informasi kontak yang tersedia dalam kemasan produk Anda.

Penjual: Power Queen-US

Weblokasi: Toko Power Queen
