SANODESK Mobile Standing Desk (Model MT027) Instruction Manual

1. Pendahuluan

Thank you for choosing the SANODESK Mobile Standing Desk. This manual provides essential information for the safe and efficient use of your new desk. Please read it thoroughly before assembly and operation, and keep it for future reference.

2. Informasi Keselamatan

To prevent injury and damage to the product, please observe the following safety precautions:

• Do not exceed the maximum weight limit of 15.4 lbs (7 kg) on the desktop.
• Pastikan semua baut dan sekrup dikencangkan dengan aman sebelum digunakan.
• Jauhkan tangan dan jari dari bagian yang bergerak selama penyesuaian ketinggian.
• Jangan izinkan anak-anak mengoperasikan meja tanpa pengawasan orang dewasa.
• Letakkan meja di atas permukaan yang datar dan stabil.
• Hindari meletakkan benda panas langsung di atas meja tanpa alas.
• Jangan duduk atau berdiri di atas meja.
• If any parts are missing or damaged, contact customer service immediately.

Warning: Failure to follow these instructions may result in personal injury or product damage.

3. Isi Paket

Verify that all components are present and undamaged before beginning assembly. If anything is missing or damaged, please contact SANODESK customer service.

4. Pengaturan dan Perakitan

The SANODESK Mobile Standing Desk is designed for easy assembly. It is recommended that two people assemble the desk, especially for attaching the desktop to the column.

Perakitan Langkah-demi-Langkah:

1. Bongkar Komponen: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Refer to the "Package Contents" section to ensure all parts are present.
2. Attach the Base Frame: Connect the desk column to the base frame using the provided screws and tools. Ensure the hidden wheels on the base are facing downwards and are securely attached.
3. Install the Operating Lever: Locate the operating lever and the gas spring mechanism. Carefully install the operating lever into its designated slot on the desk column, ensuring the gas spring is correctly seated. This step may require holding the parts together while securing the bolt.
4. Pasang Desktop: Align the desktop with the top of the desk column. Secure the desktop to the column using the remaining screws. It is advisable to have a second person hold the desktop steady during this step.
5. Install the Cup Holder: Attach the detachable cup holder to the side of the desktop in your preferred position.
6. Pemeriksaan Akhir: Once assembled, gently test the desk for stability and ensure all connections are tight.

5. Petunjuk Pengoperasian

Penyesuaian Ketinggian:

The desk features a pneumatic gas spring for smooth and effortless height adjustment. The height can be adjusted from 26 inches (minimum) to 41.7 inches (maximum).

• Untuk meningkatkan: Locate the operating lever under the desktop. Press and hold the lever, then gently lift the desktop upwards. The gas spring will assist in raising the desk. Release the lever at your desired height.
• Untuk Menurunkan: Press and hold the operating lever. Apply gentle downward pressure on the desktop. The desk will smoothly lower. Release the lever at your desired height.

Mobilitas:

The desk is equipped with hidden wheels for easy movement. The low-profile base allows it to slide under furniture with a clearance of at least 1.2 inches.

• To move the desk, simply push or pull it to your desired location. The hidden wheels ensure smooth gliding on various floor surfaces.

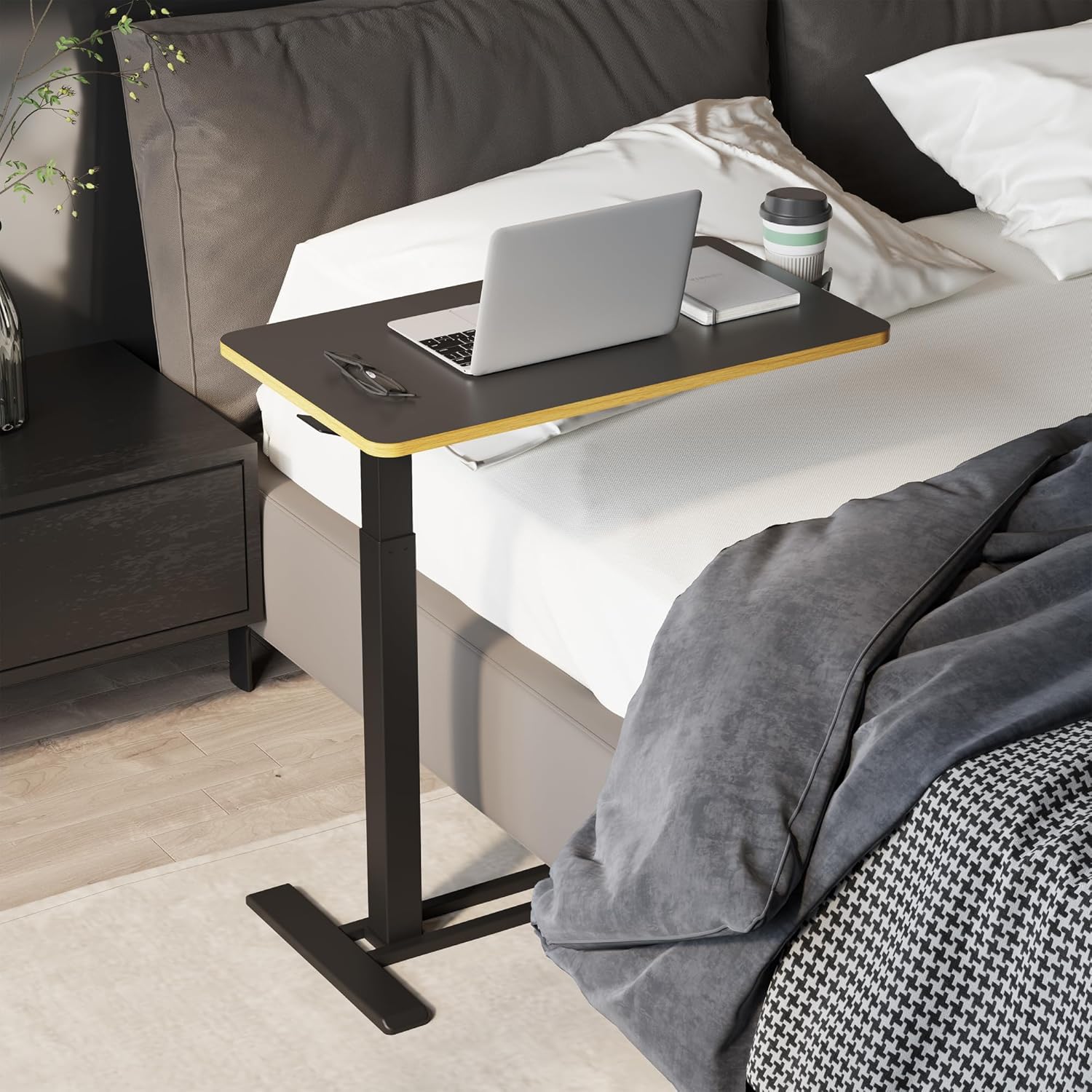

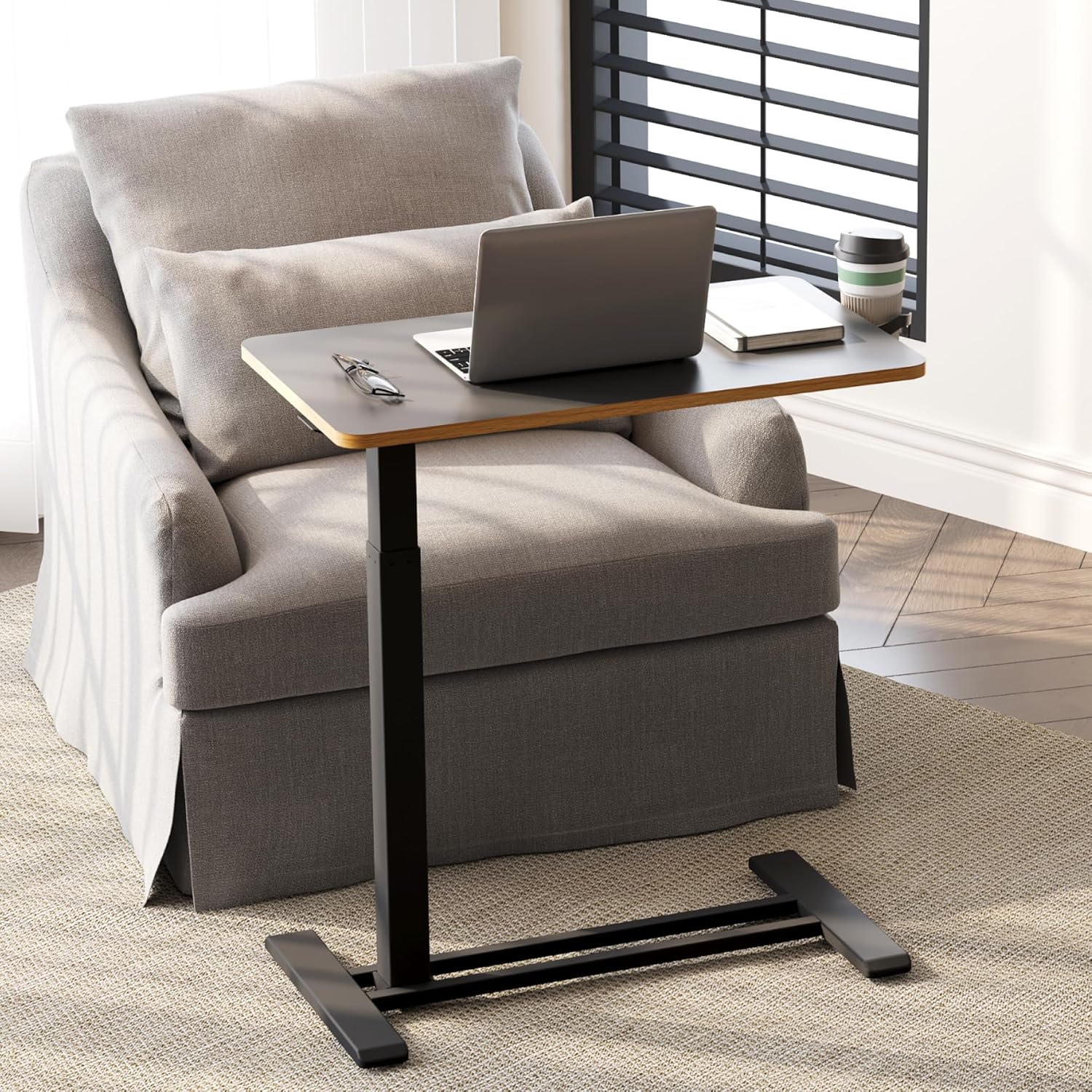

• The L-shaped base is designed to tuck under beds, sofas, or recliners, bringing the desktop closer to you for comfortable use.

6. Pemeliharaan

Regular maintenance will ensure the longevity and optimal performance of your SANODESK Mobile Standing Desk.

• Pembersihan: The desktop features a melamine finish, which is water-proof and easy to clean. Use a soft, damp cloth to wipe down the surface. Avoid abrasive cleaners or harsh chemicals.
• Kencangkan Koneksi: Periodically check all screws and bolts and tighten them as needed to maintain stability.
• Pegas Gas: The pneumatic gas spring is designed for maintenance-free operation. Do not attempt to lubricate or disassemble it.
• Roda: Keep the hidden wheels free of debris to ensure smooth movement.

7. Penyelesaian masalah

If you encounter any issues with your SANODESK Mobile Standing Desk, please refer to the following common problems and solutions:

If the problem persists, please contact SANODESK customer service for further assistance.

8. Spesifikasi

• Nomor Model: MT027
• Merek: SANODESK
• Dimensi Produk: 15.7"D x 27.6"W x 26"H (Minimum Height)
• Kisaran Tinggi yang Dapat Disesuaikan: 26 inci hingga 41.7 inci
• Bahan Desktop: Engineered Wood with Melamine Finish
• Bahan Dasar: Baja Karbon
• Mekanisme Pengangkatan: Pneumatic Gas Spring
• Kapasitas Berat: 15.4 pon (7 kg)
• Berat Barang: 22 pon
• Fitur Khusus: Adjustable Height, Portable, Hidden Wheels, Detachable Cup Holder
• Perakitan yang Diperlukan: Ya (Peralatan termasuk)
• Orang yang Direkomendasikan untuk Perakitan: 2

9. Garansi dan Dukungan

The SANODESK Mobile Standing Desk comes with a limited warranty. For detailed warranty information or to contact customer support, please refer to the warranty card included in your package or visit the official SANODESK weblokasi.

Pelayanan pelanggan: If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our professional customer service team.

Dukungan online: Visit the SANODESK Store on Amazon
