1. Pendahuluan
This manual provides instructions for the assembly, operation, maintenance, and troubleshooting of your Lvifur 3-in-1 Farmhouse Vanity Desk. This versatile furniture piece integrates a vanity table, a dresser, and a chair, offering a comprehensive solution for your personal space. It features a reversible makeup mirror with adjustable lighting, a charging station, and various storage options.
2. Informasi Keselamatan
- Selalu ikuti petunjuk perakitan dengan hati-hati untuk menghindari cedera.
- Keep the hidden lockable drawer secured when not in use and out of reach of children.
- Do not touch the electrical components with wet hands.
- Unplug the vanity desk from the power source during cleaning or when not in use for extended periods.
- Do not place heavy objects on the vanity desk that could cause it to tip over.
- Pastikan meja diletakkan di permukaan yang stabil dan rata.
3. Isi Paket
Pastikan semua komponen yang tercantum di bawah ini ada sebelum memulai perakitan. Jika ada bagian yang hilang atau rusak, silakan hubungi dukungan pelanggan.
- 1 x Vanity Desk (main unit)
- 1 x Accessory Kit (hardware, tools)
- 1 x Buku Petunjuk
- 1 x Padded Stool
4. Petunjuk Perakitan
Assembly is required for this product. Step-by-step instructions are included in the package, and all parts and accessories are clearly labeled. It is recommended to follow each step carefully and arrange parts according to the instructions for efficient assembly.
For detailed visual guidance, refer to the included assembly manual. Power tools may expedite the process, but manual tools are sufficient.
Image: All components of the vanity desk laid out for assembly.
5. Petunjuk Pengoperasian
5.1. Flip-Top Mirror and LED Lights
The vanity desk features a reversible flip-top mirror with integrated 3-color LED lighting. When the mirror is flipped up, it functions as a makeup desk. When closed, the surface can be used as an office table or dresser.
- Mode Warna: The LED light strip offers three color modes: white, cool blue, and warm yellow.
- Changing Color Mode: Touch the designated switch on the mirror frame to cycle through the color modes.
- Menyesuaikan Kecerahan: Long-press the touch switch to adjust the brightness level within the selected color mode.
- Human Body Sensing Function: Activate the human body sensing function. The light will automatically turn on when a person is detected within 1-2 meters and turn off after 30 seconds of inactivity. This function requires the mirror to be in the open, upright position.

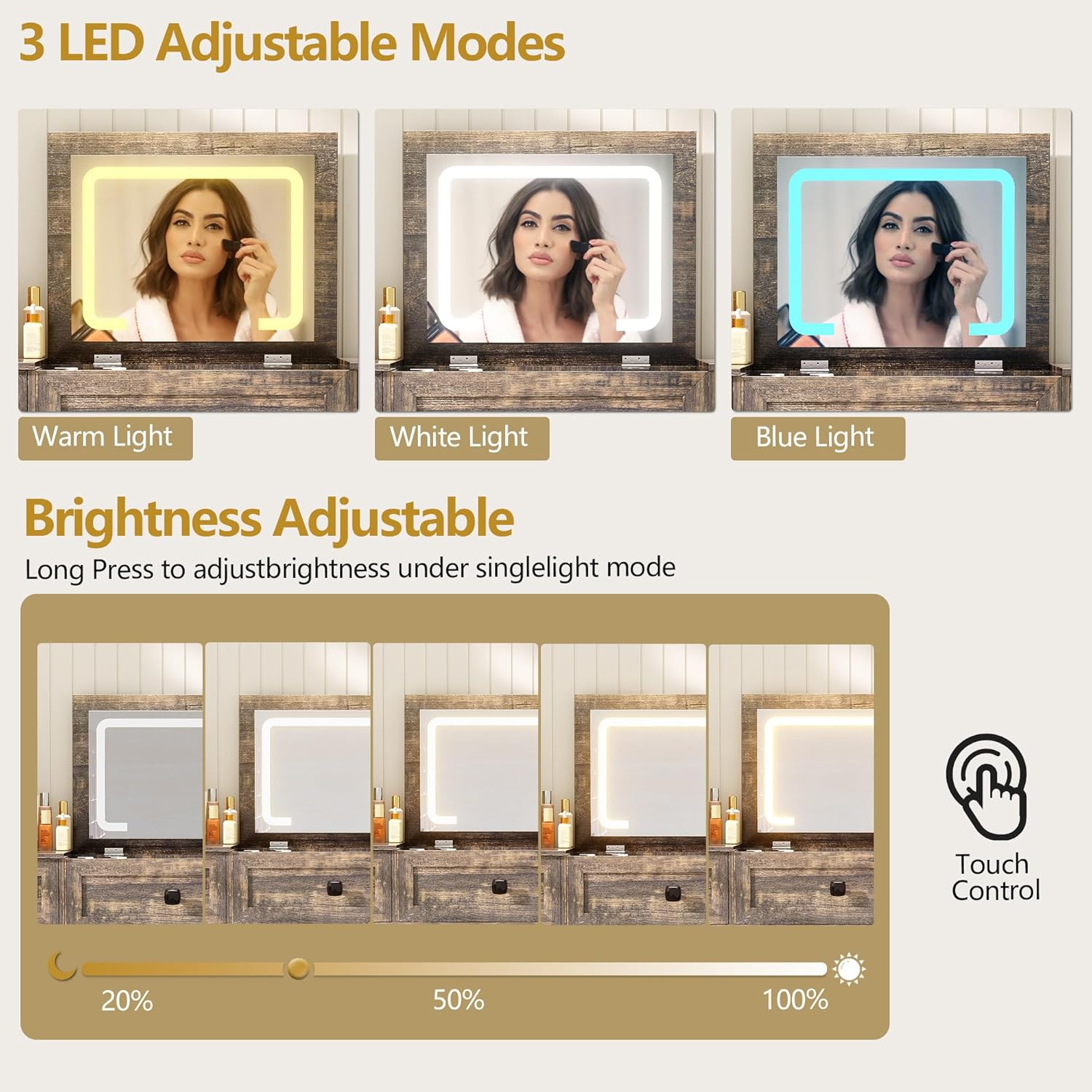

Image: Illustration of the 3 LED light modes and brightness adjustment feature.
Image: Demonstration of the smart human induction feature for the mirror light.
5.2. Stasiun Pengisian Daya
The vanity desk is equipped with a built-in charging station for convenience.
- Pelabuhan: Includes 1 USB port and 1 Type-C port.
- Pengisian Nirkabel: A dedicated wireless charging pad is integrated into the desktop.
- Penggunaan: Connect your mobile phone or other compatible devices to the USB/Type-C ports or place them on the wireless charging pad to charge while using the vanity.

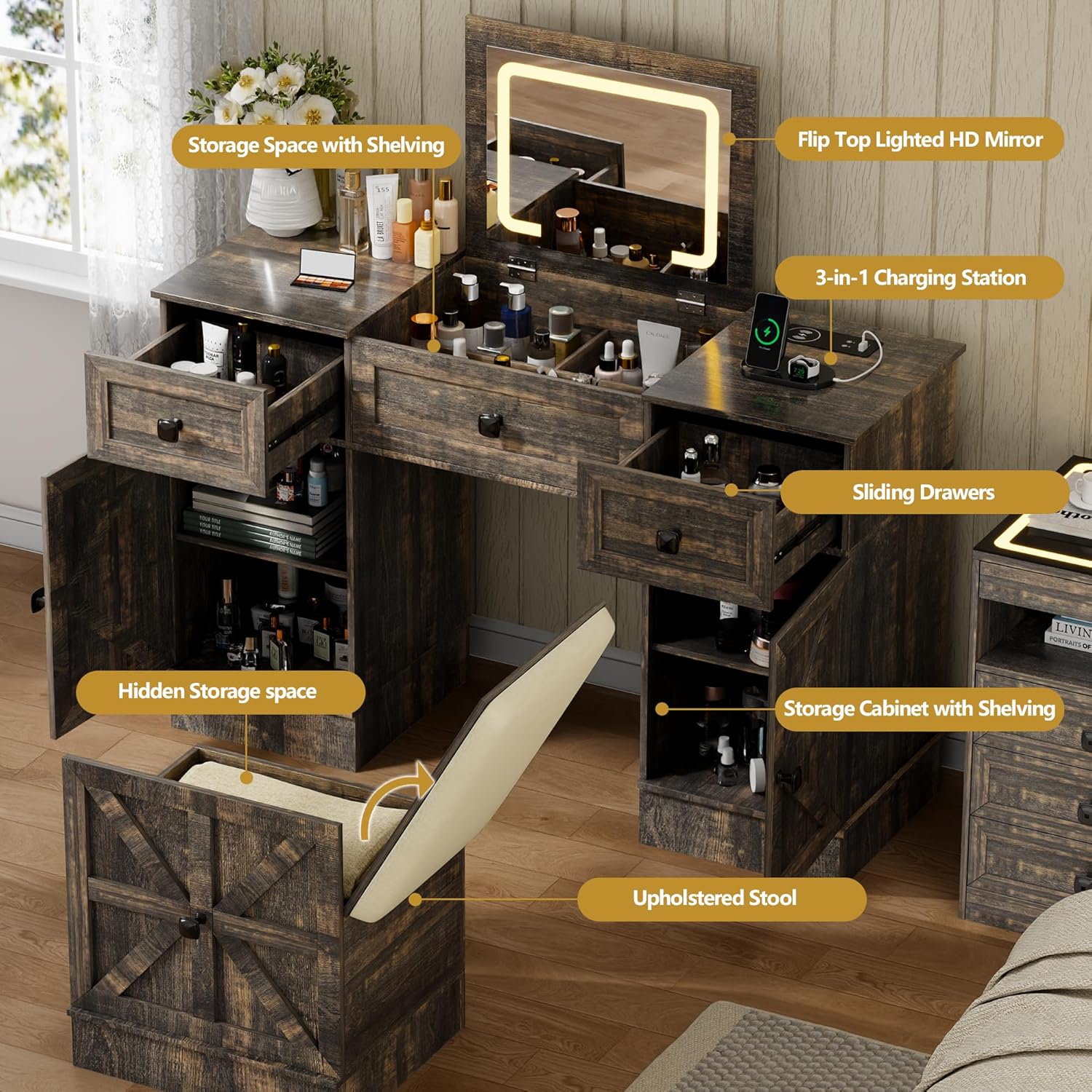

Image: Details of the integrated 3-in-1 charging station.
6. Fitur Penyimpanan
The Lvifur vanity desk offers extensive storage solutions to keep your items organized.
- Flip-Top Jewelry Organizer: Located beneath the mirror, this compartment is ideal for jewelry and small accessories.
- Multiple Drawers: The desk includes three standard drawers for cosmetics, tools, and skincare products.
- Hidden Lockable Drawer: One drawer features a concealed lock, providing secure storage for valuables.
- Rak yang Dapat Disesuaikan: The side cabinets contain adjustable shelves, allowing customization for various item sizes.
- Padded Stool with Storage: The included stool has a hidden compartment, perfect for storing blankets, books, or other personal items.
Gambar: Lebih dariview of the vanity desk's storage capabilities.
Image: The flip-top mirror mechanism and underlying storage compartments.
Image: An open drawer showcasing storage capacity for cosmetics.
Image: Adjustable shelves within the side cabinets.
Image: The padded stool with its hidden storage compartment.
7. Pemeliharaan
- Pembersihan: Usap permukaan dengan kain lembut, damp kain. Hindari bahan kimia keras atau pembersih abrasif yang dapat merusak lapisan akhir.
- Perawatan Cermin: Clean the mirror with a glass cleaner and a lint-free cloth. Do not spray cleaner directly onto the mirror; apply it to the cloth first.
- Komponen Listrik: Ensure the unit is unplugged before cleaning any electrical parts. Keep charging ports free of dust and debris.
- Perangkat keras: Periodically check and tighten any loose screws or fittings to maintain stability.
8. Penyelesaian masalah
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Lampu LED tidak menyala. | Power cable not connected; switch off; human induction not detecting. | Ensure power cable is securely plugged in. Check if the touch switch is activated. If using human induction, ensure you are within range (1-2 meters) and the mirror is open. |
| Stasiun pengisian daya tidak berfungsi. | Power cable not connected; device incompatible; cable faulty. | Verify the vanity desk is plugged into a power outlet. Ensure your device supports wireless charging if using that feature. Try a different USB/Type-C cable. |
| Drawers are stiff or do not close properly. | Improper assembly of drawer slides; obstruction. | Review assembly instructions for drawer slide installation. Check for any objects obstructing the drawer's path. Ensure all screws are tightened correctly. |
| Meja rias terasa tidak stabil. | Perangkat keras longgar; lantai tidak rata. | Check and tighten all assembly hardware. Ensure the desk is on a level surface; use shims if necessary. |
9. Spesifikasi
| Fitur | Detil |
|---|---|
| Nomor Model | Meja Rias |
| Warna | Kayu Ek Rustic Gelap |
| Bahan | Kayu |
| Dimensi Produk (P x L x T) | 15.7"P x 47"L x 30"T (40cm P x 120cm L x 76cm T) |
| Jumlah Laci | 4 |
| Fitur Cermin | Flip-top, 3-color LED lights (white/cold blue/warm yellow), Dimmable, Smart Human Induction, HD Real Glass, Explosion-proof Film |
| Stasiun pengisian | 1 USB Port, 1 Type-C Port, Wireless Charging Pad |
| Kapasitas Beban Tinja | 220 pon |
| Stool Inside Dimension | 18.3"P x 10.6"L x 10.8"T |
| Perakitan Diperlukan | Ya |
Image: Product dimensions for the vanity desk and stool.
10. Garansi dan Dukungan
This product is designed for durability and functionality. If you encounter any issues such as lost goods or damaged parts during delivery or assembly, please contact the seller directly through your purchase platform. Provide your order details and a description of the problem to receive a satisfactory solution.
For general inquiries or assistance, refer to the contact information provided by your retailer or the manufacturer, Lvifur.
