AINAVIGO 10.2-inch TouchScreen Car Radio Stereo Upgrade User Manual

1. Pendahuluan

This manual provides detailed instructions for the installation, operation, and maintenance of your AINAVIGO 10.2-inch TouchScreen Car Radio Stereo Upgrade. This advanced system features Android 12, Wireless CarPlay, Android Auto, GPS Navigation, and support for a backup camera, designed to enhance your driving experience with modern connectivity and entertainment options.

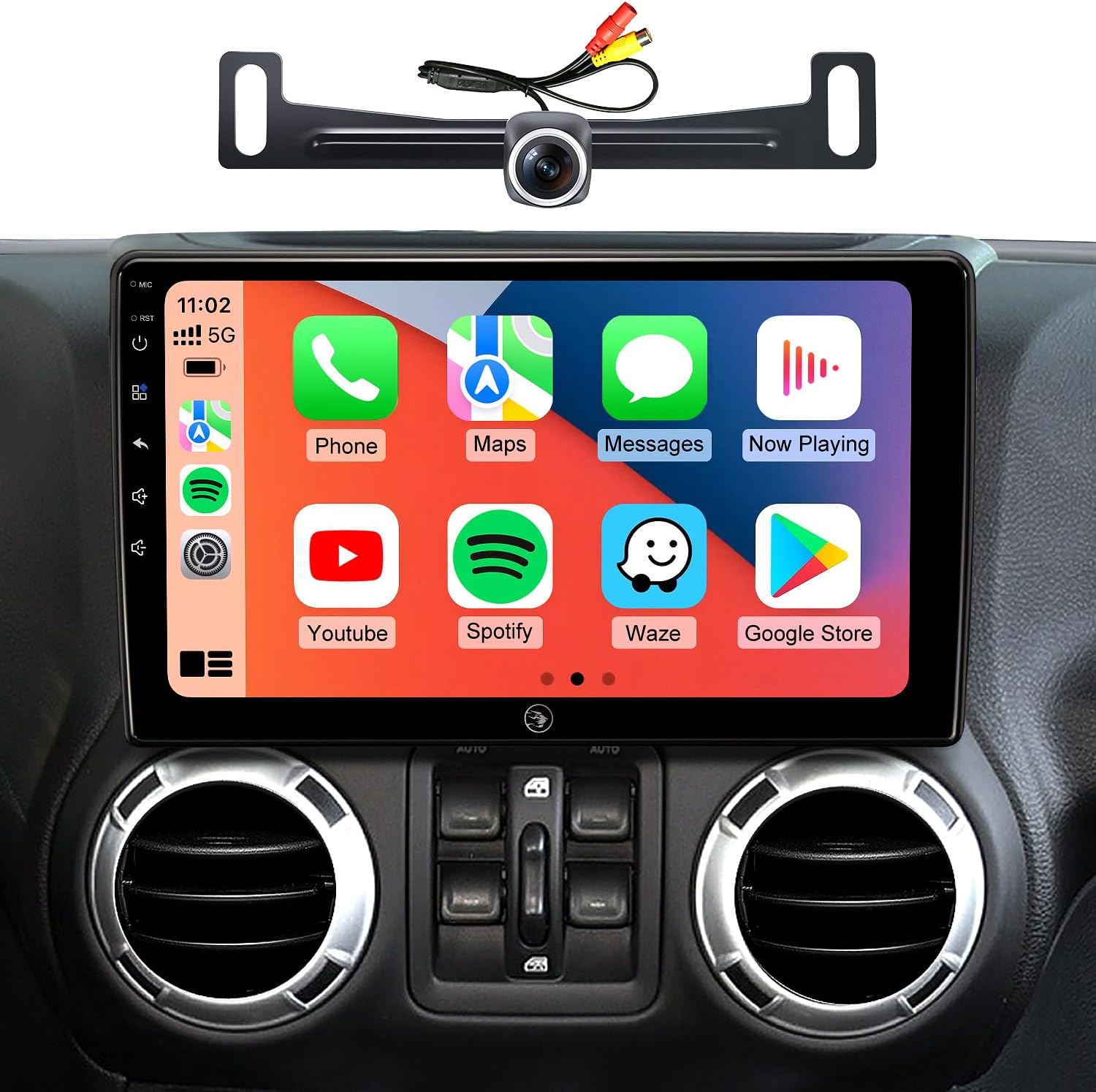

Image 1.1: AINAVIGO 10.2-inch TouchScreen Car Radio Stereo with CarPlay interface.

2. Kompatibilitas Kendaraan

This car radio stereo upgrade is compatible with the following vehicle models:

• Jeep Wrangler JK/Unlimited: 2007-2018
• Jeep Compass: 2009-2016
• Jeep Patriot: 2009-2016
• Jip Grand Cherokee: 2011-2013
• Jeep Liberty: 2008-2011
• Jeep Commander: 2008-2011
• Chrysler Sebring: 2007-2010
• Chrysler Town & Country: 2007-2010
• Dodge Grand Caravan: 2011-2014
• Dodge Charger: 2008-2010
• Dodge Ram Pickup 1500/2500/3500: 2009-2012

Image 2.1: Before and After installation comparison, demonstrating the 1:1 replica fit.

3. Apa saja yang termasuk?

The package contains all necessary components for installation and operation:

• 1x AINAVIGO Car Radio Stereo GPS Navigation Head Unit
• 1x Kabel RCA
• 1x Kabel Daya
• 1x Car Microphone
• 1x Belakang View Kamera 1080P
• 1x Reversing Control Cable (approximately 16.40 ft)
• 1x Antena GPS
• 1x Frame Removal Tool
• 2x Kabel USB

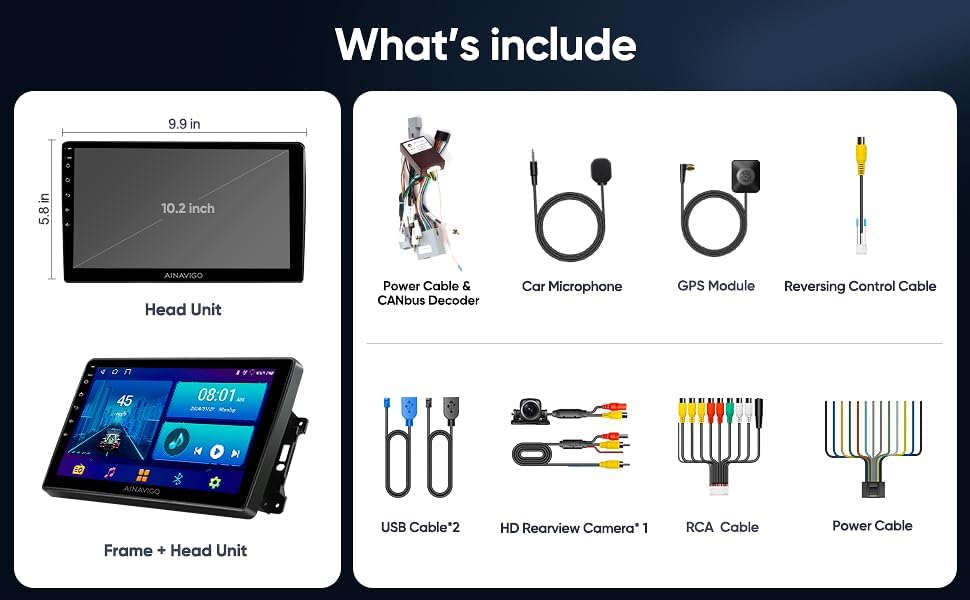

Gambar 3.1: Selesaiview of included accessories and the head unit dimensions.

4. Pengaturan dan Instalasi

Installation of the AINAVIGO car radio requires basic automotive electrical knowledge. It is recommended to consult a professional installer if you are unfamiliar with car stereo installations.

4.1 Daftar Periksa Pra-Instalasi

• Pastikan baterai kendaraan dilepas sebelum memulai pemasangan.
• Verify all included components are present as listed in Section 3.
• Identify the existing car radio and dashboard panel for removal.

4.2 Langkah Instalasi

1. Lepaskan Unit yang Ada: Use the provided frame removal tool to carefully pry open and remove the original car radio and dashboard trim. Disconnect all wiring harnesses.
2. Hubungkan Kabel: Connect the new power cable, RCA cable, USB cables, GPS antenna, and microphone to the corresponding ports on the AINAVIGO head unit. Ensure all connections are secure.
3. Backup Camera Installation (Optional): If installing the backup camera, route the reversing control cable from the rear of the vehicle to the head unit. Connect the camera to the designated input.
4. Unit Kepala Pemasangan: Secure the AINAVIGO head unit into the dashboard opening. Ensure a snug and stable fit.
5. Hubungkan kembali Baterai: Hubungkan kembali baterai kendaraan.
6. Nyalakan Daya Pertama: Turn on the vehicle's ignition and power on the head unit. Follow any on-screen prompts for initial setup.

For detailed wiring diagrams specific to your vehicle model, please refer to your vehicle's service manual or consult with a professional installer.

5. Petunjuk Pengoperasian

5.1 Sistem Berakhirview

The AINAVIGO unit runs on Android 12, providing a familiar and customizable interface. It features a Layar HD 10.2 inci dengan RAM 2 GB Dan Penyimpanan 32GB, allowing for smooth operation and app installation from the Google Play Store.

Image 5.1: Key features of the AINAVIGO Car Radio.

5.2 Wired/Wireless CarPlay & Android Auto

Seamlessly integrate your smartphone with the car's infotainment system using CarPlay or Android Auto. This allows access to navigation, music, messages, and calls directly from the unit's display.

• Koneksi: Connect your smartphone via USB for wired connection or pair via Bluetooth and Wi-Fi for wireless functionality.
• Kontrol Suara: Activate Siri or Google Assistant for hands-free operation, including making calls, sending messages, getting directions, and controlling music.

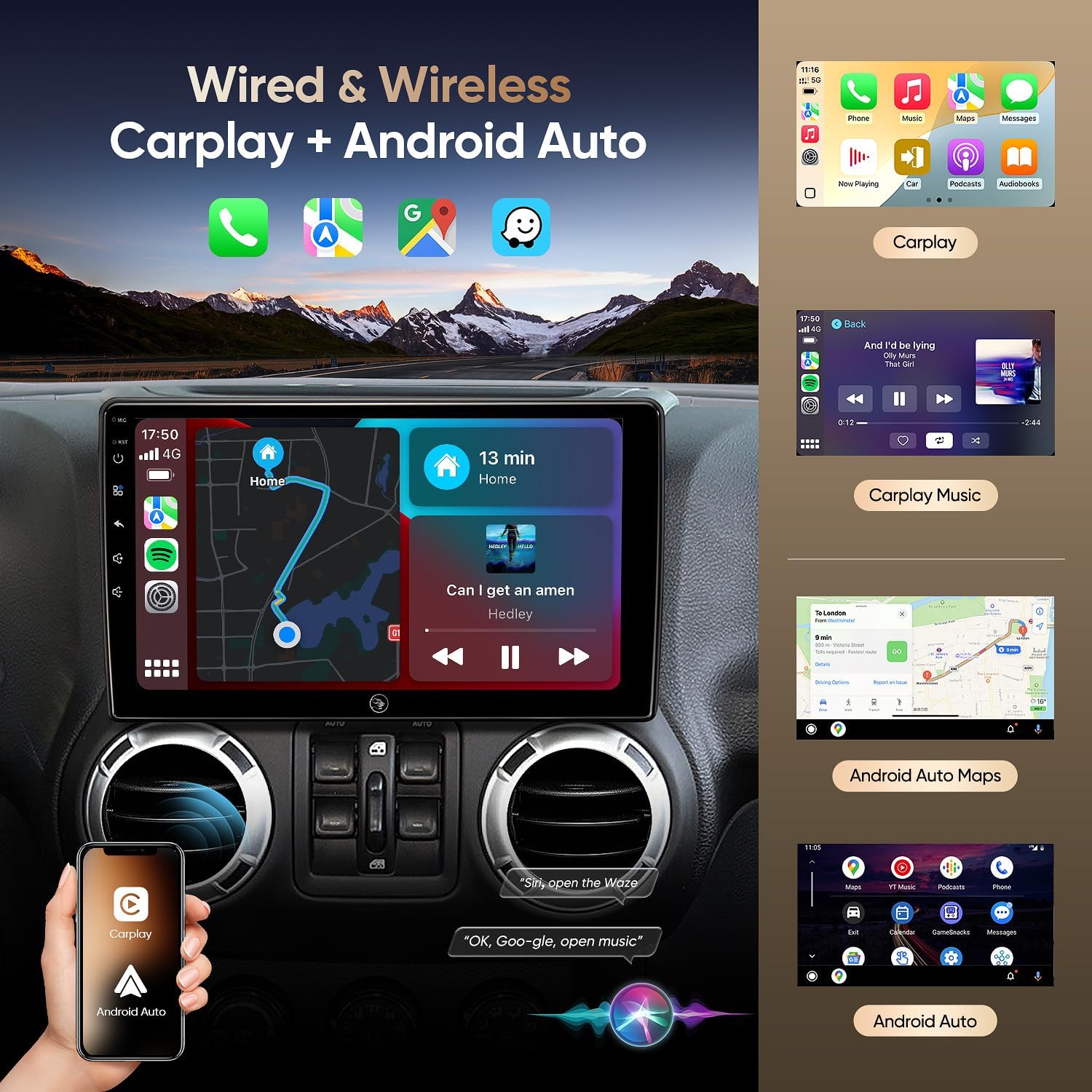

Image 5.2: Wired & Wireless CarPlay and Android Auto functionality.

5.3 Navigasi GPS

The unit comes pre-loaded with North American maps and supports various online navigation apps. The included GPS antenna ensures accurate positioning.

• Navigasi Online: Connect to Wi-Fi to use apps like Google Maps, Waze, or other preferred navigation services.
• Navigasi Offline: Download maps for offline use to navigate without an internet connection.

Image 5.3: Online and Offline GPS Navigation capabilities.

5.4Bluetooth 5.0

Connect your smartphone via Bluetooth 5.0 for faster data transfer speeds and stable connections.

• Panggilan Bebas Genggam: Make and receive calls using the built-in and external microphones for clear audio.
• Streaming Audio: Play music from your phone directly through the car's speakers.
• Sinkronisasi Kontak: Download your phone's contact book to the unit.

5.5 Radio FM

Tune into FM radio stations to stay updated with real-time traffic, news broadcasts, and weather forecasts.

5.6 Built-in DSP (Digital Sound Processor)

Adjust audio settings precisely to your preference with the built-in DSP, enhancing the acoustics of your vehicle for an immersive sound experience.

Image 5.4: Built-in DSP interface for sound customization.

5.7 AHD 1080P Rear Camera

The included AHD 1080P waterproof backup camera provides a 170° viewing angle. When reversing, the unit automatically displays a clear image on the screen, aiding in safer parking.

Image 5.5: AHD 1080P Rear View Tampilan kamera.

Konektivitas Wi-Fi 5.8

Utilize the built-in Wi-Fi hotspot feature to connect to the internet, browse, and download online navigation apps or social media platforms from the Play Store.

5.9 Fungsi Layar Terpisah

Multitask efficiently by using the split-screen function, allowing you to run two applications simultaneously, such as navigation and music playback.

5.10 Kontrol Suara

Enhance driving safety and convenience with voice control features. Use commands to play music, check the weather, or navigate to destinations without taking your hands off the wheel.

Gambar 5.6: Selesaiview of 5G WiFi, Split Screen, FM Radio, and Voice Control.

6. Pemeliharaan

6.1 Membersihkan Layar

Gunakan kain lembut bebas serat untuk menyeka layar sentuh dengan lembut. Untuk noda membandel, usap sedikitampBilas kain dengan air atau pembersih yang aman untuk layar. Hindari bahan kimia keras atau bahan abrasif.

6.2 Pembaruan Perangkat Lunak

Periodically check for software updates through the system settings to ensure optimal performance and access to the latest features and security patches. Connect to a stable Wi-Fi network for updates.

6.3 Perawatan Umum

Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture. Ensure all cables are securely connected and not pinched.

7. Penyelesaian masalah

If you encounter issues with your AINAVIGO car radio, refer to the following common solutions:

• Tidak Ada Daya: Check all power connections and ensure the vehicle's battery is properly connected. Verify fuses are intact.
• Tidak ada suara: Check speaker connections, volume levels, and audio settings (including DSP). Ensure the correct audio source is selected.
• Layar Sentuh Tidak Responsif: Try restarting the unit. If the issue persists, perform a system reset (refer to the system settings for this option).
• CarPlay/Android Auto Disconnection: Ensure your phone's Bluetooth and Wi-Fi are enabled and properly paired. Check for any software updates on your phone or the head unit. Try reconnecting the USB cable if using a wired connection.
• Kehilangan Sinyal GPS: Pastikan antena GPS terpasang dengan benar dan memiliki visibilitas yang jelas. view of the sky. Check for obstructions.
• Kamera Mundur Tidak Menampilkan: Verify the camera's power and video connections. Ensure the reversing control cable is correctly wired to trigger the display when in reverse gear.
• Unit Shuts Down Randomly: This could indicate a power supply issue. Check wiring for loose connections or insufficient power. In some cases, a hard reset (disconnecting and reconnecting power) may be necessary.

If these steps do not resolve the issue, please contact technical support.

8. Spesifikasi

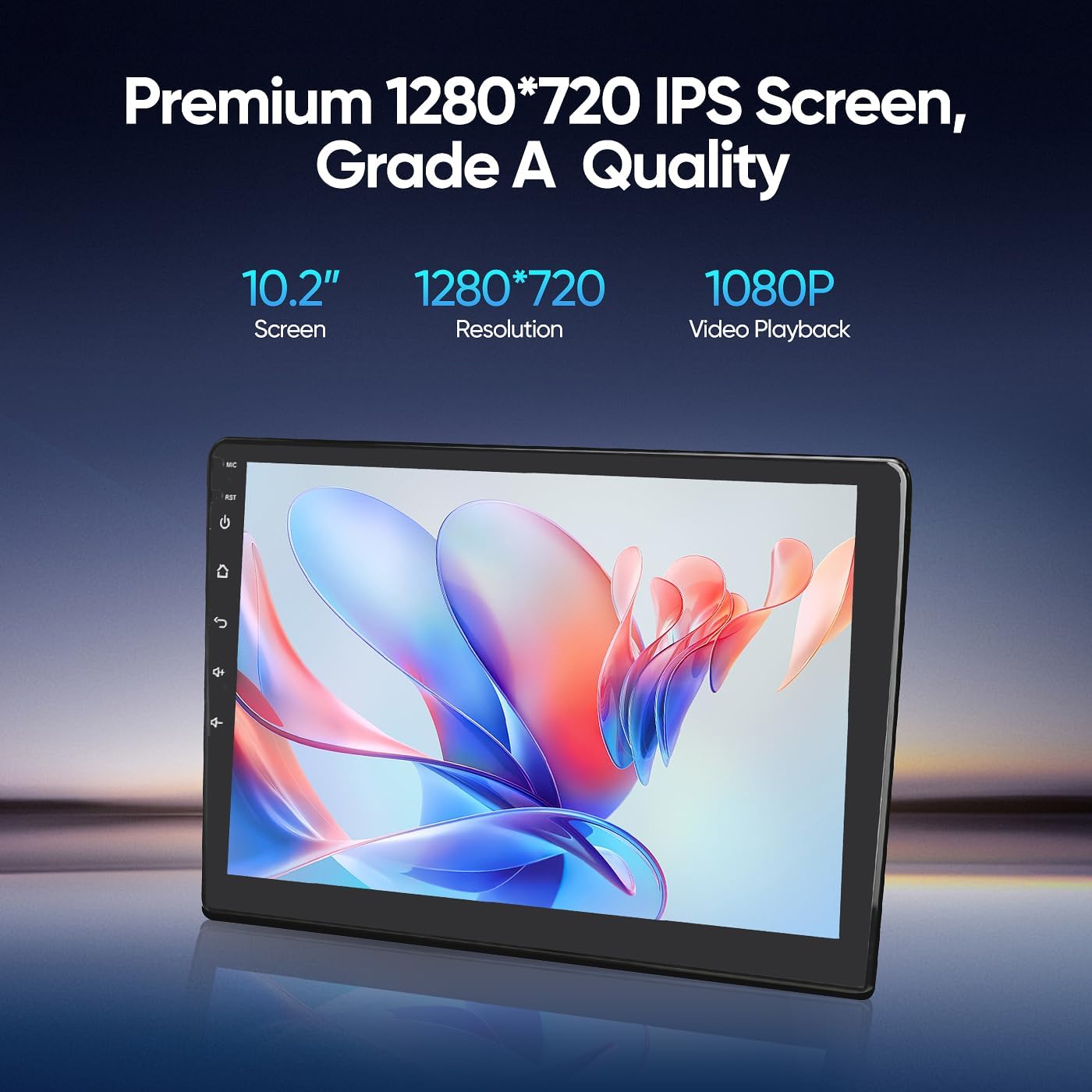

Image 8.1: Premium 1280*720 IPS Screen details.

Image 8.2: G+G Full Fit Ultra Clear Screen technology.

9. Informasi Garansi

The AINAVIGO 10.2-inch TouchScreen Car Radio Stereo Upgrade comes with a Garansi 12 bulan Terhitung sejak tanggal pembelian. Garansi ini mencakup cacat produksi dan kerusakan dalam penggunaan normal. Garansi ini tidak mencakup kerusakan yang disebabkan oleh pemasangan yang tidak tepat, penyalahgunaan, kecelakaan, atau modifikasi tanpa izin.

Harap simpan bukti pembelian Anda untuk klaim garansi.

10. Dukungan Teknis

For any installation assistance or technical inquiries, our professional technical support team is available to help. Please follow these steps to contact us:

1. Visit the AINAVIGO Store page on Amazon.
2. Locate and click the "Ask a question" button to send your inquiry.

We aim to respond to all queries as soon as possible.

Image 10.1: Steps to contact technical support.
