CIYOYO 3 in 1 Wireless Charging Station User Manual

Perkenalan

The CIYOYO 3 in 1 Wireless Charging Station is designed to simultaneously charge your iPhone, Apple Watch, and AirPods, providing a convenient and clutter-free charging solution. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.

Pengaturan

Follow these steps to set up your wireless charging station:

1. Unpack all components: the wireless charging station and the included QC 18W fast adapter.
2. Connect the USB Type-C cable from the charging station to the QC 18W fast adapter.
3. Plug the QC 18W fast adapter into a standard wall outlet.
4. Letakkan stasiun pengisian daya di permukaan yang datar dan stabil.

Petunjuk Pengoperasian

The CIYOYO 3 in 1 Wireless Charging Station is designed for ease of use and versatility.

Perangkat Pengisian Daya

• Bahasa Indonesia: Place your iPhone on the upright charging pad. The dual-coil design allows for charging in both portrait and landscape orientations.
• Jam Tangan Apple: Place your Apple Watch on the magnetic charging module located on the stand. Ensure the watch is properly aligned for charging.
• AirPods: Place your AirPods (with wireless charging case) on the flat charging pad at the base.

Fleksibilitas Orientasi

The charging station supports both portrait and landscape modes for your iPhone, allowing you to watch videos or browse while charging.

Desain Ramah Kasus

The charging station is designed to work with most protective cases up to 5mm thick. For optimal charging, avoid cases containing credit cards, metal, magnets, or thick grips.

Sleep-Friendly LED Indicator

The charging station features a blue breathing LED light that indicates charging status. This light can be turned off with a single touch for a sleep-friendly environment.

Pemeliharaan

To ensure the longevity and optimal performance of your CIYOYO 3 in 1 Wireless Charging Station, follow these maintenance guidelines:

• Pembersihan: Disconnect the power adapter before cleaning. Use a soft, dry cloth to wipe the surface of the charging station. Do not use abrasive cleaners, solvents, or harsh chemicals.
• Penyimpanan: Bila tidak digunakan dalam jangka waktu lama, simpan stasiun pengisian daya di tempat sejuk dan kering, jauhkan dari sinar matahari langsung dan suhu ekstrem.
• Penanganan: Hindari menjatuhkan atau membiarkan perangkat terkena benturan keras, karena dapat merusak komponen internal.

Penyelesaian Masalah

If you encounter issues with your charging station, refer to the following common problems and solutions:

• Perangkat tidak mengisi daya:
  • Ensure the charging station is properly connected to the QC 18W fast adapter and the power outlet.
  • Verify that your device is correctly aligned on the charging pad/module.
  • Check if your device's case is too thick or contains metal/magnets. Remove the case and try again.
  • Confirm your device is compatible with wireless charging.
• Pengisian daya lambat:
  • Ensure you are using the included QC 18W fast adapter. Using a lower wattagAdaptor e dapat mengakibatkan pengisian daya yang lebih lambat.
  • Avoid placing foreign objects between the device and the charging pad.
  • Ensure proper alignment of the device on the charging surface.
• Indikator LED tidak berfungsi:
  • Check if the charging station is powered on.
  • The LED light can be turned off with a touch. Tap the touch control area to reactivate it.

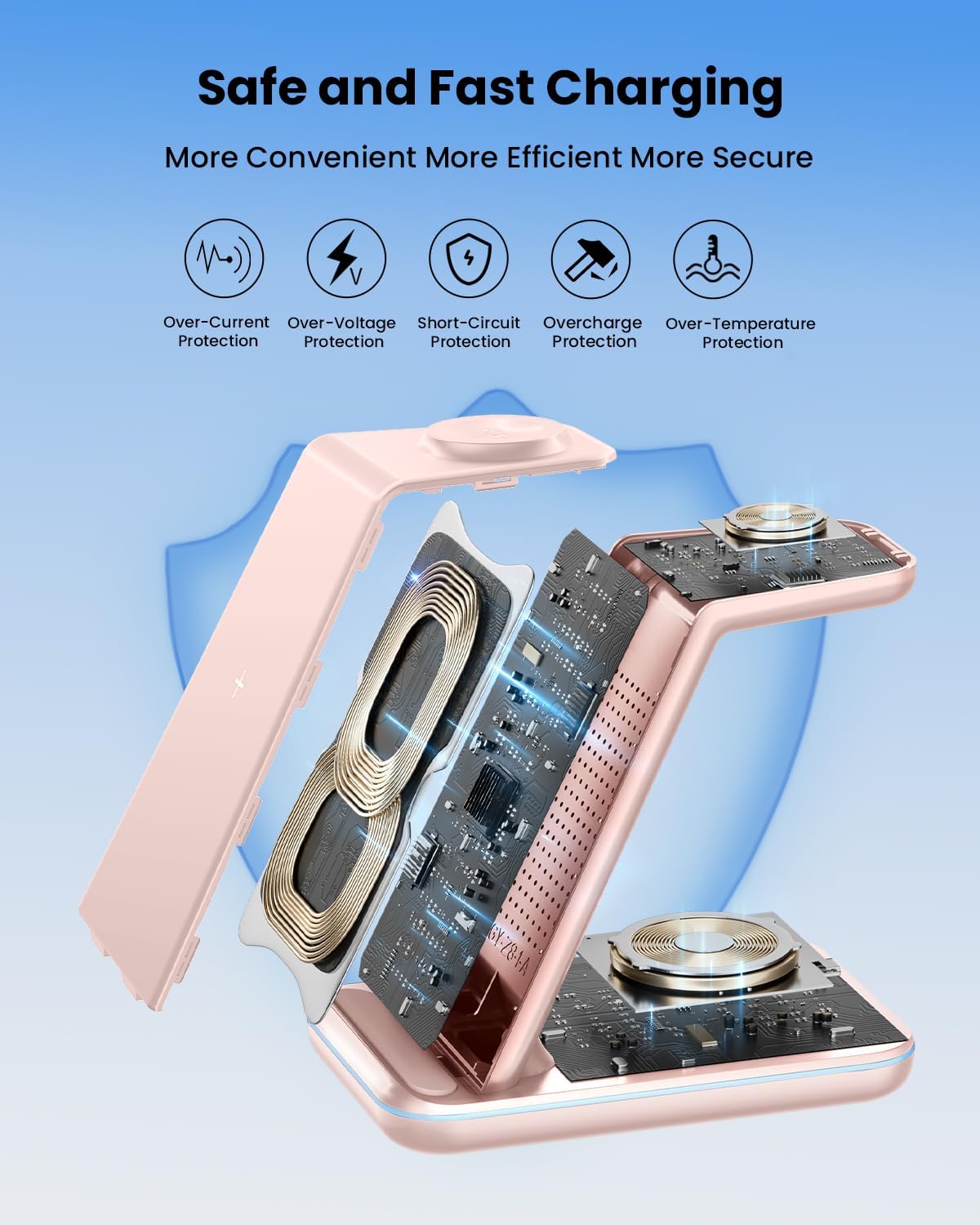

Fitur Keamanan

The charging station is equipped with multiple protections to ensure safe and efficient charging:

• Perlindungan Kelebihan Arus: Mencegah kerusakan akibat arus berlebih.
• Over-Voltage Perlindungan: Pengamanan terhadap voltage melonjak.
• Perlindungan Sirkuit Pendek: Melindungi dari korsleting.
• Perlindungan Overcharge: Prevents overcharging of devices.
• Perlindungan Suhu Berlebih: Monitors and regulates temperature to prevent overheating.

Spesifikasi

Garansi dan Dukungan Pelanggan

CIYOYO stands behind the quality and performance of its products. This 3 in 1 wireless charging station undergoes rigorous quality checks to ensure customer satisfaction.

For any questions, concerns, or assistance with your product, please contact our dedicated customer support team. Refer to your purchase documentation or the CIYOYO official websitus untuk informasi kontak.
