YUXIANG F07-V UH1D RC Helicopter Instruction Manual

1. Pendahuluan

The YUXIANG F07-V UH1D is a 1/34 scale remote-controlled helicopter designed for both stable flight and aerobatic maneuvers. This model features a highly realistic UH-1 Huey design, equipped with advanced 3D/6G flight modes, brushless motors, and a 6-axis gyroscope for precise control. This manual provides essential information for the safe and effective operation, maintenance, and setup of your F07-V UH1D RC Helicopter.

2. Tindakan pencegahan keselamatan

Operating an RC helicopter requires attention to safety. Please read and understand all instructions before use to prevent injury or damage.

• Batasan Usia: Produk ini ditujukan untuk pengguna berusia 16 tahun ke atas.
• Lingkungan: Operate the helicopter in open, clear areas, away from people, animals, buildings, and power lines. Avoid flying in strong winds or adverse weather conditions.
• Pemeriksaan Pra-Penerbangan: Always inspect the helicopter and remote controller for any damage or loose parts before each flight. Ensure batteries are fully charged.
• Keamanan Baterai: Use only the specified charger and battery. Do not overcharge or short-circuit batteries. Store batteries in a safe, cool place away from flammable materials.
• Bilah Rotor: Jauhkan tangan, wajah, dan pakaian longgar dari bilah yang berputar. Bilah tersebut dapat menyebabkan cedera serius.
• Pengawasan: Beginners should operate under the supervision of an experienced RC pilot.
• Pemberhentian darurat: Familiarize yourself with the emergency stop procedure on your remote controller.

3. Isi Paket

Verifikasi bahwa semua item ada dalam paket Anda:

• 1 × F07-V UH1D RC Helicopter
• 1 × Pengontrol Jarak Jauh 2.4GHz
• Battery (quantity as per purchase variant, e.g., 2 × 7.4V 1200mAh 25C LiPo Battery for this variant)
• 1 × Charger (Type-C USB)
• 1 × Panduan Pengguna

4. Produk Lebihview

The F07-V UH1D RC Helicopter is a detailed 1/34 scale model of the UH-1 Huey. It features a robust design for stable and precise flight.

Image: The YUXIANG F07-V UH1D RC Helicopter, showcasing its detailed military design and scale accuracy.

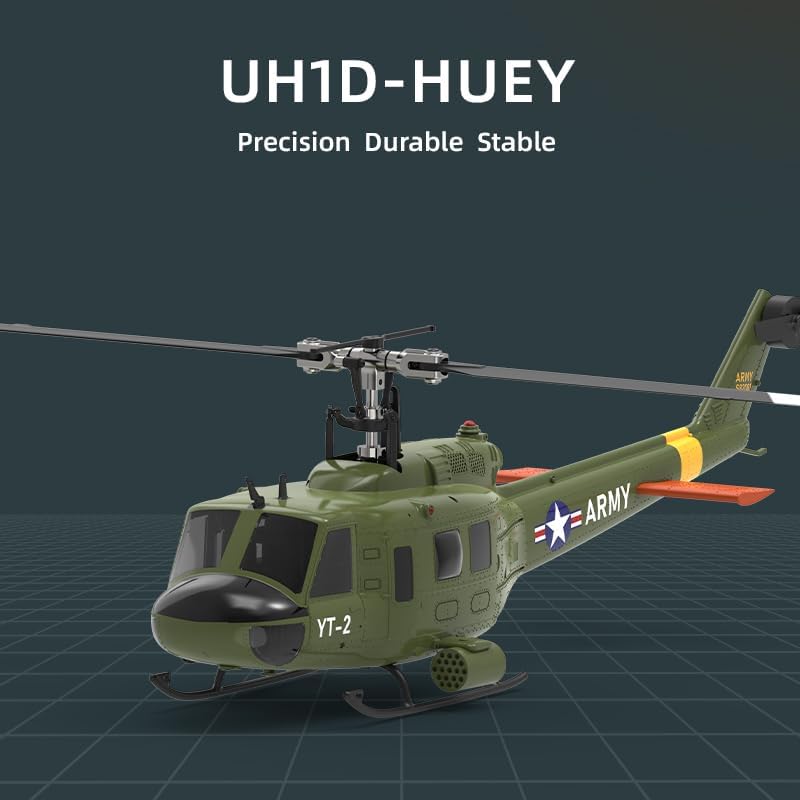

Gambar: Samping view of the UH1D-Huey, highlighting its precision, durable construction, and stable design.

5. Pengaturan

5.1 Pengisian Baterai

The helicopter uses a 7.4V 1200mAh 25C LiPo smart battery. Use the provided Type-C USB charger.

1. Connect the Type-C USB charger to a suitable USB power source (e.g., computer USB port, USB wall adapter).
2. Connect the battery to the charger. Ensure correct polarity.
3. The charger's indicator light will show charging status (refer to charger manual for specific light indications).
4. Once charging is complete, disconnect the battery. The smart battery includes overcharge and discharge protection.

5.2 Remote Controller Preparation

The 2.4GHz remote controller requires its own batteries (not included, typically AA batteries). Install them according to the polarity markings in the battery compartment.

• Nyalakan pengontrol jarak jauh.
• The LCD display will show current settings. Use the digital tuning functions to adjust controls as needed.
• Ensure the remote controller is bound to the helicopter. This usually happens automatically upon powering on both devices. If not, refer to the remote controller's specific binding instructions.

5.3 Helicopter Preparation

Before flight, ensure the main rotor blades and tail rotor are securely attached and free from damage. Power on the helicopter by connecting the charged battery. Place the helicopter on a flat, level surface for initial calibration.

6. Petunjuk Pengoperasian

6.1 Mode Penerbangan

The F07-V UH1D offers two primary flight modes:

• 6G (Stabilized) Mode: Ideal for beginners, this mode utilizes the 6-axis gyroscope to provide enhanced stability, making the helicopter easier to control and maintain a level flight attitude.
• 3D (Aerobatic) Mode: For experienced pilots, this mode allows for advanced aerobatic maneuvers. The helicopter responds directly to control inputs, enabling flips, rolls, and inverted flight.

Image: The F07-V UH1D helicopter demonstrating a 3D flight maneuver, showcasing its aerobatic capabilities.

6.2 Controls and Stability

The helicopter's control system, featuring a 6-axis gyroscope and oversized 4.3g metal gear servos, ensures precise and responsive flight. The remote controller allows for digital adjustment of various parameters.

Image: The F07-V UH1D helicopter, illustrating the role of its 6-axis gyroscope for stable and accurate flight.

6.3 Tips Penerbangan Pertama

• Always start in 6G (stabilized) mode for initial flights.
• Perform a gentle take-off, slowly increasingas g.
• Practice hovering at a low altitude before attempting forward flight or turns.
• Be mindful of battery life; land the helicopter before the battery is fully depleted to prevent sudden power loss. Flight time is approximately 9-12 minutes per charge.

7. Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your F07-V UH1D helicopter.

7.1 Body and Rotor Care

The helicopter's body is constructed from impact-resistant nylon and carbon fiber composite, offering durability and toughness. The CNC machined metal rotor head and swashplate are designed for precision and reduced damage risk.

• After each flight, inspect the fuselage, rotor blades, and tail rotor for any cracks, bends, or loose connections.
• Clean the helicopter with a soft, dry cloth. Avoid using solvents or harsh chemicals.
• Pastikan semua sekrup dan pengencang kencang.

Image: The F07-V UH1D helicopter, highlighting its shatterproof body made from nylon and carbon fiber composite for durability.

Image: The F07-V UH1D helicopter, illustrating its aerodynamic design for efficient and stable flight.

7.2 Motor and Battery Care

The helicopter is equipped with a 2511 1200KV brushless main motor and a 1204 5500KV brushless tail motor.

• Jaga motor tetap bebas dari debu dan kotoran.
• Allow motors to cool down between flights, especially after intensive use.
• For batteries, store them at approximately 50% charge if not used for extended periods. Avoid fully discharging or fully charging for long-term storage.

Gambar: Detail view of the 2511 1200KV brushless motor, emphasizing its high-temperature resistance and durability.

8. Penyelesaian masalah

If you encounter issues with your F07-V UH1D helicopter, refer to the following common problems and solutions:

Jika masalah berlanjut, hubungi dukungan pelanggan.

9. Spesifikasi

Detailed specifications for the YUXIANG F07-V UH1D RC Helicopter:

10. Garansi dan Dukungan

For warranty information or technical support, please contact the seller, Actualia Toy, through your purchase platform. Keep your proof of purchase for any warranty claims.

Untuk bantuan lebih lanjut, Anda juga dapat mengunjungi Actualia Store.
