Intelbras PFL7560 Full HD Wi-Fi Projector User Manual

1. Pendahuluan

Thank you for choosing the Intelbras PFL7560 Full HD Wi-Fi Projector. This projector is designed to deliver a high-quality visual and audio experience for various applications, from home cinema to business presentations. It features Full HD resolution, 8000 lumens brightness, and integrated 12W stereo speakers. This manual provides essential information for safe and efficient operation of your projector.

2. Informasi Keselamatan

Harap baca semua petunjuk keselamatan dengan saksama sebelum menggunakan proyektor. Simpan panduan ini untuk referensi di kemudian hari.

• Catu Daya: Use only the power adapter provided with the projector. Ensure the voltage cocok dengan catu daya lokal Anda.
• Ventilasi: Jangan menghalangi lubang ventilasi. Pastikan ada ruang yang cukup di sekitar proyektor agar aliran udara lancar dan mencegah panas berlebih.
• Penempatan: Letakkan proyektor di permukaan yang stabil dan rata. Hindari meletakkannya di bawah sinar matahari langsung, dekat sumber panas, atau di lingkungan dengan kelembapan atau debu yang tinggi.
• Perlindungan Mata: Jangan melihat langsung ke lensa proyektor saat lampuamp menyala, karena cahaya terang dapat menyebabkan kerusakan mata.
• Pembersihan: Cabut kabel proyektor sebelum membersihkan. Gunakan kain lembut dan kering. Jangan gunakan cairan atau pembersih aerosol.
• Pelayanan: Jangan mencoba memperbaiki proyektor sendiri. Serahkan semua perbaikan kepada teknisi servis yang berkualifikasi.

3. Isi Paket

Verifikasi bahwa semua item ada dalam paket:

• Intelbras PFL7560 Projector Unit
• Kontrol Jarak Jauh
• Kabel listrik
• Panduan Pengguna

4. Produk Lebihview

Familiarize yourself with the main components and ports of your Intelbras PFL7560 projector.

4.1. Komponen Proyektor

Image: Intelbras PFL7560 Projector with included remote control.

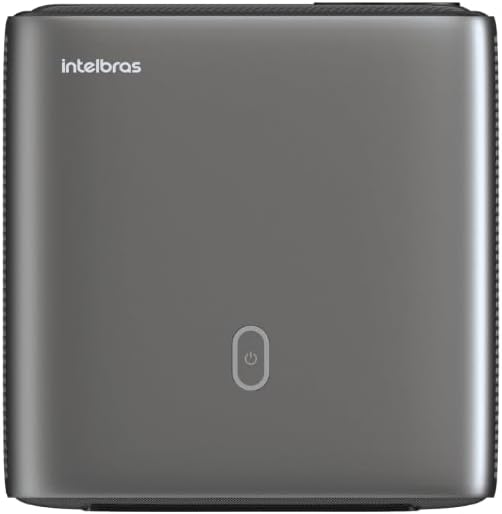

Gambar: Atas view of the projector, highlighting the power button and sleek design.

4.2. Port dan Konektivitas

Proyektor menawarkan beberapa pilihan konektivitas:

• HDMI: For connecting high-definition devices such as laptops, gaming consoles, or Blu-ray players.
• Kabel USB: Untuk menghubungkan perangkat penyimpanan USB untuk memutar media files secara langsung.
• Wi-Fi (802.11 ac/b/g/n): For wireless connectivity and screen mirroring from compatible Android devices.
• Suara keluar: Untuk menghubungkan sistem audio eksternal atau headphone.

5. Pengaturan

5.1. Penempatan

Choose a suitable location for your projector. The PFL7560 can project images from 60 to 150 inches, making it versatile for various room sizes. Ensure the projector is placed on a stable surface and is not obstructed.

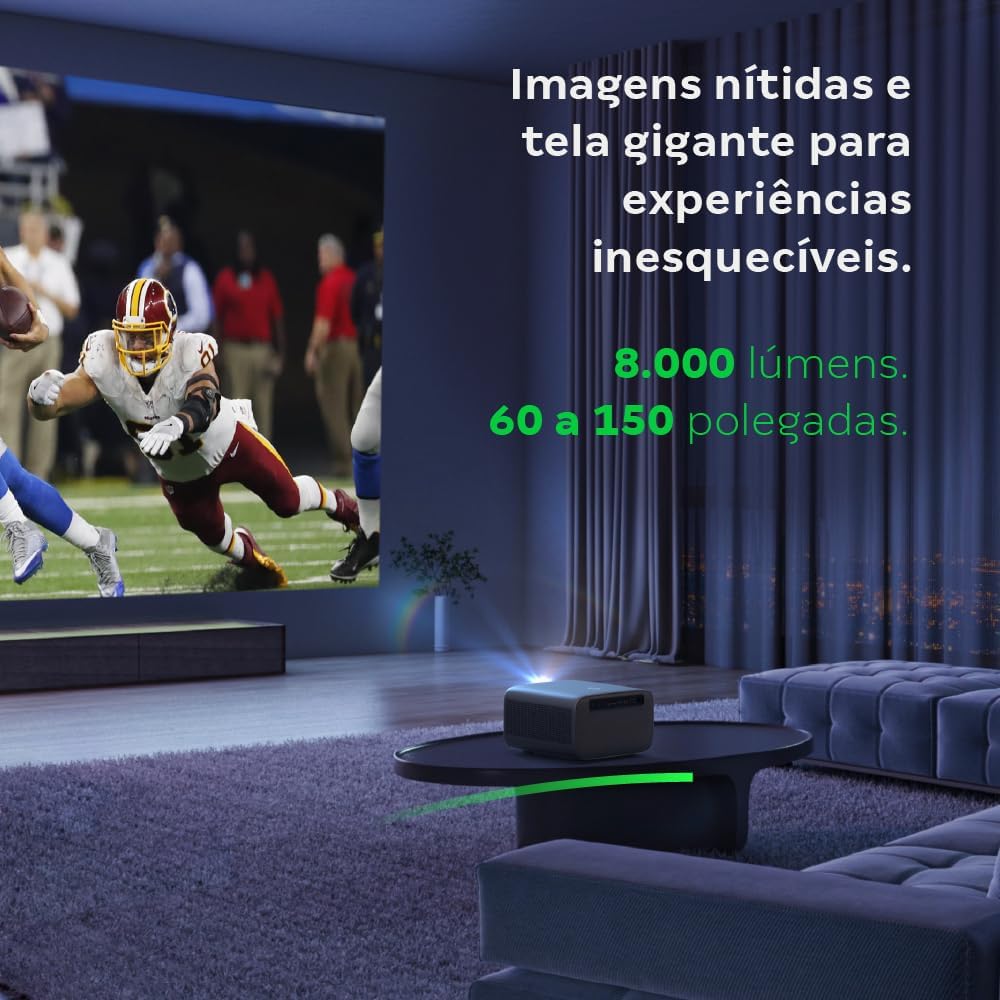

Image: The projector creating a large, clear image in a home environment, demonstrating its capability for immersive viewing.

5.2. Koneksi Daya

Connect the power cable to the projector's power input and then to a power outlet.

5.3. Daya Awal Menyala

Tekan tombol daya pada proyektor atau remote control untuk menghidupkan perangkat. Proyektor akan memulai urutan penyalaannya.

5.4. Fokus dan Koreksi Keystone

The PFL7560 features automatic focus and keystone correction for a perfectly aligned and sharp image without manual effort. If manual adjustment is needed, refer to the on-screen display (OSD) menu.

6. Petunjuk Pengoperasian

6.1. Menghubungkan Perangkat

• HDMI: Connect your device using an HDMI cable to the HDMI port on the projector. Select the corresponding HDMI input from the projector's source menu.
• Kabel USB: Insert a USB drive into the USB port. The projector's media player will typically detect the drive automatically, allowing you to browse and play files.
• Wi-Fi / Screen Mirroring: For compatible Android devices, enable screen mirroring on your device and select the projector from the available devices. Ensure both devices are connected to the same Wi-Fi network.

6.2. Keluaran Audio

The projector is equipped with two integrated 12W speakers, providing clear and immersive audio. For external audio, connect speakers or headphones to the audio output port.

Image: Detail of the projector's integrated 12W speakers, designed for powerful and clear sound.

7. Pemeliharaan

7.1. Membersihkan Lensa

Gunakan kain lembut dan bebas serat yang dirancang khusus untuk lensa optik untuk menyeka lensa proyektor dengan lembut. Hindari penggunaan bahan abrasif atau bahan kimia keras.

7.2. Membersihkan Bodi Proyektor

Wipe the exterior of the projector with a soft, dry cloth. Do not use liquid or spray cleaners directly on the unit.

7.3. LED Light Source Longevity

The Intelbras PFL7560 uses an LED light source with a lifespan of up to 30,000 hours, ensuring long-term use and consistent performance without significant brightness degradation.

Image: An infographic illustrating the extended durability and economic benefits of the LED lamp, lasting up to 30,000 hours.

8. Penyelesaian masalah

Jika Anda mengalami masalah dengan proyektor Anda, lihat masalah umum dan solusi berikut:

• Tidak ada gambar: Ensure the power cable is securely connected and the projector is turned on. Check the input source selection to match your connected device.
• Gambar Buram: Adjust the focus. If the image is distorted, check for automatic keystone correction or adjust it manually via the settings menu.
• Tidak ada suara: Verify the volume level on both the projector and the connected device. Ensure external speakers are properly connected if used, or that the internal speakers are enabled.
• Masalah Konektivitas: For Wi-Fi or screen mirroring, ensure both the projector and your device are on the same network. Restart both devices if necessary.
• Terlalu panas: Ensure the projector's ventilation openings are not blocked. Turn off the projector and allow it to cool down if it feels excessively hot.

9. Spesifikasi

10. Garansi dan Dukungan

For warranty information, technical support, or service requests, please refer to the official Intelbras websitus atau hubungi layanan pelanggan mereka secara langsung. Simpan tanda terima pembelian Anda sebagai bukti pembelian untuk klaim garansi.
