Aoxun Hardtop Gazebo 10x12 User Manual

Perkenalan

This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your Aoxun Hardtop Gazebo. Designed with a durable aluminum frame and a double galvanized steel roof, this 10x12 foot gazebo offers a robust and elegant outdoor living space, complete with breathable netting and privacy curtains. Please read this manual thoroughly before beginning assembly or use to ensure safe and proper installation and long-term enjoyment of your product.

Figure 1: Aoxun 10x12 Hardtop Gazebo in a backyard setting.

Informasi Keselamatan

• Selalu ikuti semua petunjuk perakitan dengan cermat.
• Pastikan semua baut dan pengencang telah dikencangkan dengan aman sebelum digunakan.
• Do not hang heavy objects from the gazebo frame or roof.
• In extreme weather conditions (heavy snow, strong winds), it is recommended to clear snow from the roof and secure or remove curtains/netting to prevent damage.
• This gazebo is designed for outdoor use only.
• Jauhkan anak-anak dan hewan peliharaan dari area perakitan selama pemasangan.

Daftar Bagian

Before beginning assembly, verify that all parts are present and undamaged. Refer to the included hardware pack and component diagrams for identification. If any parts are missing or damaged, contact customer support immediately.

Pengaturan dan Perakitan

Assembly typically requires 3-4 people and takes approximately 2-4 hours. It is highly recommended to sort and organize all parts before beginning. Do not fully tighten all screws until the entire structure is assembled, as this allows for necessary adjustments.

1. Persiapan Lokasi: Choose a level area for installation. Ensure adequate clearance around the gazebo for assembly and future use.
2. Membongkar dan Memilah: Carefully unpack all boxes. Identify and sort all components according to the parts list.
3. Perakitan bingkai: Assemble the main aluminum frame posts and connecting beams. Ensure all connections are loosely fitted initially.
4. Roof Structure Assembly: Attach the roof frame beams to the main frame.
5. Pemasangan Panel Atap: Install the galvanized steel roof panels. Pay close attention to the orientation of the panels to ensure proper water drainage. Some panels may require careful alignment and gentle force to fit into place.

   Figure 2: Detail of the galvanized steel double roof, highlighting its features.



   Figure 3: Comparison of galvanized steel roof with polycarbonate roof.

6. Pemasangan Tirai dan Jaring: Attach the netting and privacy curtains to the dual track system. Ensure they slide smoothly.

   Figure 4: Detachable curtains and netting offering panoramic view, mosquito protection, and privacy.



   Figure 5: Dual track design for smooth operation of curtains and netting.
7. Final Tightening and Anchoring: Once all components are in place and aligned, progressively tighten all bolts. Use the provided expansion bolts to securely anchor the gazebo to the ground for maximum stability and wind resistance.

   Figure 6: Extremely sturdy aluminum frame with secure anchoring bracket.

Petunjuk Pengoperasian

Curtains and Netting

The gazebo features a dual track system allowing independent operation of the breathable netting and privacy curtains. Simply slide them along the tracks to open or close. Use the integrated zippers on the netting for seamless closure. The curtains include binding belts to secure them when open.

Sistem Drainase Atap

The double galvanized steel roof is designed with an efficient drainage system to prevent water accumulation and keep the pavilion in excellent condition during rain. Water is channeled away from the main structure.

Video 1: Demonstration of the Hardtop Gazebo's drainage system, showing how water is efficiently managed on the roof.

Decorating Hooks

The gazebo roof structure includes J-hooks and U-hooks, allowing you to hang lightweight decorations such as lights or fans to enhance your outdoor space.

Figure 7: J-hooks and U-hooks for decorating the gazebo top.

Pemeliharaan

• Pembersihan: Clean the aluminum frame and steel roof with mild soap and water. Rinse thoroughly and dry to prevent water spots. The fabric curtains and netting can be spot cleaned or hand washed with mild detergent.
• Pemeriksaan Pengikat: Periksa semua baut dan sekrup secara berkala untuk memastikannya tetap kencang. Kencangkan kembali jika perlu.
• Perawatan Musiman:
  • Salju: The roof is designed to hold up to 7-inch thick snow. However, in areas with heavy snowfall, it is recommended to regularly clear accumulated snow to prevent excessive load.
  • Angin: The sturdy aluminum frame provides good wind resistance (up to grade 7, 31-38 mph). In high wind conditions, ensure curtains and netting are securely tied back or removed to minimize wind resistance.
  • Hujan: The efficient drainage system manages rainwater. Ensure gutters and drainage paths are clear of debris.


  Figure 8: Gazebo performance in snow, wind, and rain.

Penyelesaian Masalah

Spesifikasi

• Merek: Aoxun
• Model: 10 x 12 Gray
• Bahan: Aluminum (Frame), Galvanized Steel (Roof)
• Dimensi Produk: 144"P x 120"L x 116.5"T (10'P x 12'L x 9.7'T)
• Luas Lantai: 120 Kaki Persegi
• Berat Barang: 60 pon
• Tingkat Tahan Air: Tahan air
• Perlindungan UV: 50
• Hunian: 6-8 orang
• Maximum Wind Resistant Grade: 7 (31-38 mph)
• Kapasitas Beban Salju: Roof holds up to 7-inch thick snow

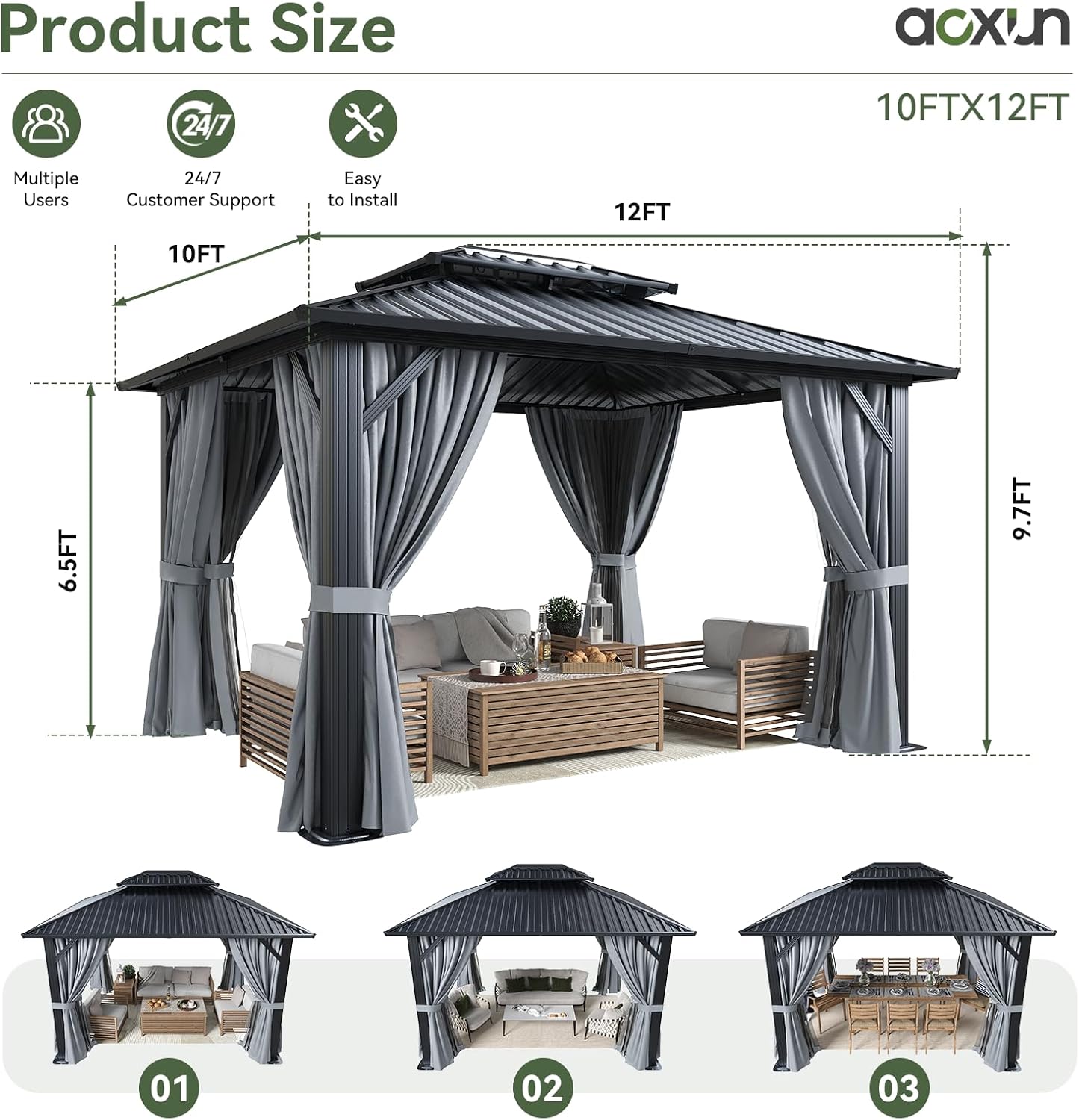

Gambar 9: Dimensi produk dan fitur utama.

Garansi dan Dukungan

Aoxun Outdoor Gazebos are backed by a Garansi 1 tahun terhitung sejak tanggal pembelian. Garansi ini mencakup cacat produksi dan menjamin ketenangan pikiran Anda.

For any questions, concerns, or assistance with assembly, parts, or warranty claims, please do not hesitate to contact Aoxun customer service. We are dedicated to providing excellent customer service and ensuring your satisfaction.

Informasi Kontak: Please refer to the contact details provided on the product packaging or the official Aoxun website for the most up-to-date customer support information.

Catatan: Simpan struk pembelian Anda sebagai bukti pembelian untuk klaim garansi.
