DriSentri YH-A8 Silk Dome Tweeters Instruction Manual

1. Pendahuluan

Thank you for choosing DriSentri YH-A8 Silk Dome Tweeters. These high-efficiency mini dome tweeters are designed to enhance your car audio system with clear and detailed high-frequency sound reproduction. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your tweeters.

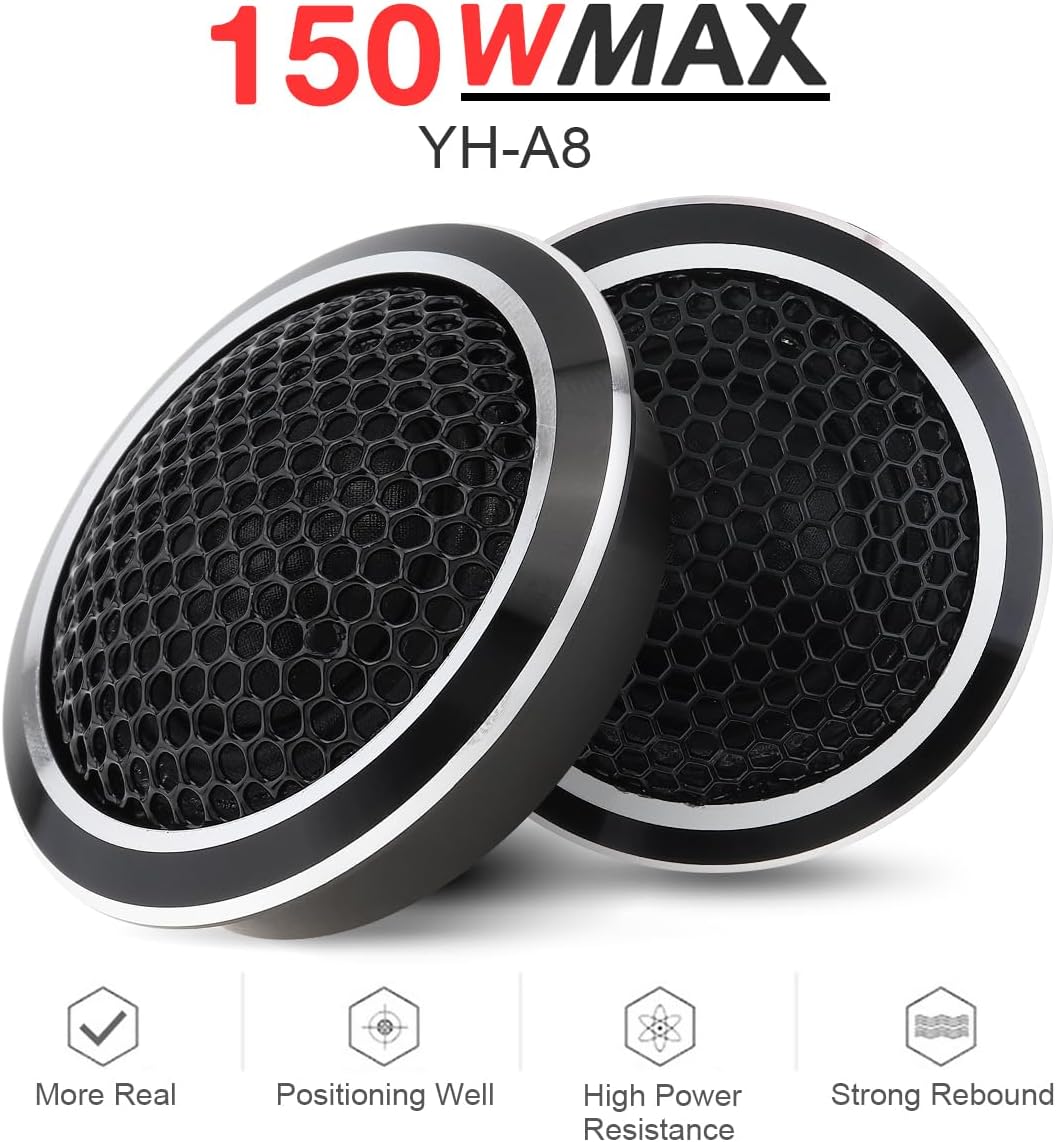

Image: DriSentri YH-A8 Silk Dome Tweeters. This image displays two tweeters, highlighting their compact design and the model number YH-A8 with a 150W maximum power rating.

2. Informasi Keselamatan

Please read all safety instructions carefully before installing and operating the tweeters. Failure to follow these guidelines may result in damage to the product, your vehicle, or personal injury.

• Instalasi Profesional Direkomendasikan: If you are unsure about any part of the installation process, consult a qualified car audio technician.
• Pemutusan Daya: Always disconnect the vehicle's battery negative terminal before beginning any electrical work to prevent short circuits and electrical hazards.
• Pengkabelan: Ensure all wiring is correctly connected according to polarity. Incorrect wiring can damage the tweeters or your car's audio system.
• Jil.tage: These tweeters are designed for 12V DC car audio systems. Do not connect to higher voltage sumber.
• Pemasangan yang aman: Mount the tweeters securely to prevent them from becoming loose during vehicle operation, which could cause distraction or injury.
• Hindari Kekuatan yang Berlebihan: While rated for 150W maximum, continuous overpowering can lead to damage. Use an amplifier that matches the tweeter's rated power.
• Check Car Horn Lines: Before installation, carefully check the car horn lines. If grounding or colliding, reconnect the lines before linking the tweeters to prevent damage.

3. Isi Paket

Verifikasi bahwa semua item ada dalam paket:

• 2 x DriSentri YH-A8 Silk Dome Tweeters
• Mounting Screws (if included with your specific package)

4. Fitur

• High Efficiency Dome Tweeter: Delivers clear and detailed high-frequency sound.
• Desain Kompak: Allows for flexible installation in various locations.
• Crossover bawaan: Simplifies installation by managing frequency distribution.
• Konstruksi Tahan Lama: Made from quality ABS and metal materials for longevity and corrosion resistance.
• Non-Magnetic Field: Safe for use near tapes and credit cards.
• Kompatibilitas Luas: Suitable for all 12V DC car audio systems.

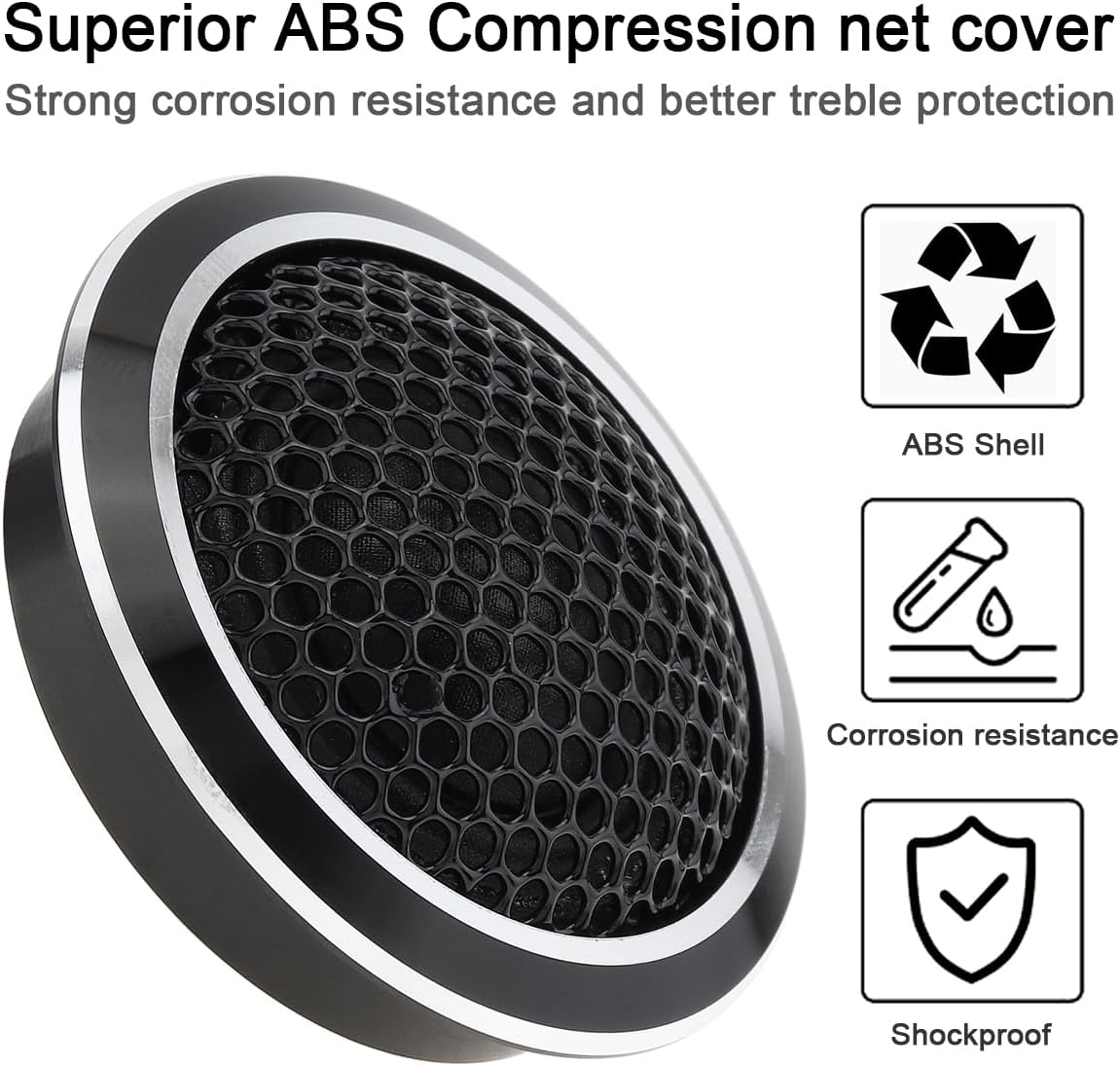

Image: Superior ABS Compression Net Cover. This image highlights the durable ABS material used for the tweeter's protective cover, emphasizing its corrosion resistance and shockproof properties.

5. Pengaturan dan Instalasi

The DriSentri YH-A8 tweeters are designed for straightforward installation. Follow these general steps:

1. Penempatan Rencana: Determine the optimal location for your tweeters. Common locations include dashboard corners, A-pillars, or door panels. Consider sound staging and ease of wiring.
2. Putuskan Daya: Sebelum memulai, lepaskan terminal negatif baterai kendaraan Anda untuk mencegah korsleting listrik.
3. Siapkan Lokasi Pemasangan: If flush mounting, carefully cut a hole of the appropriate size (refer to specifications for dimensions). Ensure there is enough depth behind the mounting surface. If surface mounting, use the provided brackets (if applicable) and screws.
4. Pengkabelan: Connect the tweeter wires to your car audio system. The tweeters have a built-in crossover, simplifying the wiring process. Ensure correct polarity (positive to positive, negative to negative) to avoid phase issues. The red wire typically indicates positive (+), and the black wire indicates negative (-).
5. Secure Tweeters: Mount the tweeters firmly using the provided screws or mounting hardware. Ensure they are stable and will not vibrate loose.
6. Sambungkan kembali daya: Once installation is complete and all connections are secure, reconnect the vehicle's battery negative terminal.
7. Sistem uji: Turn on your car audio system and test the tweeters at a low volume. Gradually increase the volume to ensure proper operation and sound quality.

Image: Car Interior Installation Points. This image illustrates various suitable locations for tweeter installation within a car's cabin, such as the A-pillar (A, B, C) and door panels (D, E).

6. Petunjuk Pengoperasian

DriSentri YH-A8 Silk Dome Tweeters are passive components designed to reproduce high frequencies within your car audio system. Once properly installed and connected to an amplifier or head unit, they operate automatically as part of your sound system.

• Sumber Audio: Play audio from your car's head unit or connected media device.
• Kontrol Volume: Adjust the volume through your car's head unit. Avoid excessively high volumes for prolonged periods to prevent damage to the tweeters and your hearing.
• Tone Adjustments: Use your head unit's equalizer or tone controls (bass, treble, balance, fader) to fine-tune the sound to your preference. The tweeters are specifically designed for clear treble reproduction.
• Integrasi Sistem: The built-in crossover ensures that only high-frequency signals are sent to the tweeters, optimizing their performance and protecting them from lower frequencies they are not designed to reproduce.

7. Pemeliharaan

The DriSentri YH-A8 tweeters require minimal maintenance to ensure long-lasting performance.

• Pembersihan: Gently wipe the tweeter grilles and surfaces with a soft, dry cloth to remove dust. Do not use harsh chemicals, abrasive cleaners, or excessive moisture.
• Inspeksi: Periodically check the mounting points and wiring connections to ensure they remain secure.
• Hindari Kerusakan Fisik: Protect the tweeters from direct impact or pressure, which can damage the delicate dome.
• Faktor Lingkungan: While designed for car environments, extreme temperatures or prolonged direct sunlight can affect performance and lifespan.

8. Penyelesaian masalah

If you experience issues with your DriSentri YH-A8 tweeters, refer to the following common problems and solutions:

9. Spesifikasi

Technical specifications for the DriSentri YH-A8 Silk Dome Tweeters:

Image: DriSentri YH-A8 Tweeter Dimensions and Specifications. This image provides a visual representation of the tweeter's physical dimensions and a summary of its key technical specifications.

10. Informasi Garansi

DriSentri products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact the retailer where the product was purchased. Keep your proof of purchase for warranty claims.

11. Dukungan Pelanggan

If you have any questions, require technical assistance, or encounter issues not covered in this manual, please contact DriSentri customer support or your authorized dealer. Please have your product model number (YH-A8 or CSA_10Y) and purchase information ready when contacting support.

For further assistance, you may visit the DriSentri brand page on Amazon: DriSentri Brand Store
