CHSTEK 8581A+Box Android 13 Car Radio Instruction Manual

Perkenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your CHSTEK 8581A+Box Android 13 Car Radio. This advanced multimedia system is designed to enhance your driving experience with features such as Wireless CarPlay, Wired Android Auto, GPS navigation, and more. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

This unit is specifically compatible with Porsche 911 (997) 2005-2012, Porsche Boxster (987) 2004-2012, and Porsche Cayman (987) 2005-2013 models. Please note that this model does not include a DVD/CD player.

Pengaturan dan Instalasi

Pemasangan yang tepat sangat penting untuk kinerja optimal radio mobil Anda. Disarankan agar pemasangan dilakukan oleh profesional yang berkualifikasi.

Catatan Kompatibilitas

• Model Kendaraan: Porsche 911 (997) 2005-2012, Porsche Boxster (987) 2004-2012, Porsche Cayman (987) 2005-2013.
• Sistem Audio: If your vehicle is equipped with a Harman Kardon or BOSE audio system, a separate fiber optic box is required to ensure sound output. Please contact support for assistance if your vehicle has one of these systems.
• Kontrol Roda Kemudi: Some high-grade versions of compatible vehicles (e.g., Cayman 2010-2012) may not fully support steering wheel control keys.

Instalasi Selesaiview

The unit is designed for a plug-and-play installation. Ensure your car's dashboard matches the provided images for proper fitment.

Gambar: Comparison of the car dashboard before and after the installation of the CHSTEK Android 13 Car Radio. The 'Before installation' image shows the original car radio, while the 'After installation' image displays the new unit seamlessly integrated into the dashboard, running a CarPlay interface.

Gambar: The CHSTEK 8581A+Box car radio unit shown with its included components, including a microphone and various wiring harnesses. This image highlights the necessary connections for installation, including the fiber optic box if required.

Petunjuk Pengoperasian

Wireless CarPlay and Wired Android Auto

The car radio supports both wireless Apple CarPlay and wired Android Auto, allowing seamless integration with your smartphone. Once connected, you can access navigation, make calls, send messages, and enjoy music directly from the car's display.

• Kontrol Suara: Activate Siri or Google Assistant for hands-free operation.
• Catatan: Samsung devices may not be fully supported for Android Auto.

Gambar: The car radio display showing the Wireless CarPlay interface. Features like online maps, Siri voice control, call functions, and music playback are visible, demonstrating the integrated smartphone experience.

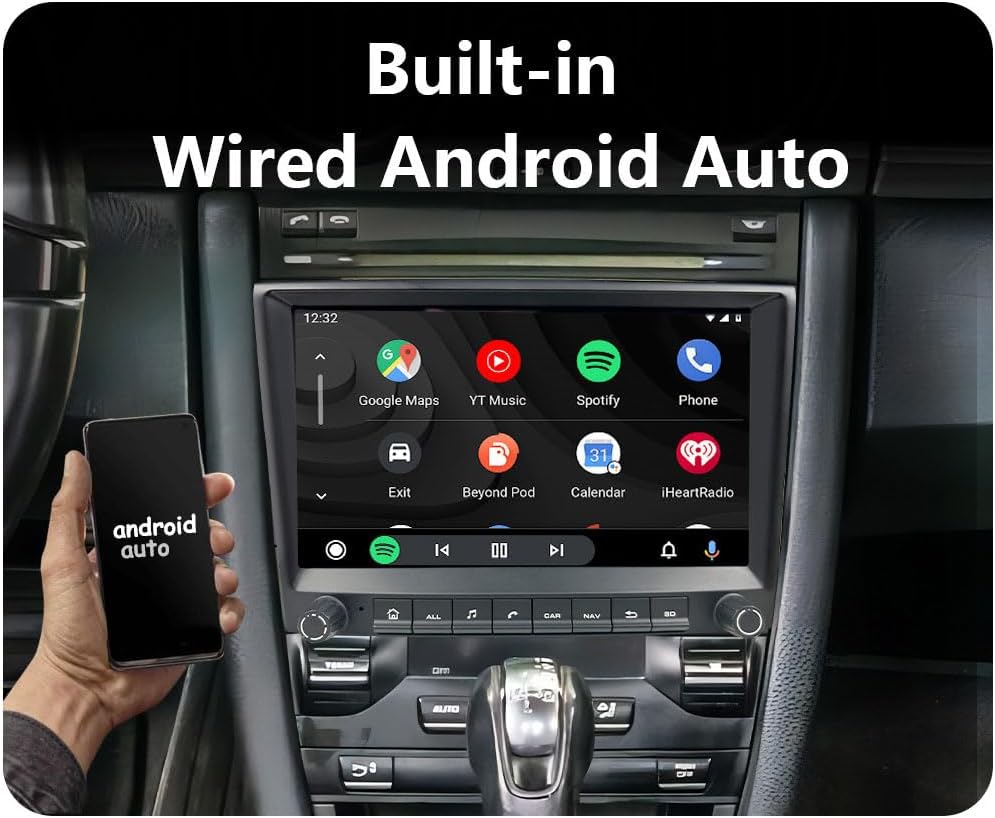

Gambar: The car radio display showing the Wired Android Auto interface. Various Android applications such as Google Maps, YouTube Music, Spotify, and Phone are displayed, indicating the functionality of mirroring an Android device.

Navigasi GPS & WiFi

The head unit features built-in GPS navigation and WiFi connectivity. You can use both online and offline maps. Download necessary offline maps for navigation without an internet connection. Real-time road conditions help optimize routes.

• Konektivitas 4G: Supports 4G with a dedicated SIM card slot and antenna for enhanced online functionality.
• Online Media: Connect to WiFi to stream movies, browse the web, dan mengakses konten online.

Gambar: The car radio unit highlighting its support for 4G and WiFi connectivity. An illustration shows the 4G SIM card slot and antenna, emphasizing the ease of replacing the SIM card without disassembling the unit.

Multiple UI Desktop Themes & Split Screen Function

Customize your user experience with multiple built-in UI desktop themes. The split-screen function allows you to run two applications simultaneously, such as navigation and music playback.

Gambar: The car radio display demonstrating the split-screen functionality. Examples include video playback alongside navigation, and navigation combined with a music player, showcasing the ability to multitask.

Bluetooth Hands-free & FM Radio

• Bluetooth dapat digunakan untuk berbagai keperluan, seperti: Supports hands-free calling, Bluetooth music streaming, and phonebook synchronization. An external microphone ensures clear communication.
• Radio FM: Features 18 preset stations (FM 87.50-108.0 MHz) with RDS function for stable frequency selection, especially for European users.
• Fungsi EQ: Provides sound equalization options for an optimized audio experience.

Gambar: The car radio display showing the FM radio interface. It illustrates the frequency selection (e.g., 90.50 MHz), preset stations, and other radio controls, highlighting the built-in RDS function.

Pemeliharaan

To ensure the longevity and optimal performance of your CHSTEK car radio, follow these maintenance guidelines:

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan layar dan bagian luar. Hindari pembersih atau pelarut abrasif.
• Suhu: Jangan biarkan unit tersebut terkena suhu ekstrem atau sinar matahari langsung dalam waktu lama.
• Pembaruan Perangkat Lunak: Periodically check for and install software updates to ensure the system runs efficiently and securely.

Penyelesaian Masalah

Bagian ini membahas masalah umum yang mungkin Anda temui dengan radio mobil Anda.

• Tidak ada suara: If your car has a Harman Kardon or BOSE audio system and there is no sound after installation, ensure you have installed the required fiber optic box. Without it, the system will not produce audio.
• Masalah Konektivitas (CarPlay/Android Auto): Ensure your phone's Bluetooth and Wi-Fi are enabled. For wired Android Auto, check the USB cable connection. If issues persist, try restarting both the car radio and your smartphone. Note that some Samsung devices may have compatibility limitations with Android Auto.
• Kehilangan Sinyal GPS: Pastikan antena GPS terpasang dengan benar dan memiliki visibilitas yang jelas. view of the sky. Check for any obstructions that might block the signal.
• Kontrol Setir Tidak Berfungsi: Verify that your vehicle model is fully compatible with the steering wheel control feature. Some specific high-grade versions may not support this functionality.

Spesifikasi

Jaminan

This CHSTEK car radio comes with a Garansi 1 tahun from the date of purchase. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects but does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.

Mendukung

For any questions, technical assistance, or troubleshooting beyond what is covered in this manual, please contact CHSTEK customer support. Online help is available to assist you with installation queries, compatibility concerns (e.g., fiber optic box requirements), and operational guidance.

Please refer to your purchase documentation for specific contact details or visit the official CHSTEK websitus untuk sumber daya dukungan.
