1. Pendahuluan
Thank you for choosing the KST A20-3813 V8 Digital Servo. This high-performance servo is designed for demanding remote-controlled applications, offering precise control, high torque, and rapid response. This manual provides essential information for the proper installation, operation, and maintenance of your servo to ensure optimal performance and longevity.
2. Informasi Keselamatan
Please read and understand all safety instructions before operating the servo. Failure to follow these instructions may result in damage to the product, property, or personal injury.
- Catu Daya: Pastikan voltase catu dayatage is within the specified range (8.4V). Exceeding this voltagdapat menyebabkan kerusakan permanen.
- Polaritas: Always observe correct polarity when connecting the servo to the receiver or power source. Incorrect connections can damage the servo and other electronic components.
- Kelebihan muatan: Avoid continuously stalling or overloading the servo, as this can lead to overheating and permanent damage to the motor and gears.
- Bagian yang bergerak: Keep fingers and loose objects clear of moving servo arms and gears during operation to prevent injury.
- Lingkungan: Do not expose the servo to water, excessive dust, or extreme temperatures. While robust, it is not fully waterproof unless specified.
- Anak-anak: This product is not a toy and is recommended for users 18 years and up due to its technical nature and potential for injury if misused.
3. Isi Paket
Verifikasi bahwa semua item ada dalam paket Anda:
- KST A20-3813 V8 Digital Servo
- Assorted Servo Horns/Arms
- Sekrup Pemasangan
- Instruksi Manual (dokumen ini)
4. Produk Lebihview
The KST A20-3813 V8 is a high-voltage digital servo featuring a robust metal gear train and a coreless motor, designed for precision and durability in demanding applications. Its compact design and high torque output make it suitable for various RC models.

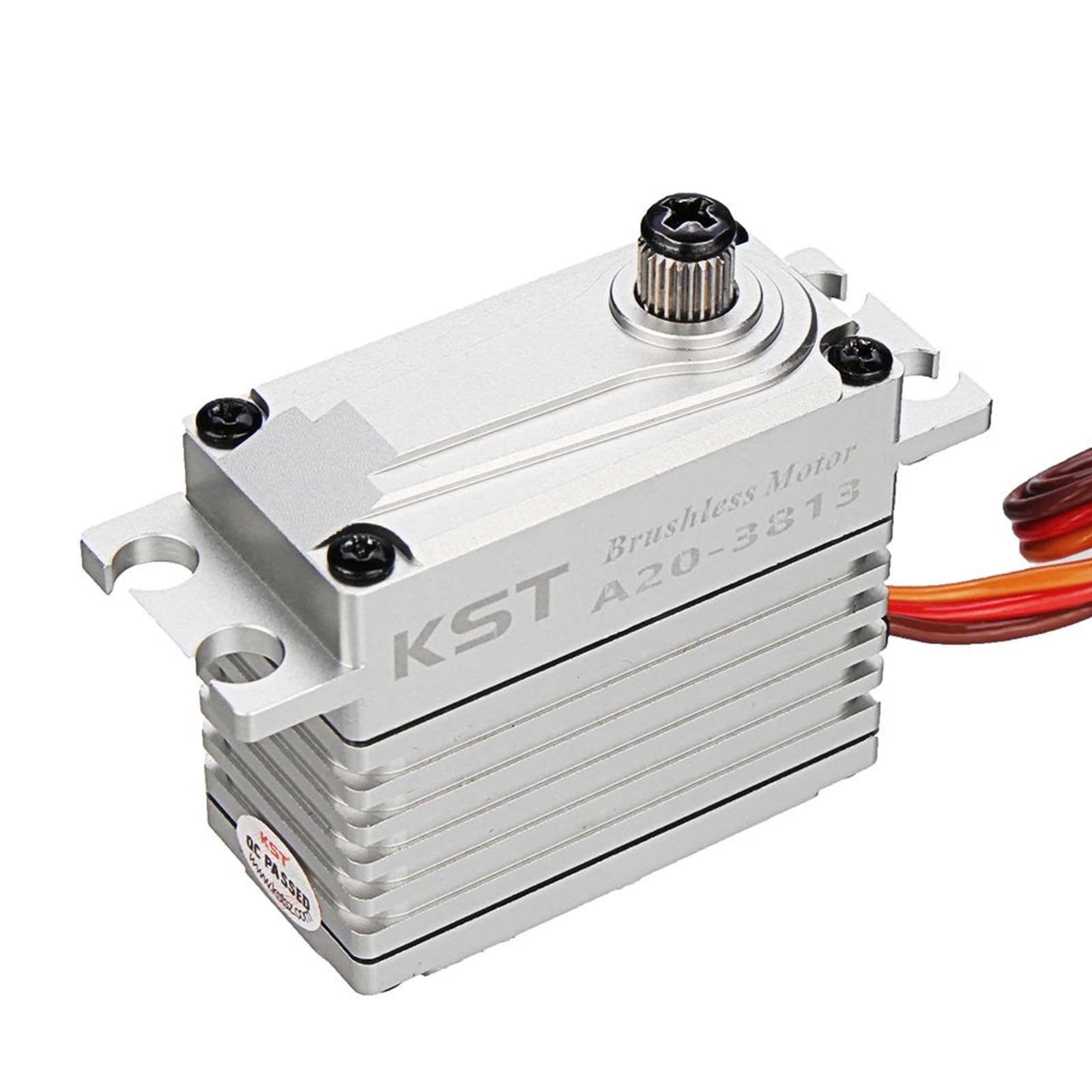

Gambar 1: KST A20-3813 V8 Digital Servo. This image shows the main body of the servo with its output shaft and mounting tabs. The servo features a black casing and a standard 3-wire connector.
5. Pengaturan dan Instalasi
Follow these steps for proper installation of your KST A20-3813 V8 Digital Servo:
- Pemasangan: Secure the servo in your model using the provided mounting screws. Ensure it is firmly attached to prevent movement during operation. Avoid overtightening the screws.
- Servo Horn Attachment: With the servo connected to your receiver and powered on (and the receiver/transmitter centered), attach the appropriate servo horn to the output shaft. Ensure the horn is centered before securing it with the small screw.
- Linkage Connection: Connect the servo horn to the control surface or mechanism using appropriate linkages. Ensure free movement and no binding throughout the full range of motion.
- Sambungan Listrik: Connect the servo's 3-wire cable to the corresponding channel on your receiver. The brown wire is typically ground (GND), the red wire is positive voltage (VCC), and the orange/yellow wire is the signal (SIG). Refer to your receiver's manual for specific channel assignments.
- Catu Daya: Ensure your power supply (e.g., battery, BEC) can provide sufficient current and voltage (8.4V) for the servo, especially under load.
6. Petunjuk Pengoperasian
Once installed, the servo operates based on the pulse-width modulation (PWM) signal received from your RC receiver.
- Pemusatan: Power on your transmitter and receiver. The servo should automatically move to its neutral (centered) position.
- Rentang Gerak: Move the corresponding stick or dial on your transmitter to verify the servo's full range of motion. Adjust end-points on your transmitter if necessary to prevent the servo from binding or over-traveling.
- Pengujian: Perform a thorough test of all control surfaces or mechanisms connected to the servo before actual use. Check for smooth operation and responsiveness.
- Jil.tage Pemantauan: For optimal performance and to prevent brownouts, monitor your system's voltage, especially when using high-voltage servos like the A20-3813 V8.
7. Pemeliharaan
Regular maintenance ensures the longevity and reliable performance of your servo.
- Pembersihan: Keep the servo clean and free from dirt, dust, and debris. Use a soft, dry brush or compressed air to remove contaminants.
- Pemeriksaan Gigi: Periodically inspect the servo gears for wear or damage. While metal gears are durable, extreme impacts or continuous overloading can cause wear.
- Pelumasan: The gears are pre-lubricated from the factory. If disassembly is required for inspection, apply a small amount of high-quality plastic-safe grease to the gears before reassembly.
- Pengkabelan: Check all wiring for fraying, cuts, or loose connections. Secure any loose wires to prevent interference or disconnection during operation.
- Pemasangan: Ensure mounting screws remain tight. Vibration can cause screws to loosen over time.
8. Penyelesaian masalah
If you encounter issues with your KST A20-3813 V8 Digital Servo, refer to the following common problems and solutions:
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Servo tidak merespons | No power, incorrect wiring, faulty receiver channel, damaged servo. | Periksa sambungan daya dan tegangan baterai.tage. Verify wiring polarity. Test with a different receiver channel or another servo. |
| Servo jitters or twitches | Electrical interference, low voltage, loose connections, worn gears. | Ensure proper shielding and distance from other electronics. Check battery voltage. Secure all connections. Inspect gears for wear. |
| Servo makes noise but doesn't move | Mechanical binding, stripped gears, motor failure. | Check for obstructions in the linkage. Inspect gears for damage. If gears are fine, the motor may be faulty. |
| Servo is weak or slow | Volume rendahtage, excessive load, worn motor/gears. | Ensure adequate power supply. Reduce mechanical load if possible. Inspect internal components for wear. |
9. Spesifikasi
Technical specifications for the KST A20-3813 V8 Digital Servo:
- Volume Operasitage: 8.4V
- Kecepatan: 0.12 seconds/60° (at 8.4V)
- Torsi: 43 kg.cm (597 oz.in) (at 8.4V)
- Tipe Roda Gigi: Logam
- Tipe Motor: Tanpa biji
- Ukuran: 40.5 x 20 x 38 mm (kurang-lebih)
- Berat: 72g (kurang lebih)
10. Garansi dan Dukungan
For warranty information, technical support, or service inquiries, please contact Buddy RC, the manufacturer, or your authorized dealer. Keep your purchase receipt as proof of purchase. Do not attempt to repair the servo yourself, as this may void the warranty.
