TEKCOPLUS TK504PLUS 7-in-1 Wireless WiFi Water Quality Monitor

1. Produk Lebihview

The TEKCOPLUS TK504PLUS is a 7-in-1 Wireless WiFi Water Quality Monitor designed for real-time monitoring of various water parameters in freshwater and saltwater aquariums, as well as ponds. This smart device provides continuous data on water conditions and sends alerts to your smartphone, ensuring optimal aquatic health.

Fitur Utama:

• Pemantauan 7-in-1: Measures pH, Temperature, Total Dissolved Solids (TDS), Electrical Conductivity (EC), Salinity, Specific Gravity (SG), and Oxidation-Reduction Potential (ORP).
• Konektivitas Nirkabel: Connects via 2.4GHz WiFi to the Tuya Smart App for remote monitoring and data tracking.
• Peringatan Waktu Nyata: Receive instant mobile notifications when water conditions fall outside set parameters.
• Replaceable Platinum Probe: Features a durable, replaceable probe with automatic temperature compensation (ATC).
• Beberapa Pilihan Instalasi: Probe can be installed using a floater, wall clip, or suction cups.
• Tampilan Ramah Pengguna: Easy-to-read color LCD screen shows real-time metrics.

Image: The TEKCOPLUS TK504PLUS 7-in-1 Water Quality Monitor displaying various parameters, shown next to an aquarium with its probe submerged.

Produk Selesaiview Rekaman video:

2. Panduan Pengaturan

2.1 Membongkar dan Komponen

Sebelum memulai, pastikan semua komponen ada dalam paket:

• 1 x 7-in-1 Monitor Unit
• 1 x Electrode (Probe)
• 1 x Cangkir Hisap
• 2 x Probe Floater Rings
• 1 x Klip Dinding
• 1 x Perforated Cover
• 6 x pH Calibration Powder (pH 4.01, pH 6.86, pH 9.18)
• 2 x 3M Adhesive Stickers
• 1 x Kabel Daya USB
• 2 x Power Plugs
• Manual Instruksi Bahasa Inggris

Image: A visual representation of all items included in the product package, such as the monitor, probe, various mounting accessories, calibration powders, and cables.

2.2 Instalasi Probe

The probe offers three installation methods to suit different aquarium setups:

1. Wall Clip: Attach the probe to the aquarium wall using the provided clip.
2. Wall Suction: Use the suction cups to secure the probe to the inside of the aquarium glass.
3. Floating Sponge: Insert the probe into the floating sponge to allow it to float on the water surface, adjusting automatically with water level changes.

Important Note: Do not submerge the entire probe in water. Submerge the probe only halfway into the water. Excessive water pressure can damage it and shorten its lifespan. Ensure the hollow probe cap is replaced before use.

Image: Illustrations demonstrating the three probe installation methods: using a wall clip, suction cups, or a floating sponge.

Image: A diagram illustrating the correct way to use the probe, emphasizing that it should only be submerged halfway into the water.

2.3 Pemasangan Monitor

To install the main monitor unit:

1. Lepaskan lapisan pelindung dari stiker perekat.
2. Attach one adhesive sticker to the back of the device bracket.
3. Attach the other adhesive sticker to the wall bracket.
4. Align the device bracket with the wall bracket and slide down to secure the monitor.

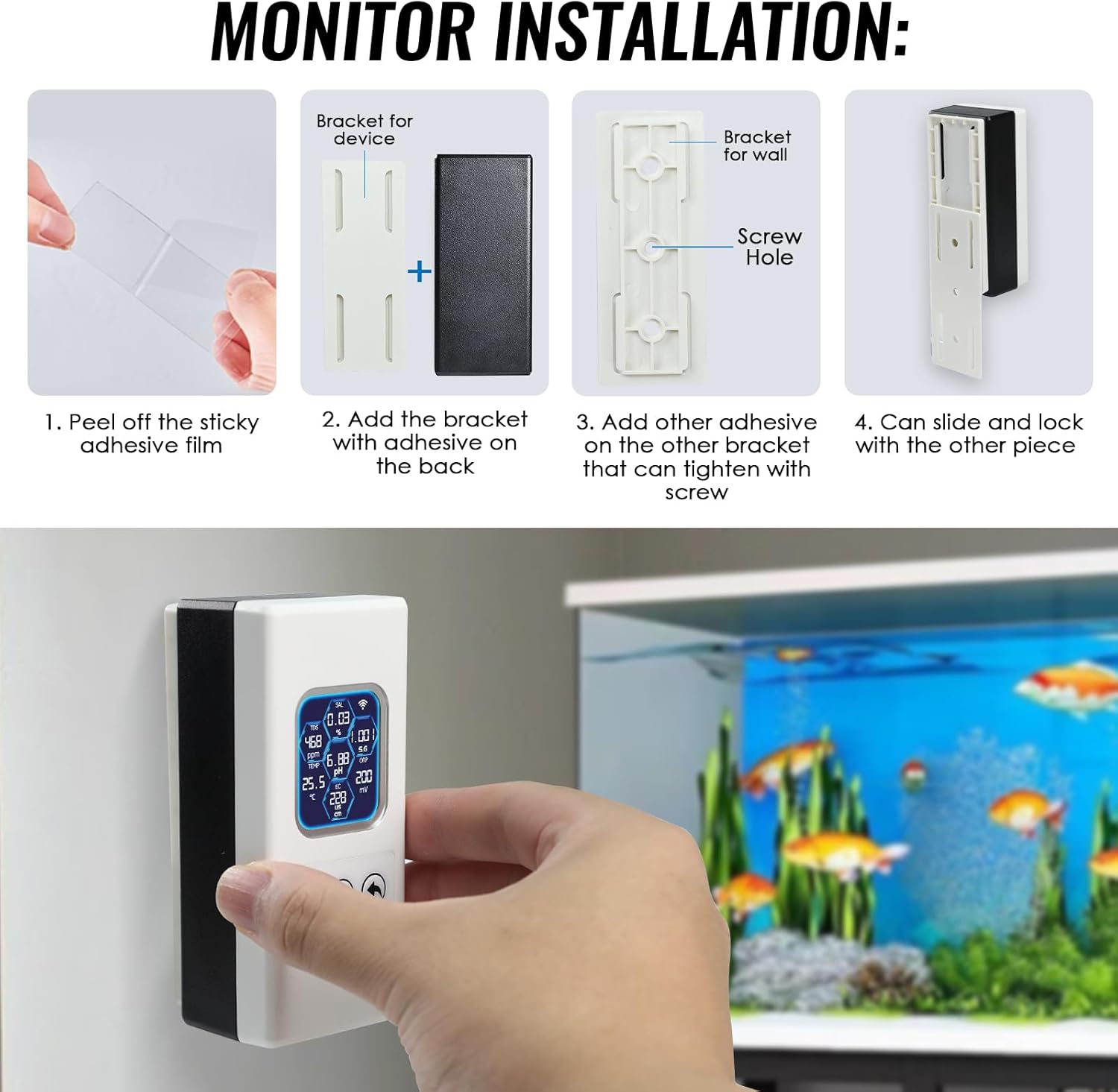

Image: A step-by-step visual guide on how to install the main monitor unit using the provided adhesive brackets.

2.4 Menghidupkan dan Koneksi Awal

1. Plug the probe into the main monitor unit. The '!' mark on the screen should disappear if the probe is successfully connected.
2. Plug the USB cable and adapter into the device to turn it on.

2.5 Koneksi WiFi dan Aplikasi

The monitor connects to your smartphone via the Tuya Smart App for remote monitoring and settings adjustments.

1. Unduh Aplikasi Pintar Tuya from Google Playstore (Android) or App Store (iOS).
2. Login or register for an account in the Tuya app.
3. On the monitor, press and hold the center button (recycle icon) for 3 seconds to activate WiFi pairing mode. The WiFi icon on the monitor's screen will flash.
4. In the Tuya app, press the "+" icon to add a new device. The app should automatically detect the "Water monitor".
5. Follow the on-screen instructions in the app to connect the device to your 2.4GHz WiFi network.

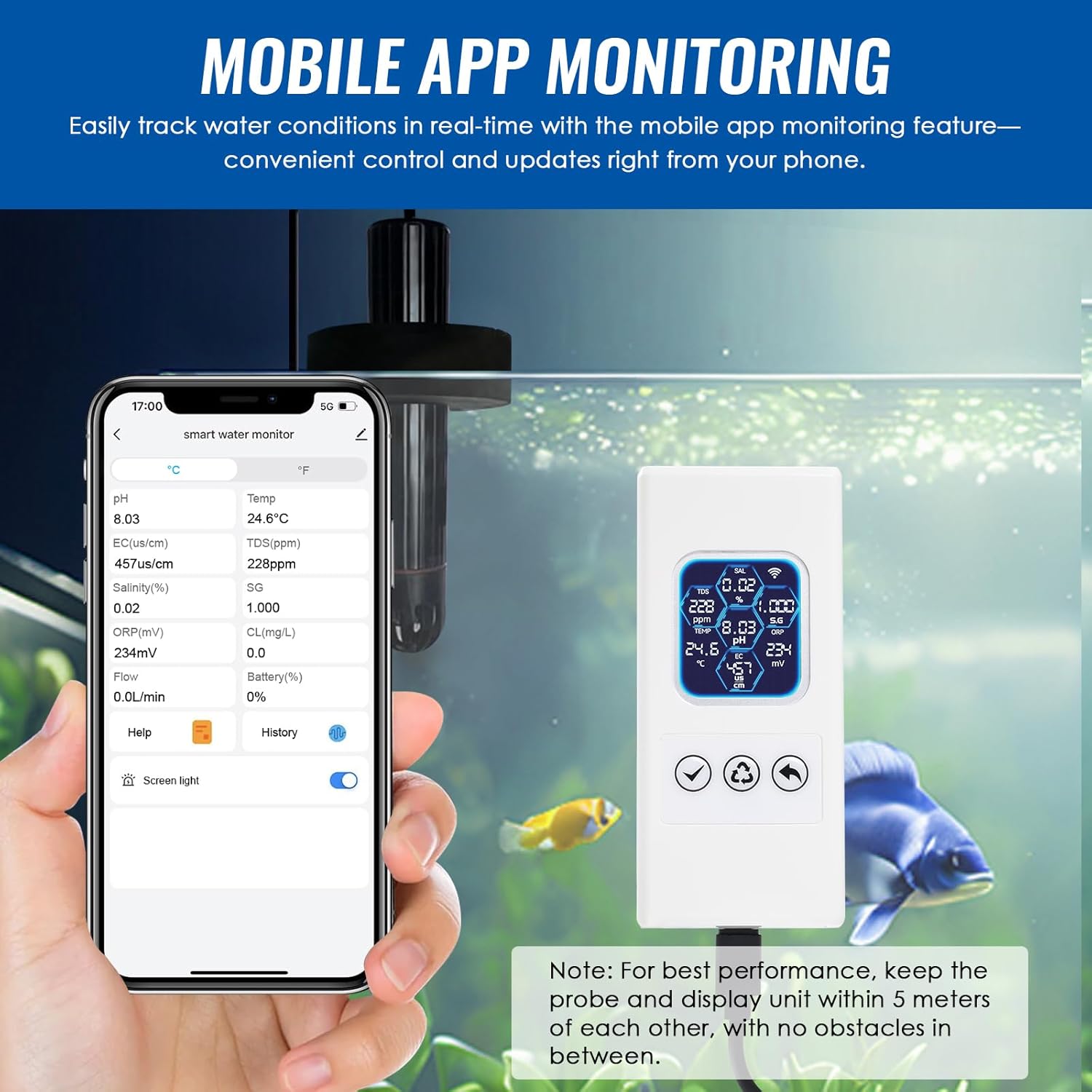

Image: A smartphone displaying the Tuya Smart App interface, showing real-time water quality parameters from the connected monitor.

Video Penyiapan:

Important Wireless Range Note: The main unit and probe should be within a 5-meter (16.4 ft) distance for optimal wireless communication.

Image: A diagram illustrating the recommended wireless range of up to 5 meters (16.4 ft) between the main monitor unit and the probe.

3. Petunjuk Pengoperasian

3.1 Pemantauan Waktu Nyata

Once connected, the monitor's color LCD screen will display real-time readings for all 7 parameters. You can also view these readings and historical data through the Tuya Smart App on your smartphone.

Gambar: Detail view of the monitor and probe, with labels indicating the Color LCD Screen, LCD Off/Confirm button, Setting/Next button, Back button, USB Port, Probe Sensor, Probe, and Probe Cap.

3.2 Detail Parameter

• pH-nya: Measures the acidity or alkalinity of the water.
• Suhu: Displays water temperature in Celsius or Fahrenheit.
• TDS (Total Padatan Terlarut): Indicates the concentration of dissolved substances in the water.
• EC (Konduktivitas Listrik): Measures the water's ability to conduct electricity, related to dissolved salts.
• Salinitas: Measures the salt content of the water.
• SG (Specific Gravity): Indicates the density of the water relative to pure water, commonly used for saltwater.
• ORP (Potensial Oksidasi-Reduksi): Measures the water's ability to break down contaminants.

3.3 Temperature Unit Switching

You can switch between Celsius (°C) and Fahrenheit (°F) temperature units directly from the Tuya Smart App settings.

3.4 Peringatan dan Notifikasi

The Tuya Smart App allows you to set custom alert ranges for each parameter. When a parameter goes out of range, you will receive instant notifications on your smartphone. Ensure notifications are enabled in the app's settings to receive these alerts.

3.5 Pencatatan Data

The device automatically records real-time data for all parameters. This historical data can be viewed by day and month within the Tuya Smart App, allowing you to track trends and changes in your water quality over time.

4. Pemeliharaan

4.1 Probe Care and Replacement

The platinum probe is designed for durability but requires regular cleaning and eventual replacement to maintain accuracy. Clean the probe gently with distilled water and a soft cloth. If readings become inconsistent or inaccurate after cleaning and calibration, the probe may need to be replaced.

4.2 Kalibrasi

The monitor supports 3-point pH calibration. Use the provided pH calibration powders (pH 4.01, pH 6.86, pH 9.18) according to the instructions in the Tuya Smart App to ensure accurate pH readings. Regular calibration is essential for precise measurements.

5. Penyelesaian masalah

If you encounter issues with your TEKCOPLUS TK504PLUS monitor, consider the following:

• Tidak Ada Daya: Ensure the USB power cable is securely connected to both the monitor and a working power source.
• No Readings/Incorrect Readings: Verify the probe is correctly plugged into the main unit and submerged halfway in the water. Clean the probe and perform a pH calibration if necessary.
• Masalah Koneksi WiFi: Ensure your WiFi network is 2.4GHz. Restart the monitor and your router. Re-attempt the WiFi pairing process through the Tuya Smart App. Check that the monitor is within 5 meters of the probe.
• Aplikasi Tidak Menerima Notifikasi: Check the notification settings within the Tuya Smart App and your smartphone's operating system settings to ensure alerts are enabled.

For further assistance, please refer to the official TEKCOPLUS support channels.

6. Spesifikasi

Image: A table detailing the measurement ranges for pH, Temperature, TDS, EC, Salinity, Specific Gravity, and ORP.

Spesifikasi Produk Umum:

• Dimensi Produk: 7.4x4.5x2 inci
• Berat Barang: 4.6 ons
• Nomor Model Barang: TK504PLUS
• Pabrikan: Tekcoplus Lt

7. Garansi dan Dukungan

Specific warranty information and detailed support contacts are not provided in the product data. Please refer to the product packaging or the official TEKCOPLUS websitus untuk detail garansi dan informasi dukungan pelanggan.
