chartustriable CHASSFZ801-A

chartustriable Extendable Rectangular Dining Table

Model: CHASSFZ801-A

Brand: chartustriable

Perkenalan

This manual provides detailed instructions for the assembly, operation, maintenance, and care of your new chartustriable Extendable Rectangular Dining Table, Model CHASSFZ801-A. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Informasi Keselamatan

  • Batas Berat: Do not load more than 500 pounds on the table surface. Exceeding this limit may cause damage to the table or result in injury.
  • Ensure all screws and fasteners are securely tightened before use. Periodically check and retighten as necessary.
  • Jauhkan komponen-komponen kecil dari jangkauan anak-anak selama perakitan untuk mencegah bahaya tersedak.

Isi Paket

Sebelum perakitan, pastikan semua komponen yang tercantum di bawah ini ada dan tidak rusak. Jika ada komponen yang hilang atau rusak, silakan hubungi dukungan pelanggan.

  • Tabletop (Engineered Wood)
  • Metal Legs / Base Frame
  • Extension Leaves (3 pieces)
  • Panduan Perakitan
  • Installation Tool (Hex Key/Allen Wrench)
  • Paket Perlengkapan (sekrup, baut, ring, dll.)

Pengaturan dan Perakitan

Assembly typically requires two people and approximately 2.5 hours. A screwdriver is recommended in addition to the included installation tool. Follow the detailed assembly guide provided in the package. For visual assistance, assembly videos may also be available online.

Dimensions and Components Overview

Diagram showing the dimensions of the dining table in both compact (59.1 inches) and extended (78.7 inches) lengths, with a width of 35.4 inches and height of 29.9 inches. Also shows seating arrangements for 6 and 8 people.
Figure 1: Product Dimensions and Seating Capacity. This diagram illustrates the table's length in both its compact (59.1 inches) and extended (78.7 inches) configurations, along with its fixed width (35.4 inches) and height (29.9 inches). It also shows suggested seating for 6 people when compact and 8 people when extended.
Close-up images detailing the table's desktop surface, X-shaped metal support legs, and the hidden storage box for cutlery.
Figure 2: Key Table Components. This image highlights the unique wood grain, scratch-resistant desktop surface, the stable X-shaped metal support structure of the legs, and the convenient hidden storage box located beneath the tabletop.

Petunjuk Pengoperasian

Extending and Retracting the Table

The dining table features an extendable design with removable leaves, allowing it to adjust from a compact size suitable for 6 people to an extended size for 8 people. The extension leaves are stored conveniently within the table structure.

  1. To extend, gently pull the two halves of the tabletop apart.
  2. Retrieve the extension leaves from the hidden compartment.
  3. Insert the leaves into the gap created, ensuring they are properly aligned and secured.
  4. Push the tabletop halves back together until they meet the inserted leaves and lock into place.
  5. To retract, reverse the process: pull the tabletop halves apart, remove the leaves, store them in the compartment, and push the tabletop halves back together.

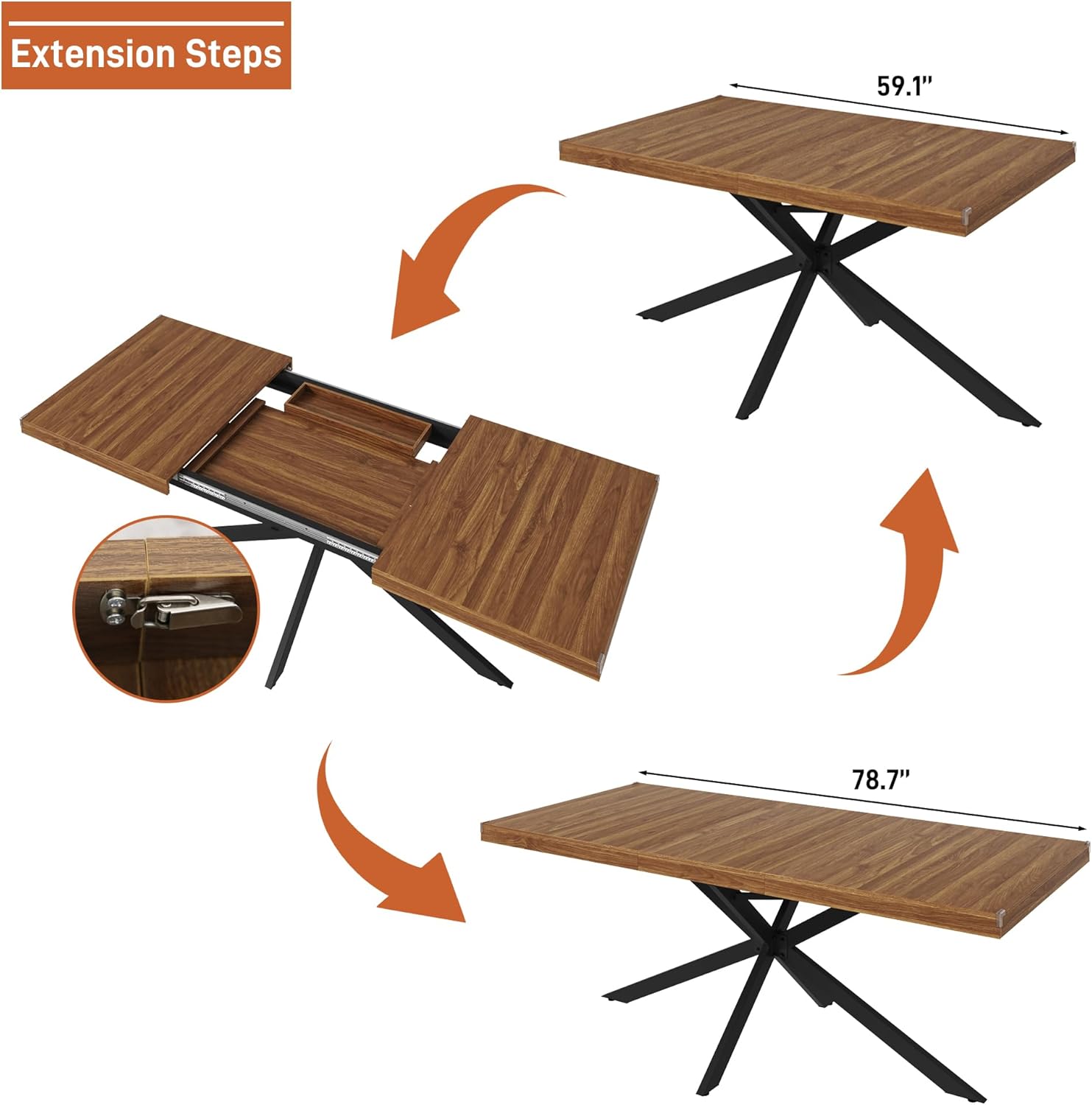

Diagram illustrating the steps to extend the dining table, showing the tabletop sliding apart, the leaf being inserted, and the table fully extended.
Figure 3: Table Extension Steps. This diagram visually guides you through the process of extending the table by separating the main tabletop sections, inserting the extension leaf, and then closing the sections to form a larger table.
Comparison image showing the dining table before extension, accommodating 6 people, and after extension, accommodating 8 people.
Figure 4: Seating Capacity Comparison. This image demonstrates the table's versatility, showing its capacity for 6 people in the compact configuration and 8 people when fully extended.

Using the Hidden Storage Compartment

The table includes a hidden storage compartment located under the tabletop, ideal for storing small items such as cutlery, placemats, or board games.

Image showing the hidden storage compartment under the dining table tabletop, filled with cutlery.
Figure 5: Hidden Storage Compartment. This image displays the integrated storage box beneath the tabletop, designed for convenient storage of dining accessories or other small items.

Pemeliharaan

Perawatan yang tepat akan memastikan umur panjang dan penampilan meja makan Anda tetap terjaga.

  • Pembersihan: For general cleaning, wipe the tabletop and legs with a damp cloth. Immediately follow with a dry cloth to remove any moisture.
  • Tumpahan: The tabletop is waterproof. Wipe up spills promptly to prevent staining or damage.
  • Hindari Bahan Kimia Keras: Jangan gunakan pembersih abrasif, bahan kimia kuat, atau pelarut, karena dapat merusak lapisan permukaannya.
  • Perlindungan Panas: Always use coasters or placemats under hot dishes to protect the tabletop surface.
  • Pemeriksaan Stabilitas: Periodically check all bolts and screws to ensure they remain tight. Retighten as needed to maintain stability.

Penyelesaian Masalah

If you encounter issues with your dining table, consider the following common solutions:

  • Goyangan Meja: Ensure all leg bolts are securely tightened. The table also features adjustable feet to ensure stability on uneven ground. Adjust each foot until the table is level.
  • Tongkat Mekanisme Ekstensi: Check for any obstructions in the sliding mechanism. Ensure the leaves are inserted correctly and aligned before attempting to close the table halves.
  • Kesulitan Merakit: Refer to the assembly guide and ensure all steps are followed precisely. Verify that all parts are correctly oriented. If issues persist, contact customer support.

Spesifikasi

FiturDetil
Merekdapat dibuktikan
Nama ModelCHASSFZ801-A
Dimensi Produk (Kompak)35.4"Panjang x 59.1"Lebar x 29.9"T
Dimensi Produk (Diperpanjang)35.4"Panjang x 78.7"Lebar x 29.9"T
Berat Barang94.8 pon
Rekomendasi Berat Maksimum500 pon
WarnaKacang kenari
BahanKayu Rekayasa, Logam
Kapasitas Tempat Duduk6-8 Orang
Jumlah Daun3
Ketebalan Meja2 inci
Tahan NodaYa
Jumlah Orang yang Direkomendasikan untuk Pertemuan2
Alat yang Direkomendasikan untuk PerakitanScrew Driver (in addition to included tool)
Penggunaan Dalam/Luar RuanganDalam

Informasi Garansi

This chartustriable dining table comes with a Garansi Seumur Hidup. For details regarding warranty coverage and claims, please refer to the specific terms provided with your purchase or contact customer support.

Dukungan Pelanggan

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact chartustriable customer service. Our team is available to provide support and ensure your satisfaction.

Please visit the official chartustriable store on Amazon for further information or to contact support: chartustriable Store
