SANODESK 120x60 Electric Standing Desk User Manual

1. Pendahuluan

Welcome to your SANODESK Electric Standing Desk. This desk is designed to provide a flexible and ergonomic workspace, allowing you to easily switch between sitting and standing positions throughout your day. Its key features include electric height adjustment, memory presets for convenience, and an anti-collision system for safety. This manual will guide you through the assembly, operation, and maintenance of your new desk.

Figure 1: SANODESK 120x60 Electric Standing Desk in a typical office setup.

2. Informasi Keselamatan

Please read and understand all safety instructions before assembling or operating your desk to prevent injury or damage.

• Jauhkan anak-anak dan hewan peliharaan dari meja selama pengoperasian.
• Ensure all cables are properly routed to avoid pinching, tripping hazards, or damage.
• Do not overload the desk. The maximum load capacity is 60 kg.
• Only use the power adapter provided with your desk.
• Do not attempt to disassemble or repair the motor or control system yourself. Contact SANODESK customer support for assistance.
• Pastikan tidak ada penghalang di atas atau di bawah meja saat menyesuaikan ketinggiannya.

3. Isi Paket

Sebelum memulai perakitan, verifikasi bahwa semua komponen ada dan tidak rusak:

• Desk Frame Components (legs, crossbar)
• Desktop Panel (120 x 60 cm, White)
• Panel Kontrol dengan Tampilan LED
• Adaptor Daya dan Kabel
• Perlengkapan Perakitan (sekrup, alat)
• Pengait Aksesori
• Panduan Pengguna

4. Pengaturan dan Perakitan

Assembly is straightforward and can typically be completed by one person. Follow these general steps:

1. Bongkar Komponen: Keluarkan semua komponen dari kemasan dengan hati-hati. Letakkan di permukaan yang lembut dan bersih untuk mencegah goresan.
2. Merakit Bingkai: Attach the desk legs to the crossbar using the provided screws. Ensure all connections are secure and tightened.
3. Pasang Desktop: Carefully place the desktop panel onto the assembled frame. Align the pre-drilled holes and secure the desktop with the appropriate screws.
4. Install Control Panel and Accessories: Mount the control panel to the underside of the desktop in a convenient location. Attach the accessory hook as desired.
5. Hubungkan Daya: Connect the power cable to the control box and then plug it into a standard power outlet.

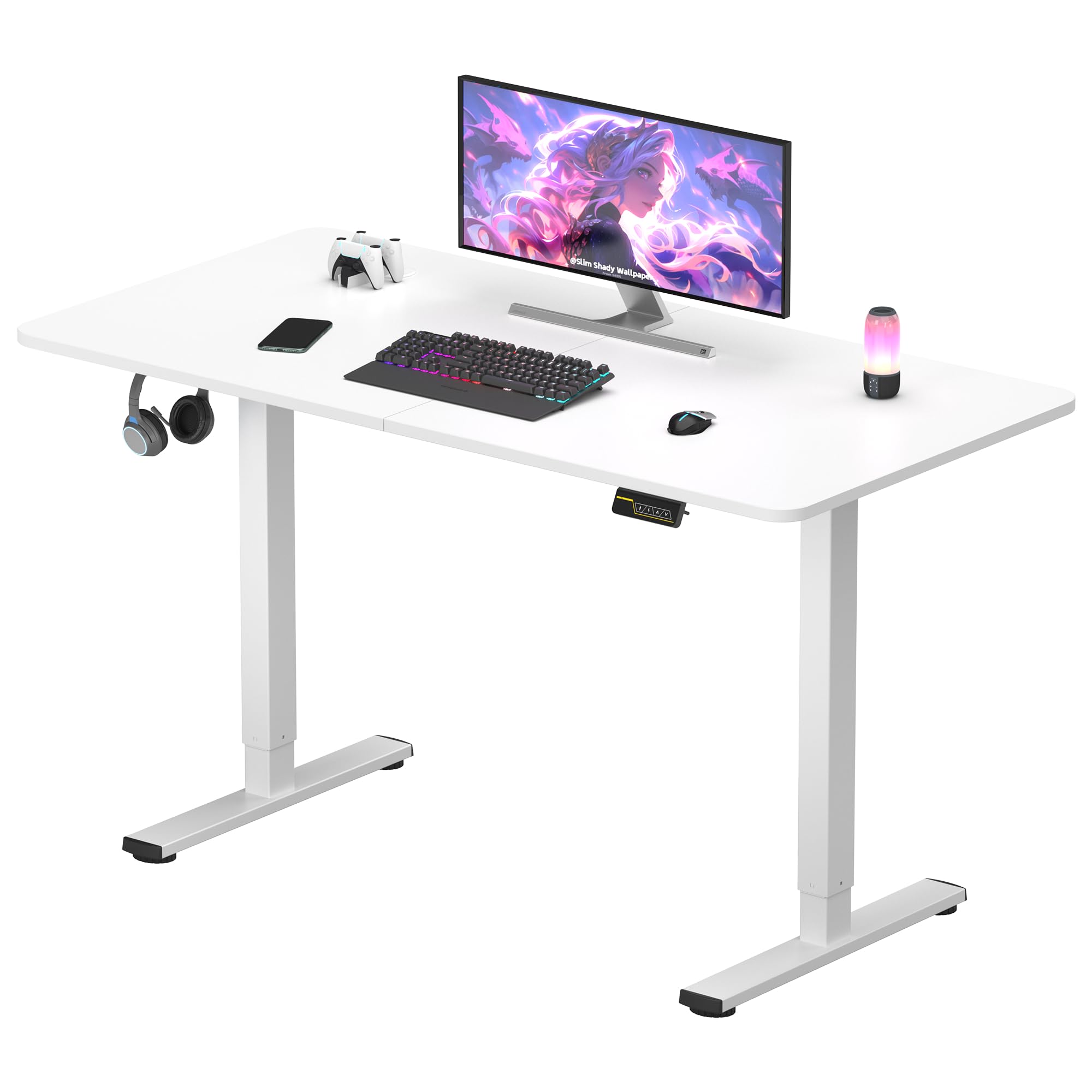

Gambar 2: Mantanample of a fully assembled SANODESK Electric Standing Desk with accessories, ready for use.

5. Petunjuk Pengoperasian

5.1. Penyesuaian Ketinggian

Use the control panel to adjust the desk height:

• Press and hold the "Up" (∧) button to raise the desk.
• Press and hold the "Down" (∨) button to lower the desk.
• The LED display will show the current height in centimeters.
• The adjustable height range is from 73cm sampai 118cm.

5.2. Preset Memori

Save your preferred sitting and standing heights for quick adjustments:

• To save a height: Adjust the desk to your desired height. Press the "M" button, then press a number button (e.g., "1" or "2") to save the current height to that preset.
• To recall a saved height: Simply press the corresponding number button (e.g., "1" or "2"). The desk will automatically move to the saved height.

5.3. Sistem Anti-Tabrakan

Your SANODESK is equipped with an anti-collision system. If the desk encounters an obstacle during height adjustment, it will automatically stop and reverse slightly to prevent damage to the desk or objects.

Gambar 3: Tampilan jarak dekat view of the SANODESK control panel, featuring an LED display for height, Up/Down buttons, and memory function buttons.

Figure 4: Illustration demonstrating the adjustable height range of the SANODESK Electric Standing Desk, from 72 cm to 117 cm.

6. Pemeliharaan

Regular maintenance ensures the longevity and optimal performance of your desk:

• Pembersihan: Usap permukaan meja dan bingkai dengan kain lembut.amp cloth. Avoid using abrasive cleaners or harsh chemicals that could damage the surface.
• Manajemen Kabel: Periodically check and organize all cables to prevent tangles, pinching, or damage.
• Pemeriksaan Pengikat: Ensure all screws and fasteners remain tight. Retighten if necessary to maintain stability.

7. Penyelesaian masalah

If you encounter any issues with your SANODESK, refer to the following common troubleshooting steps:

• Meja Tidak Bergerak:
  • Check if the power cable is securely connected to both the desk's control box and a functional power outlet.
  • Pastikan stopkontak berfungsi dengan baik dengan mengujinya menggunakan perangkat lain.
  • If an error code appears on the LED display, try unplugging the desk for 10 seconds and plugging it back in to reset.
• Pergerakan Tidak Merata:
  • Ensure the desk is not overloaded and that weight is evenly distributed across the desktop.
  • Check for any obstructions under or around the desk legs.
• Anti-Collision System Triggering Frequently:
  • Verify that there are no objects in the desk's path during height adjustment.
  • Ensure the desk is not placed too close to a wall or other furniture.

If these steps do not resolve the issue, please contact SANODESK customer support for further assistance.

8. Spesifikasi

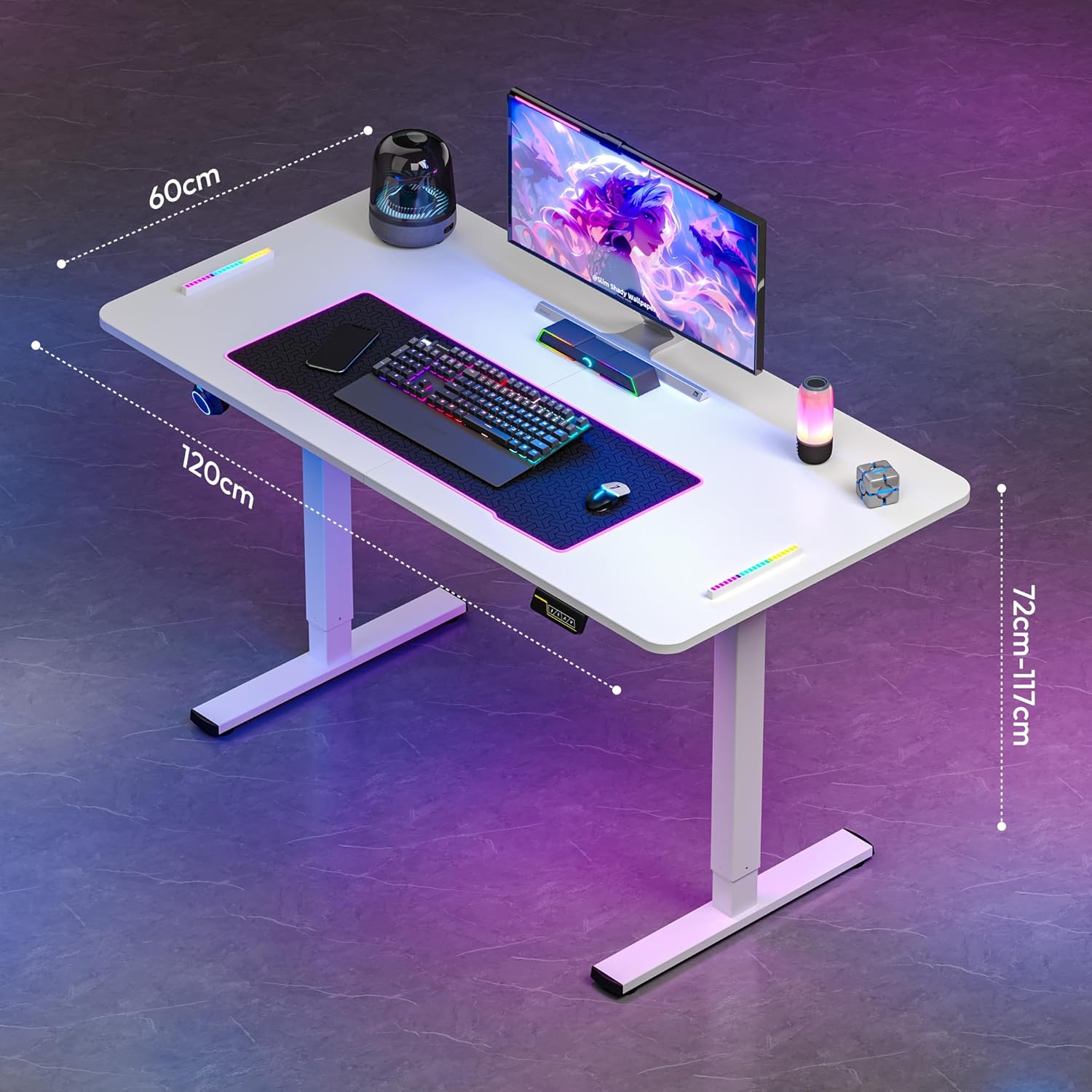

Gambar 5: Sebuah overhead view of the SANODESK Electric Standing Desk, highlighting its dimensions of 120 cm length, 60 cm width, and adjustable height.

Figure 6: Image illustrating the robust design of the SANODESK Electric Standing Desk, capable of supporting a maximum weight of 60 kg.

Figure 7: Visual representation emphasizing the quiet operation of the SANODESK Electric Standing Desk, with a noise level below 50 decibels.

9. Garansi dan Dukungan

For any questions, technical assistance, or warranty inquiries, please do not hesitate to contact SANODESK customer support. We are committed to responding to your queries within 24 hours and providing satisfactory service solutions.

Silakan merujuk pada dokumentasi pembelian Anda untuk syarat dan ketentuan garansi tertentu.
